For One 1MHz-6GHz SDR Communication Experimental Platform with Case A

For One 1MHz-6GHz SDR Communication Experimental Platform with Case A Description

Can transmit signals and record received signals.
Can scan and store signals.
Can receive 4GLTE signals.
Can be used as a simple spectrum analyzer.
Compatible with for , for , for Linux, for , for Android, and for old mobile phone systems.

Parameters Frequency:1Mhz-6Ghz
Bandwidth:20Mhz
Accuracy:8bitADC/
Rate:20Mbps
Maximum transmit power:10dBm
Maximum receive power:-5dBm (Note: Exceeding this value burn the board)
64QAM transmit EVM:1.5%
Complex sampling bandwidth:20Mhz with circuit protection
MAX2837 chip
The product appearance and printed words depending on the batch, but this does not affect use.
Type:A
Colour:Black
Material:PCB+Acrylic

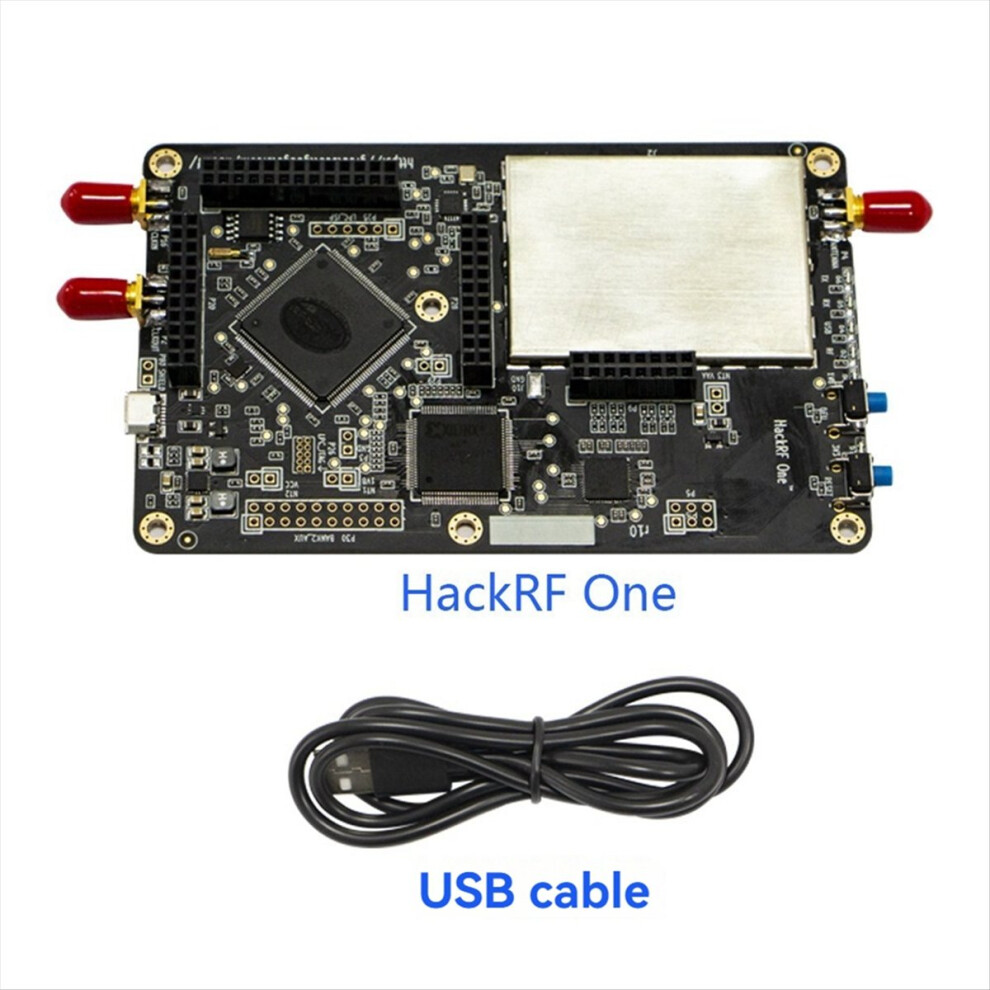

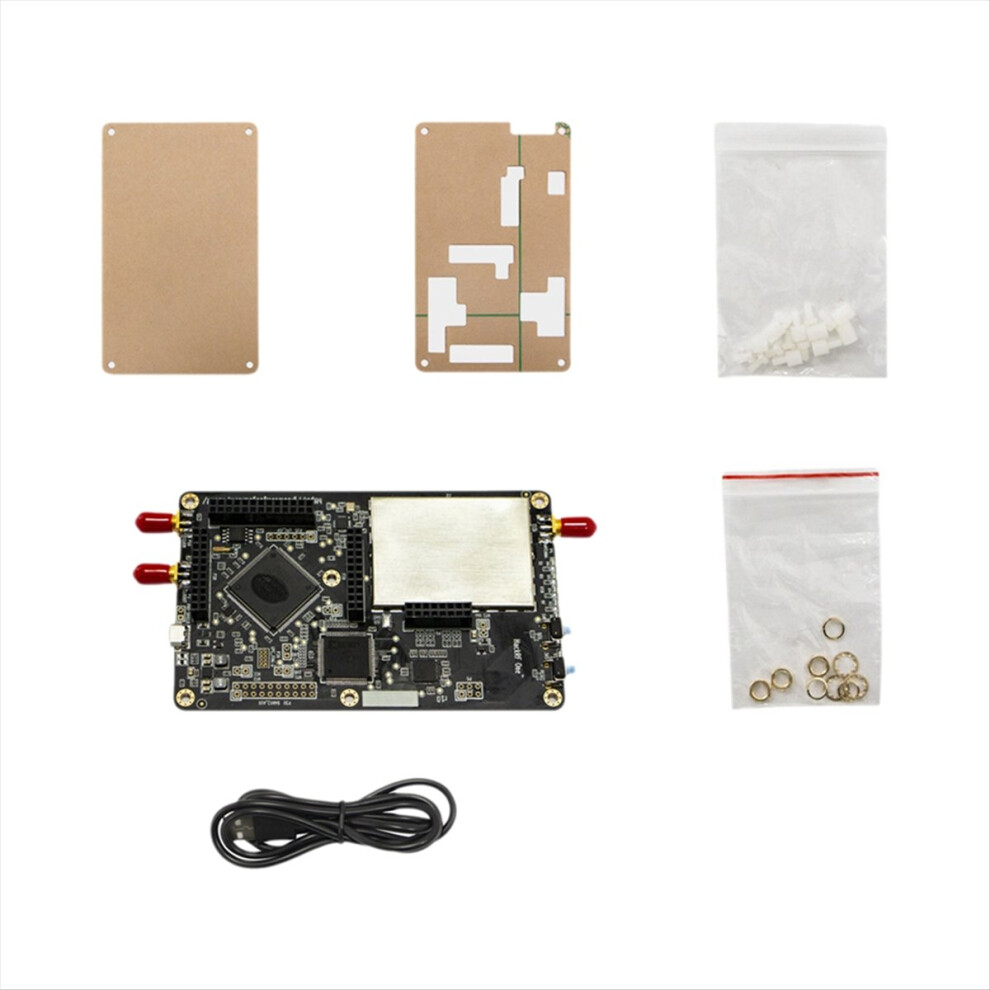

Package Contents:
1 * Upper Cover
1 * Lower Cover
1 * Motherboard
1 * USB Cable
1 * Screw Pack
1 * Screw Gasket Pack

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
