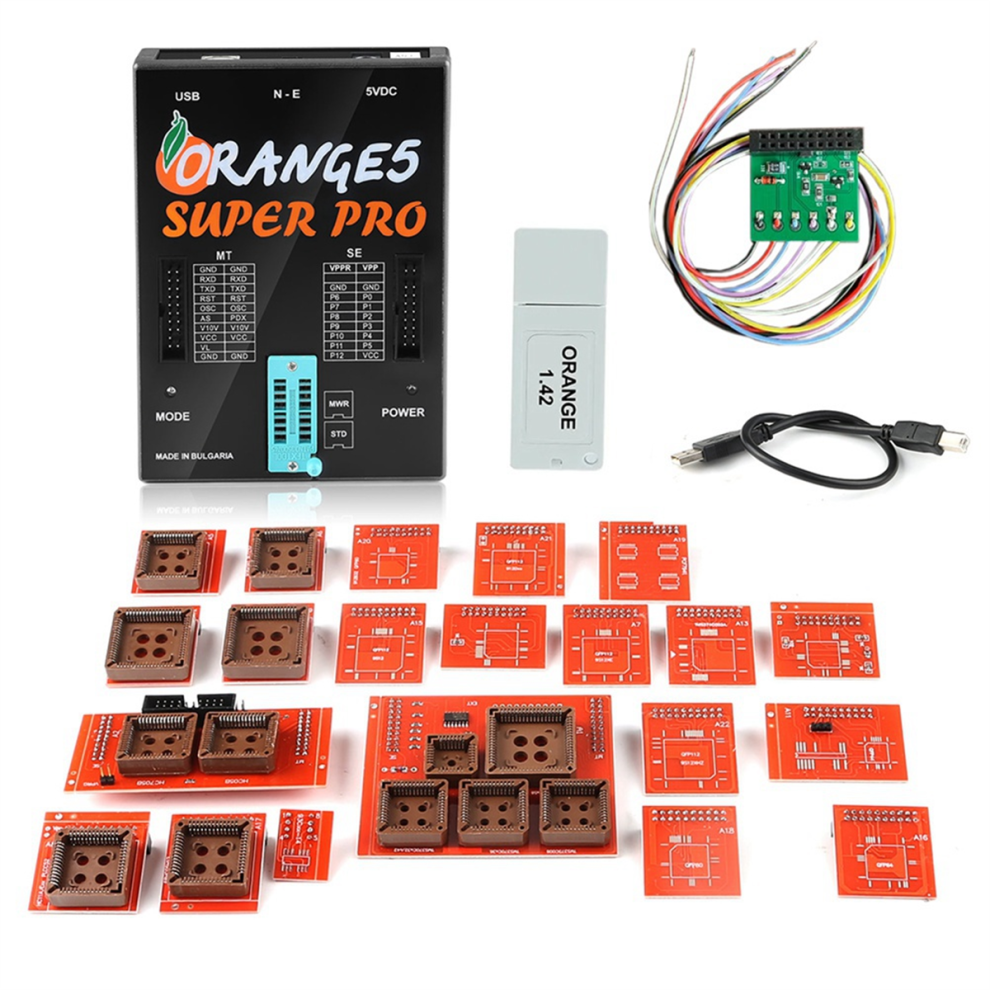

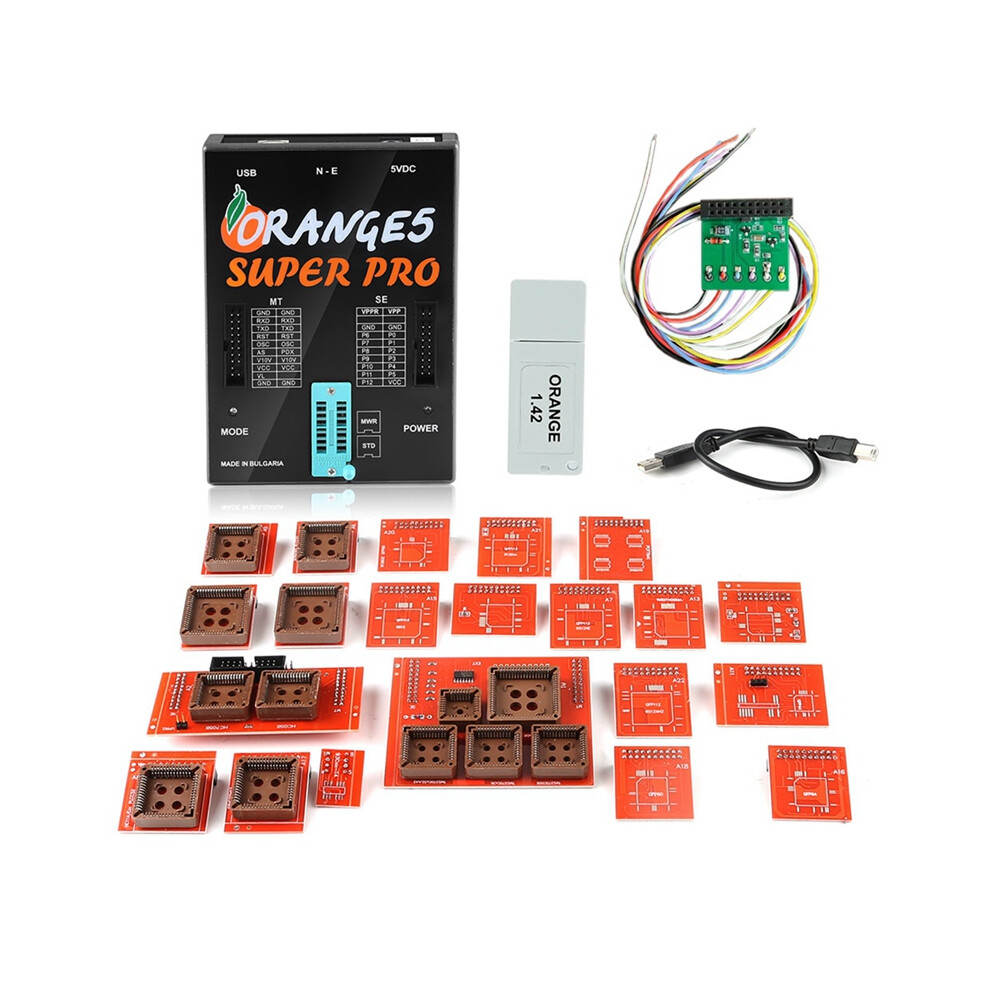

For Orange5 Super .42 Professional ECU Programmer Tool Full License Activation Add Adapter Update

For Orange5 Super .42 Professional ECU Programmer Tool Full License Activation Add Adapter Update Description

USB power supply (USB2.0/3.0); Universal easy to plug panel ZIF16 for EEPROM Control of contacts in the sockets; Two expansions compatible with Orange4 and MTRK Protection against overcurrent; Overload voltage protection; Two types of power supply: (USB) and enhanced (USB + external power supply) Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V); Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment Capability of functional emulation of class CDC USB devices Built-in 32-bit virtual machine Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter) Programmer is encolsed in a functional box. Supported working under XP/7 32bit. [*Win8.1] Installation and Work with Orange-5 under Windwos 7 and 8.1 CnCterm - Terminal program for work with COM ports. Feature: Supports any COM ports, incuding virtual from 1 to 20 Works with text (ASCII) and HEX mode Creating a list of commands that allows editing and fast sending Fine-tuning the exchange rate Saving files including and port settings. Saving incoming data in binary files File transfer via serial port. Delay settings for bytes and blocks "" mode Delay settings between incoming data Managment of DTR, chains, visualising , , CD, RI Program doesn't need to be installed Supports Orange5 programmer in emulation mode. Tips: The product may be updated constantly, Due To Different Batches, The Actual Product May Have Slight Differences Or Color Difference Colour: Picture Color Material: Plastic Package Contents: 1*Orange5 V1.42 ECU Programmer set Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
