for Orange5 Super .42 Professional ECU Programmer Tool

for Orange5 Super .42 Professional ECU Programmer Tool Description

USB power supply (USB2.0/3.0); Universal easy to plug panel ZIF16 for EEPROM
Control of contacts in the sockets; Two expansions compatible with Orange4 and MTRK
Protection against overcurrent; Overload voltage protection; Two types of power supply: (USB) and enhanced (USB + external power supply)
Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V); Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment

Capability of functional emulation of class CDC USB devices
Built-in 32-bit virtual machine
Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
Programmer is encolsed in a functional box. Supported working under XP/7 32bit. [*Win8.1]
Installation and Work with Orange-5 under Windwos 7 and 8.1
CnCterm - Terminal program for work with COM ports.
Feature:
Supports any COM ports, incuding virtual from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"" mode
Delay settings between incoming data
Managment of DTR, chains, visualising , , CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.
Tips: The product may be updated constantly, Due To Different Batches, The Actual Product May Have Slight Differences Or Color Difference
Colour: Picture Color
Material: Plastic

Package Contents:

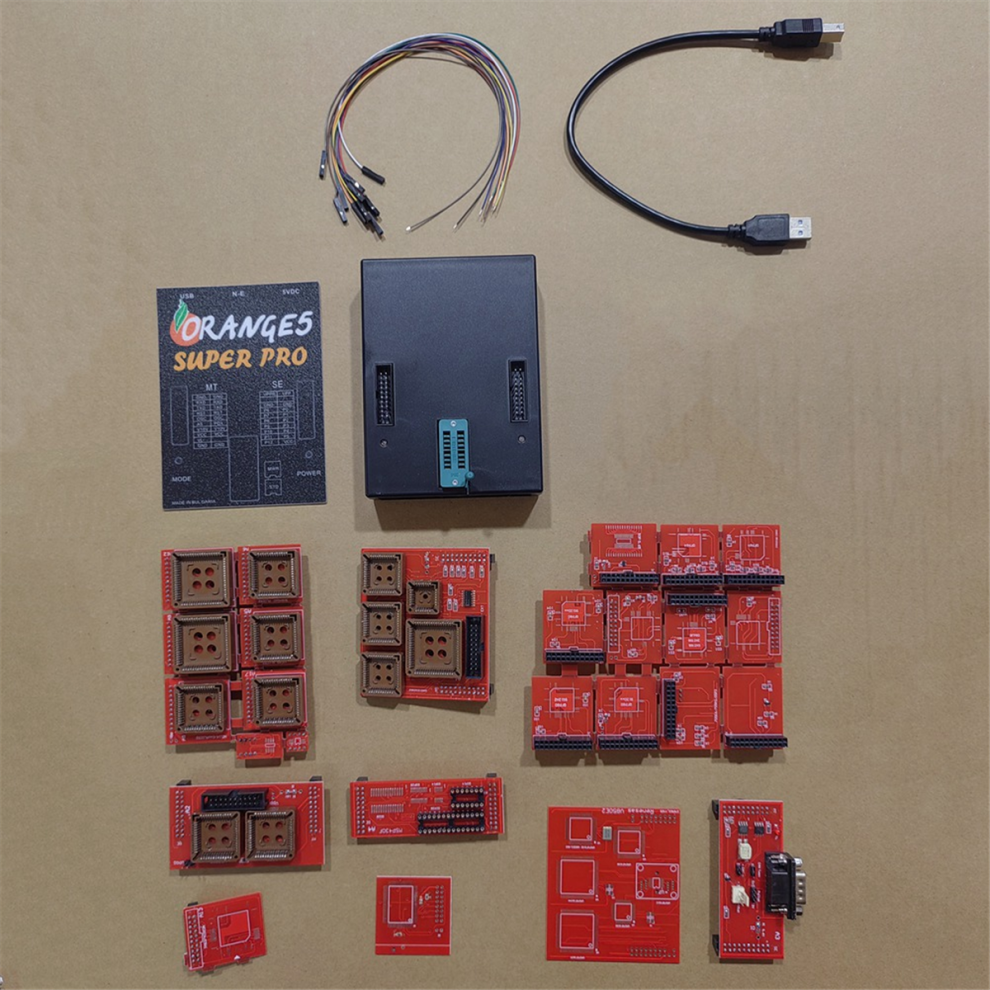

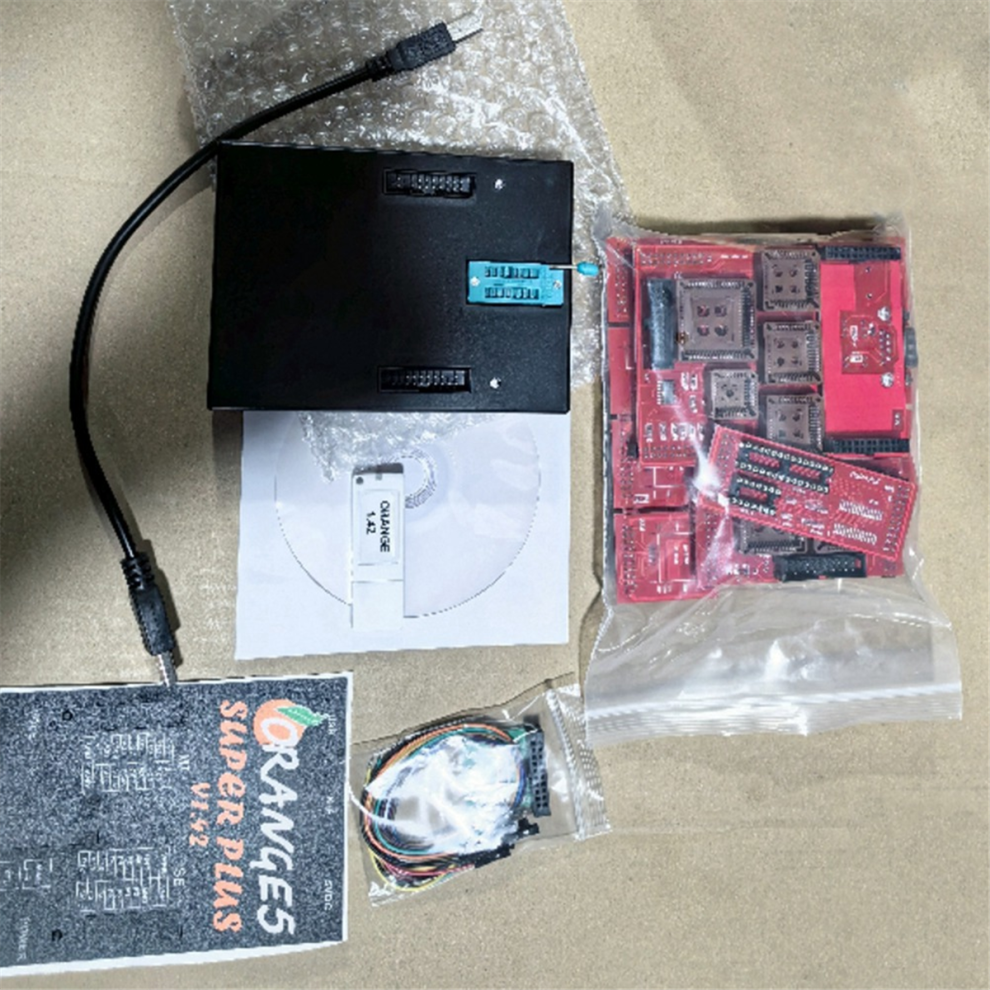

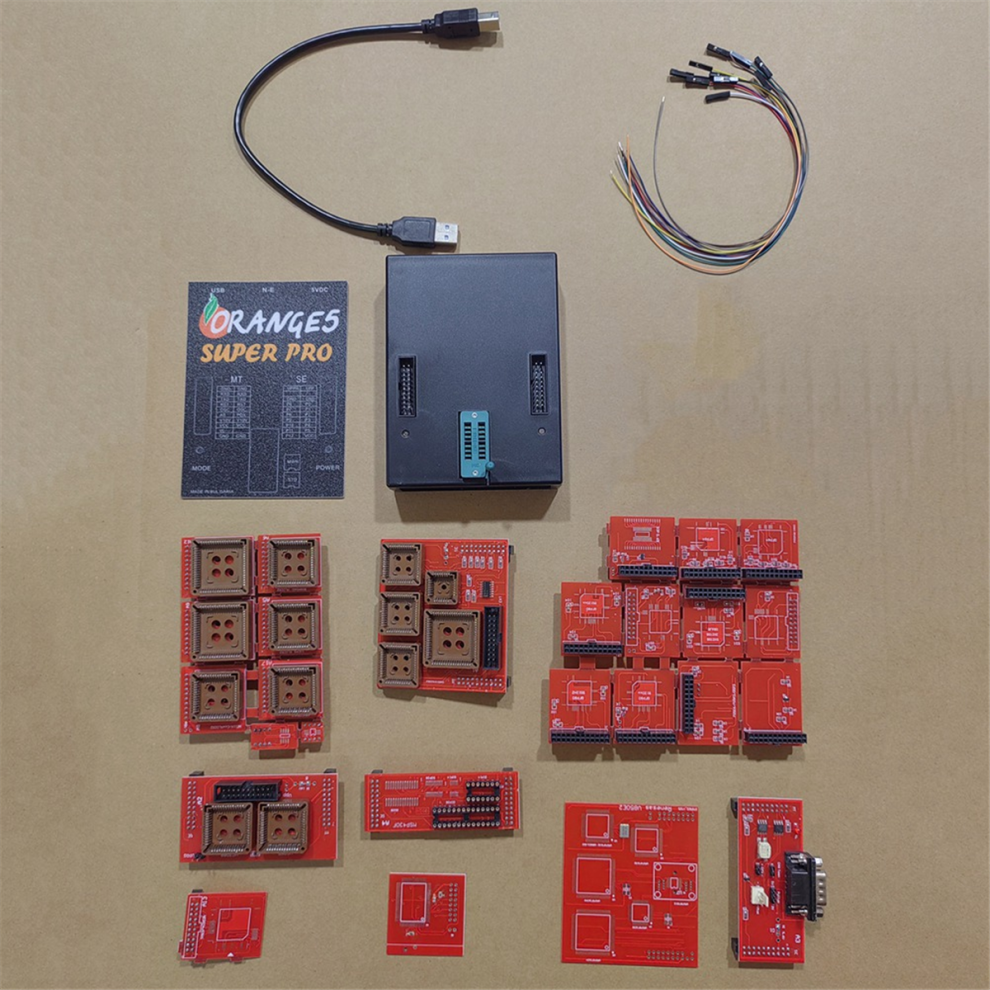

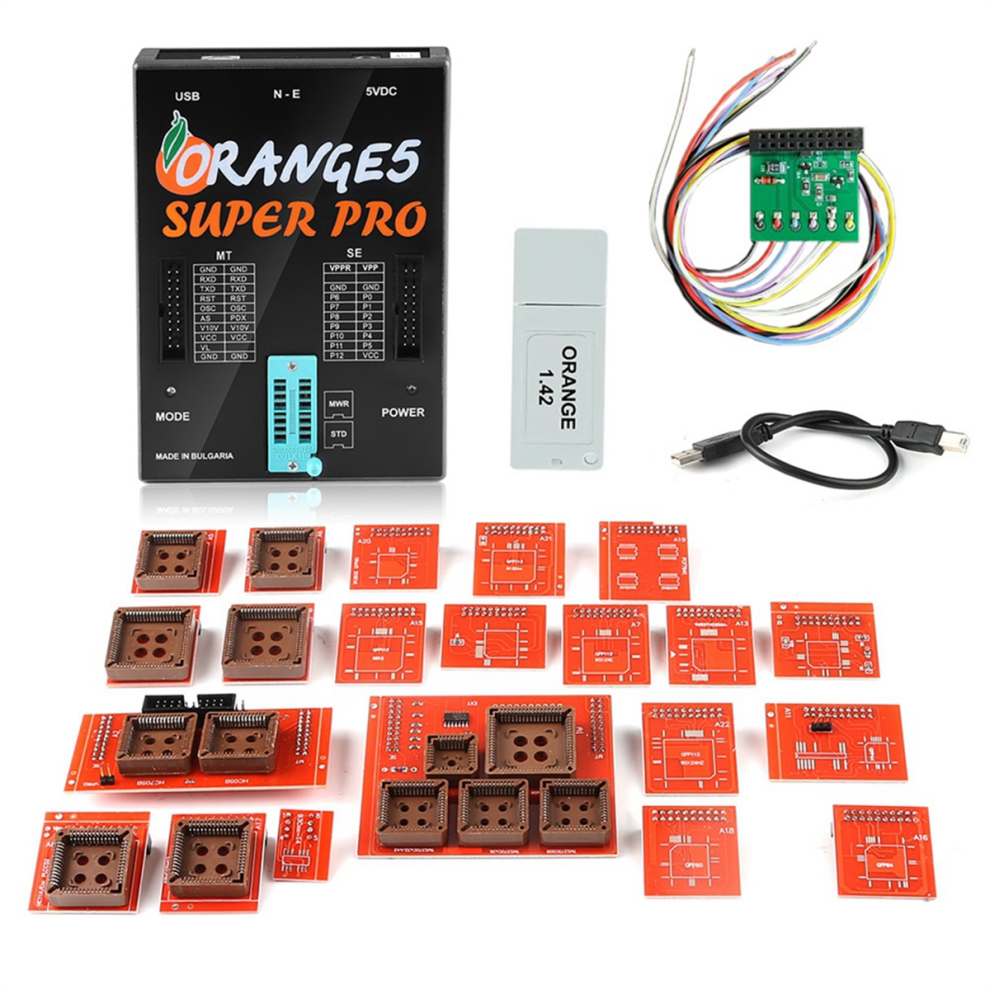

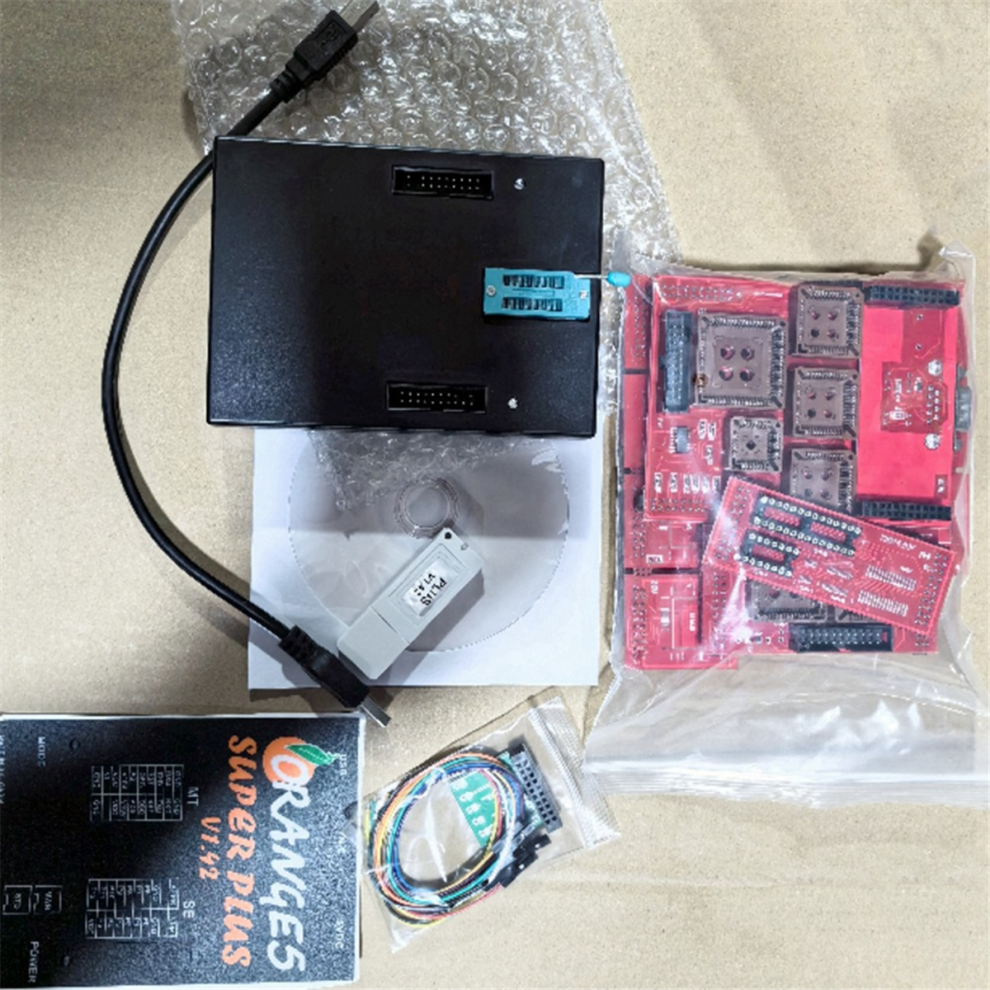

1*Orange5 V1.42 ECU Programmer set

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
