For PCAudio Output Adapter Sound Card 6 Channel 5.1 SPDIF USB Optical

For PCAudio Output Adapter Sound Card 6 Channel 5.1 SPDIF USB Optical Description

Description:

- This external sound card offers a quality solution for upgrading your PC or laptop audio. It supports 48 KHz sampling rate in digital and analog recording, and in digital/analog audio playback.
- In digital playback mode, it receives an audio stream from the PC via a USB interface and transmits audio data according to AES\EBU, IEC60958, S\PDIF consumer interface standards.

Features:

- Extern al 6 channel (5.1) sound card.
- Supports SES/EBU,IEC60958,S/PDIF consumer formats for stereo PCM audio
- Supports analog recording function
- Supported SCMS copy protection
- 2x interpolator for digital playback data to improve quality.
- 3 Input terminals and 3 Output terminals.
- Dolby digital audio streaming via S/PDIF out.
- Fully duplex playback/recording of audio stream without a sound card in PC.
- Stereo MIC support with 33db maximum capability.
- 6 channel DAC output with 16 bit resolution.
- Fixed 48KHZ sampling rate for 5.1 channel playback.
- USB spec 2.0 full speed 12Mbit serial data transmission compliant.

Specification:

- Colour: Black

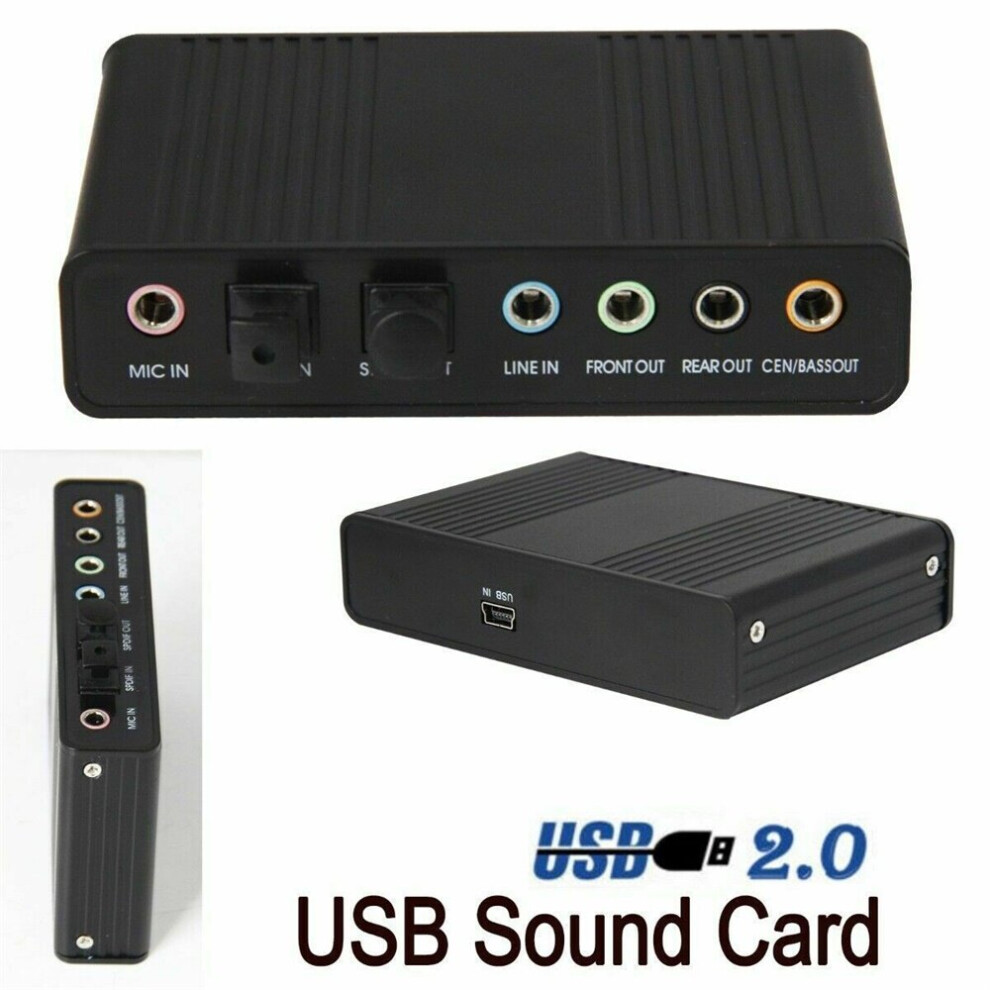

- Inputs: SPDIF in, Line in, Mic in.
- Outputs: SPDIF out, Front out, Rear out, Cen/Bass out.
- Sampling Rate Support: 32KHz, 44.1KHz and 48KHz sampling rate in digital and analog recording.
- USB Compliant Support: USB specification V1.1, USB audio device class V1.0
- Transmission speed: full speed 12Mbit.

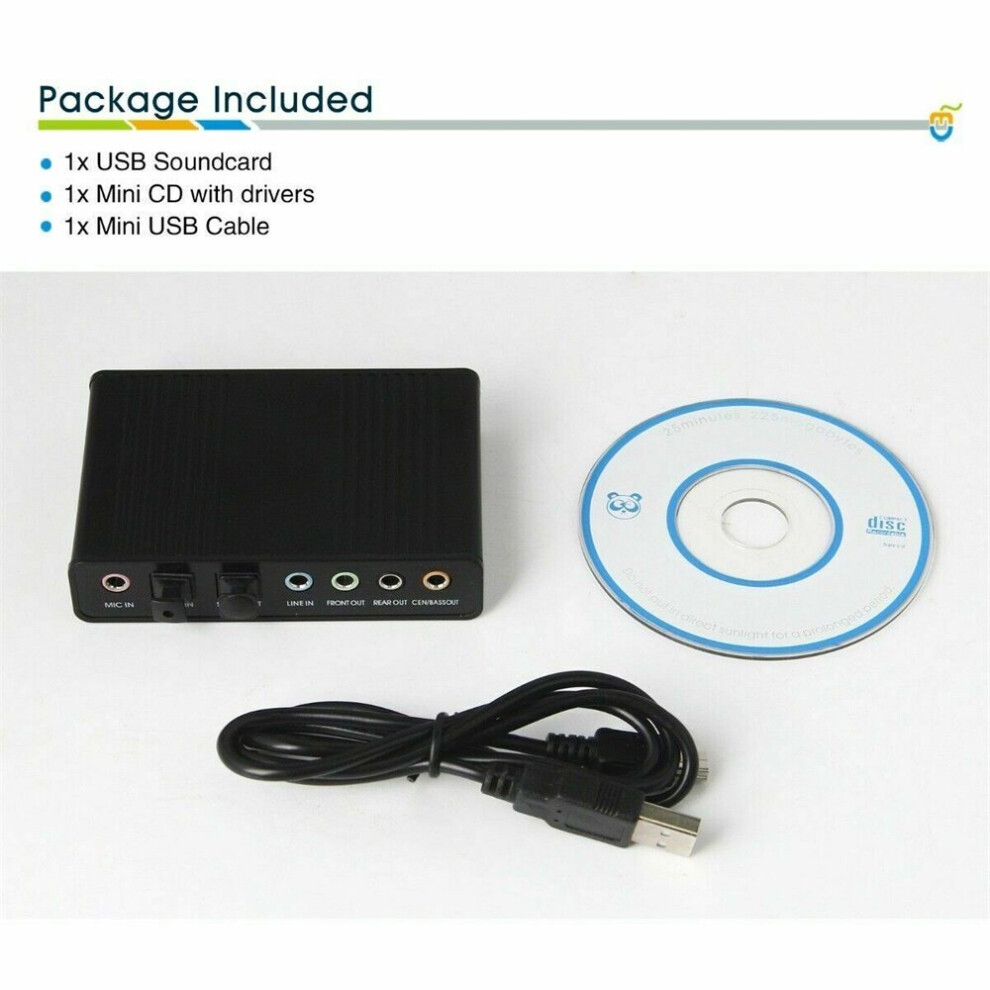

Package:

- 1x USB Sound card
- 1x Mini CD with drivers
- 1x Mini USB Cable

Note:

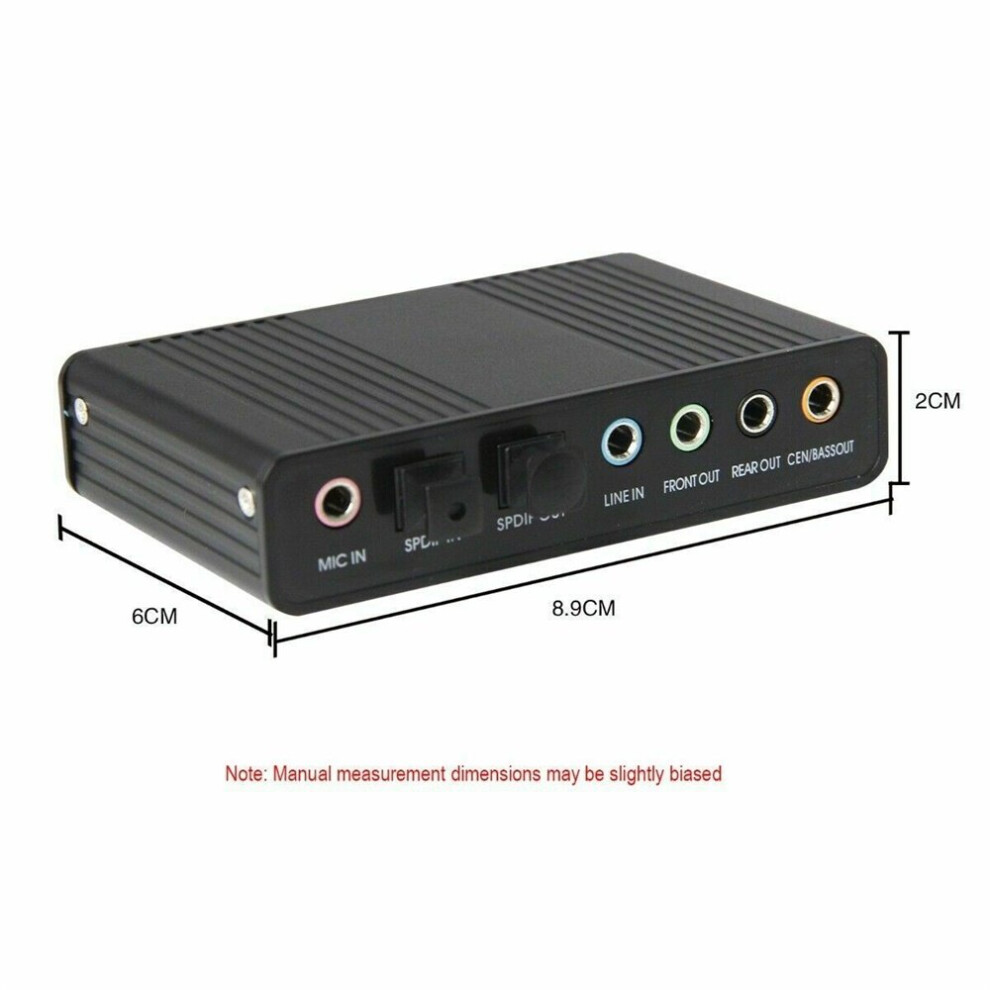

- Please allow minor errors due to manual measurement. Thanks for your understanding.

- Monitors are not calibrated same, item colour displayed in photos may be showing slightly different from the real object.

Please take the real one as standard
