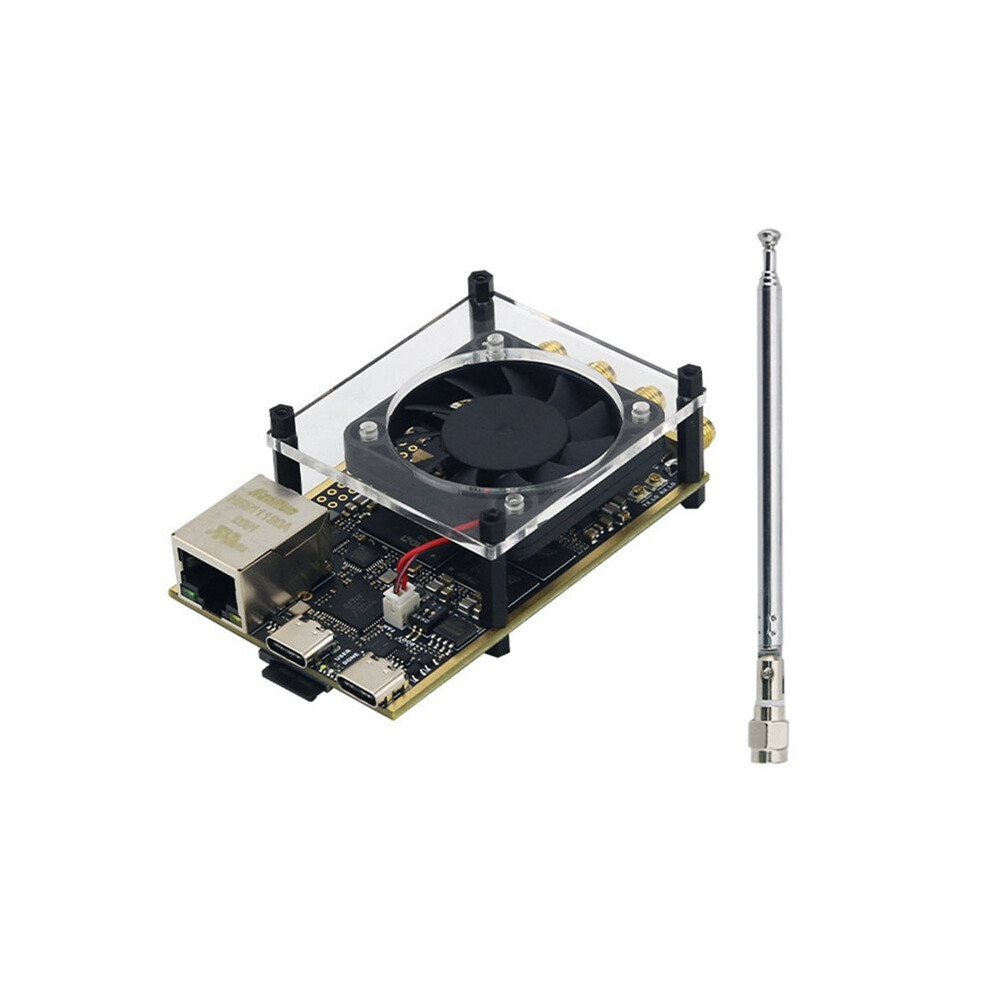

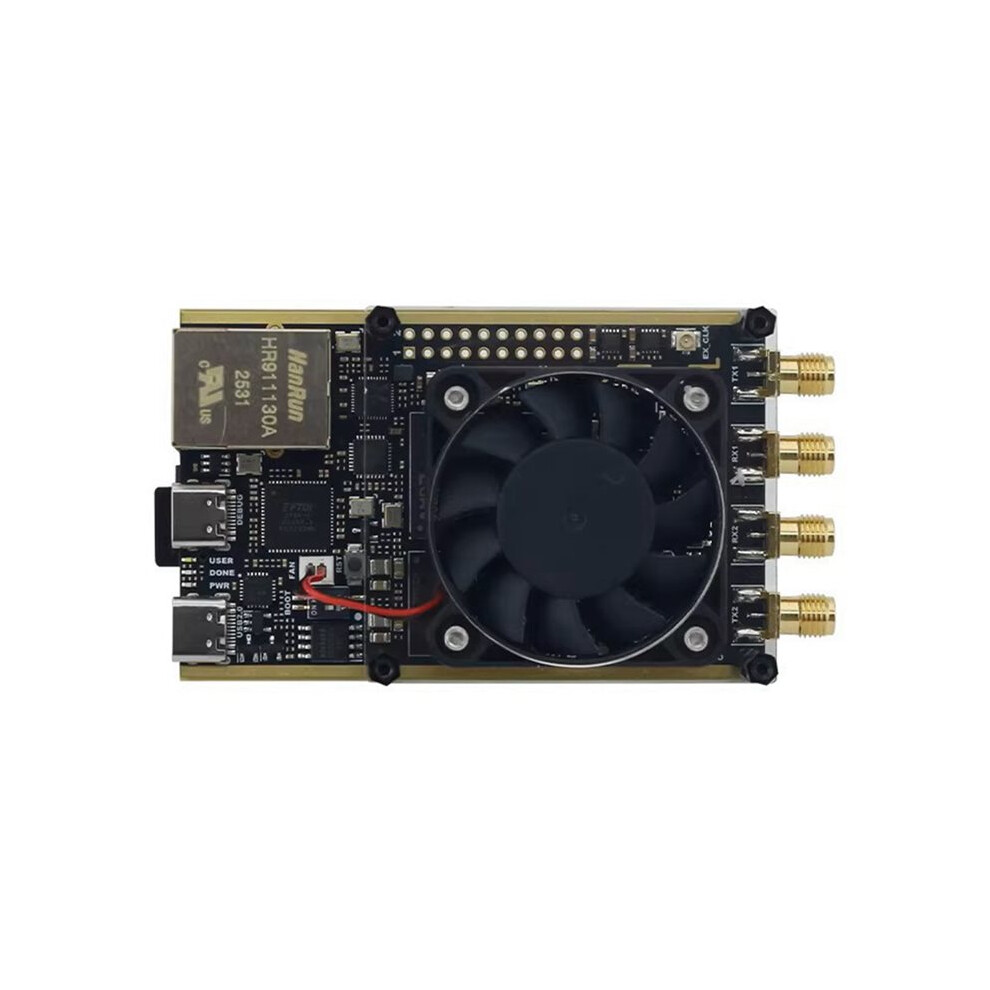

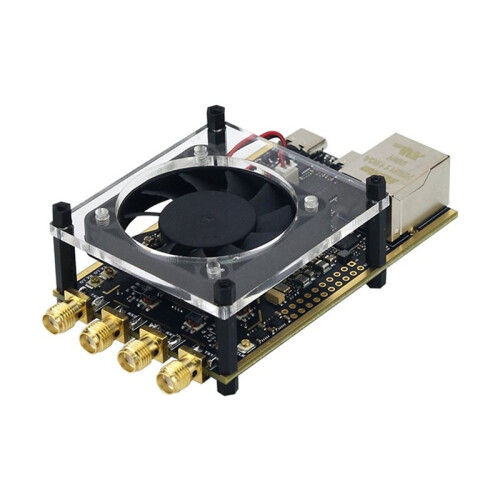

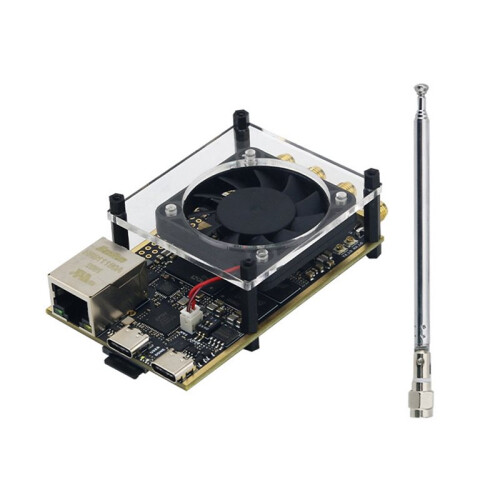

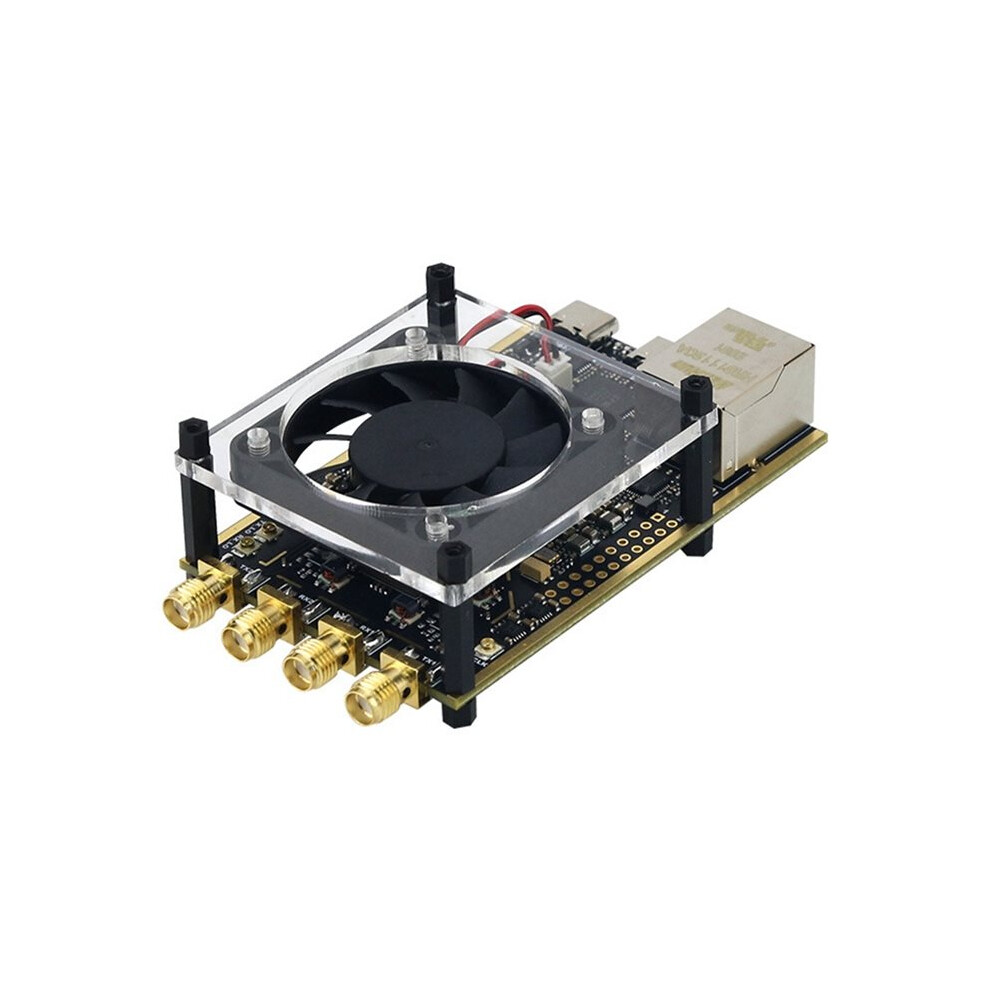

For Pluto SDR Development Board Zynq7020+AD9363 70MHz-6GHz SDR Software Defined Radio Development Board with Amplifier
Brand Saudism
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 136,000 Trustpilot reviews and an 'Excellent' rating
£215.92
£235.26
8% off!
FREE Delivery
1%
Earn £2.16 instantly
Learn More
Interest-free payment options available
See full product description & details
Delivery: Priority (Free) | Wed 28th - Fri 30th Oct
Returns: 30 days
180-day payment protection
You might also like
Description & Details
Summary
- The AD9363 chip, serving as a replacement for the AD9361, operates within a frequency range of 70 MHz to 6 GHz. With the firmware upgraded to version V0.38, the device features dual transmit and receive capabilities and supports both USB and Ethernet interfaces.
- Power supply stability has been enhanced.
- An external input clock interface for the AD9363 has been added.
- An integrated FT2232 debugger with a serial port is included. The PL side features a crystal oscillator, enabling the AD9363 to be driven entirely via the PL. External Local Oscillator (LO) input is supported.
- Supported Software: Compatible with IIO Oscilloscope, SDR Flash, GNU Radio, MATLAB, and other software applications that support the libiio library.
For Pluto SDR Development Board Zynq7020+AD9363 70MHz-6GHz SDR Software Defined Radio Development Board with Amplifier Description
The AD9363 chip, serving as a replacement for the AD9361, operates within a frequency range of 70 MHz to 6 GHz. With the firmware upgraded to version V0.38, the device features dual transmit and receive capabilities and supports both USB and Ethernet interfaces.
Power supply stability has been enhanced.
An external input clock interface for the AD9363 has been added.
An integrated FT2232 debugger with a serial port is included. The PL side features a crystal oscillator, enabling the AD9363 to be driven entirely via the PL. External Local Oscillator (LO) input is supported.
Supported Software: Compatible with IIO Oscilloscope, SDR Flash, GNU Radio, MATLAB, and other software applications that support the libiio library.
Parameters:
RF IC: AD9363BBCZ / AD80305BBCZ
Processor: XC7Z020-2CLG400I
Frequency Range: 70 MHz - 6 GHz
Bandwidth: 200 kHz - 20 MHz
RF Interface: 2T2R
DDR3: 1 GB
Flash Memory: 16 MB
1000/100/10M Ethernet: 1 (PS)
UART + JTAG: 1 (Type-C)
USB 2.0: 1 (Type-C)
Card Slot: 1
Expansion I/O: 1.8V I/O x8, 3.3V I/O x4
PTT Output: 1 (5V Level)
RF IC Clock Source: 0.5ppm TCXO / FPGA / IPEX (Default: TCXO)
Dimensions: 88 x 62 x 22 mm (CNC Enclosure)
Power Modes: USB / JTAG / XH2.54
Color: Black
Material: PCB
Package Contents:
1*SDR Development Board Kit
Details
| OPC | PVKXPNJ |
|---|---|
| Brand | Saudism |
| Codes | 6032051760828 (EAN) |
Product Data
| Height | 1.5cm |
|---|---|
| Width | 6cm |
| Length | 6cm |
| Weight | 0.8kg |
| Colour | Black |
| Material | PCB |
