Description & Details
Summary
- * Functionality: This is a four-channel power distribution module suitable for 3D printed models. It centrally connects power supplies, switches, and electrical devices, supporting independent control of up to four devices.
- * Interfaces and Connections: Equipped with a PH2.0-2P power interface (compatible with USB-A cable/battery box) and an SH1.0-2P interface (corresponding to 5 sets of switches and 4 devices), supporting module series expansion.
- * Control Logic: Includes 1 main switch (SW0) + 4 independent channel switches (SW1-SW4), which can control the on/off state of electrical devices on channels CH1-CH4 respectively.
- * Safety and Status: Built-in overcurrent/short circuit protection, equipped with LED status lights (white under normal conditions, off in case of fault), requiring a restart of the main switch to restore status.

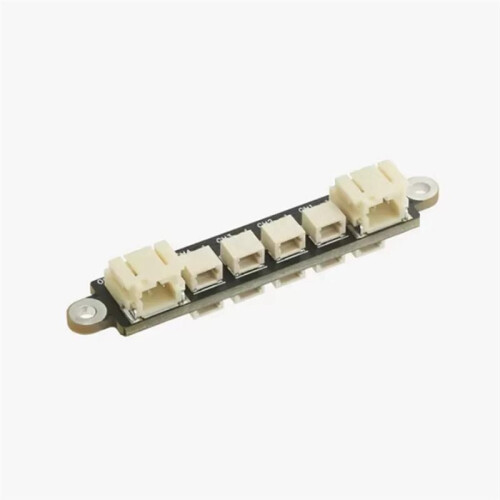

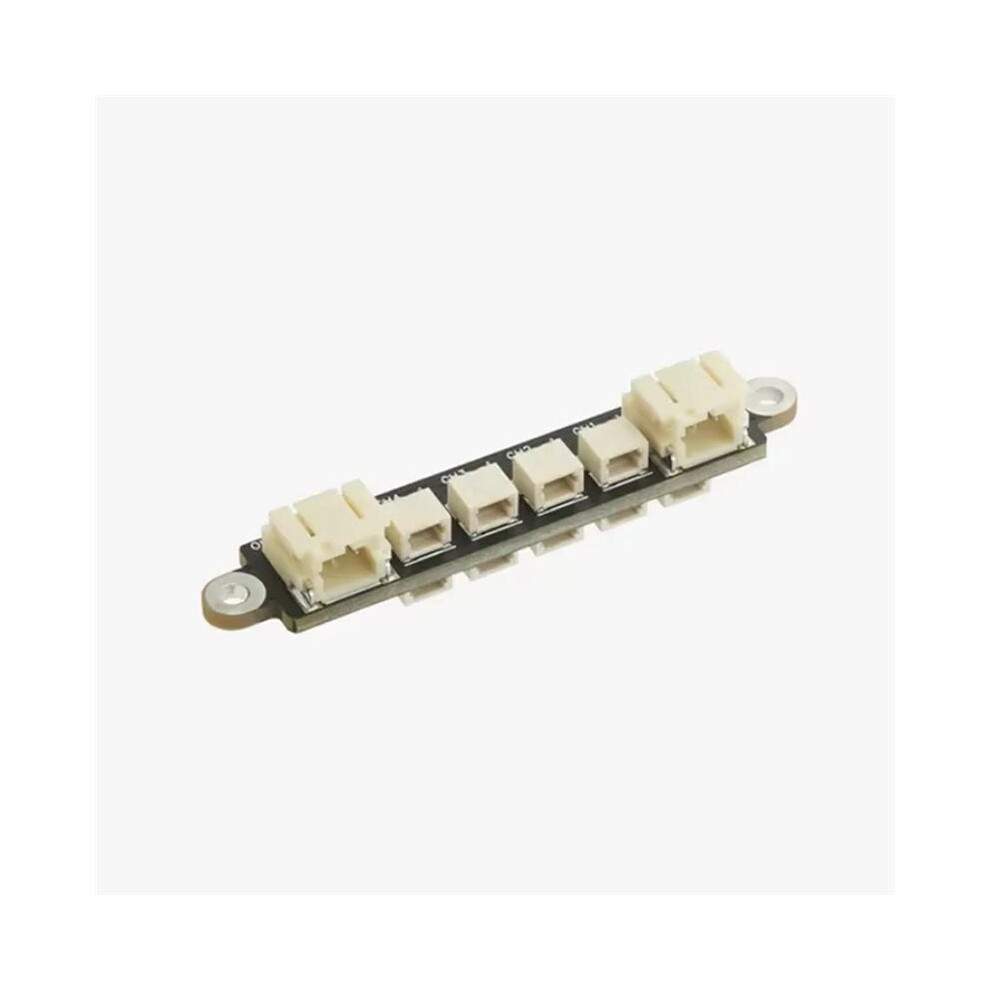

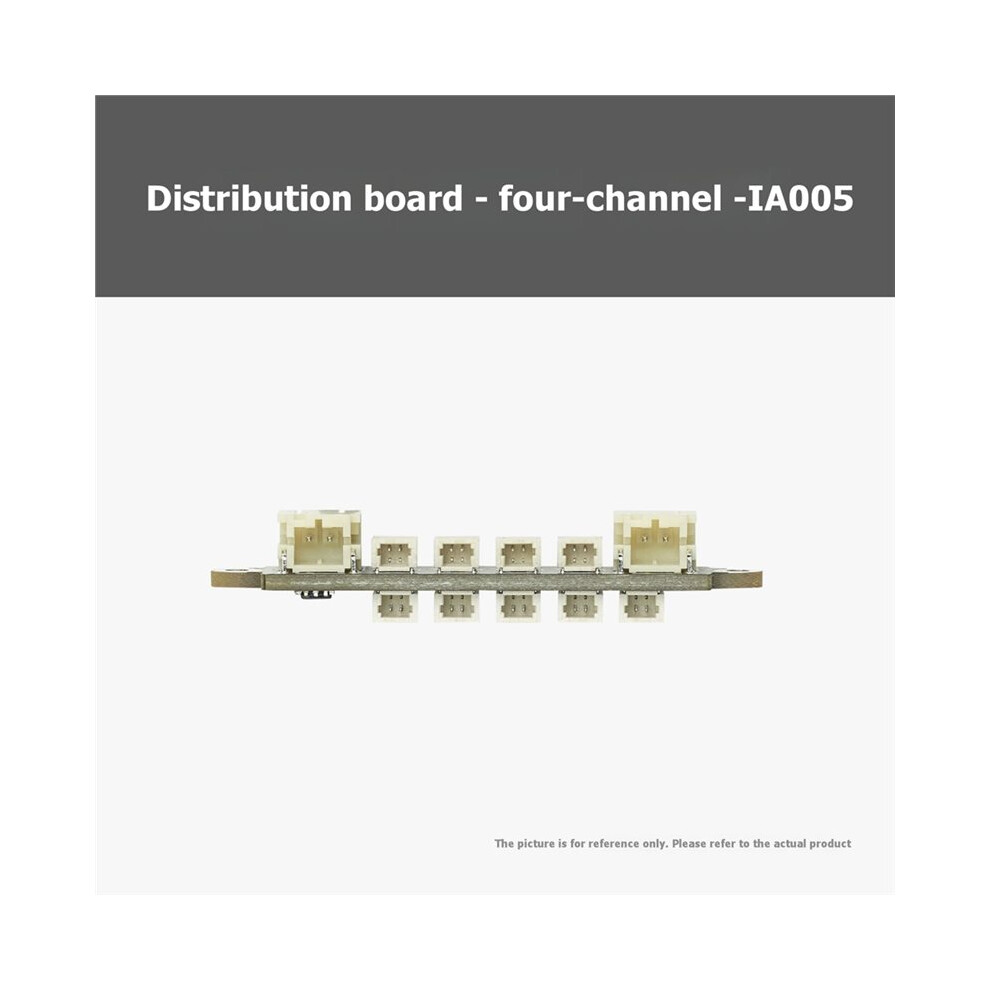

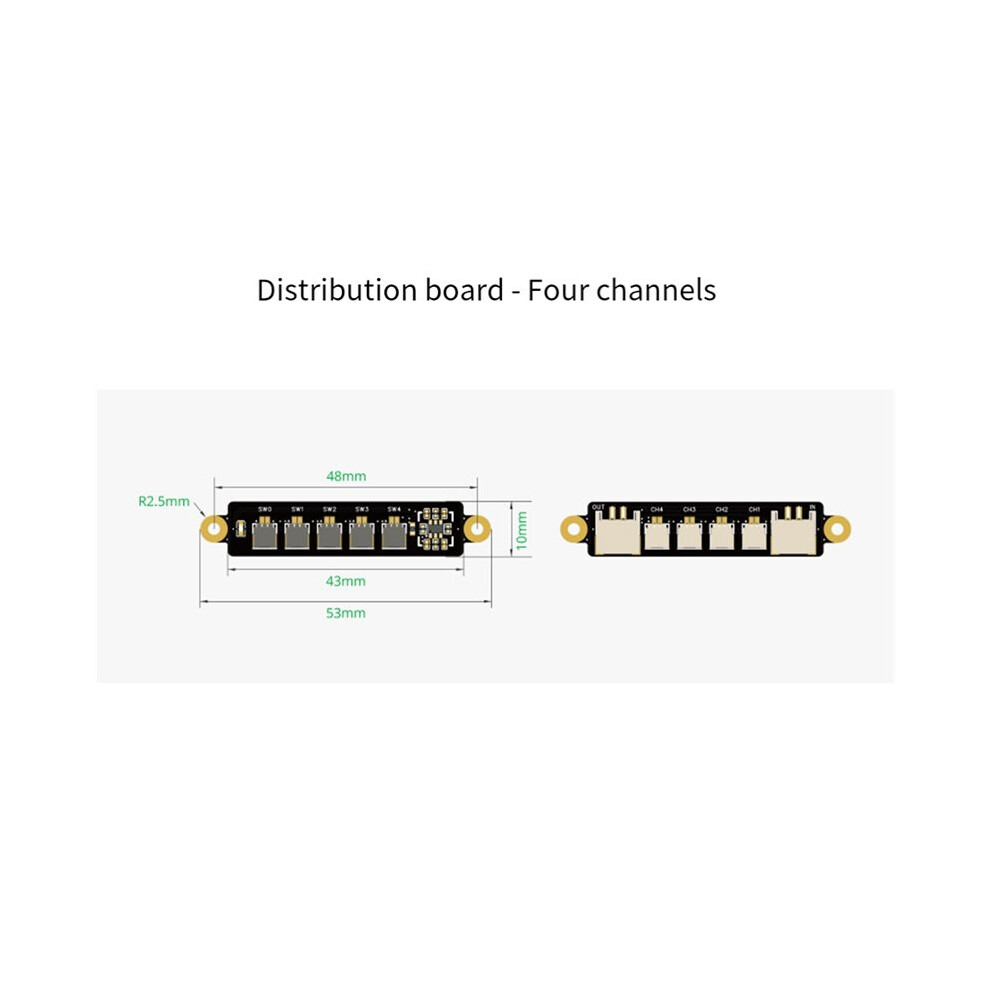

- 4 Channels Power Distribution Board
For Power Distribution Board 4 Channels IA005 Four-Channel Power Distribution Module Description
* Functionality: This is a four-channel power distribution module suitable for 3D printed models. It centrally connects power supplies, switches, and electrical devices, supporting independent control of to four devices.
* Interfaces and Connections: Equipped with a PH2.0-2P power interface (compatible with USB-A cable/battery box) and an SH1.0-2P interface (corresponding to 5 sets of switches and 4 devices), supporting module series expansion.
* Control Logic: Includes 1 main (SW0) + 4 independent channel switches (SW1-SW4), which can control the /off state of electrical devices channels CH1-CH4 respectively.
* Safety and Status: Built-in overcurrent/short circuit protection, equipped with LED status lights (white under normal conditions, off in case of fault), requiring a restart of the main to restore status.
Note: Do not forcefully bend the connector to avoid it loosening or falling off.
Maximum Current: 1A
Maximum Voltage: 6V

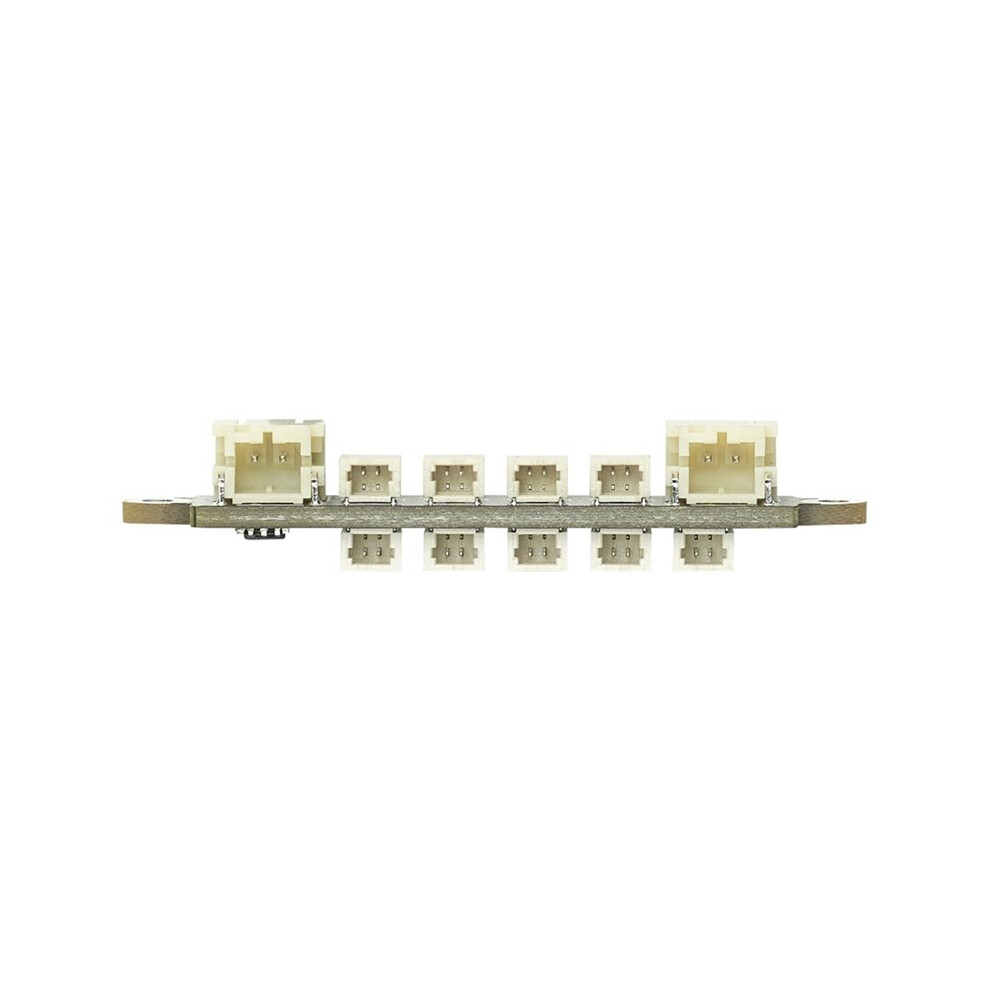

Terminal Types:
Input: PH2.0-2P
Output: PH2.0-2P
SW0-4: SH1.0-2P
CH1-4: SH1.0-2P
Color: As Shown
Material: PCB+Plastic

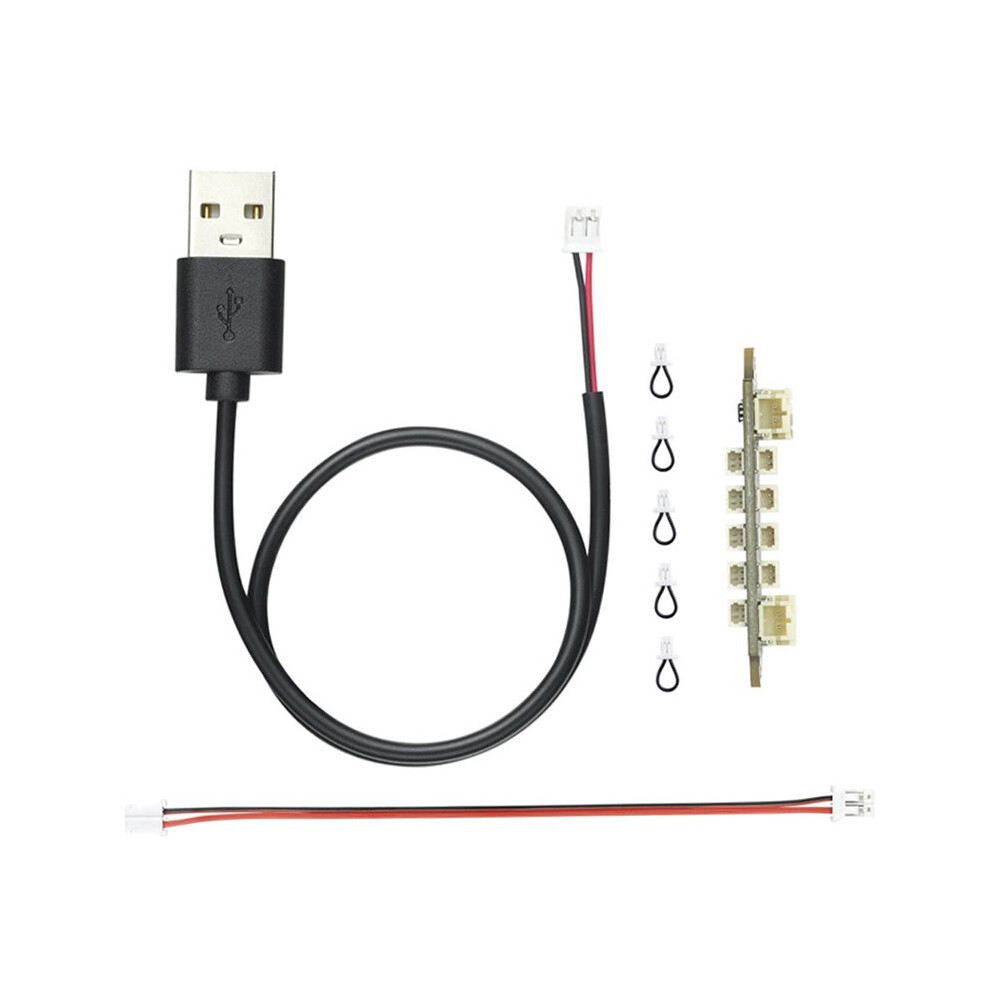

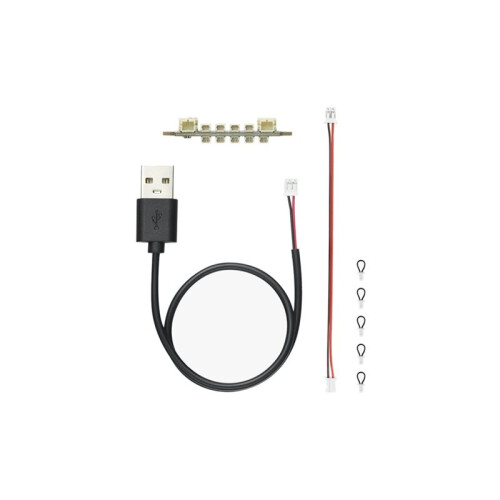

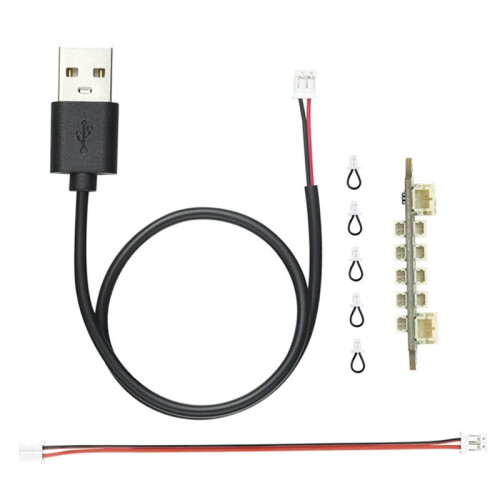

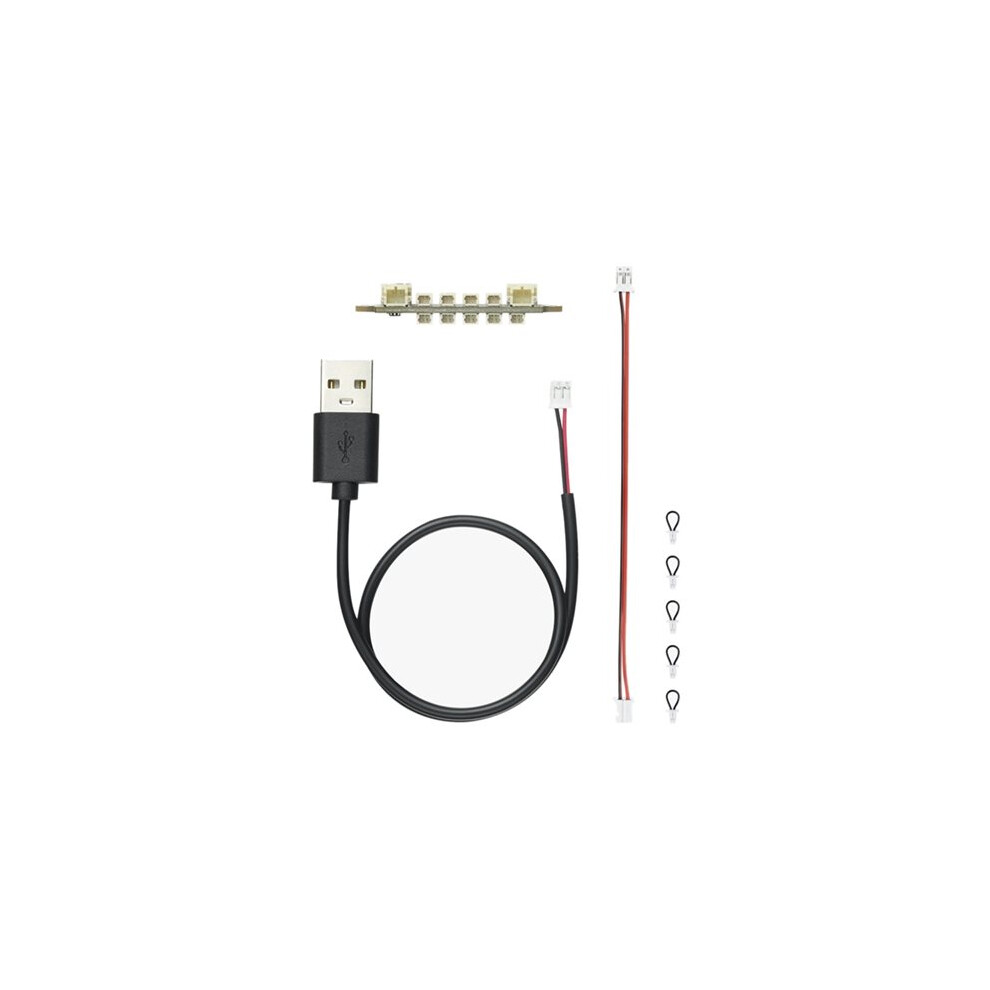

Package Contents:
1 x Power Distributor Board
1 x USB-A to PH2.0 2PIN Power Cable
1 x Power Connection Cable
5 x Jumpers
Details
| OPC | PTGT8MP |
|---|---|
| Codes | 6033970347497 (EAN) |
Product Data
| Height | 1cm |
|---|---|
| Width | 4cm |
| Length | 15cm |
| Weight | 0.012kg |
| Colour | As Shown |
| Material | PCB+Plastic |
