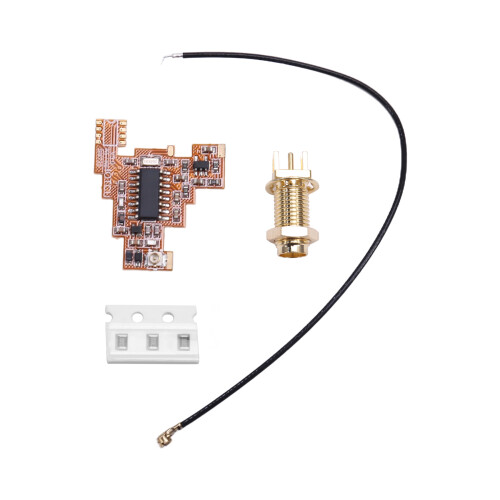

For Uv K5/K6 Shortwave Receiving Module Si4732 Chi

For Uv K5/K6 Shortwave Receiving Module Si4732 Chi Description

Upgrade content: 1. Add audio amplifier to solve the problem of extremely low SSB single-sideband volume, with obvious effect.
2. Redesign FM and HF bandpass filters, FPC board with IPEX interface, simpler installation
3. Add ESD tube at the input end for electrostatic protection and strong signal protection during dual-antenna UV segment transmission.
4. Use FPC soft board with a thickness of 0.12mm, safe and reliable without short circuit, and installation does not support speakers.
5. Use high-quality high-frequency winding chip inductors with high Q value, low internal resistance and strong filtering selectivity.

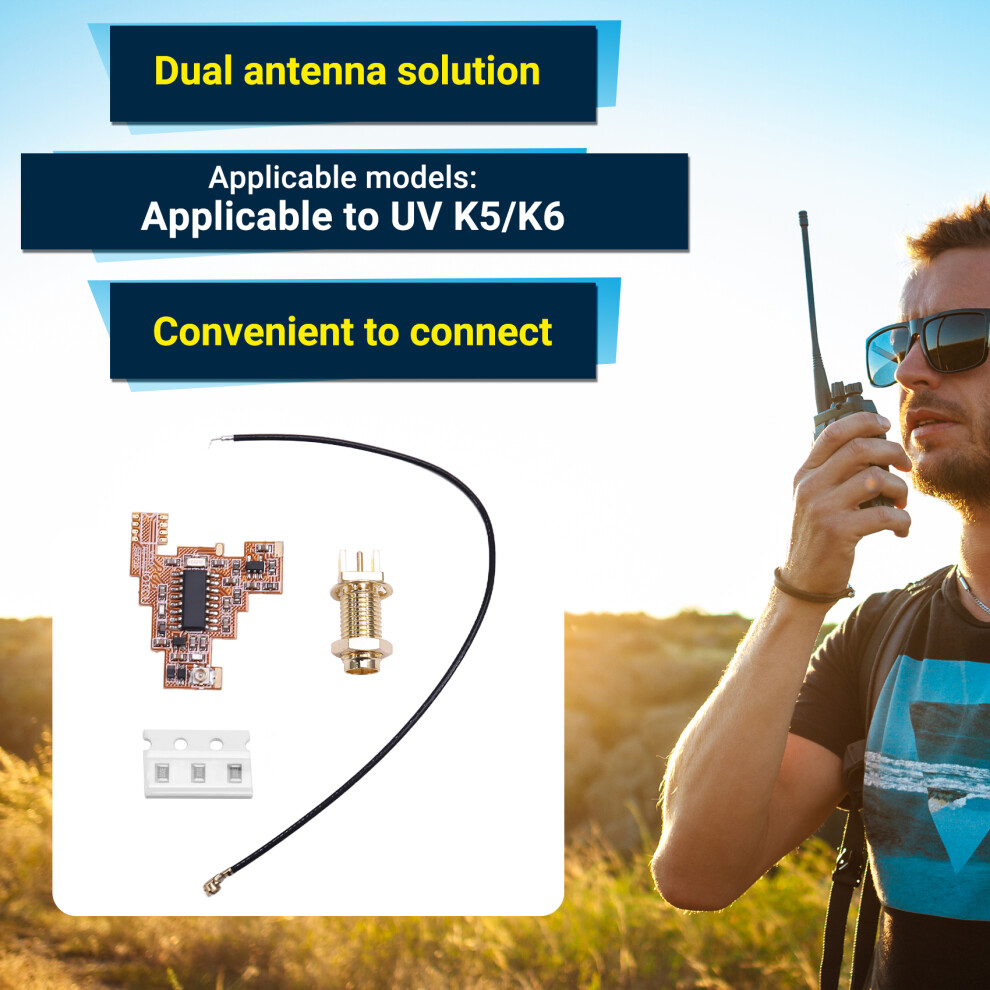

Dual antenna solution, add an additional level of bandpass filtering at the antenna input

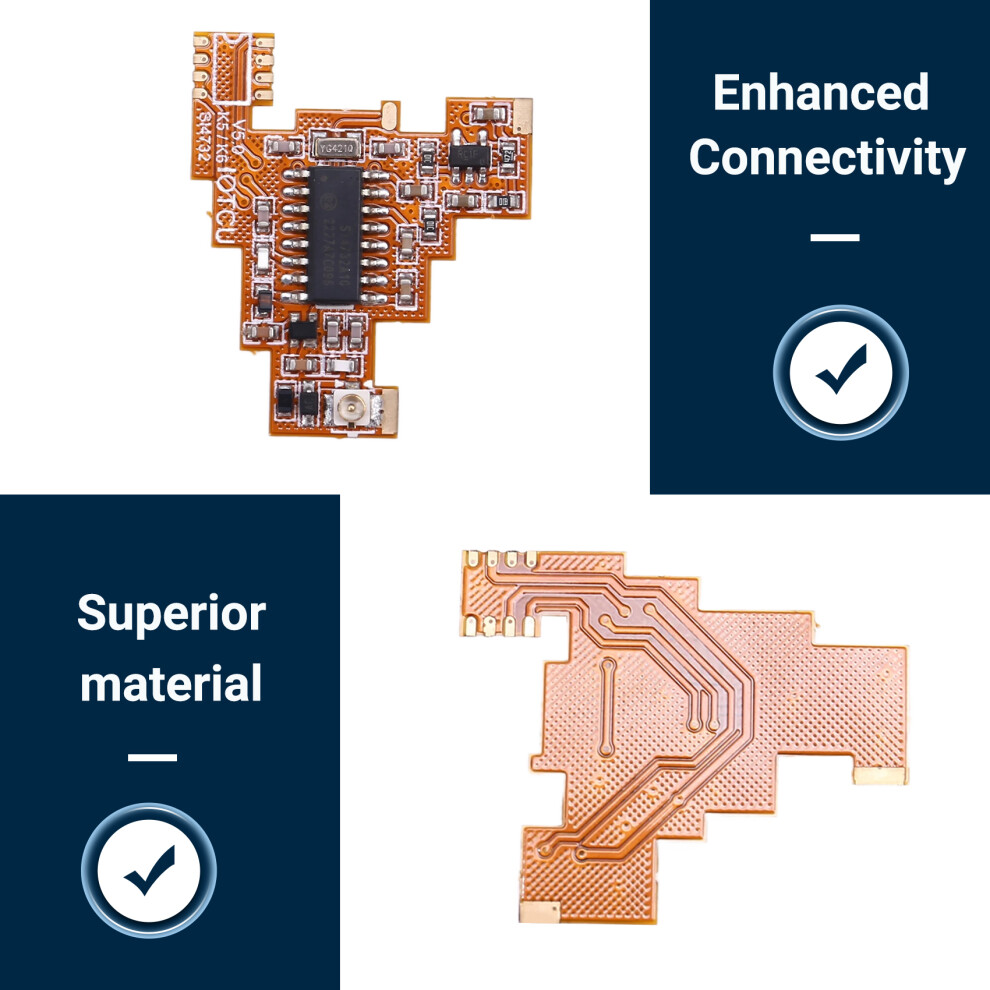

The FPC soft board uses a double-sided disk, which is more convenient to connect to the machine.
Applicable to K5/ K6 with S14732 soft board FPC, dual filtering (pre- frequency/bandpass) + dual amplification (high-frequency/audio)
Applicable models: Applicable to UV K5/K6
Material: ABS
colour: As shown

Package Contents:

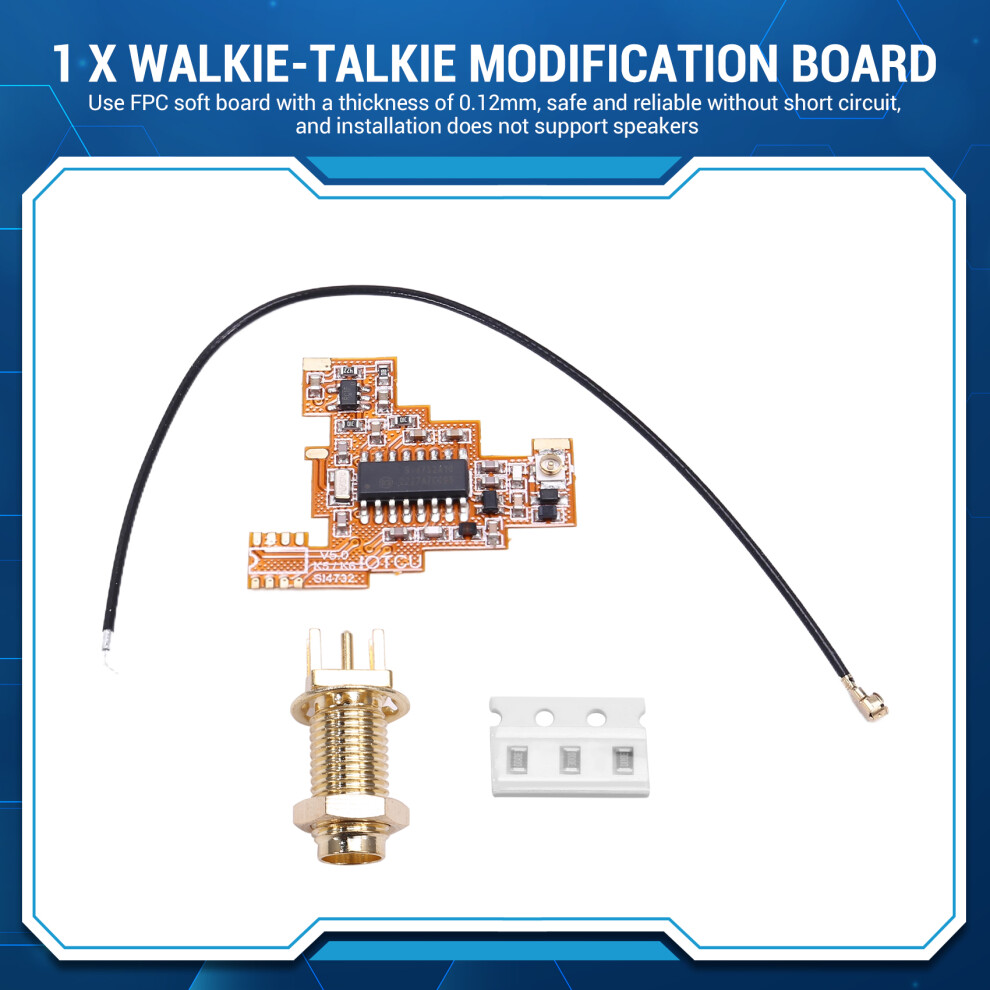

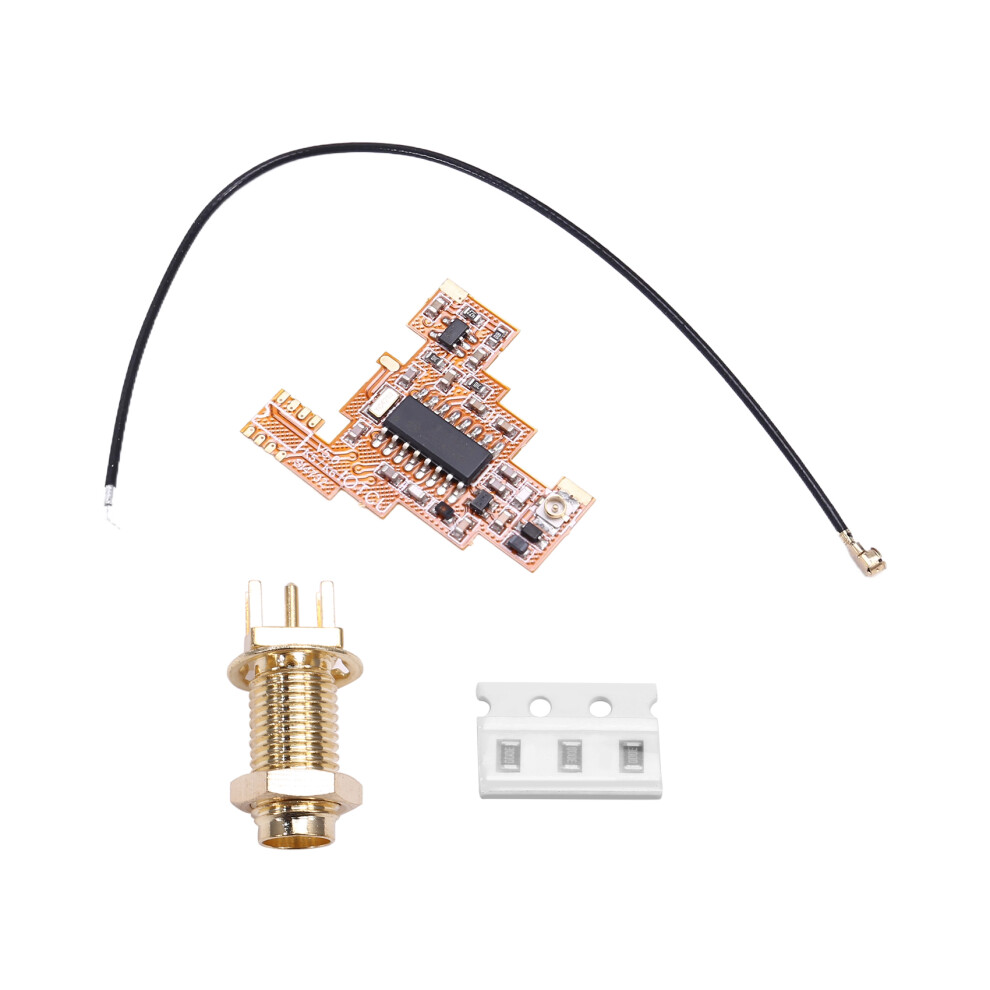

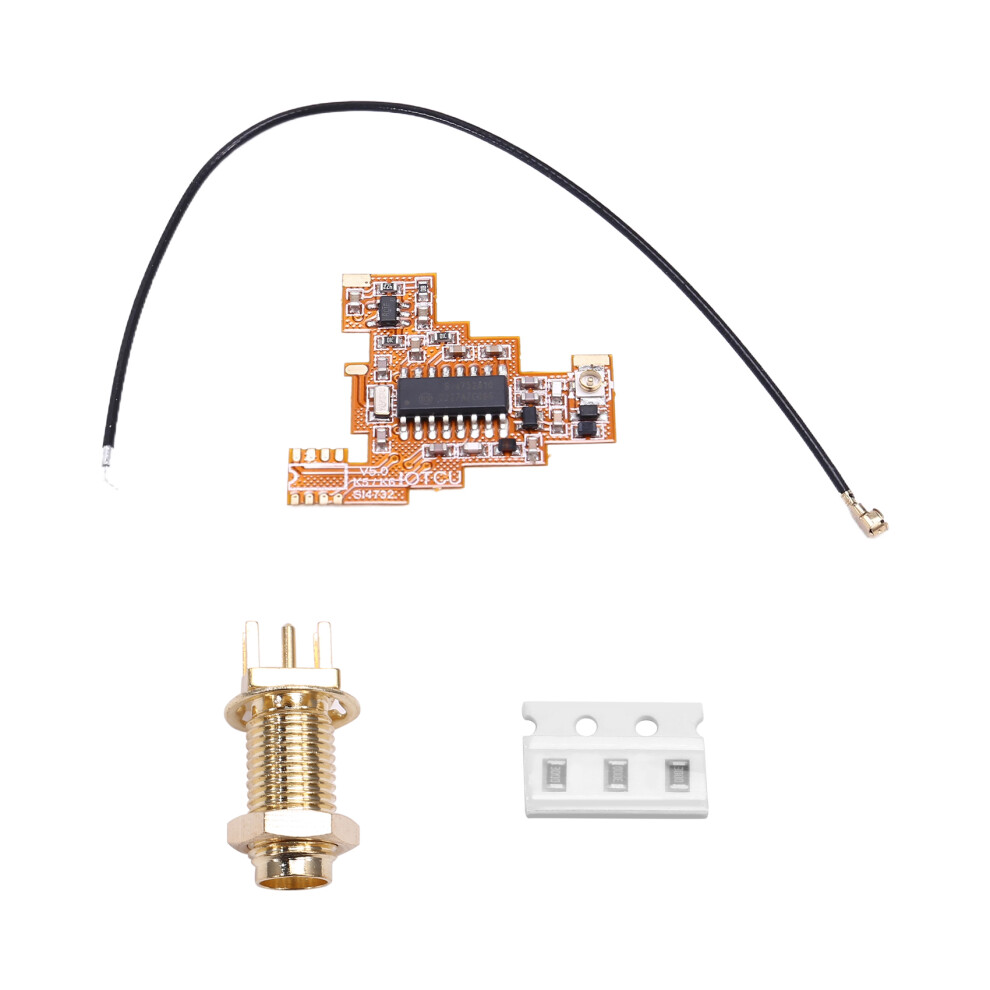

1 x Walkie-talkie modification board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
