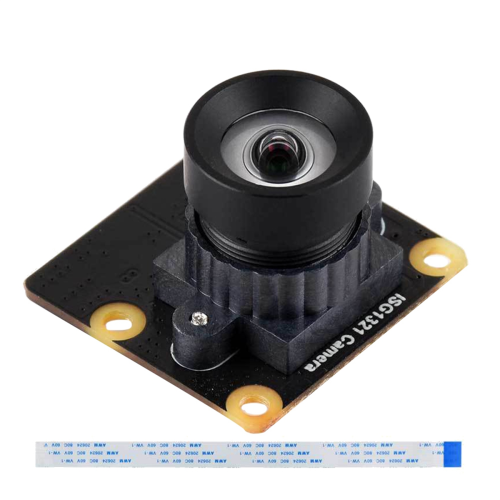

For Zero ISG1321 Camera Module

For Zero ISG1321 Camera Module Description

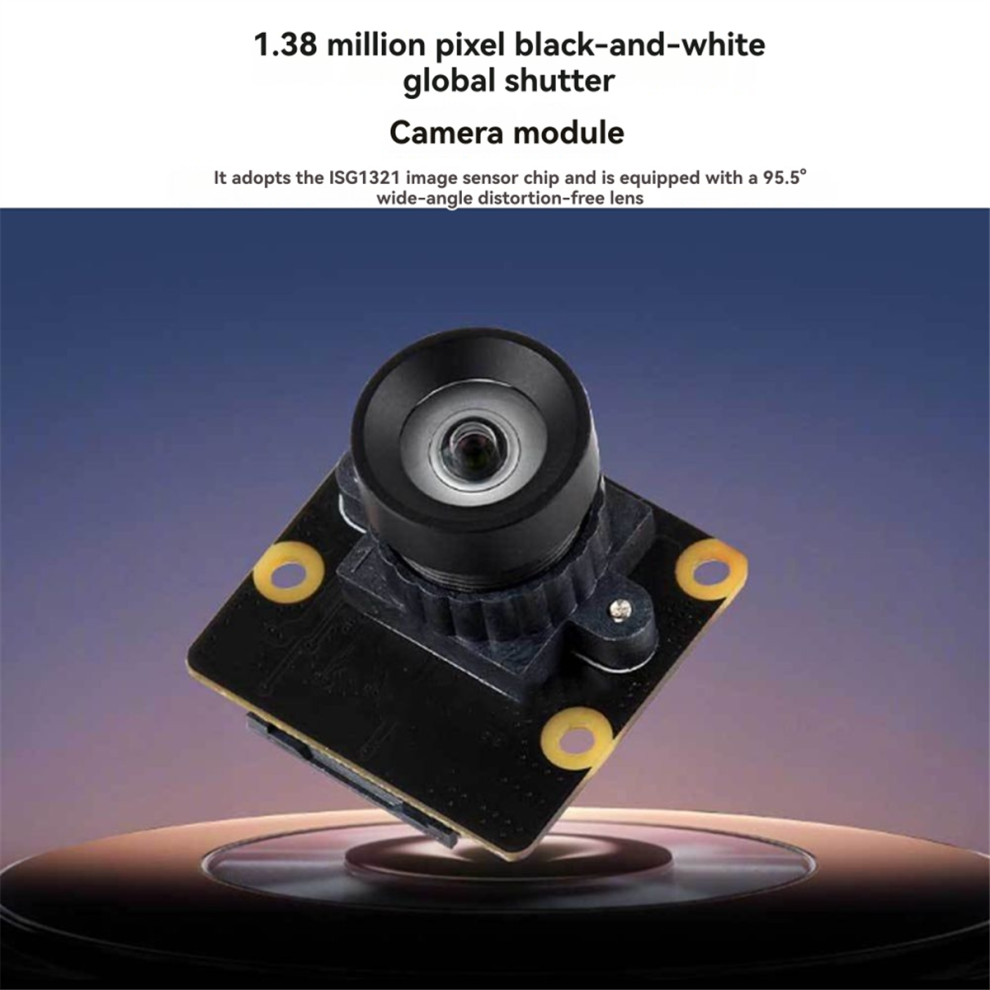

Camera module: Utilizes the ISG1321 sensor and features a 95.5 wide-angle, distortion-free lens.

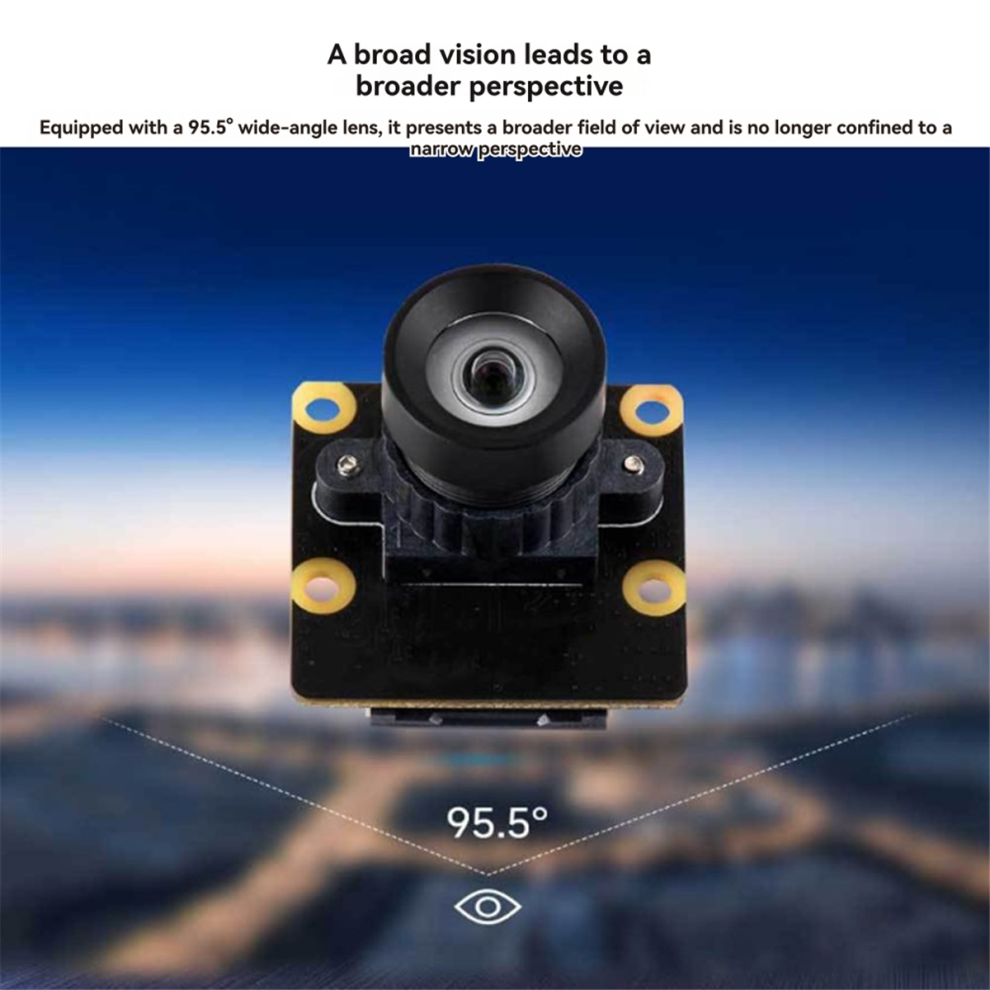

Wide field of view: Equipped with a 95.5 wide-angle lens, it offers a field of view, eliminating the need for a narrow viewing angle.

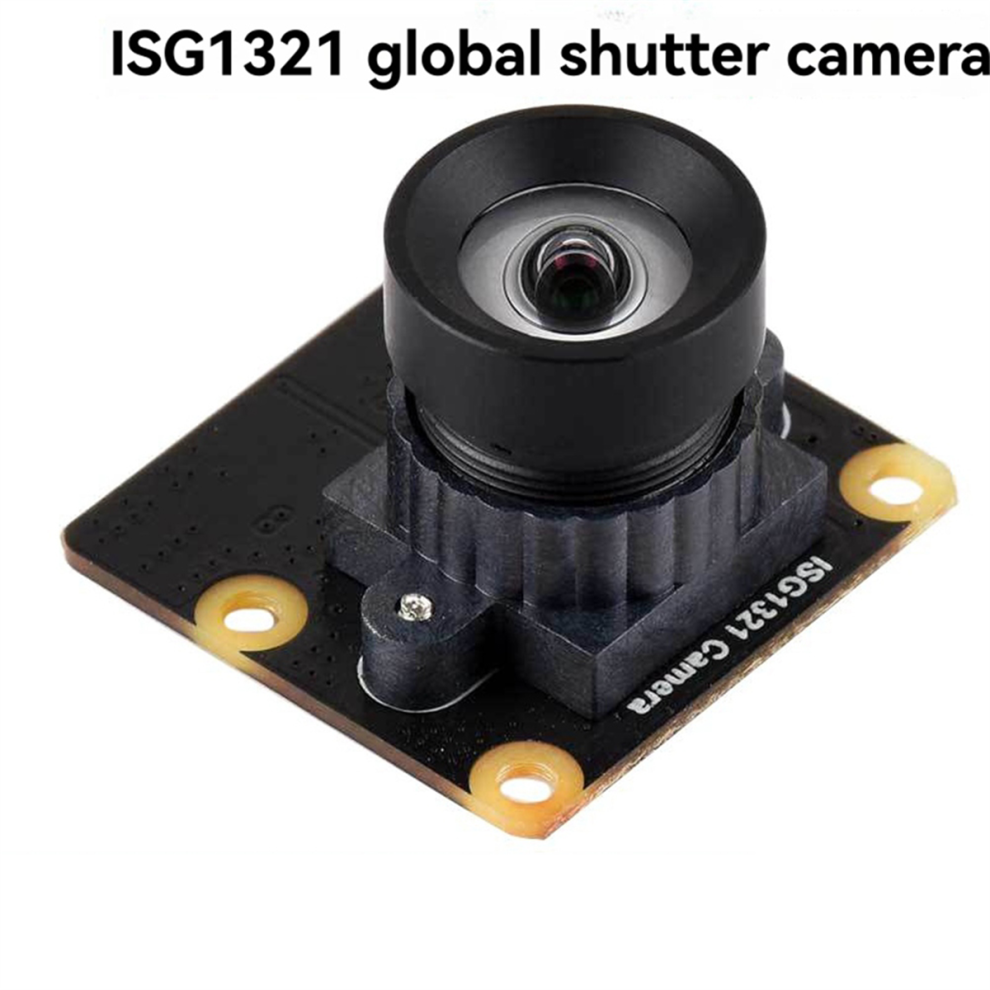

Global shutter: All pixels are exposed simultaneously, minimizing distortion in the captured image.
High frame rate: Supports up to 1280 x 1080 120 fps, enabling accurate capture of fast-moving objects.

Sensor: ISG1321
CMOS size: 1/4-inch
Camera type: monochrome
Pixels: 1.38MP (1280 x 1080)
Shutter method: Global shutter
Output frame rate: Up to 120 frames/second
Interface: MIPI- (dual-channel)
Aperture: F2.4
Distortion:Less than 1%
Field of view: 95.5
length: 2.88mm
Focus: Manual focus
Applications: Machine vision, logistics barcode reading, and industrial inspection
Due to different batches, there may be differences in product appearance, color, and printed text, which not affect the use.
Color: As Shown
Material: PCB

Package Contents:
1 x Camera Module Kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
