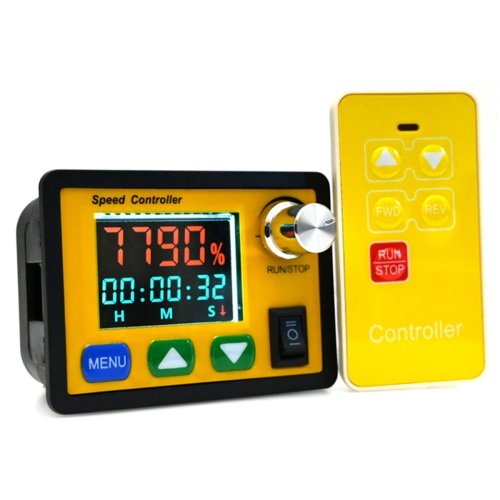

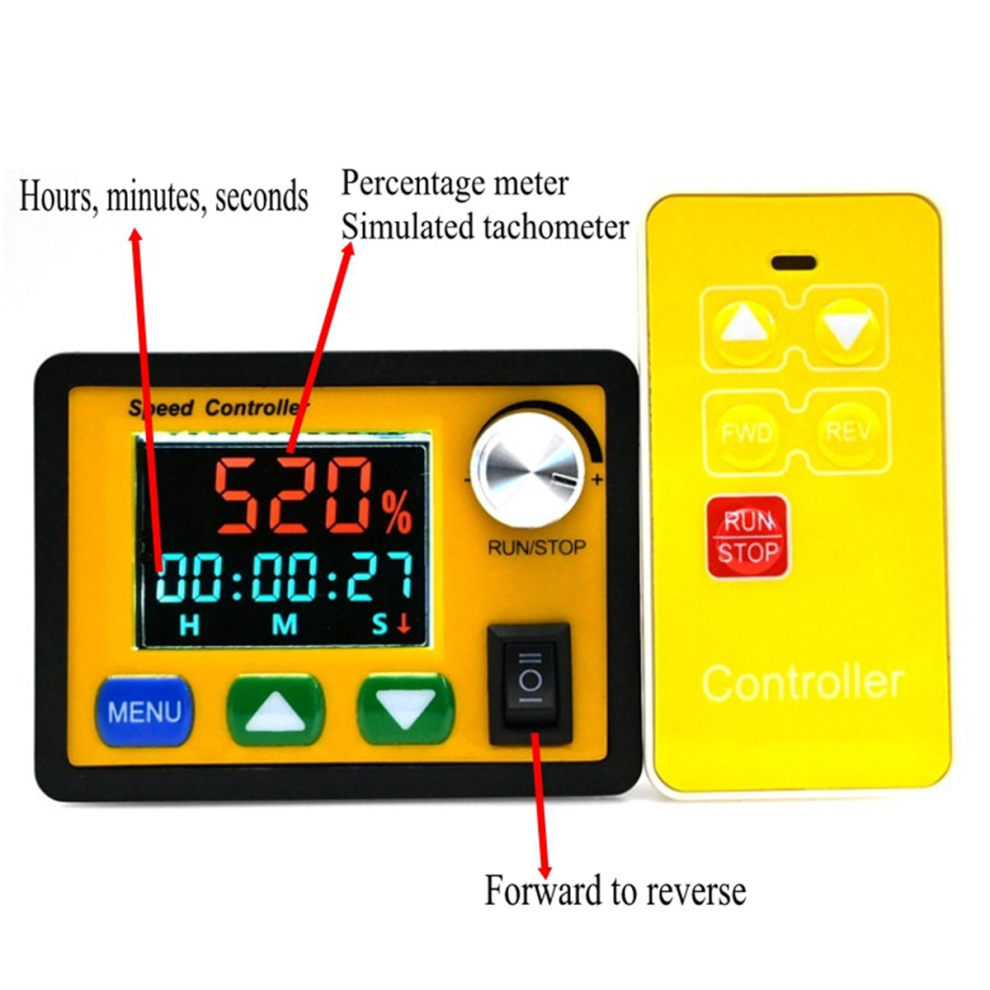

Forward Reverse 0-100% Adjustable DC 6-55V 20A DC Motor Controller

Forward Reverse 0-100% Adjustable DC 6-55V 20A DC Motor Controller Description

12 Function Introduction: Function 1- Soft start time setting: 000-100 (0-10 seconds) Soft start time adjustable, default to 1 second; Function 2- Soft stop time setting: 000-100 (0-10 seconds) Soft stop time adjustable, default to 1 second; Function 3, Function 4, Function 5: If there are more than 999 bits in the setting interface, they not be displayed, and thousands of bits flash.
Function 3- Maximum Speed Scale Setting: 000-9990 (0-9990) Default 100; Function 4- Speed lower limit setting: 000-9980 (0-9980) adjustable, default 0; Function 5- Speed upper limit setting: 000-9980 (0-9980) adjustable, default 100. Function 6- Speed increase/decrease value setting: 001 002 005 010 015 020 025 050 100 Each of the increase/decrease button changes the corresponding speed value
Function 7- Power on start mode: Mode 1: Power on motor does not start, Mode 2: Power on start, default mode 1; Function 8- Total running time setting: 0~99:59:59 can be set. When all are 0, it means there is no timing, and the default is 0;
Function 9, Function 0, Function A, hour, minute, second switching, long and hold the setting button for 2 seconds to switch between hours, minutes, and seconds. Function 9- Forward rotation time setting: 0~99:59:59 can be set, default 10 seconds
Function 0- Stop time setting: 0~99:59:59 can be set, default 10 seconds; Function A - Reverse time setting: 0~99:59:59 can be set, default 10 seconds; Function E - Manual automatic mode selection: Mode 1 is manual mode (function 8-9-0-A fails), Mode 2 is automatic mode (function 8-9-0-A takes effect)

Parameter
Input voltage: DC 6-55V
Maximum current: 20A
Display method: LCD color screen
Forward and reverse: bidirectional

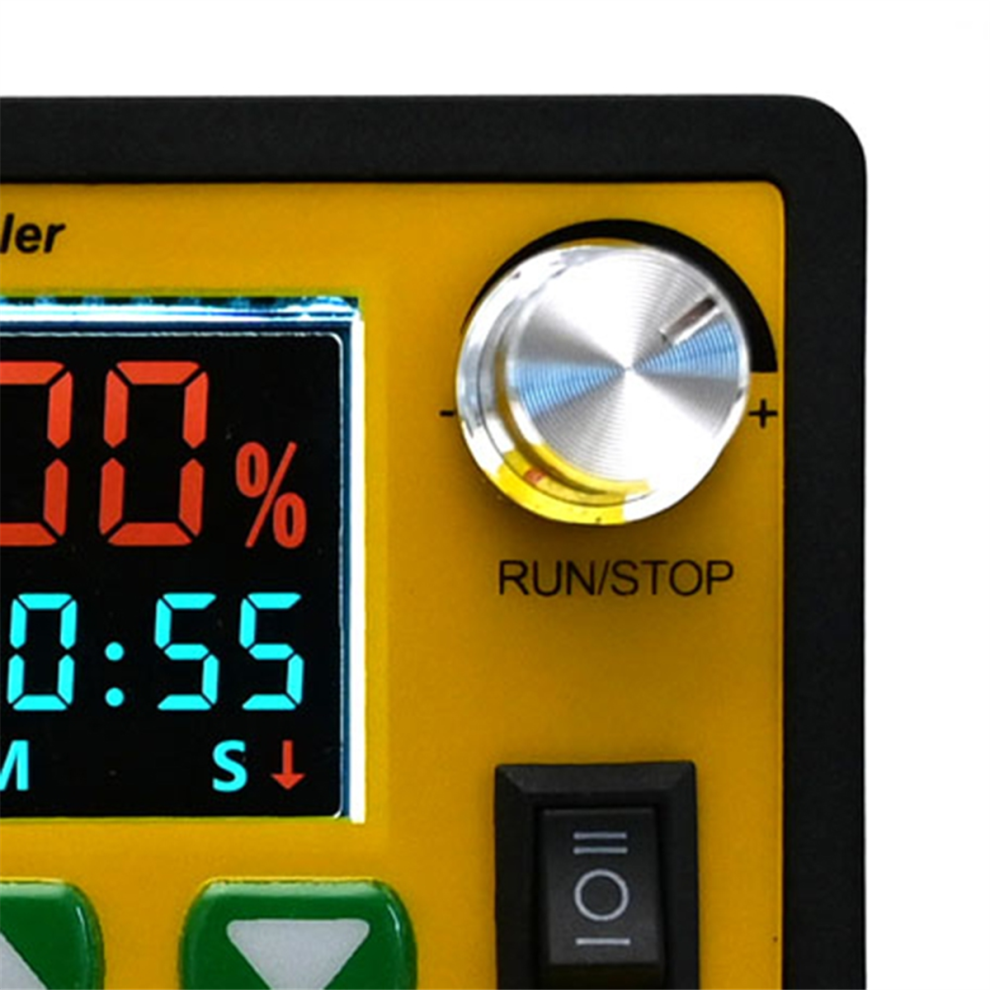

Speed regulation method: button and knob
Wireless remote control: Yes
Supported load: DC brushless motor
Installation method: embedded
Wiringtype: fence type terminal
Net weight of product: 95g+25g

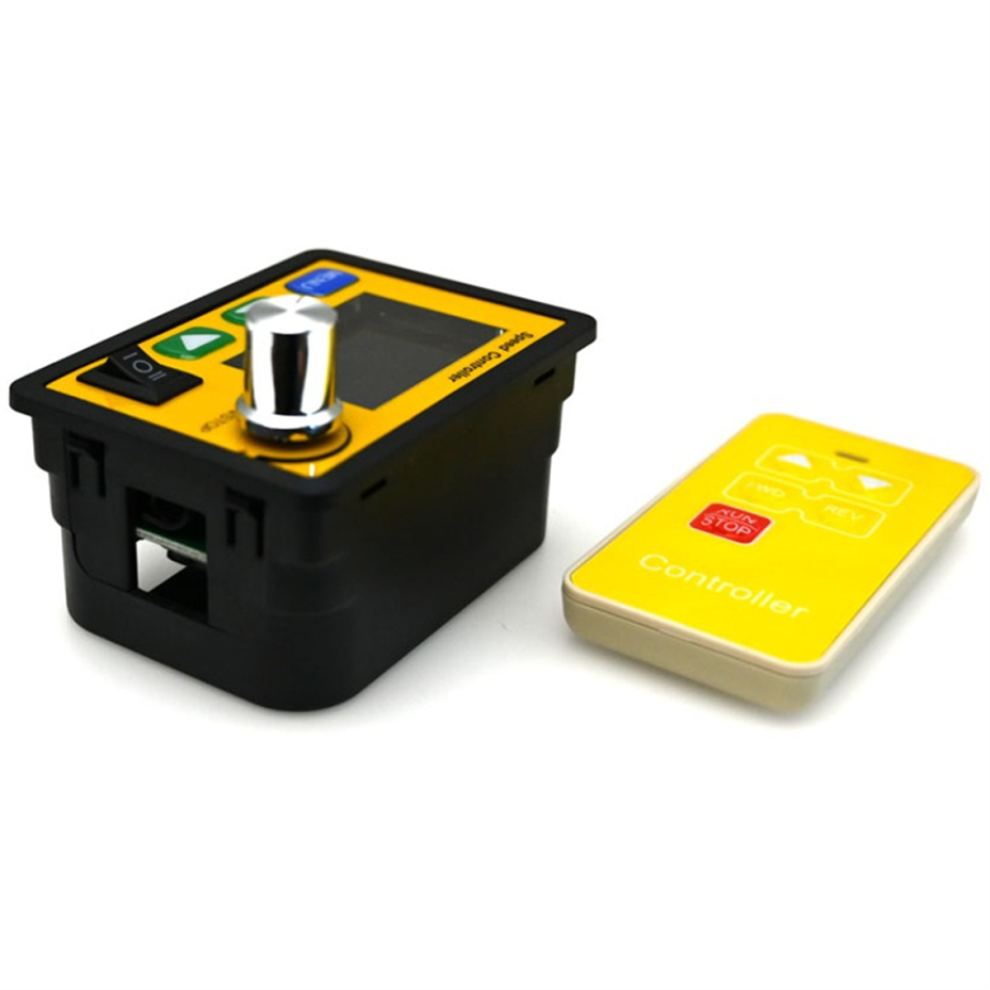

Product size: width 77mm x height 57mm x thickness 38mm
Opening size: width 72mm x height 52mm

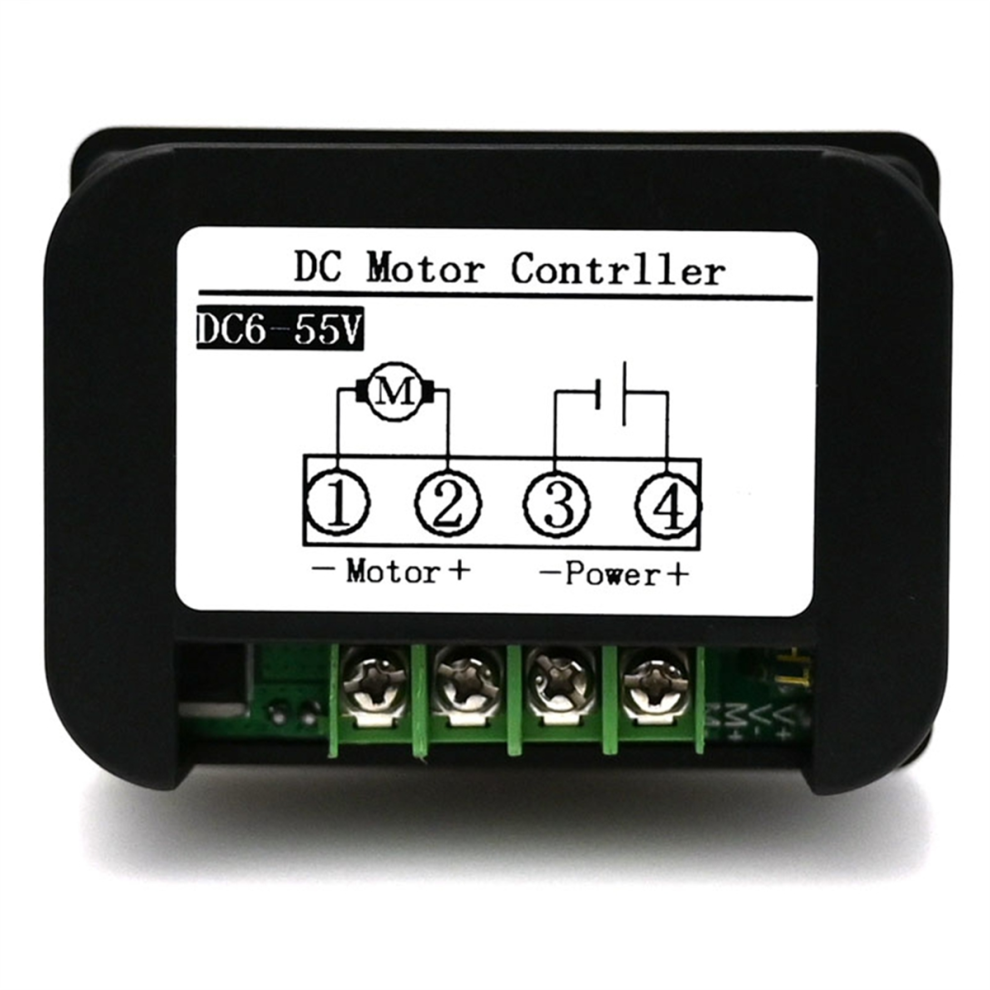

Wiring Instructions
Input voltage within 6-55V DC (specific voltage should be equal to the rated voltage of the motor)
Input power positive terminal ④
Power negative terminal ③
Motor positive terminal ②
Motor negative terminal ①
Remote control code matching
Long the setting button, then power on, and then any key on the remote control once. The backlight flashes twice and the code matching is successful
Factory settings: Enter the settings, and hold the settings button for 6 seconds, and the backlight flashes twice to successfully restore the factory settings
Due to different product batches, the appearance , which does not affect the use
Color: as shown
Material: Plastic

Package Contents:
1 * Speed Controller
1 * Remote control

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
