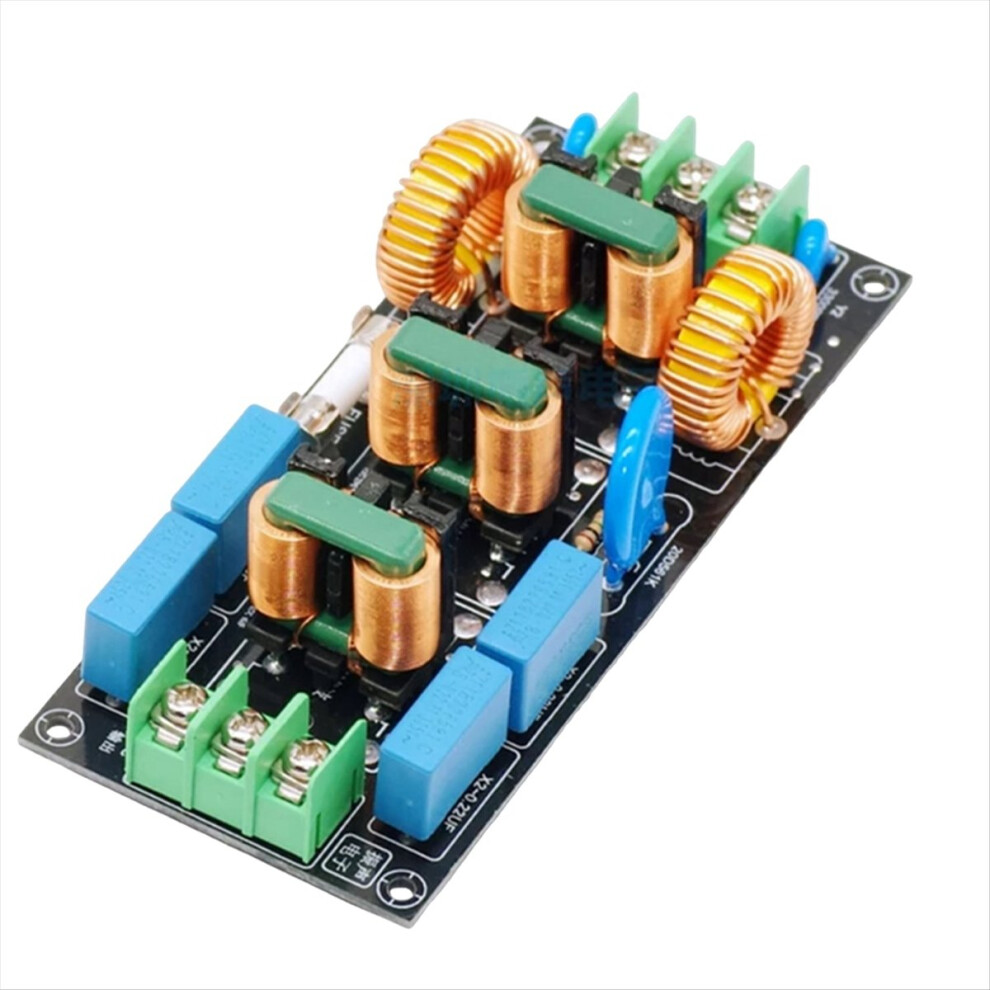

Four-Level Audio AC 220V Power Supply Filter 110V

Four-Level Audio AC 220V Power Supply Filter 110V Description

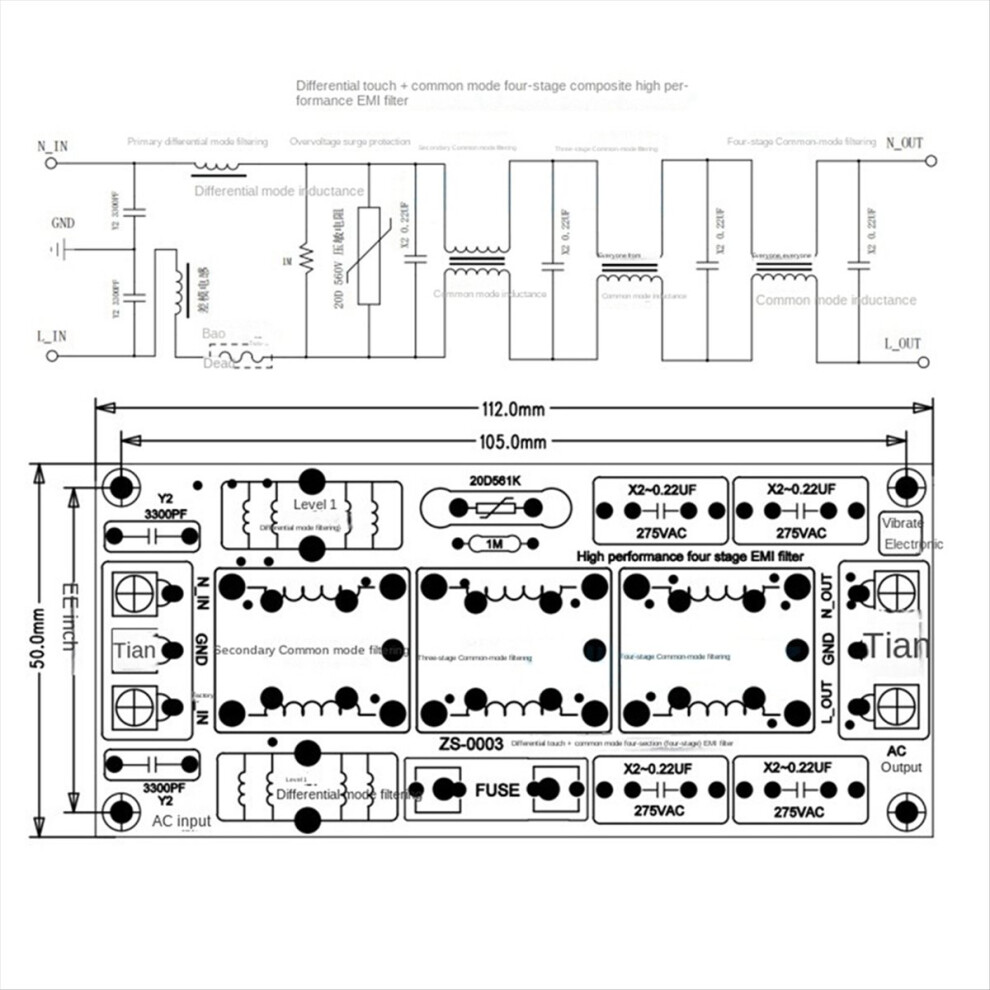

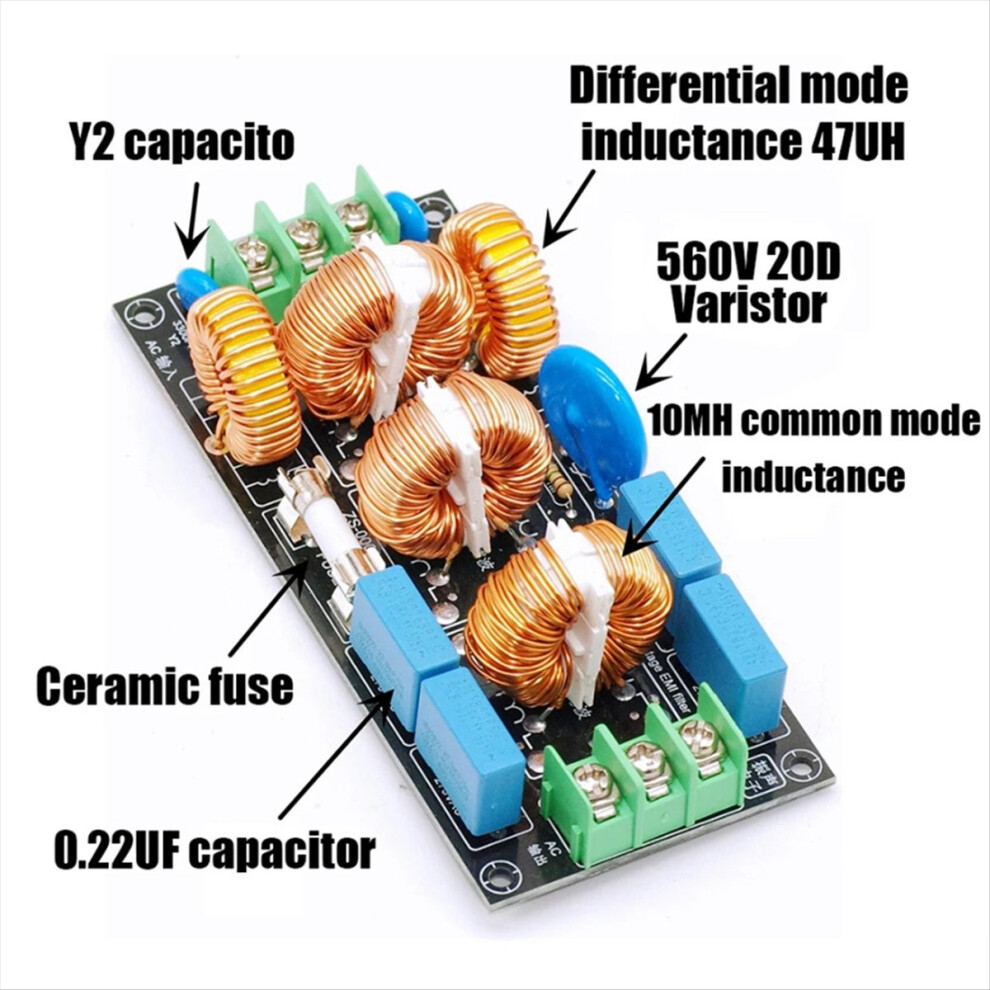

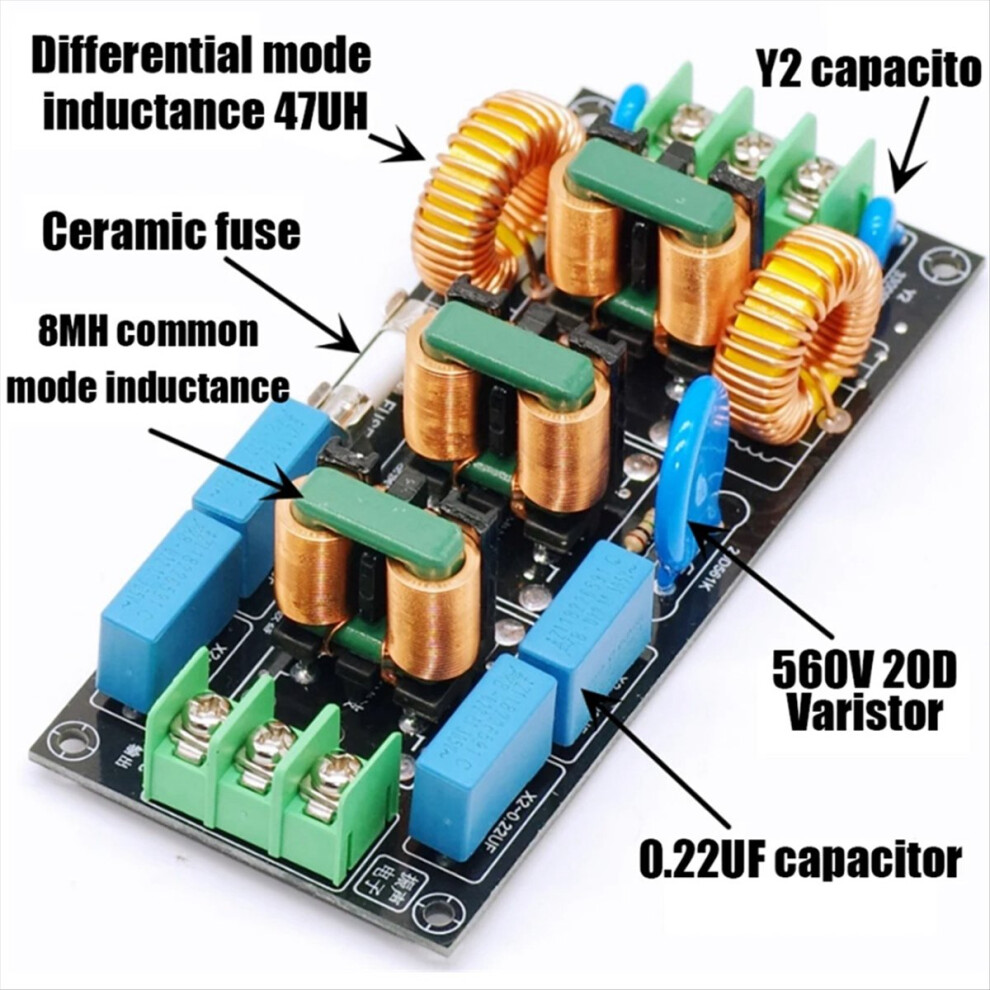

1) Add an overvoltage protection circuit to prevent high voltage.
2) Use a set of differential mode filters and two differential inductors to perform differential mode filtering on the AC power supply to suppress mid- and high-frequency interference.
3) Three sets of common mode filters are combined by X2 capacitor and common mode inductor to form a common mode filter. Due to the use of three-level (also known as three-level) filtering, the effect of filtering out noise is better. It can effectively suppress the fast transient group pulse interference problem of some user sites with a repetition frequency of several thousand hertz.

Type: filter
Style:EMC Safety Rules FCC
:Electrical
filter:AC 220v power supply
Four-stage (four-stage) line filter
Input voltage:single-phase AC 110-250V
Output voltage:single-phase AC 110-250V
Input port:three-wire 7.62 socket input
Output port:three-wire 7.62 socket output
Function:
Overvoltage protection (surge protection)
Short circuit protection
Differential mode + common mode bidirectional filtering to prevent interference
Extend the service life of electrical appliances and increase equipment stability
Load rated current:8A
Colour:As Shown
Material:ABS

Package Contents:
1 * filter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
