Frequency Generator Module 1 Hz to 150 kHz Adjustable Duty

Frequency Generator Module 1 Hz to 150 kHz Adjustable Duty Description

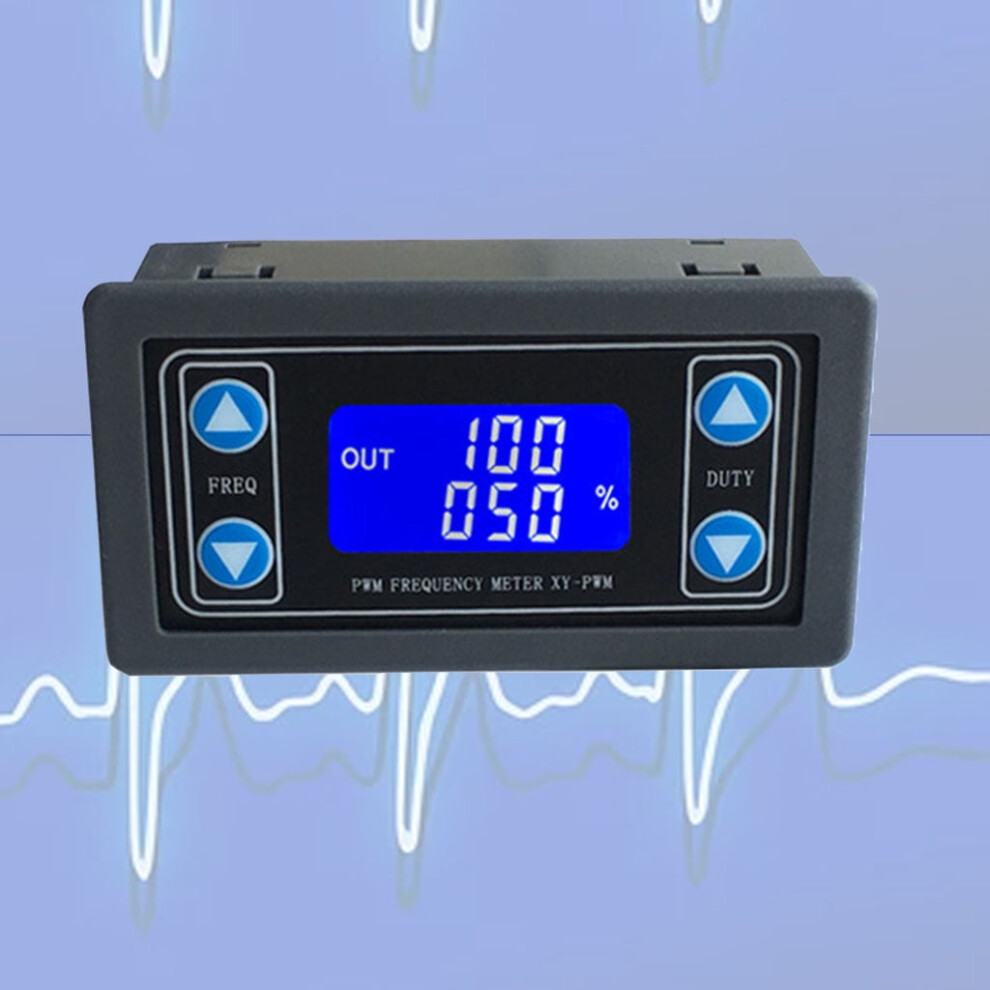

Description: and high generator is that provides electrical signals at a variety of frequencies,, and output levels.It is used as a source or excitation source for testing.Widely used in production practice and technology. Feature: With outer casing LCD display Support Support frequency adjustment Support duty cycle adjustment High detection Support power-down memory function 1-Channel output Frequency set : Enter the settings when short press any button FREQ+ or - in the normal running to frequency range.Automatically frequency. Pay attention to the position where the point moves when the button is pressed. Display XXX.No point,The minimum frequency is 1Hz.The frequency is 1Hz ~ 999Hz. Display X.XX.The point is the, The minimum frequency is 0.01KHz.The frequency is 1.00KHz ~ 9.99KHz. Display XX.X.The point is the third last,The minimum frequency is 0.1KHz.The frequency is 10.0KHz ~ 99.9KHz. Display X.X.X.The point is fully lit,The minimum frequency is 1KHz.The frequency is 1KHz ~ 150KHz. For example: Display 100 means output frequency is 100Hz; Display 1.01 means output frequency is 1.01KHz; Display 54.1 means output frequency is 54.1KHz; Display 1.2.4 means output frequency is 124KHz; Duty cycle set : Enter the settings when short press any button DUTY+ or DUTY- in the normal running to duty cycle.Automatically frequency. Duty cycle is 0.00%-. Use steps: to power supply; Short or long press button FREQ+ or - to set frequency; Short or long press button DUTY+ or DUTY- to set duty cycle to load. communication and parameter settings: The supports data upload and parameter setting functions ( ); : 9600, 8, 1 1.Set frequency: F101 :Set frequency is 101Hz.101 can by replace by 001~999; F1.05 :Set frequency is 1.05KHz.1.05 can by replace by 1.00~9.99; F10.5:Set frequency is 10.5KHz.10.5 can by replace by 10.0~99.9; F1.0.5 :Set frequency is 105KHz.1.0.5 can by replace by 1.0.0~1.5.0; 2.Set duty cycle: DXXX :Set duty cycle is. can be 000-100. E.g:D051 means PWN duty cycle is be set as 51%. 3.Read set parameter: Send read and then get parameter. 4.Return value: Return DOWN :Set success. Return FALL :Set. Application: 1.Square generator, generating for experimental development; 2.Used to generate a that controls the motor driver; 3.Generate adjustable pulses for use by the ; 4.Dimmer; 5.Speed governor; Notice: It's 1-channel output signals are the same.They can not adjust independently. Specification: Product name: Generator Work : 3.3V-30V Frequency :1Hz~150KHz Frequency accuracy:2% Duty cycle :0.00%- Output Current:About 5-30mA Output amplitude:Same to input Operating temperature:-20~70 Color: Black Size:app. 78 x 26 x 42mm / 3.07 x 1.02 x 1.65in Quantity: 1 pc Note: : 1cm=10mm=0.39inch retail package. Please allow 1-2cm error due to manual measurement. pls make sure you do not mind before you bid. Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package includes: 1 x Generator(other accessories in the picture is not included.)
