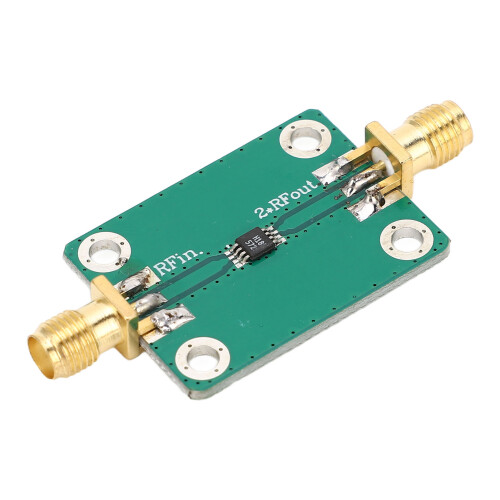

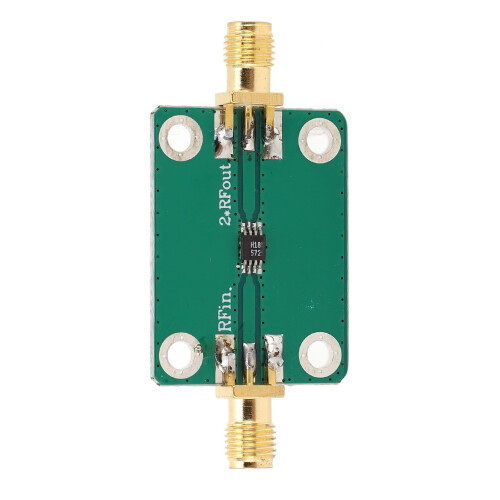

Frequency Multiplier RF in 0.85‑2GHz RF Out 1.7‑4GHz Frequency Multiplier Module for Frequency Multiplier Amplifiers
New
£10.66
Would you like us to let you know when it's back?
Description & Details
Summary

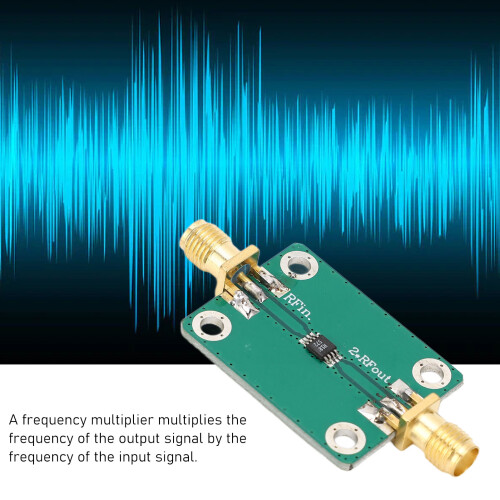

- Frequency Doubler: Frequency doubler makes the frequency of the output signal multiplied by the frequency of the input signal, without power supply, using passive frequency doubler devices.
- Project Coefficient N is 2: Input frequency is f1, output frequency is f 0 = nf1, project coefficient n is 2, to meet your use requirements.
- Frequency Doublers are Widely Used: For example, if used in a transmitter, they cause the main oscillator to oscillate at a lower frequency, thus improving frequency stability.
- Increase Frequency Offset: Frequency doublers can be used in frequency modulation equipment to increase frequency offset.
- Important Component: In phase keyed communication machine, frequency doubler is an important part of the carrier recovery circuit.
Frequency Multiplier RF in 0.85‑2GHz RF Out 1.7‑4GHz Frequency Multiplier Module for Frequency Multiplier Amplifiers Description
Frequency Multiplier RF in 0.85‑2GHz RF Out 1.7‑4GHz Frequency Multiplier Module for Frequency Multiplier Amplifiers
Item Type: Frequency Multiplier
Weight: 6g/0.2oz
Product Material: PCB
Power Supply Voltage: No power supply, using passive frequency doubling devices
Input Frequency: 0.85-2GHz
Output Frequency Range :1.7-4GHz
Input Power: +10dBm~+20dBm
Frequency Doubling Loss: 15dB
