FRM01 Timer Relay Module 18 Function

FRM01 Timer Relay Module 18 Function Description

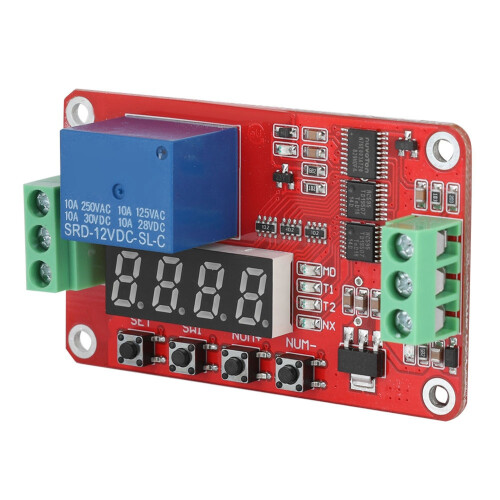

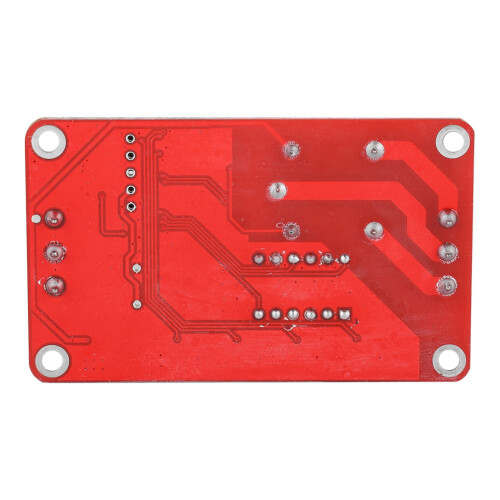

The FRM01 is a versatile multi-function timing relay module designed for automation and control systems. It supports 18 distinct operating modes including timing on, timing off, cyclic timing, and latching relay functions. The adjustable time range spans from 0.1 seconds to 270 hours for most modes, with a finite loop mode offering cycle counts from 1 to 9999. The module is built on a durable PCB and connects via screw terminals for easy installation. It requires a DC power supply (5V, 12V, or 24V version available) and features a CH1 high-level trigger input. Relay contacts are rated for DC 0-30V/10A and AC 0-250V/10A for normally open, and DC 0-28V/10A, AC 0-125V/10A for normally closed. This module is ideal for industrial timers, aquarium lights, and other automated processes.
