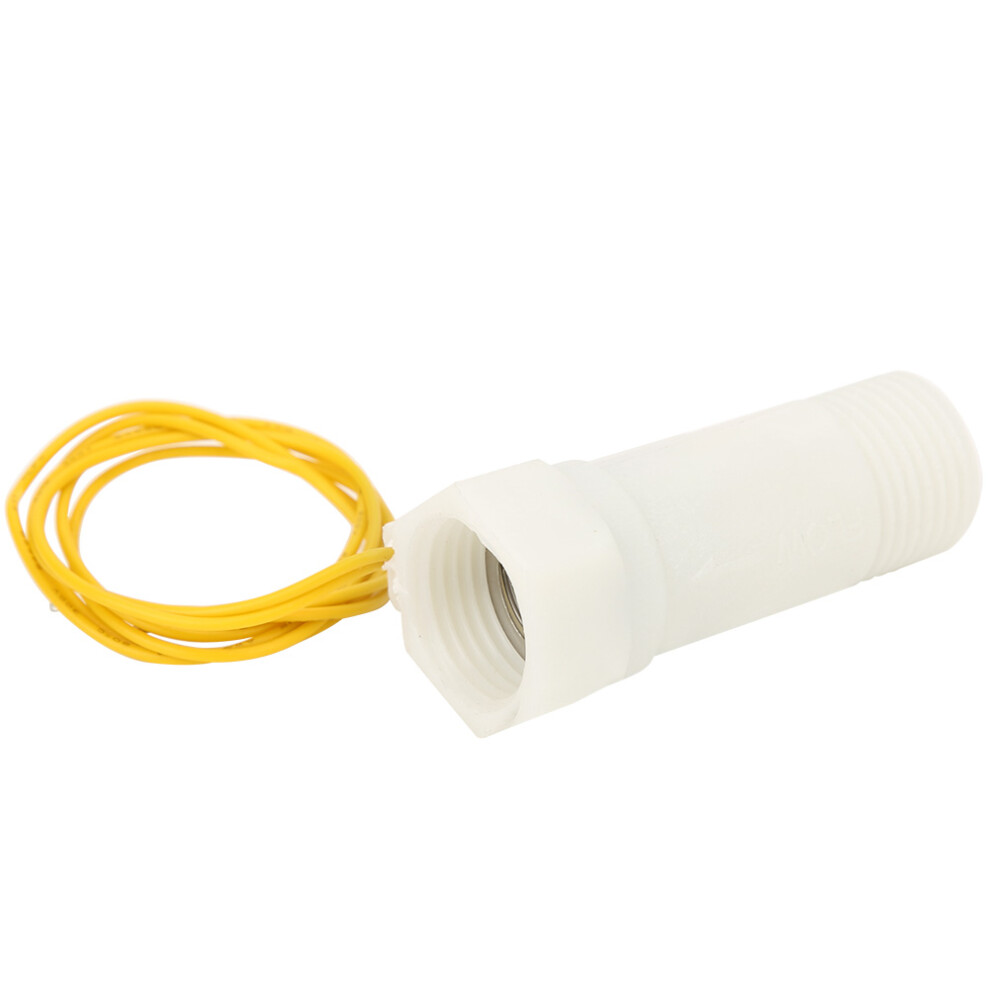

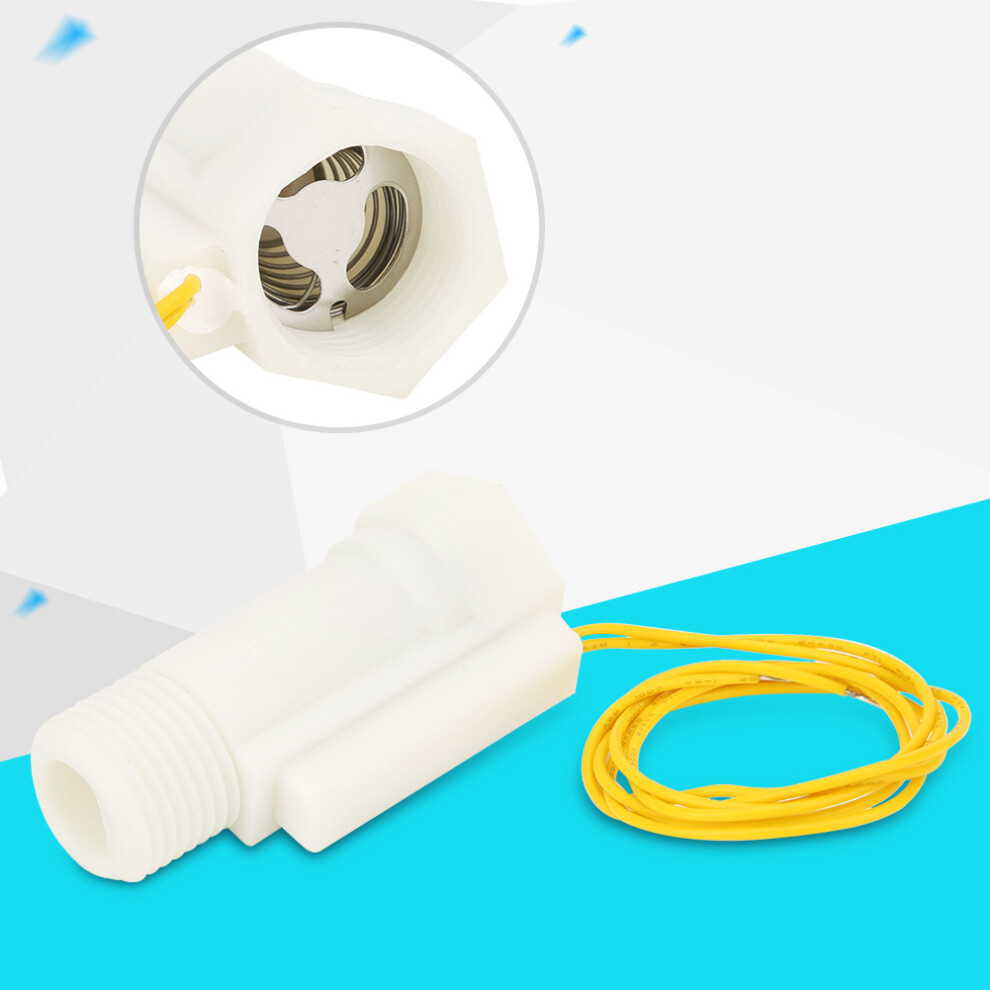

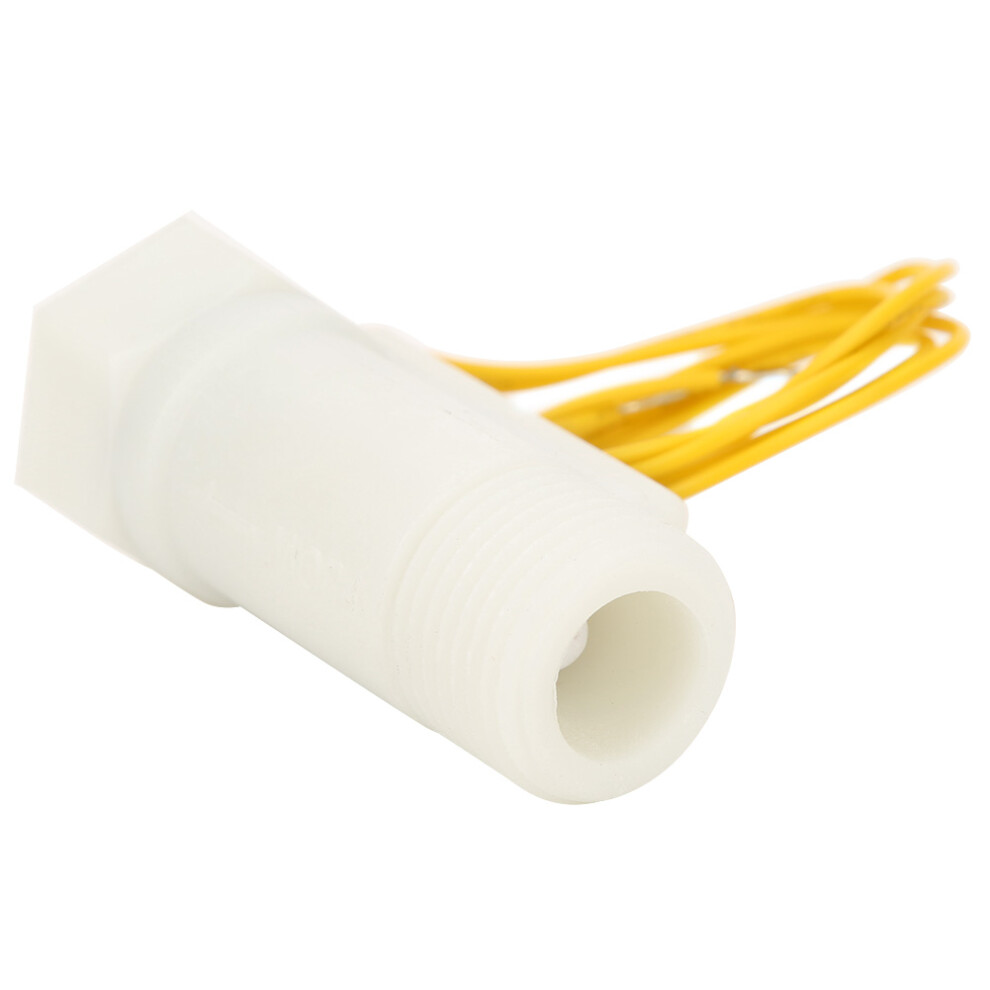

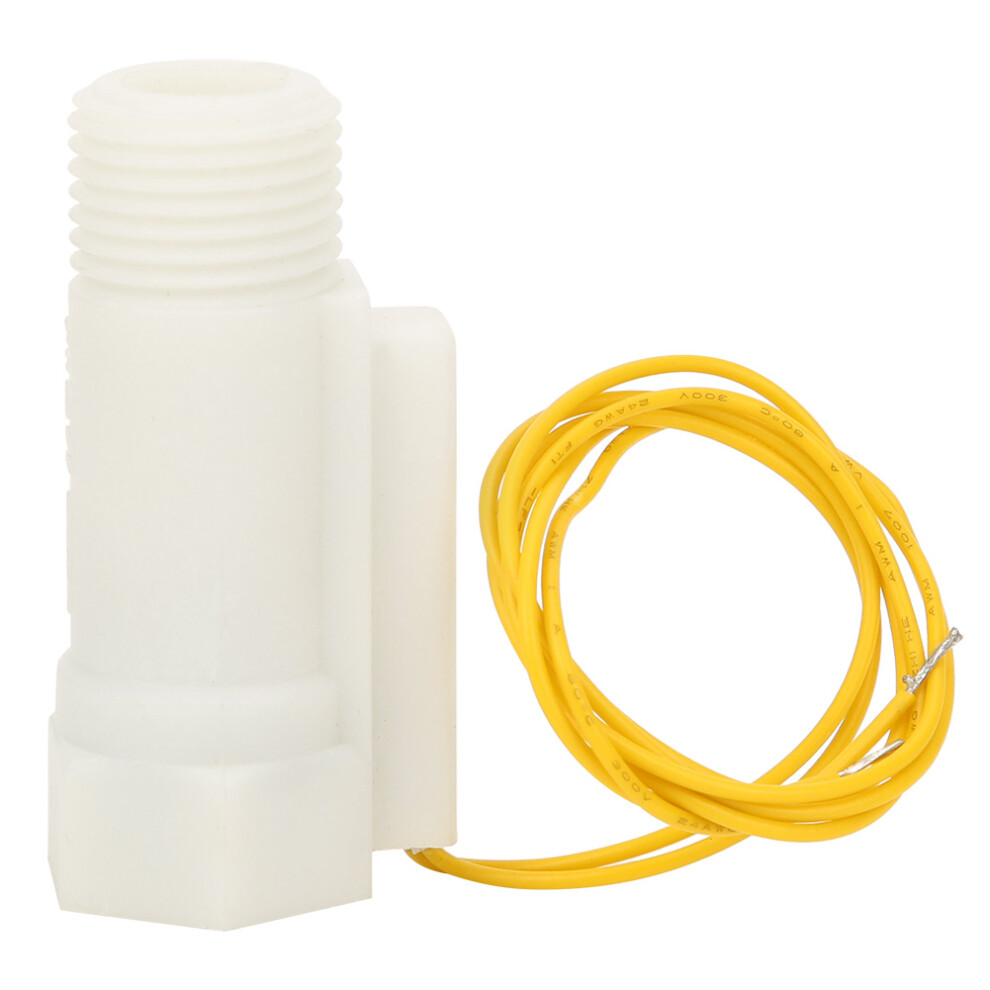

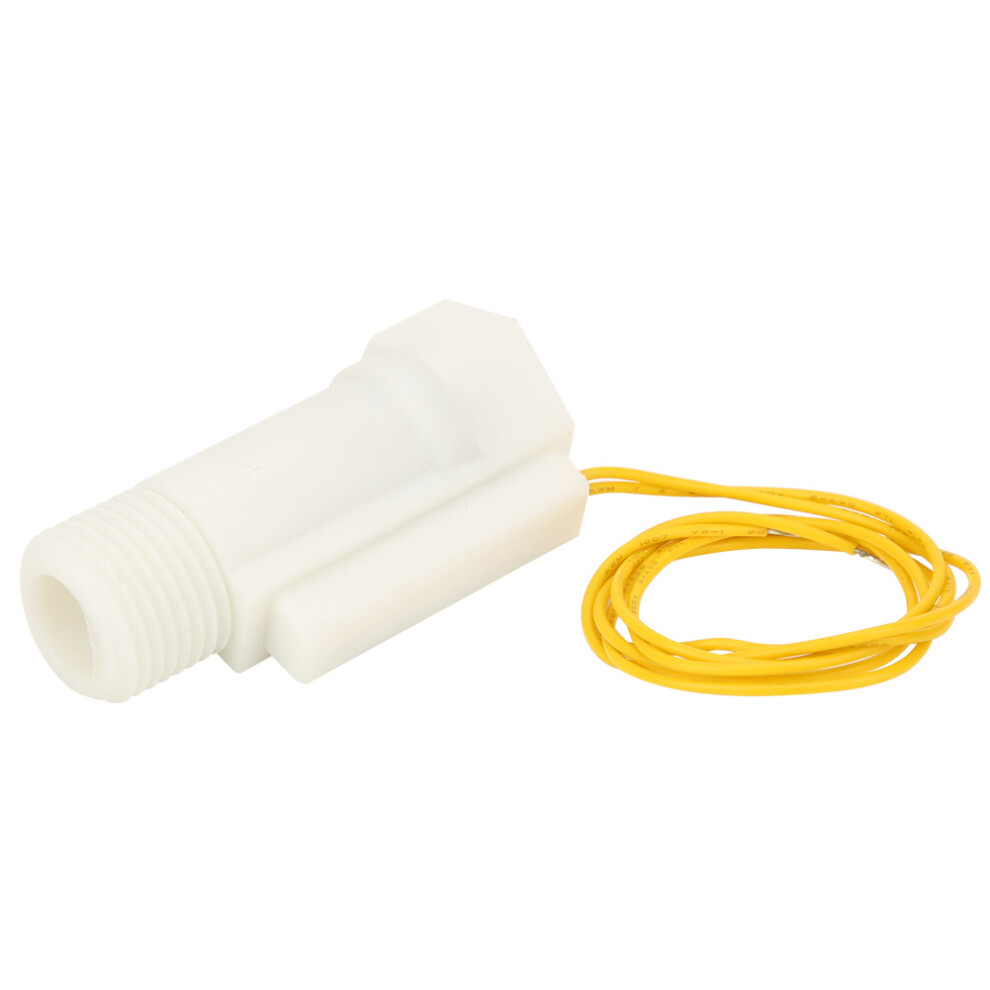

FS-1/2 Nylon Flow Sensor, 0.75-5 L/min, 64mm

FS-1/2 Nylon Flow Sensor, 0.75-5 L/min, 64mm Description

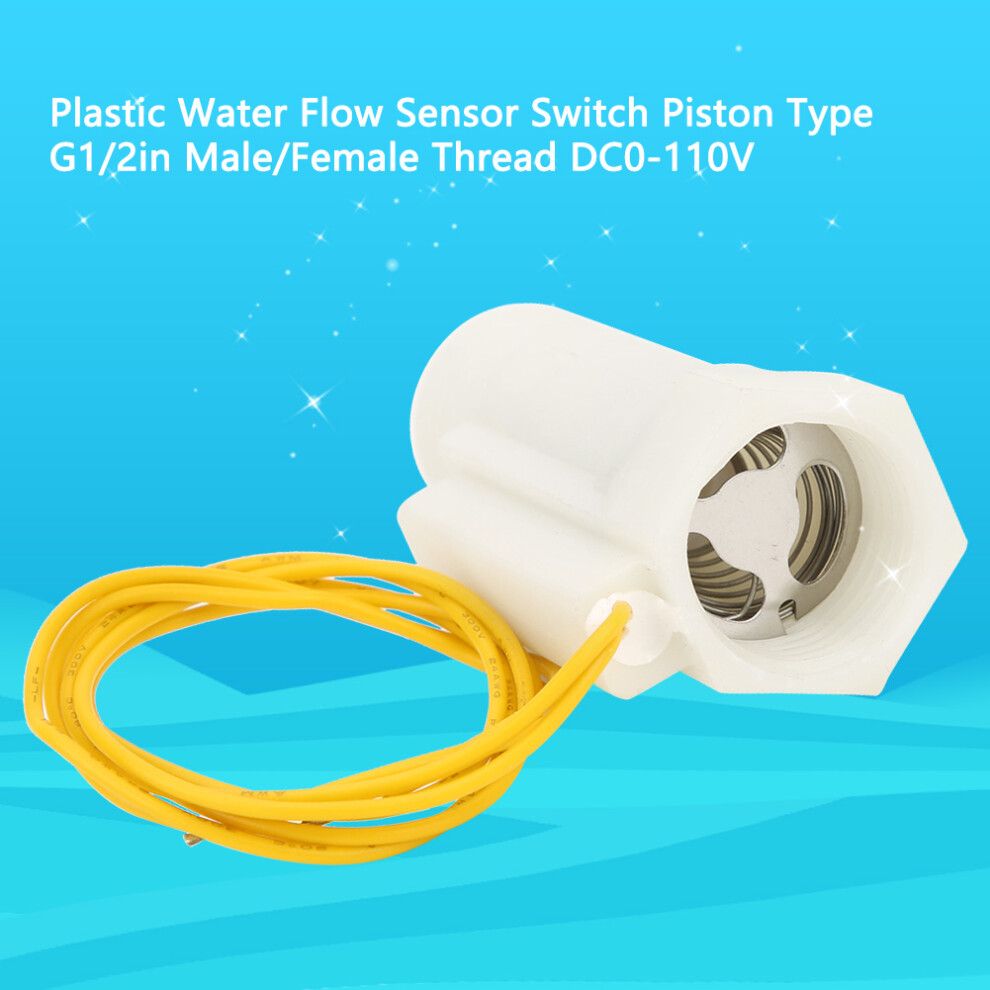

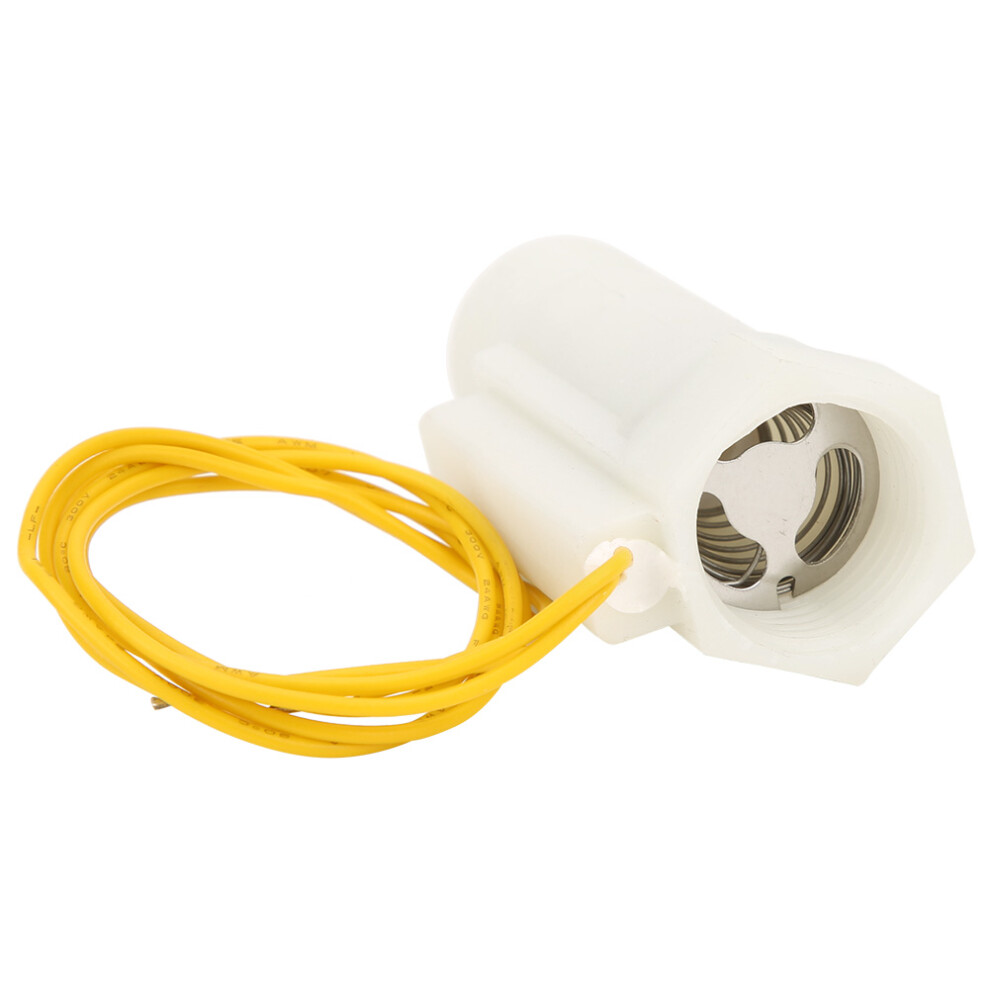

Plastic Water Flow Sensor Switch Piston Type G1/2in Male/Female Thread DC0-110V
Item Type: Plastic Water Flow Sensor SwitchModel: Fs-1 / 2-nylon

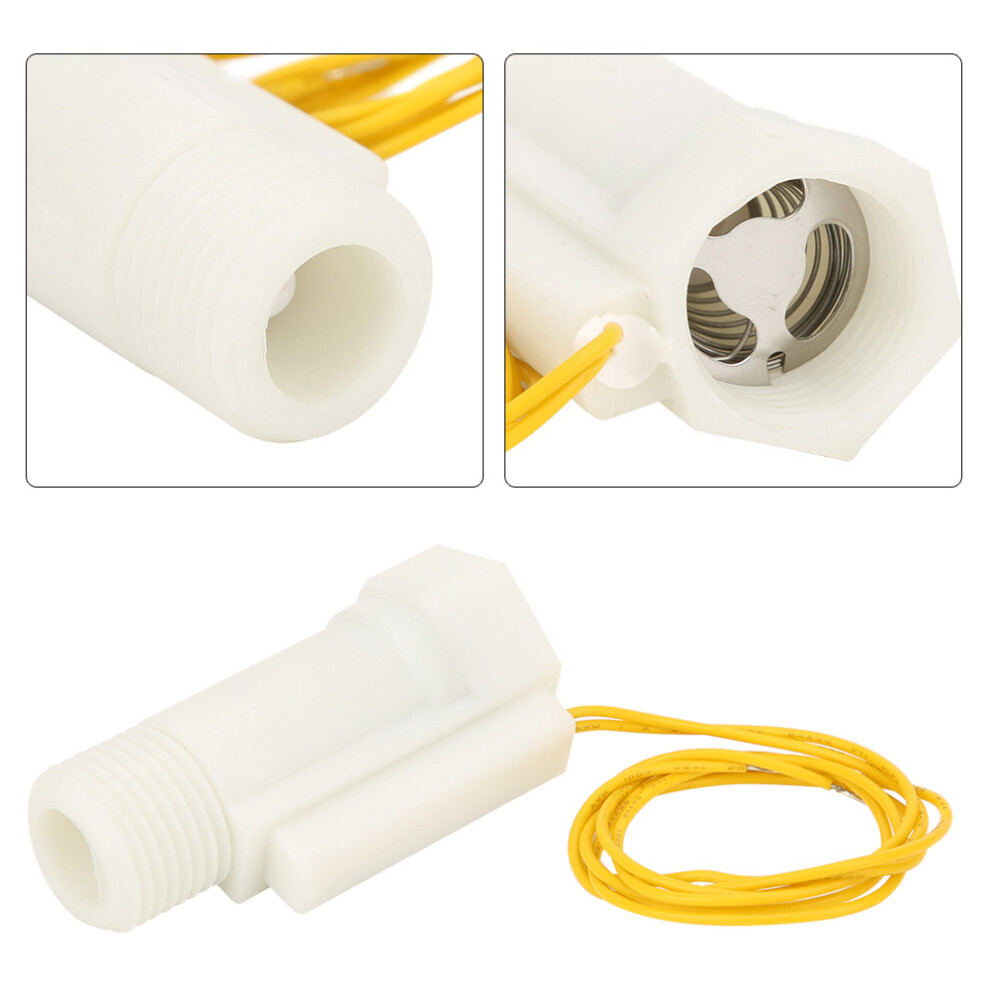

Interface Thread Size: Male/Female threads are G1/2in
Material: Nylon
Working Voltage: DC0-110V
Working Current: 0.5-1A
Medium Specific Gravity: 0.7

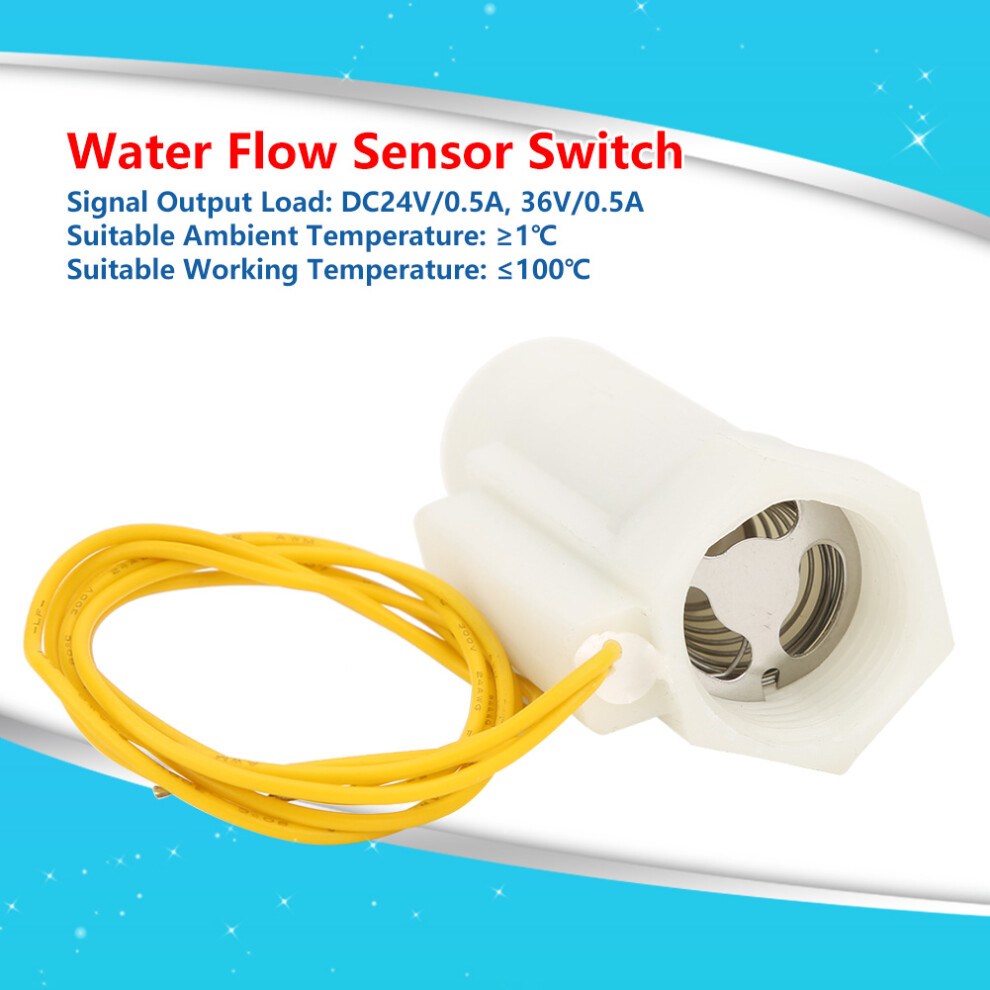

Signal Output Load: DC24V/0.5A, 36V/0.5A
Suitable Ambient Temperature: 1
Suitable Working Temperature: 100
Minimum Starting Flow: 0.75L/min
Maximum Throughput: 5L/min
Rated Working Pressure: 0.65Mpa

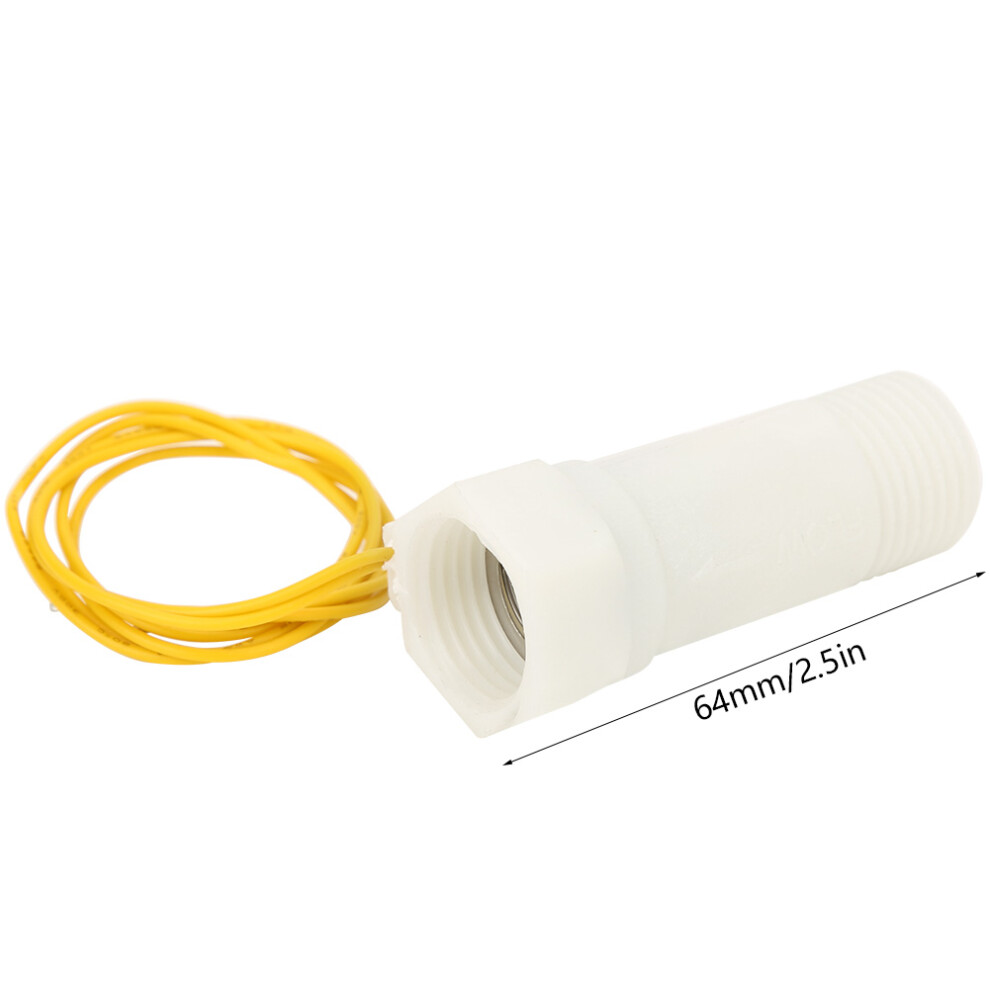

Maximum Pressure of The Shell: 1.5MpaLength: Approx. 64mm / 2.5in
Working Principle: When the water flow in the pipeline is greater than 0.75L/min, the magnetic core is displaced under the action of the water flow and drives the magnetic source to generate a magnetron effect to cause the sensor to output a "1" switching signal, which is input to the equipment control system , After power amplification, the purpose of water flow control is achieved. When the water flow in the pipeline is less than 0.75L / min, the magnetic core will drive the magnetic source back under the force of the return spring, so that the sensor outputs a "0" switching signal to stop the system
Adaptation Scope and Conditions:
(1) The ambient temperature is not lower than 0. Do not knock on the case. Keep away from magnetic objects
(2) The output of the signal is a switch value, so the connection method of the control object must also be a switch control relationship.
(3) The power of the control object must not be greater than the signal load capacity
(4) This device is a water medium control device and cannot be used for other medium control.
