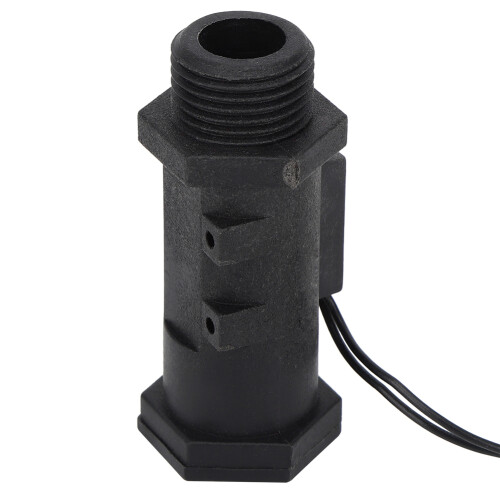

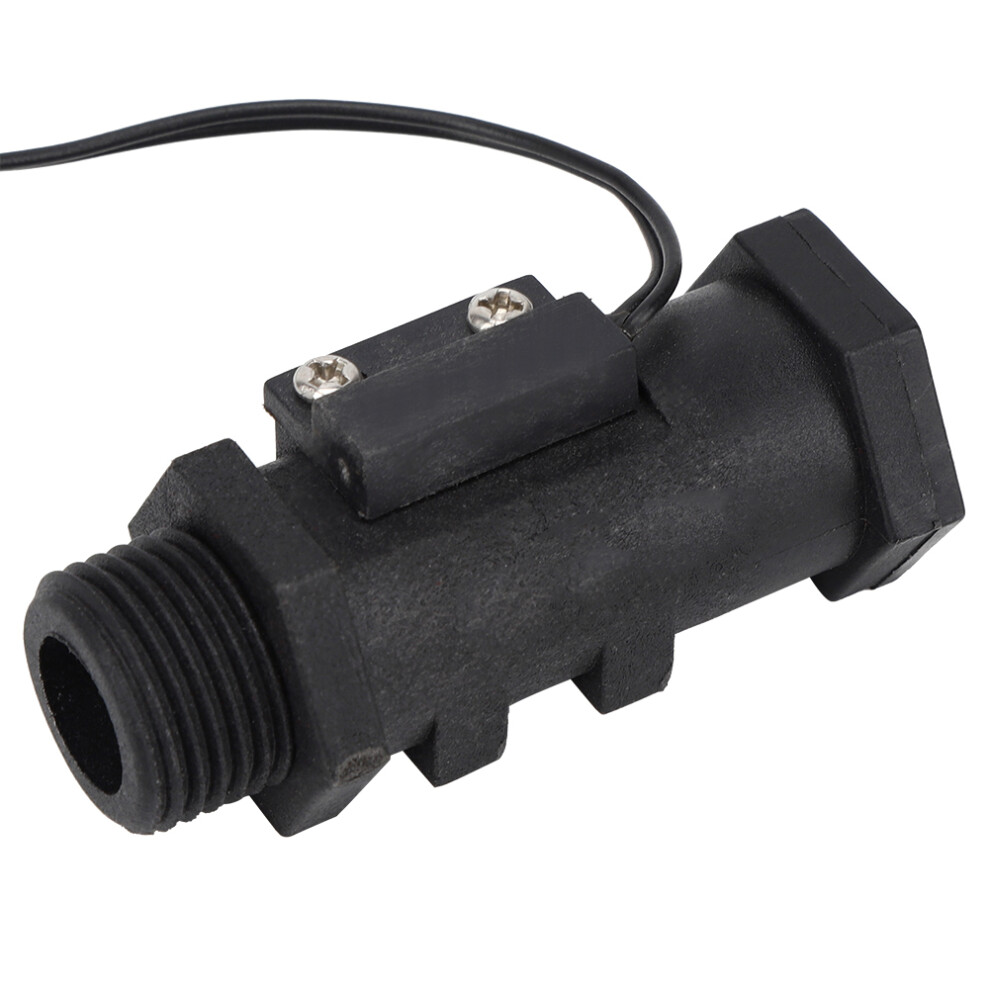

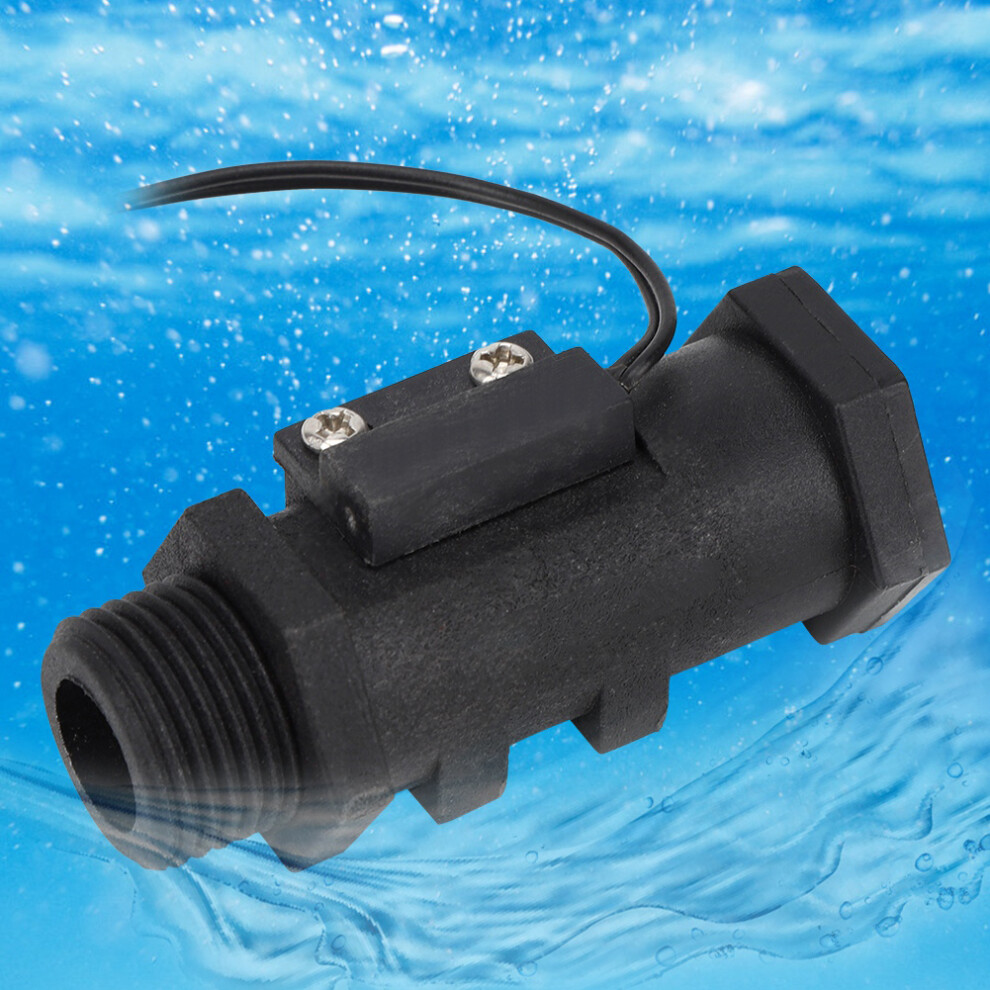

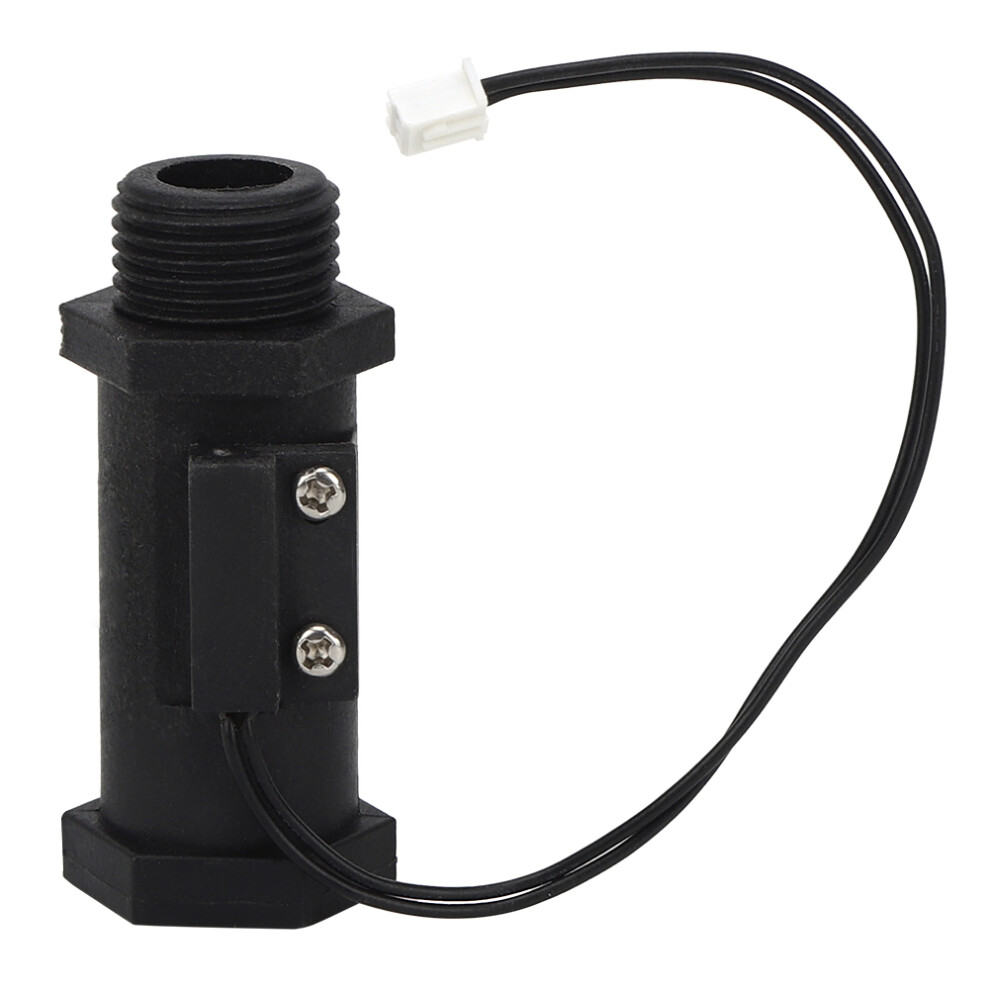

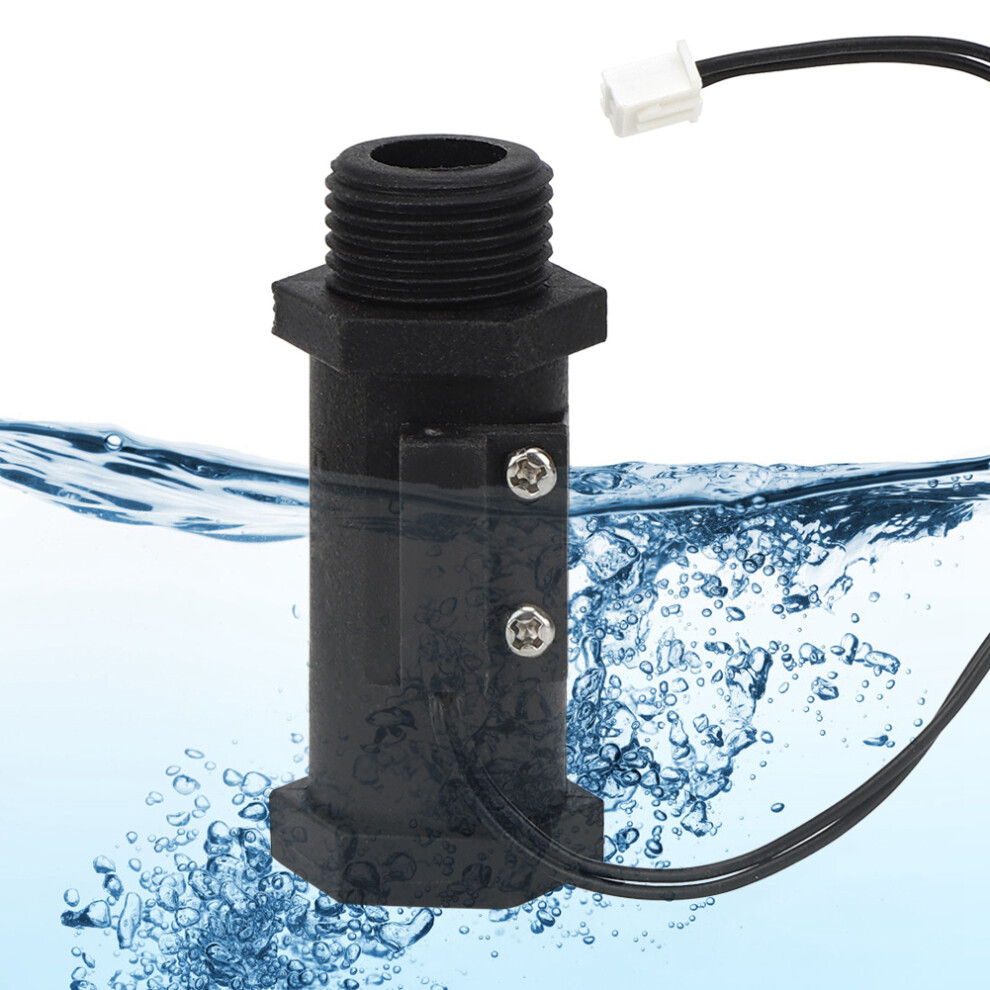

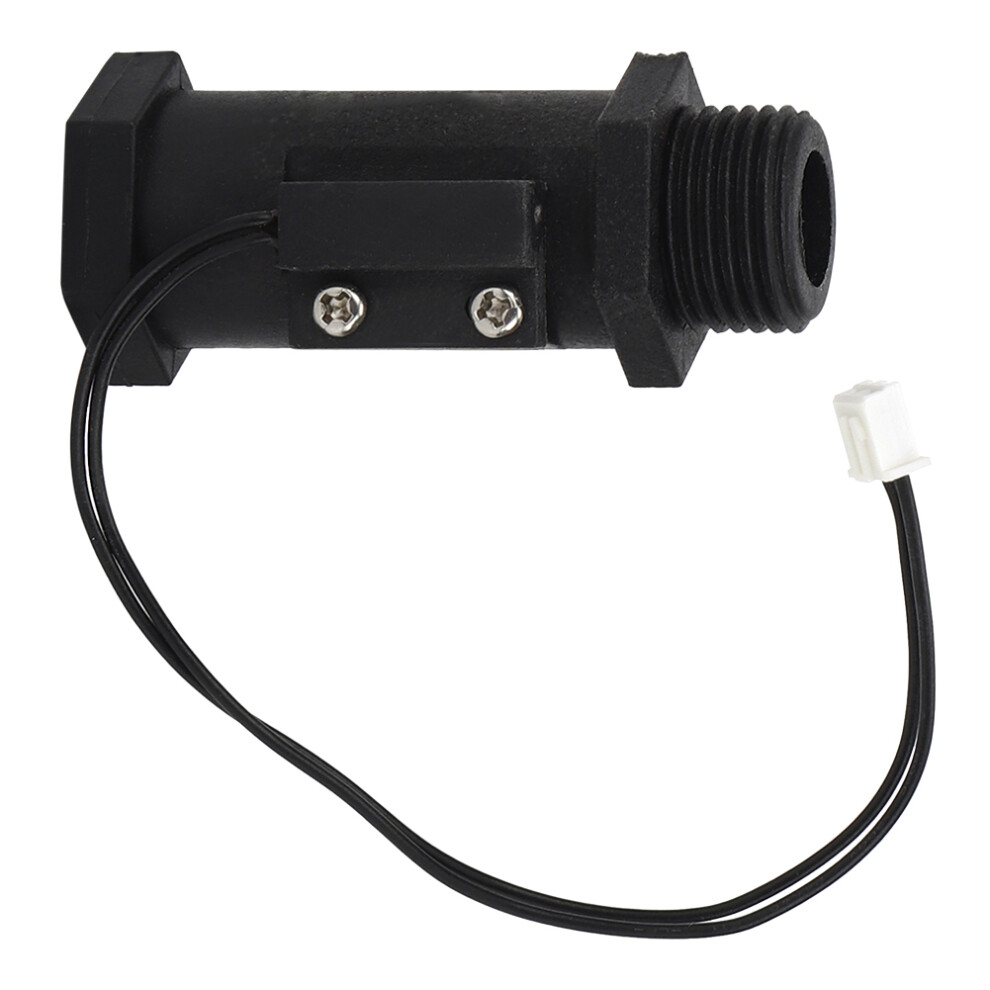

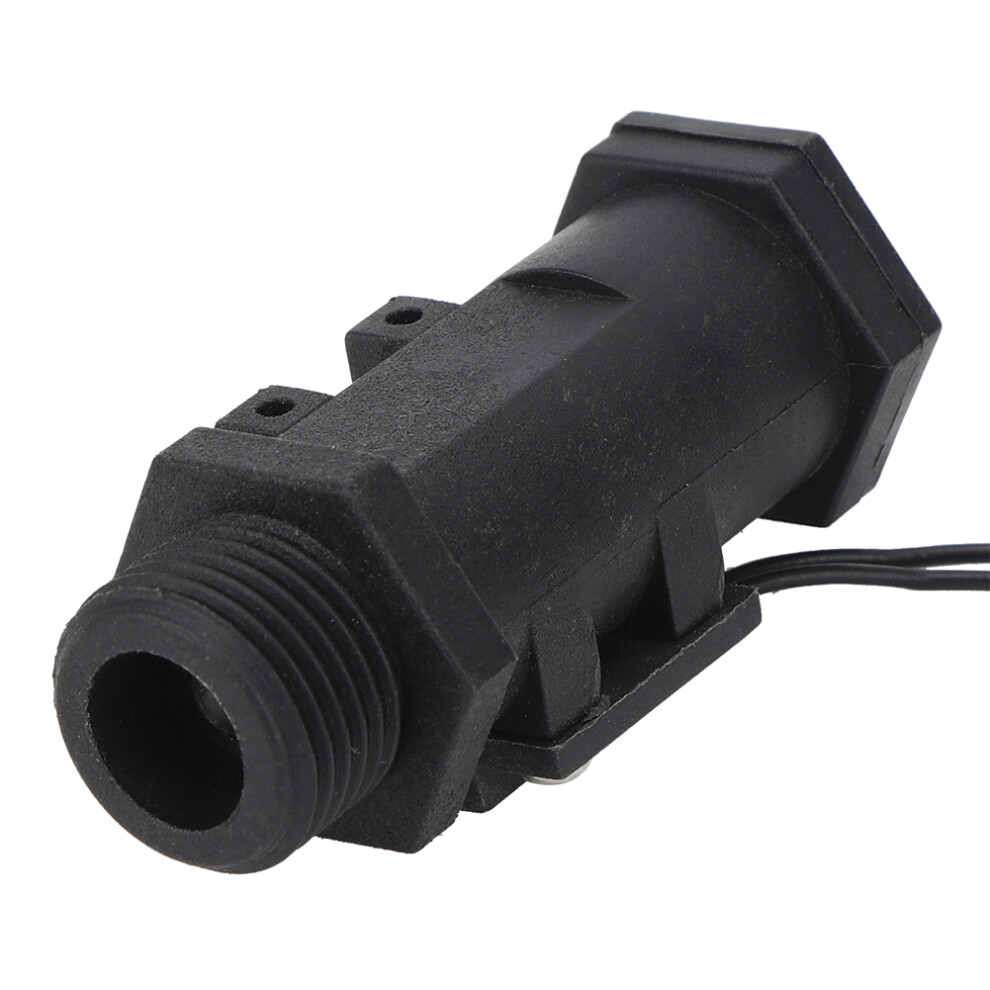

FS-135 Water Flow Sensor PP Plastic for Laser Welding Machine 0.75L/min

FS-135 Water Flow Sensor PP Plastic for Laser Welding Machine 0.75L/min Description

FS-135 Flow Sensor PP Plastic DC0-110V Water Shortage Protection Switch for Laser Welding Machine
Item Type: Water flow switch
Model: FS-135

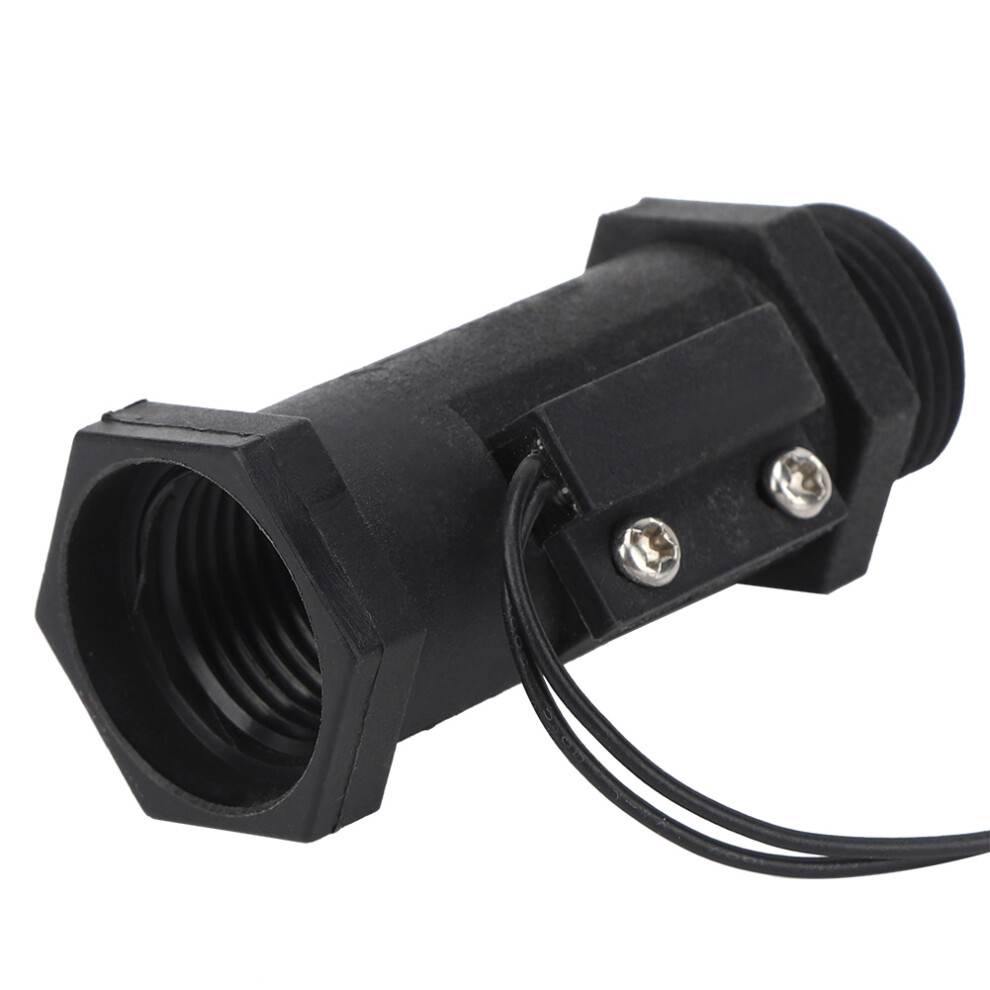

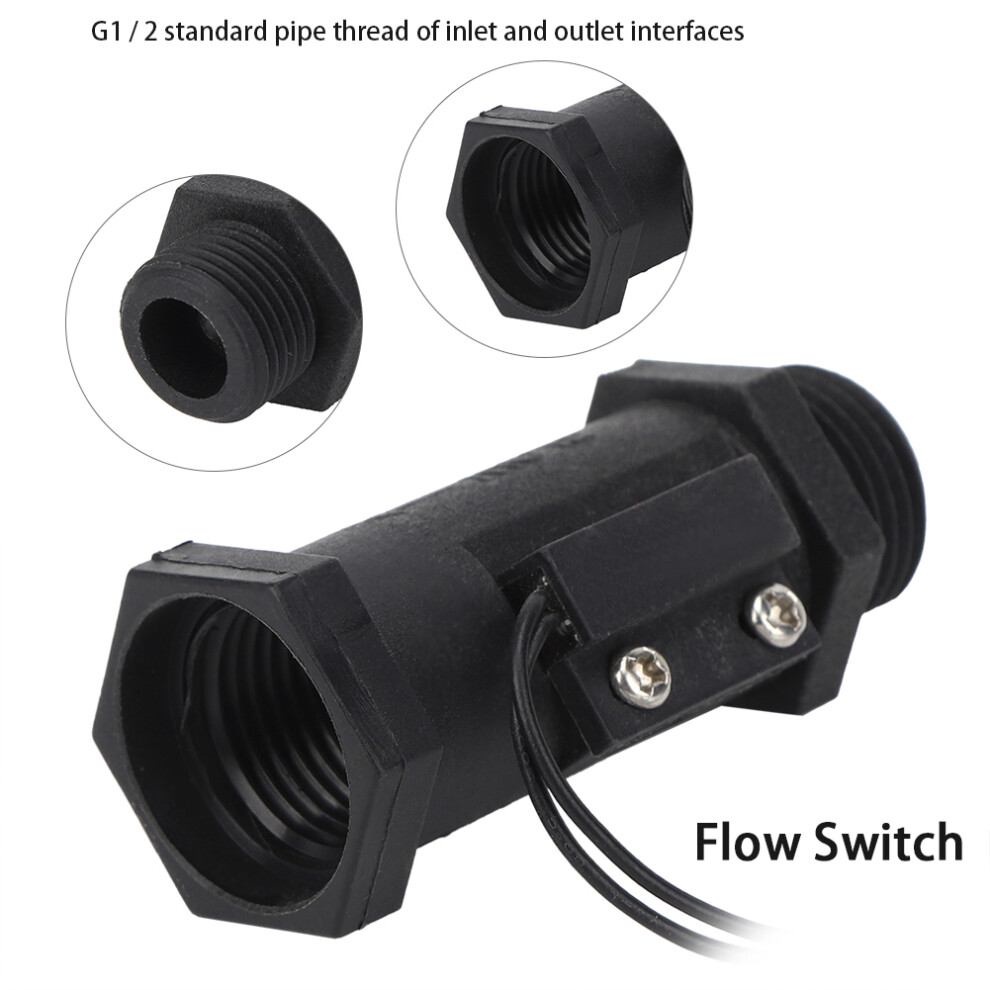

Interface Thread Size: both internal and external threads are G1 / 2
Material: PP plastic
Working Voltage: DC0-110V
Working Current: 0.5-1A
Medium Proportion: 0.7
Signal Output Load: DC24V / 0.5A, 36V / 0.5A
Suitable Ambient Temperature: 1
Suitable Working Temperature: 100
Minimum Starting Flow: 0.75L / min
Maximum Flow Rate: 5L / min
Rated Working Pressure: 0.65Mpa
Maximum Pressure of Shell: 1.5Mpa
Working Principle: when the water flow in the pipeline is more than 0.75L / min flow, the magnetic core generates displacement under the action of the water flow and drives the magnetic source to produce a magnetic control function to make the sensor output a "1" switch signal, which is input to the equipment control system, and after the power expansion and amplification, the purpose of water flow control is achieved. When the water flow in the pipeline is less than 0.75L / min flow, the magnetic core drives the magnetic source to return under the thrust of the return spring, so that the sensor outputs a "0" switch signal to stop the system.
Adaptation Scope and Conditions:
(1) The ambient temperature is not lower than 0 . Do not knock on the casing. Keep away from magnetic objects.
(2) The output of the signal is the switch quantity, so the connection mode of the control object must also be the switch control relationship.
(3) The power of the controlled object shall not be more powerful than the signal load capacity.
(4) This equipment is a water medium control equipment and cannot be used for other medium control.
