FTA TV multiswitch for LNB, 3 input 4 output for DVB-S2 DVB-T2 satellite

FTA TV multiswitch for LNB, 3 input 4 output for DVB-S2 DVB-T2 satellite Description

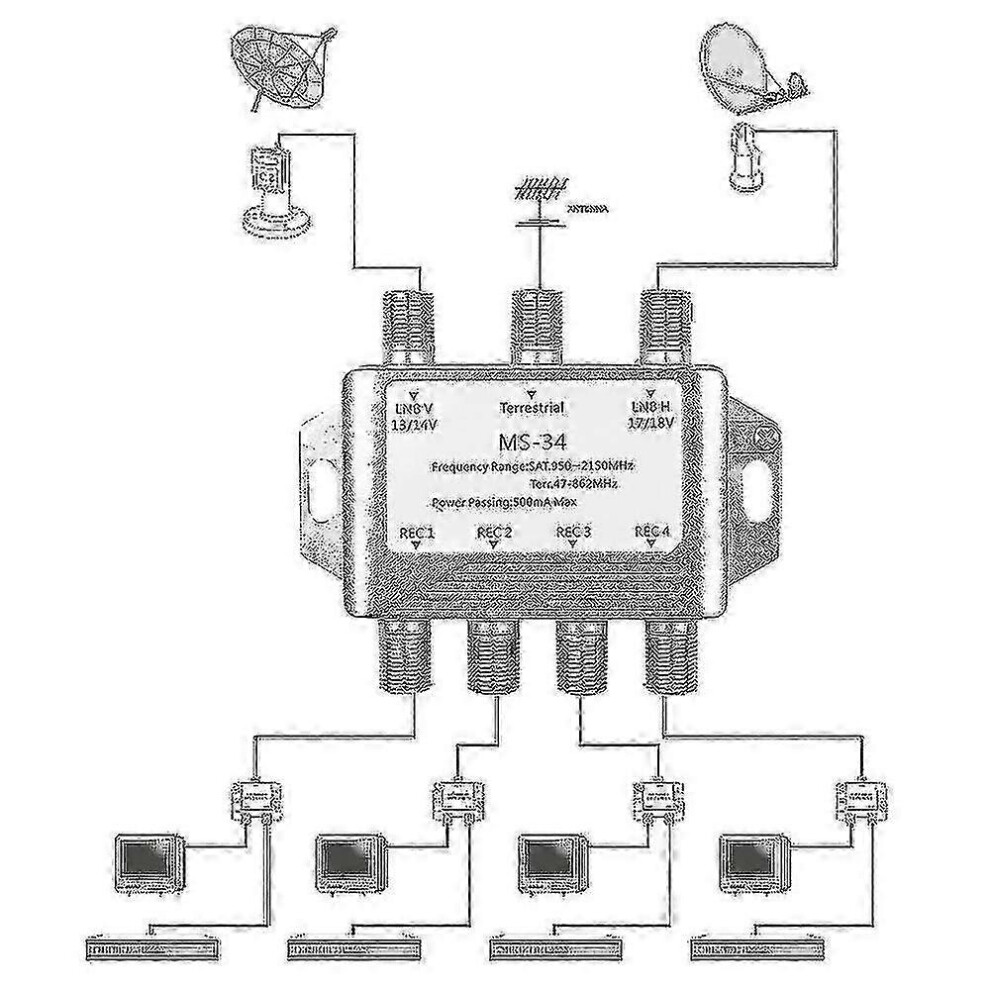

Ms34ez 3x4 Satellite Multiswitch Splitter Fta Tv Lnb Forswitch Cascade Satellite 3 In 4 Multiswitch For Dvb-s2 Dvb-t2
MS34EZ 3x4 Satellite MultiSwitch Splitter FTA TV LNB forSwitch Cascade satellite 3 in 4 Multiswitch For DVB-S2 DVB-T2_x005f_x000D_Features:_x005f_x000D_1. Low power consumption;_x005f_x000D_2. External Power Units or power by receiver;_x005f_x000D_3. Zinc die-cast housing, nickel-plated;_x005f_x000D_4. Built-in amplification circuit compensate cable loss;_x005f_x000D_5. Alternative SAT IF selection: 13/18V;_x005f_x000D_6. Chips research and development independently on our own;_x005f_x000D_7. For the products, we have our own patent_x005f_x000D_8. IC in forswitch distribute and control power supply to LNB , reducing energy consumption._x005f_x000D_ _x005f_x000D_Specification:_x005f_x000D_1,Frequency Range:950-2150MHz (Sat) / 5-862MHz (Terr)_x005f_x000D_2,Insertion Loss:5Db(SAT) / 5dB (ANT)_x005f_x000D_3,Isolation Between Outputs:25(dB)_x005f_x000D_4,Switching Isolation Input: 28(dB)_x005f_x000D_5,Return Loss Inputs: 12(dB)_x005f_x000D_6,Return Loss Outputs: 10(dB)_x005f_x000D_7,Output Level: 88dBuV (ANT) / 100dBuV (SAT)_x005f_x000D_8,Normal Working Voltage: 12-20(V)_x005f_x000D_9,D-C Power Consumption: 30(mA)_x005f_x000D_10,D-C Max Power Passing: 500(mA)_x005f_x000D_11,Impedance (all ports): 75()_x005f_x000D_12,Switching Voltage/Signal: 13/18V, 0/22KHz_x005f_x000D_13,Connectors F type: female_x005f_x000D_14,Working Temperature: -20c-60c_x005f_x000D_ _x005f_x000D_Package included:_x005f_x000D_1 x Satellite SSwitch
