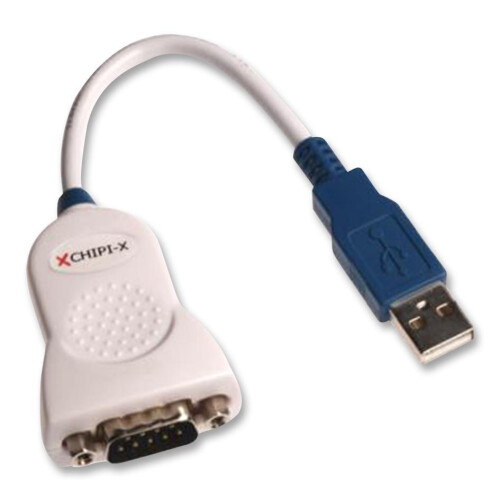

FTDI - Cable, USB / DB9 Male RS232, 10cm

FTDI - Cable, USB / DB9 Male RS232, 10cm Description

The CHIPI-X10 is a USB to RS232 level full handshake UART cable with FT231X USB to full handshake UART IC and FT3243S RS232 transceiver IC. It utilises the minimum number of components required for a basic USB to RS232 converter designed using the FT231XS chip combined with an RS232 level converter and a few capacitors. Chipi-X10 is CE and FCC approved and is one of the simplest USB to RS232 solutions around. Using a standard DB9 connector and powered from the USB port, the Chipi-X10 converter can be used with VCP drivers to provide a COM port on a PC which is capable of communication rates with RS232 devices, from 300Baud up to 250KBaud. This Chipi - X10 is supplied with a sculpted matt white plastic enclosure fitted, which covers the electronics inside. A male DB9 (aka DE9) connector provides the connectivity for RS232 communications and a USB-A plug tethered by a 10cm cable to the PCB provides connectivity for USB communications.

VCP and D2XX drivers eliminate the requirement for USB driver development in most cases

UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd/even/mark/ space/no parity

Fully assisted hardware or X on/X off software handshaking

512B receive buffer and 512byte transmit buffer utilising buffer smoothing technology

Adjustable receive buffer timeout

Low operating and USB suspend current

Low USB bandwidth consumption

USB 2.0 full speed compatible

Latch up free

Communications & Networking, Audio, Imaging, Video & Vision, Sensing & Instrumentation, Industrial, Consumer Electronics, Wireless, Portable Devices

Conversion Type: USB to RS232 Converter

Baud Rate: 250Kbaud

Converter Connector Type: D Sub 9 Position Plug

Chip Type: FT231XS

Cable Length: 100mm

Chipi-X
