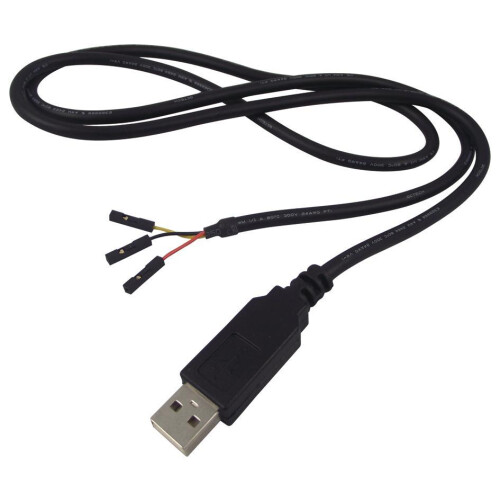

TTL-232R-RPi is a USB to TTL level serial UART converter cables incorporating FT232RQ USB to Serial UART interface IC device which handles all the USB signalling and protocols. The TTL-232R-RPi is designed for use with the Raspberry Pi (RPi), an ultra low cost, Linux based miniaturised computer. The debug cable sits on the Rx/Tx of the RPi ARM processor UART which provides much more detail of what's happening within the RPi operating system. Connecting the debug cable to a PC and communicating with the RPi via a terminal emulator on a PC gives the user access to more detailed information from the Linux kernel during RPi start up, which appears on the Rx/TX lines of the UART, as well as being able to login and access the kernel itself from the PC.

On board FT232RQ provides single chip USB to asynchronous serial data transfer interface

Entire USB protocol handled by the electronics in the cable USB

Connect directly to a microcontroller UART or I/O pins

Fully assisted or X-On / X-Off software handshaking

Data transfer rates from 300baud to 3Mbaud at TTL levels

Internal EEPROM with user writeable area

Low USB bandwidth consumption

Support for FT232R FTDIChip-ID feature for improved security

3x flying leads outputs provide TXD, RXD and GND signals

Communications & Networking

Conversion Type: USB to 3.3V TTL Converter

Baud Rate: 3Mbaud

Converter Connector Type: 2.54mm Female Header

Chip Type: FT232R

Cable Length: 1m
