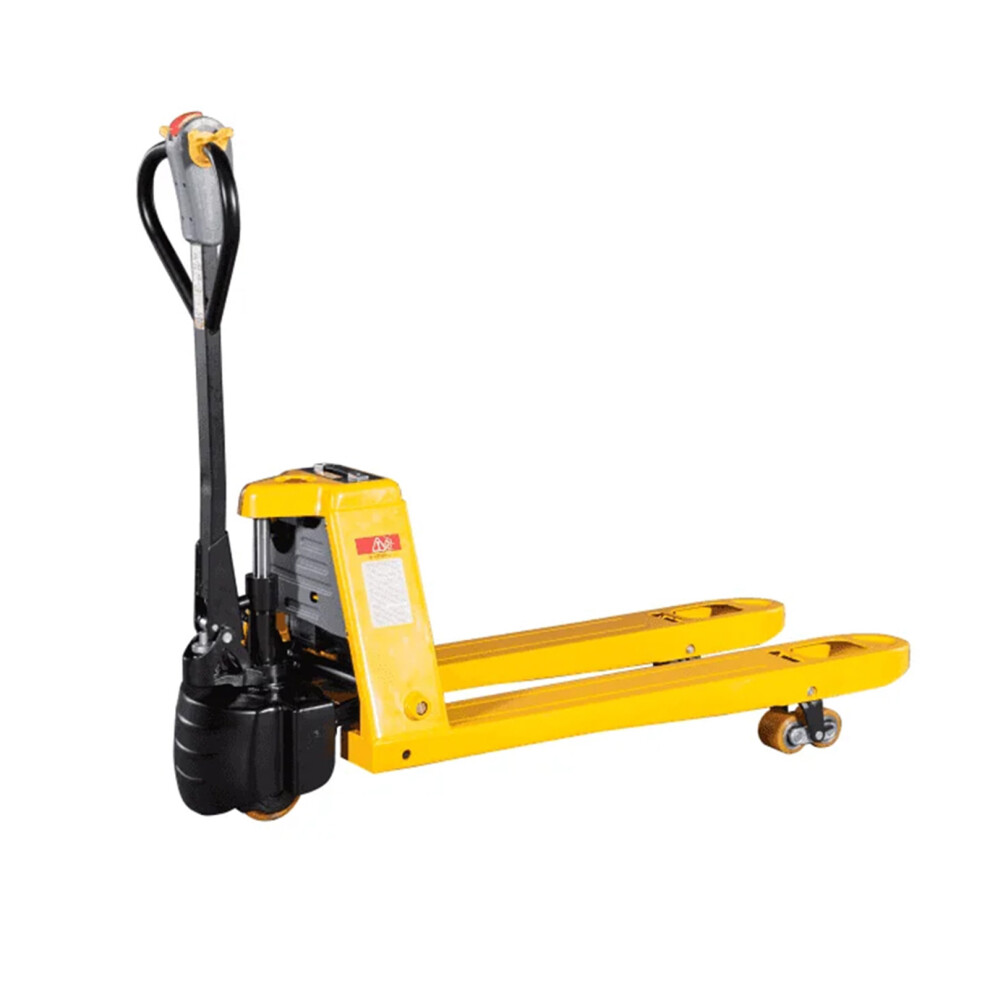

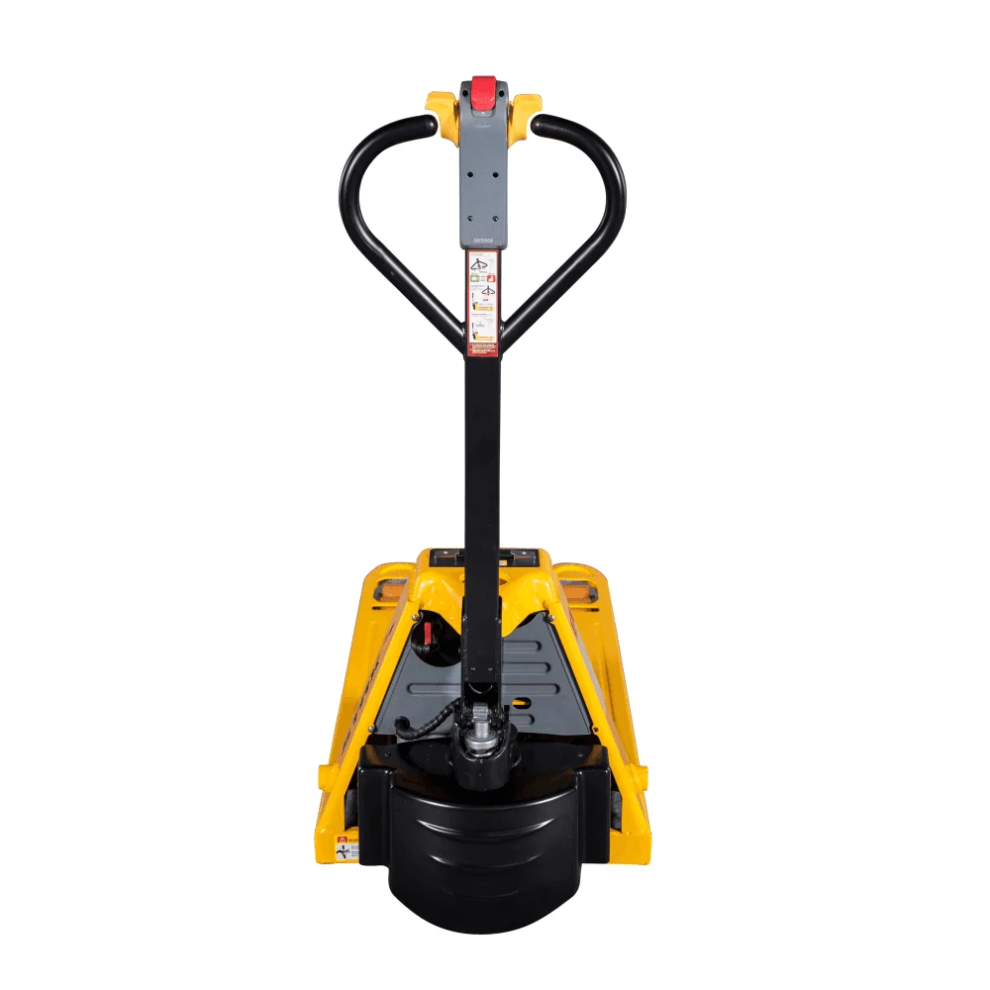

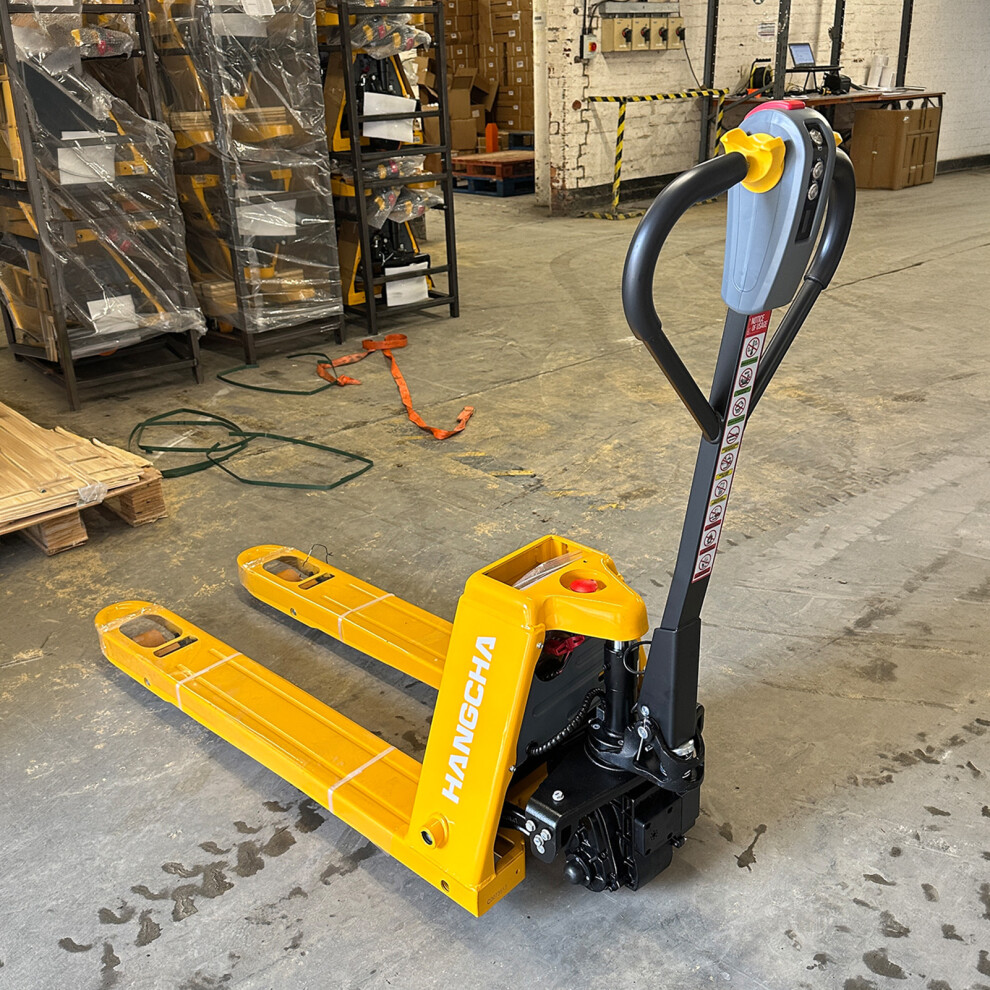

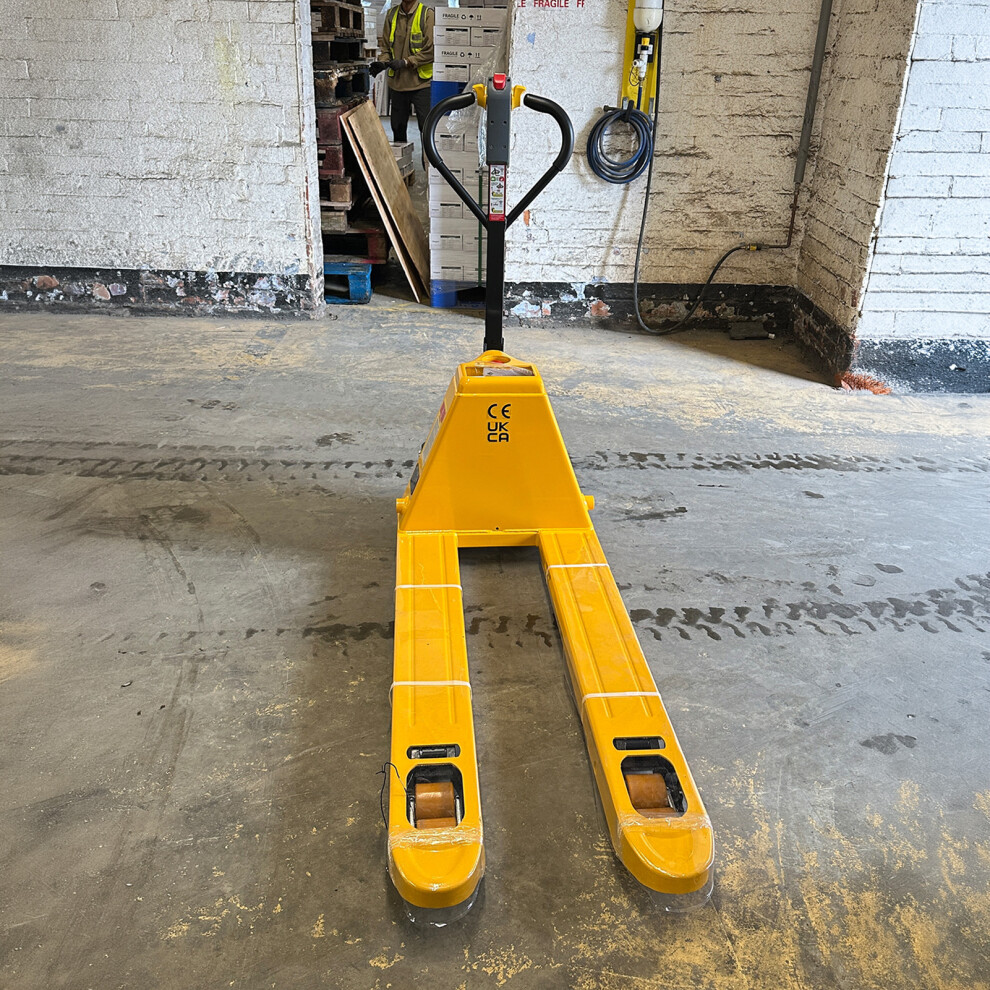

Fully Electric Pallet Truck

Description

Designed for efficient material handling in demanding work environments, this fully electric pallet truck features a powerful 0.75 kW brushless maintenance-free drive motor paired with a high-efficiency lithium battery for reliable performance. With a rated load capacity of up to 1,500 kg, it can handle slopes of up to 6% when fully loaded and 20% when unloaded. The intuitive controls allow easy forward and reverse movement, as well as lifting and lowering operations. Three driving modes—creep speed, upright driving, and engineering mode—provide greater flexibility for different tasks and working conditions. A built-in horn and emergency reverse button enhance operational safety. Its compact and maneuverable design makes it ideal for small workshops and tight spaces, as well as use with trucks, box vans, and tail lifts.

Specifications

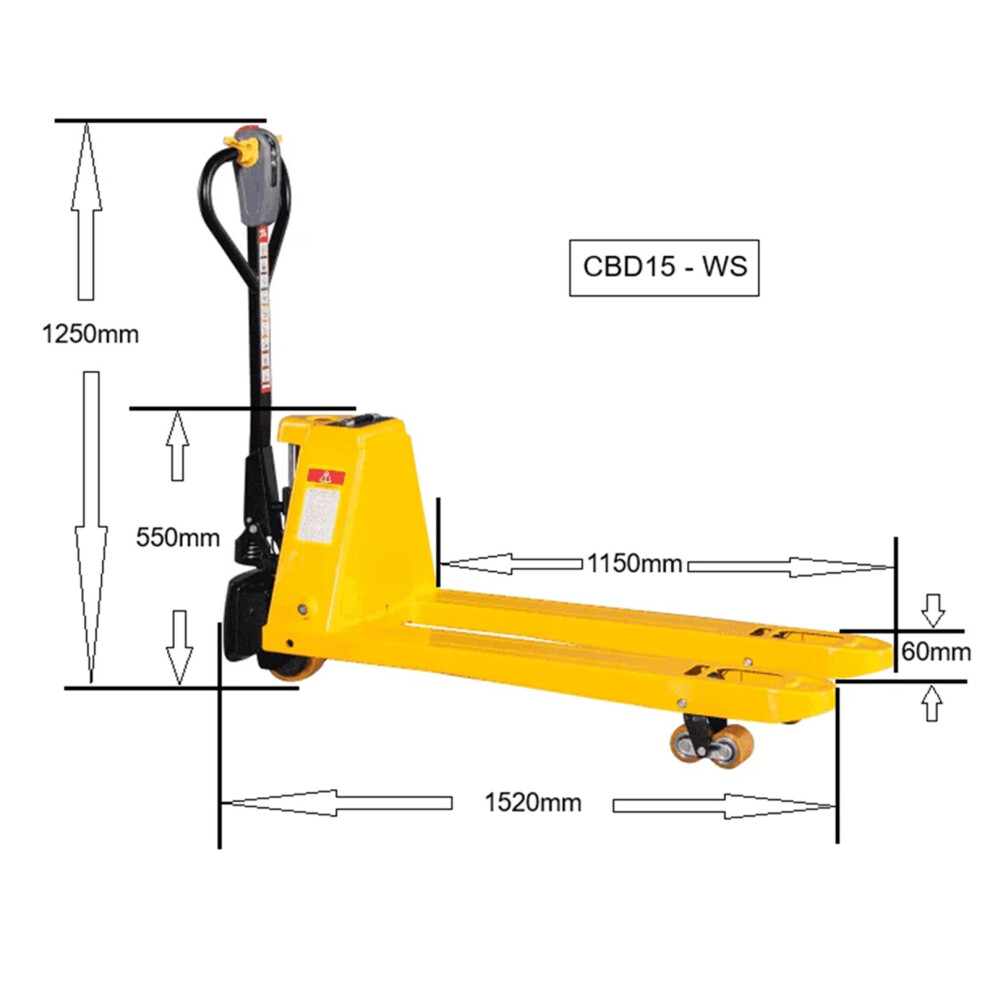

Overall Dimensions: 152 cm W x 55 cm D x 125 cm H

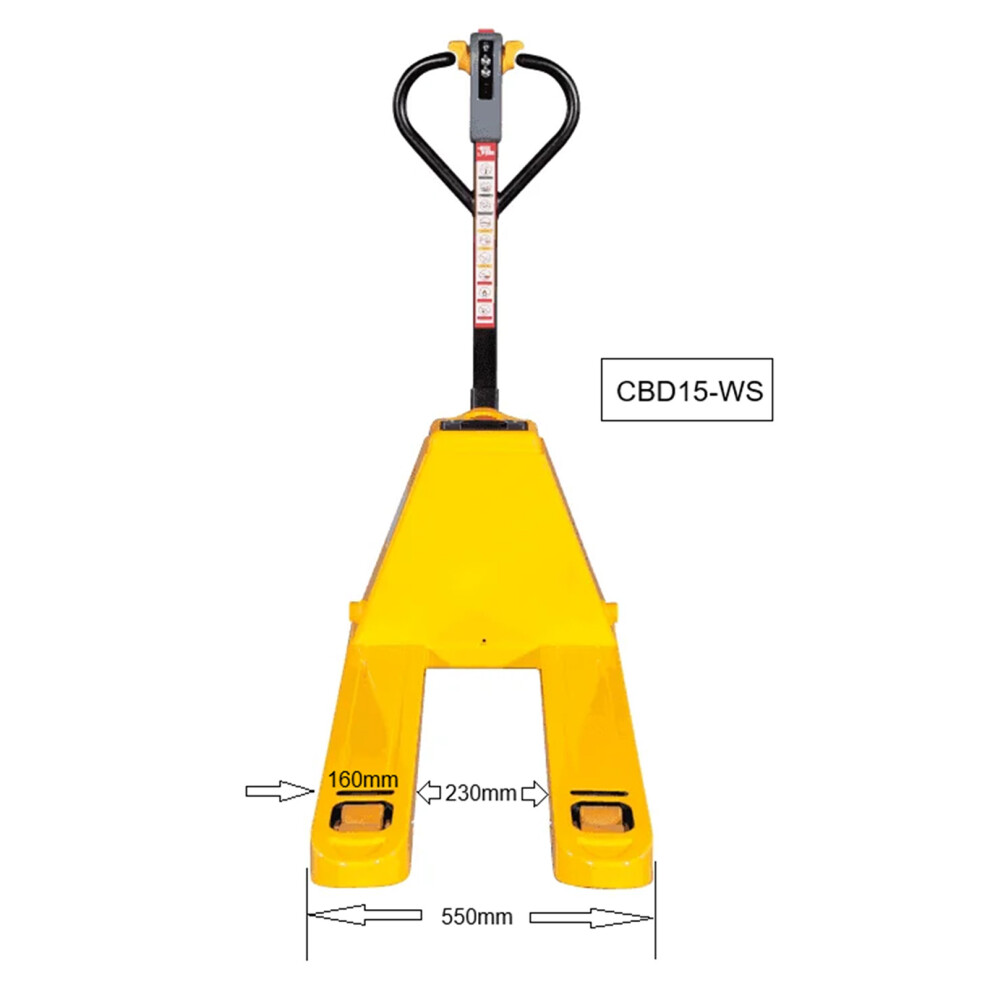

Single Fork Dimensions: 115 cm W x 16 cm D

Fork Center Gap: 23 cm

Wheel Material: PU

Colour: Black + Yellow

Rated Capacity: 1500 kg

Load Centre Distance: 600 mm

Wheelbase: 1197/1267 mm

Lowered Height of Fork: 82±2 mm

Max. Height of Fork: 197 mm

Rear Body Width: 520/550/685 mm

Minimum Turning Radius: 1353/1426 mm

Lift: 115 mm

Max. Traveling speed: Laden 4 km/h / Unladen 4.5 km/h

Gradeability: Laden 6 % / Unladen 20 %

Traveling: DC 0.75 Brushless Kw

Lifting: DC 0.8 Kw

Lifting Speed, Laden/Unladen: 18/23 mm/s

Lowering Speed, Laden/Unladen: 56/46 mm/s

Battery

Voltage: 48 V

Capacity/Type: 10Ah Lithium Ah

Brake Type

Travel Brake: Regenerate

Brake: Electromagnetic

Package Content

1 x Electric Pallet Truck

Package Specifications

Package Dimensions(W x D x H): 152cm x 55cm x 125cm

Gross Weight: 113.3kg

Notes

- In up-right drive mode, the vehicle will move when the handle is operated at any position. Please avoid misoperation.

- Brake release mode is only for emergencies and is not allowed for vehicles in normal condition.

- Despite efforts for accuracy, there may be some reasonable error due to manual measurement.

- Actual product colours may vary due to monitor settings & lightings.
