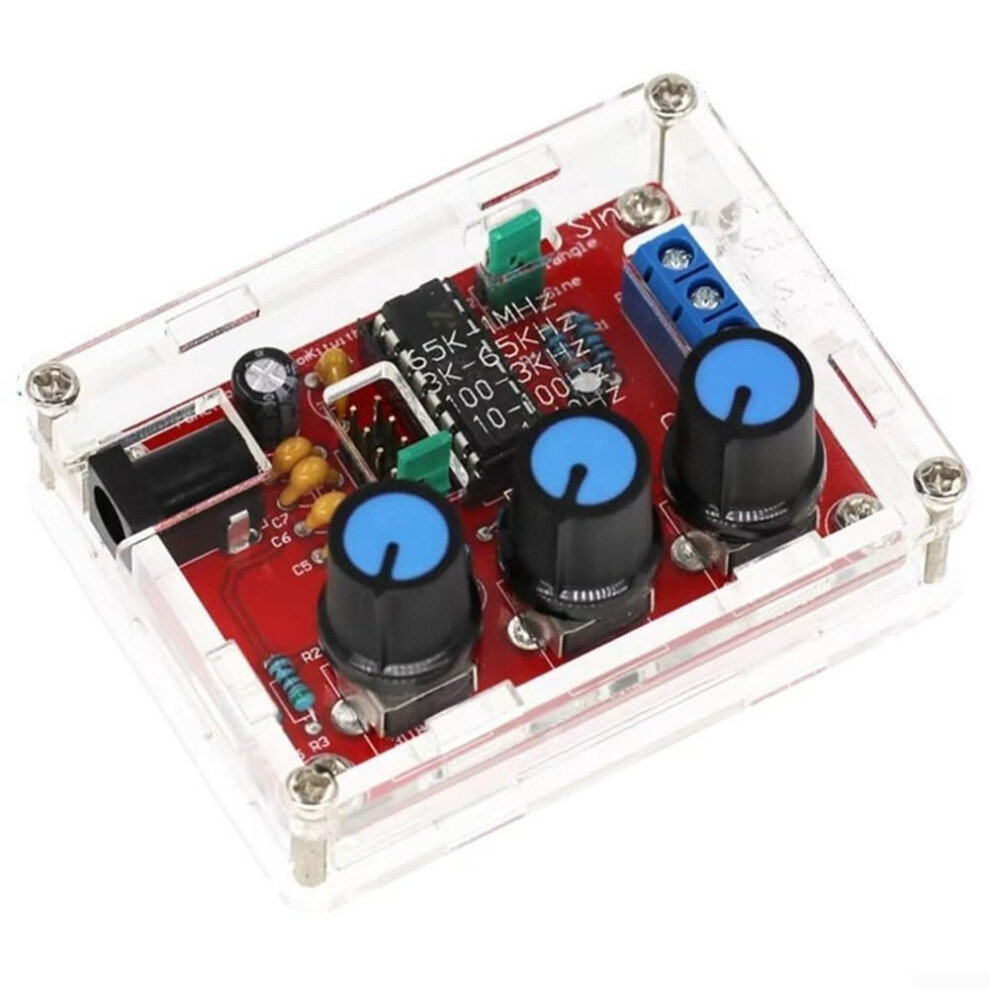

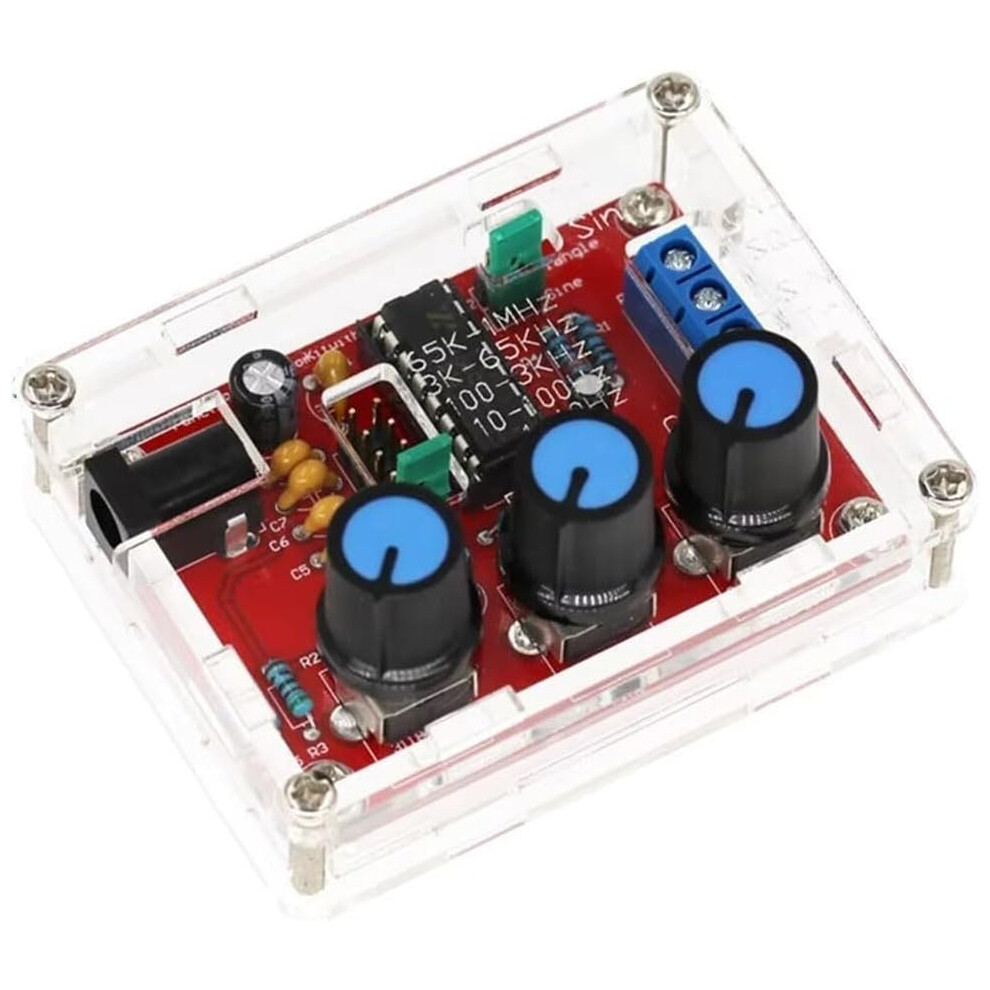

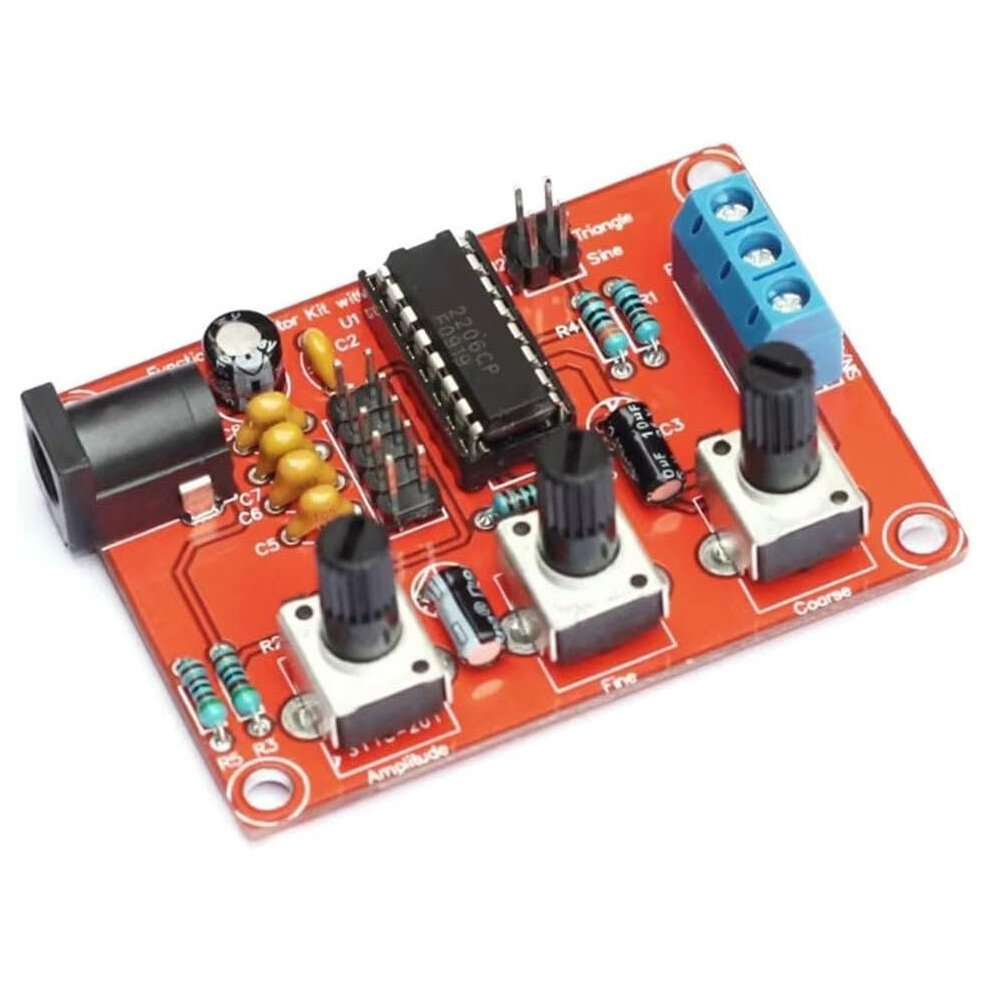

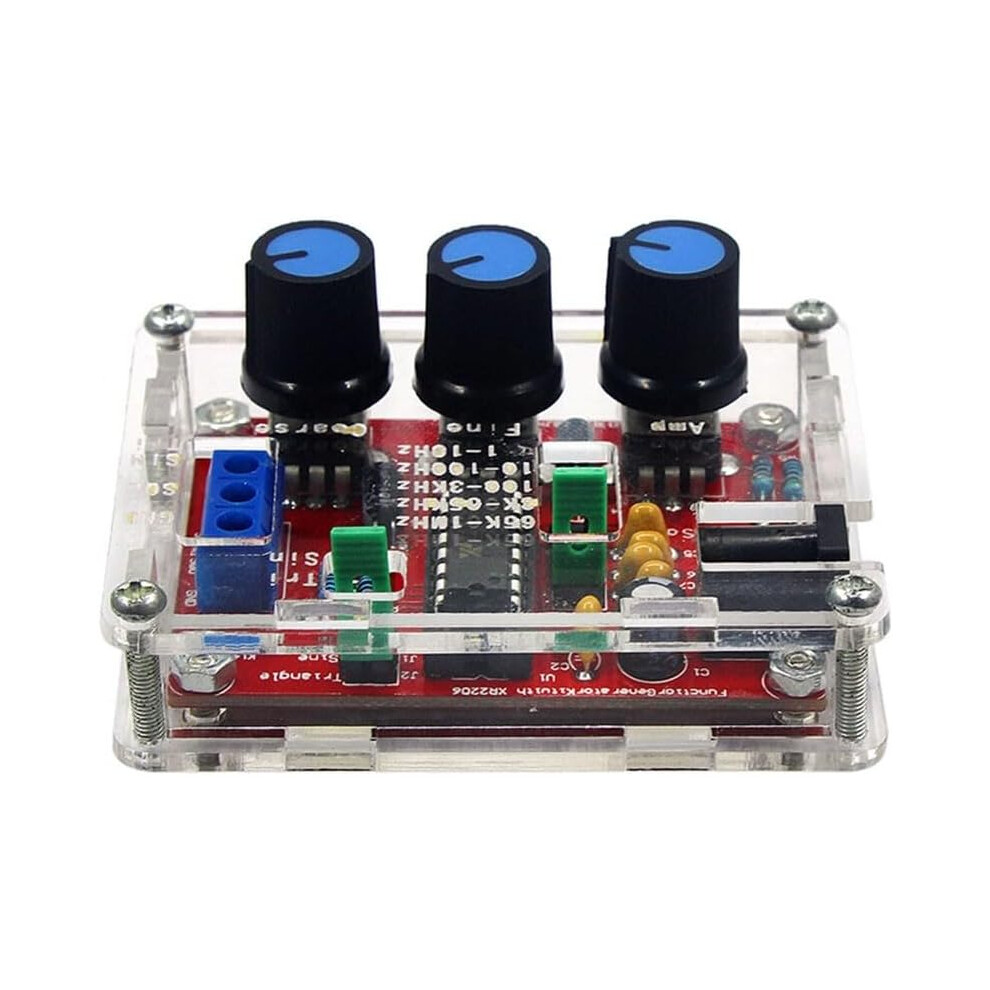

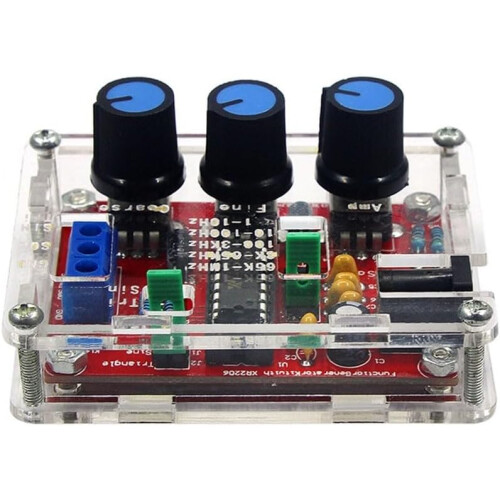

Function Generator Producing Accurate Waveforms For Electronics Experimentation Compatible 0.12 MHz

Function Generator Producing Accurate Waveforms For Electronics Experimentation Compatible 0.12 MHz Description

Key features Multiple waveform generation: capable of producing square, sine, and triangle waves for education and testing environments. Adjustable amplitude control: output levels adjustable from 0 to 3 V for sine and triangle waves, and up to 8 V for square waves. Wide frequency range: operates from 1 Hz to 1 MHz, suitable for a variety of electronic testing scenarios. Low distortion performance: distortion below 1% at 1 kHz for sine and triangle outputs, supporting reliable signal generation across applications. Practical applications Educational labs and training: demonstrate waveform concepts, timing relationships, and signal behavior in real experiments. Circuit prototyping and testing: evaluate responses of analog and digital circuits, including opamps, filters, and sensor interfaces. Equipment checks and signal integrity assessment: verify signal paths, troubleshoot measurement setups, and calibrate test equipment. Selected specifications Waveforms: square, sine, triangle Amplitude: sine/triangle 0-3 V; square up to 8 V Frequency range: 1 Hz - 1 MHz Distortion:
