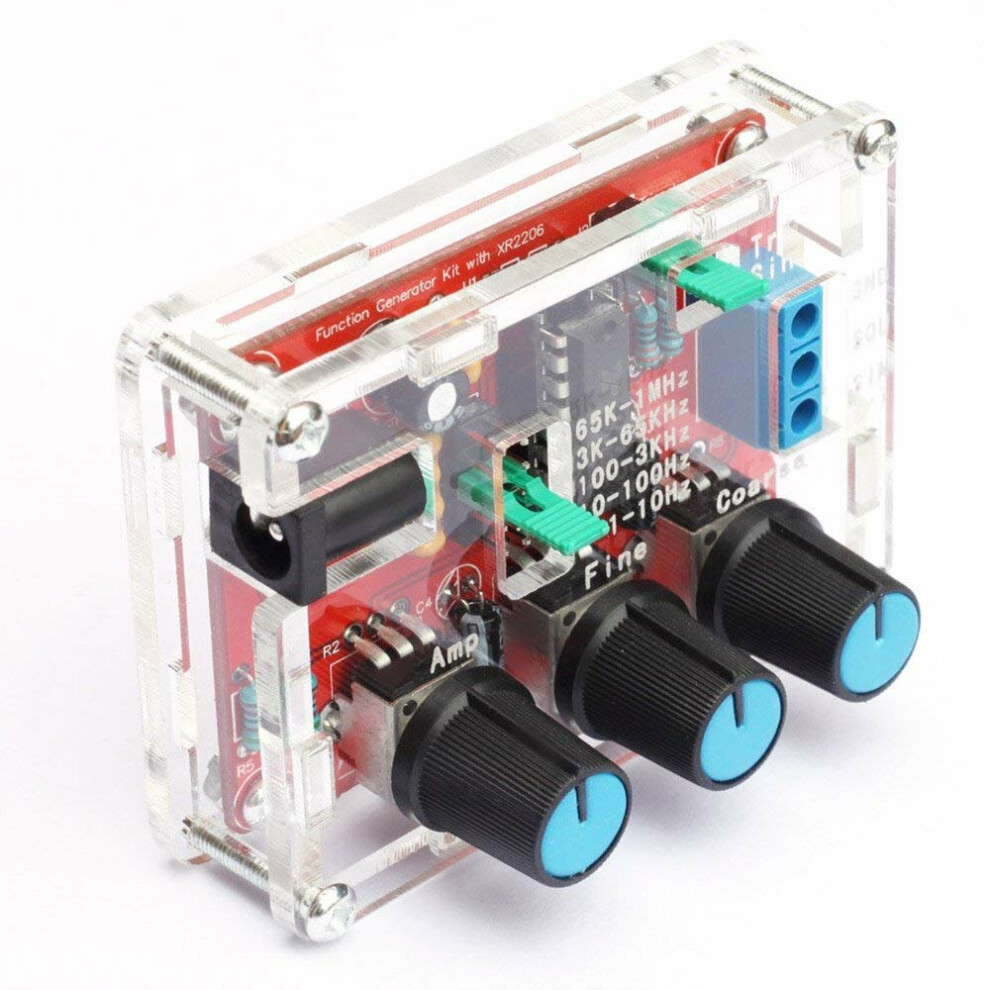

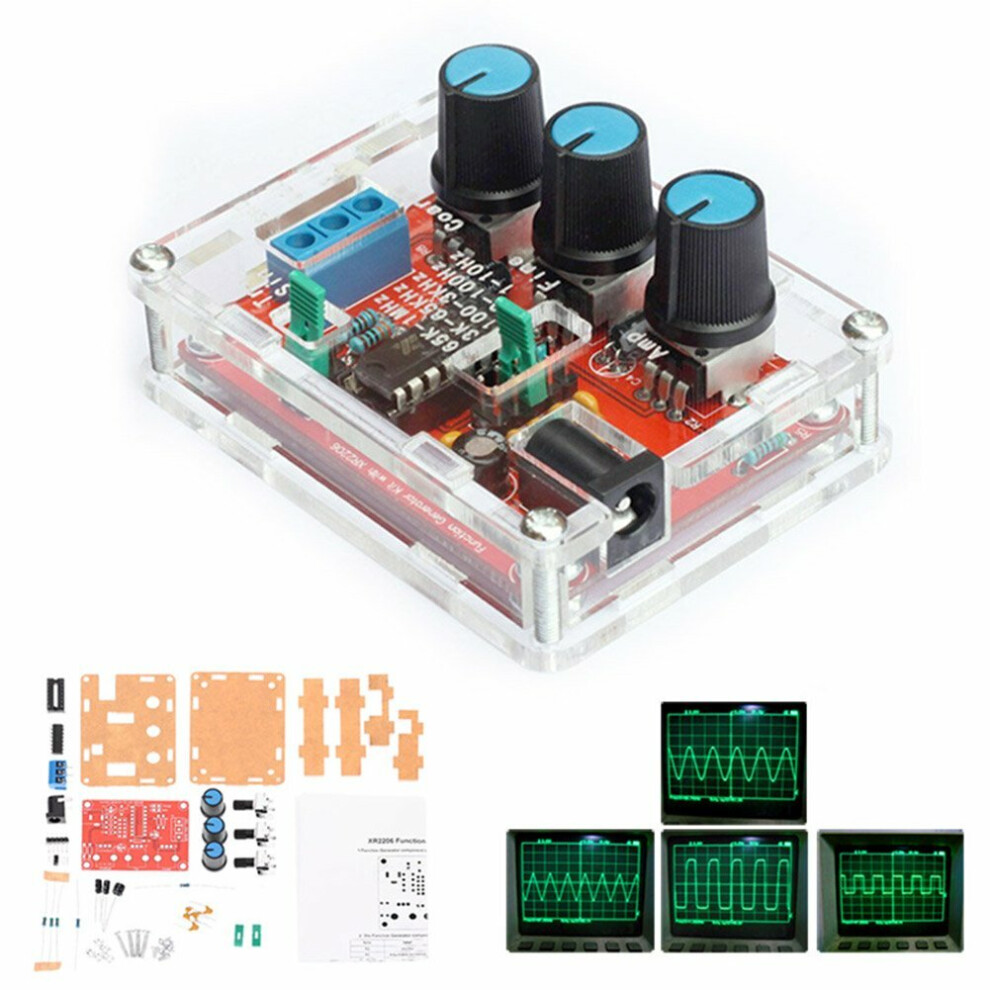

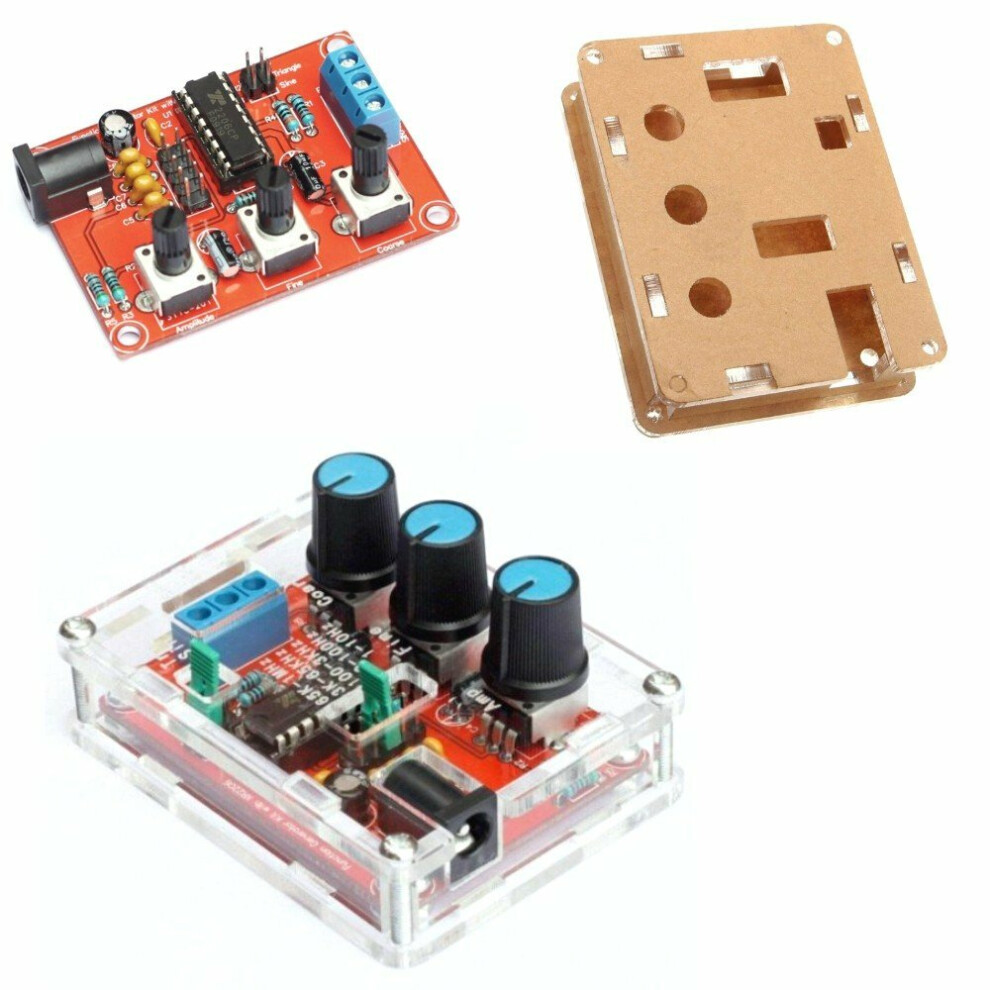

Function Signal Generator DIY Kit Sine Triangle Square Output 1HZ-1MHZ
Brand GreenZech
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 126,000 Trustpilot reviews and an 'Excellent' rating
£26.14
£30.75
15% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Fri 26th Jun - Thu 2nd Jul
Sold by: GreenZech
Returns: 30 days
180-day payment protection
Description & Details
Function Signal Generator DIY Kit Sine Triangle Square Output 1HZ-1MHZ Description
Specifications:Voltage supply: 9-12V DC Input.
Waveforms: Square, Sine & Triangle.
Impedance: 600 Ohm + 10%.
Frequency: 1Hz - 1MHz.
SINE wave:
Amplitude: 0 - 3V at 9V DC input.
Distortion: Less than 1% (at 1kHz).
Flatness: +0.05dB 1Hz - 100kHz.
SQUARE wave:
Amplitude: 8V (no load) at 9V DC input.
Rise Time: Less than 50ns (at 1kHz).
Fall Time: Less than 30ns (at 1kHz).
Symmetry: Less than 5% (at 1kHz).
TRIANGLE wave:
Amplitude: 0 - 3V at 9V DC input.
Linearity: Less than 1% (up to 100kHz) 10mA.
Package included:

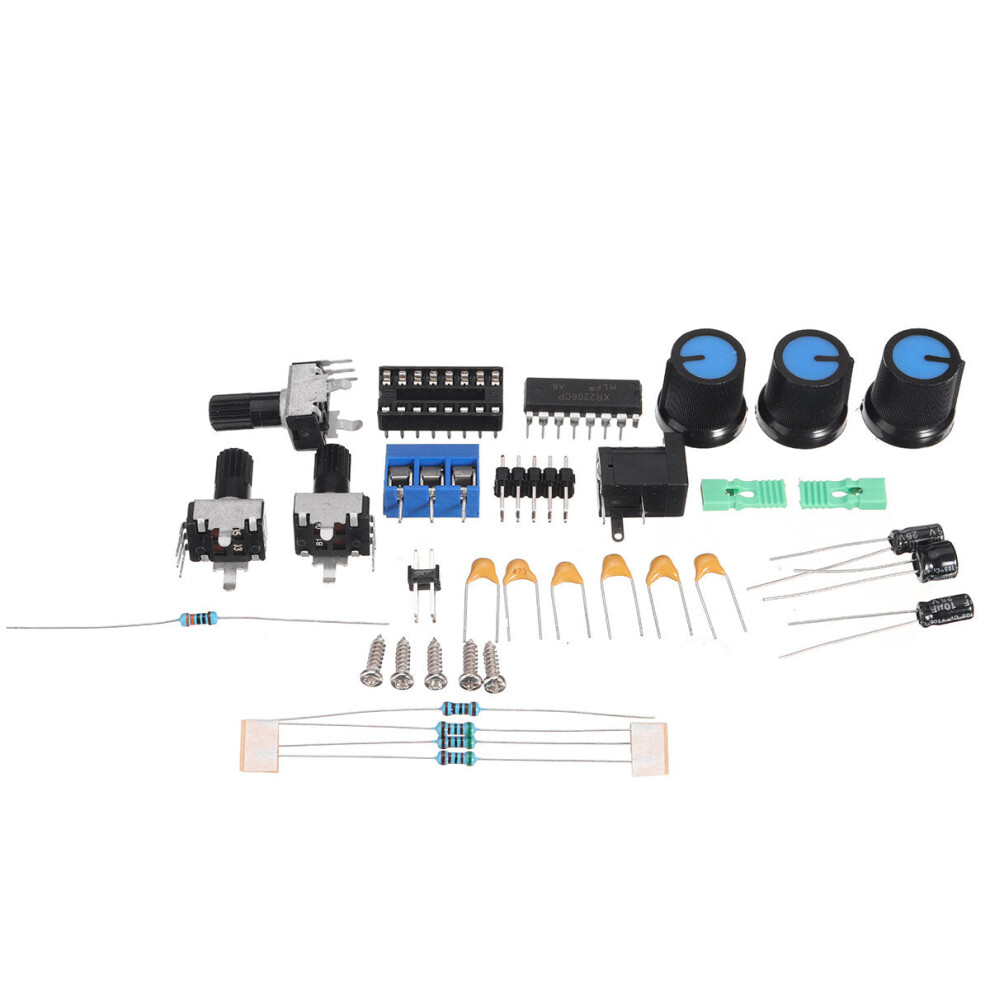

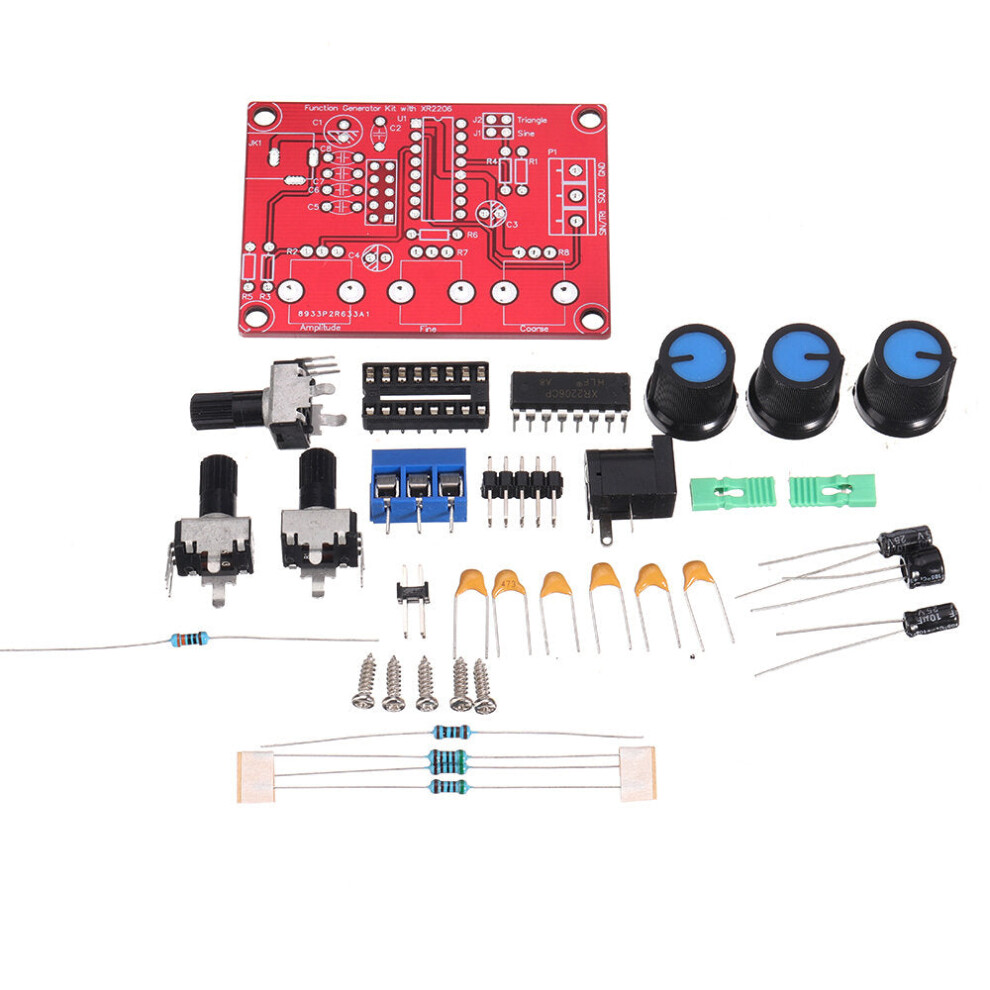

1 x XR2206 Function Signal Generator DIY Kit
Details
| OPC | PJMQVGN |
|---|---|
| Brand | GreenZech |
| Codes | 8727971245057 (EAN) |
