FW03-12 Waterproof 12V Wind Charge Controller, 300W, IP67, Compact

FW03-12 Waterproof 12V Wind Charge Controller, 300W, IP67, Compact Description

FW03-12 IP67 Waterproof 12V Wind Charge Controller Wind Generator Controller



Features:

1. The controller can control wind turbines to charge
the battery automatically.


2. When the battery is fully charged, brake can
be controlled automatically by the interior circuit.



2. With the independent intellectual property
rights of modular design, which makes the performance of the whole system to
get the biggest safeguard.


5. Rectification of this controller and braking
circuit part has adopted the integration module design, better heat dissipation
and reliability than the traditional design.


6. Comprehensive waterproof protection. The
protection grade reaches the IP67 above, which enables the controller can
steadily work normally in water for a long time.






Specifications:

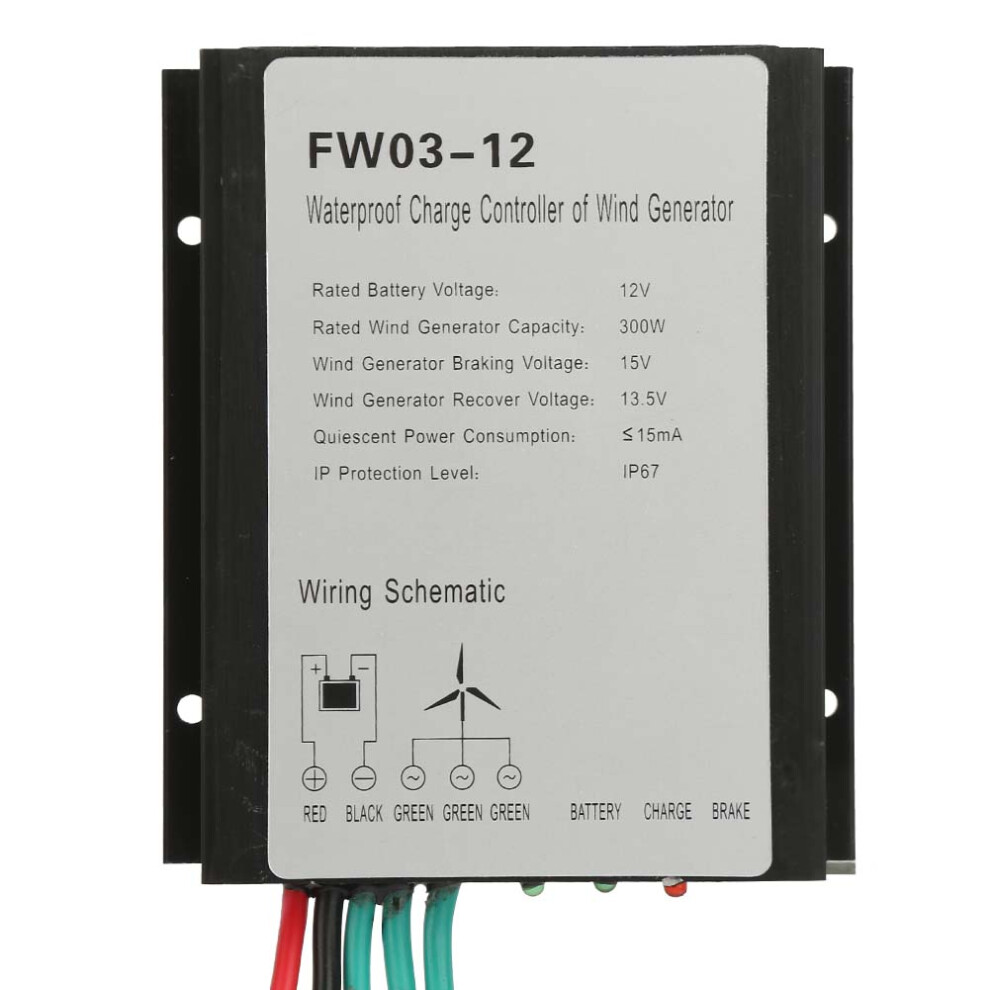

Model Number: FW03-12



Wind Generator Rated Power: 300W




Display: LED


Working Temperature and Humidity Range: -35~+75


Controller Shell Size: Approx. 100*87*28mm/3.9*3.4*1.1in


Quiescent Current: 15
mA


Waterproof: IP67


Connection:


Connect the positive and negative terminals of
the battery to the positive (red line) and negative (black line) terminals of
the controller, respectively.







Package
List:


1 * Wind Charge Controller






Notes:




3. Please connect the battery and the wind
turbine to the controller in strict accordance with the requirements of the
instructions. Connecting the reverse polarity or the wrong position will lead
to the abnormal operation of the system, or even lead to the complete damage of
the controller.
