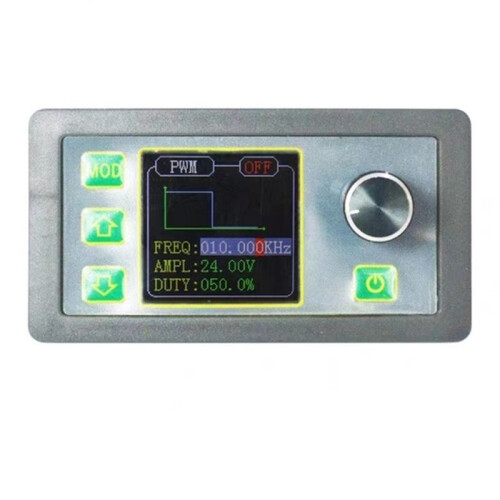

FY201 Modbus 485 Waveform PWM Signal Generator 4-20mA, 2-10V Output Sine Triangle/Sawtooth Wave Generated Basic

FY201 Modbus 485 Waveform PWM Signal Generator 4-20mA, 2-10V Output Sine Triangle/Sawtooth Wave Generated Basic Description

Adopt DDS technology to produce accurate, stable and low-distortion output signal;Desktop design with ABS plastic shell, 6-20V () wide voltage power supply;Use 1.44 inches (128*128) color display;
PWM waveform output frequency, voltage and duty cycle are adjustable;PWM waveform output frequency range: 0-150KHz (resolution: 1Hz), voltage output range: 1-24V (resolution: 0.01V), duty cycle;Pulse waveform output pulse width, number and cycle output are adjustable;The maximum output frequency of pulse waveform is 150KHz
Waveform generator has: sine wave, triangle wave, sawtooth wave;
Can output 2-10V, 4-20mA waveform;
High reliability: large-scale integrated circuit, surface mount technology, high reliability and long service life.

Frequency Characteristics:
PWM mode:
Frequency: 0-150KHz; resolution 1Hz
Duty cycle: 0-; resolution 0.1%
Voltage: 1-24V; resolution 0.01V
Pulse mode:
T0 : 0-10MHz; resolution 0-10MHz
T1 : 0-10MHz; resolution 0-10MHz
T2 : 0-20MHz; resolution 0-20MHz
Number of pulses: 0-60000; resolution 1
Voltage: 1-24V; resolution 0.01V
Wave mode:
Waveform: 3 kinds of waveforms (sine wave, triangle wave, sawtooth wave)
Frequency: 0-5KHz; resolution 1Hz
2-10V/4-20mA mode:
Voltage: 2-10V; resolution 0.01V
Current: 4-20mA; resolution 0.01mA
General Technical Parameters:
Interface:
Communication rate: 2400-115200 bps (adjustable)
Power supply: Voltage 6V-20V
Manufacturing process: surface mount process, large scale integrated circuit, high reliability, long service life
Operating characteristics: All key operations, continuous knob adjustment
Environmental conditions: Temperature: 0-40 Humidity: Less than 80%
Display: 1.44-inch TFT color LCD display
Colour:As Shown
Material:plastic
style:Basic
Due to different batches, there may be differences in product appearance and p
