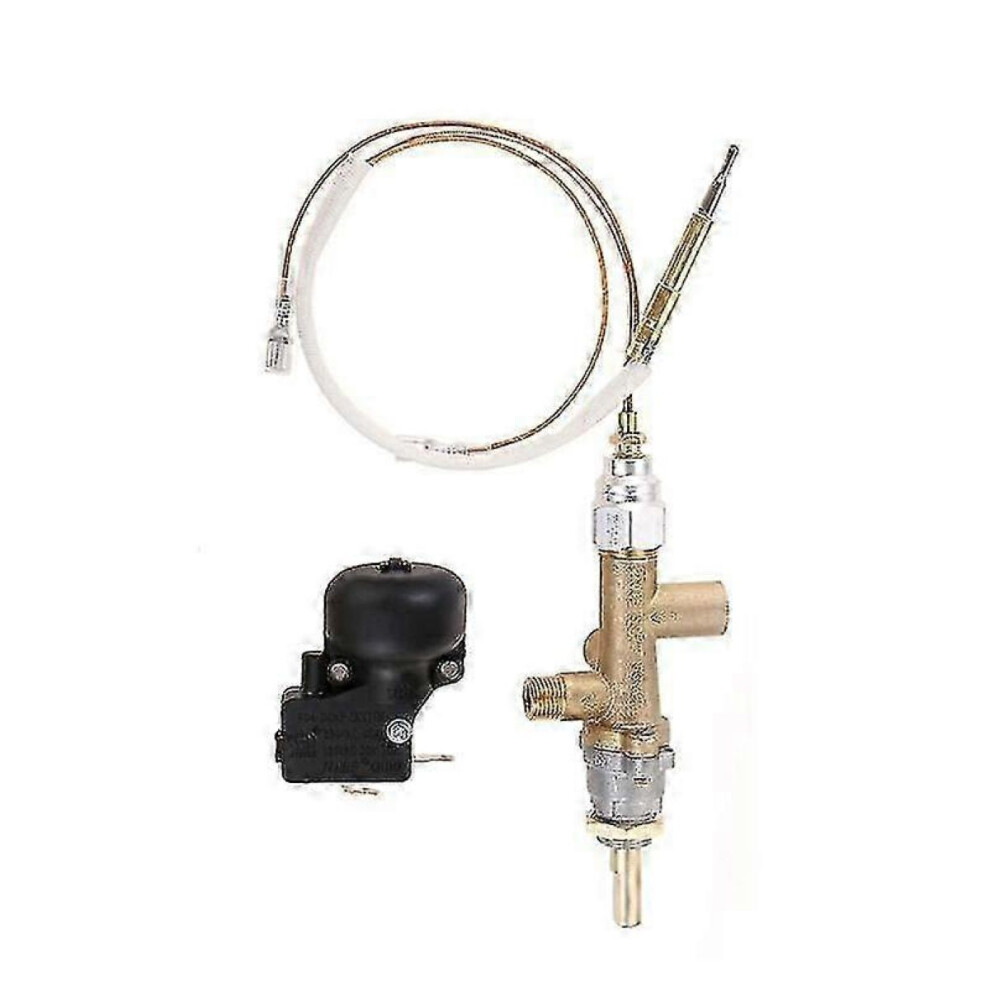

Gas Patio Heater Control Valve Thermocouple Sensor Dump Switch Knob Propane Fire Pit Control Safety

Gas Patio Heater Control Valve Thermocouple Sensor Dump Switch Knob Propane Fire Pit Control Safety Description

[COMPATIBLE]: Inlet Thread: Female M10*1 (0.394inch), Outlet Thread: 7\/16inch-24UNF Thread (0.429inch ), Turn-ON Gas valve with 8mm Spindle Shaft, Pilot Burner Connection Thread: M8*1 ( The valve is for low pressure only). Control Valve and Coupler Suitable for Propane gas heaters with Thermoelectric Safety, Work with outdoor propane patio heater, standing patio heater, tower glass tube heaters, table propane heater, bay patio heater. Not suitable for use with Natural Gas heaters.

Propane Gas valves are made of high quality brass with heavy duty construction for safety and durability

Inlet Thread: Female M10*1 (0.394inch)

Outlet Thread: 7\/16inch-24UNF Thread (0.429inch )

Thermocouple with high quality solid brass material and high temperature protective cover.

Thermocouple wire 350mm

Pilot Burner Connection Thread: M8*1 ( The valve is for low pressure only).

Bakelite knob D shaft 8mm, using ABS material, solid structure, durable.

FD4 weak current tilt dump switch gas R less than 10 m

Patio Heaters

Wide range of compatibility

This propane gas control safety valve kit is made of high quality brass material for durability.

NOTE:

1. check whether the interface of your heating equipment matches product you buy, because the product is not universal, heating equipment has different models of interfaces.

2. When installing, make the mounting position of each part is accurate

3. Make the thermocouple is well connected to the dump switch or valve.

4. If you loosen the knob, the gas valve closes again. check that your thermocouple is always heating on the . Turn on the gas and push the valve for 5-10 seconds until the thermocouple probe is heated.

Colour:Photo Color

Material:brass, plastic

Size:11.5cm

Package Contents:

1 x Heaters Control Valve

1 x Coupler

Only the above package content, other products are not included.

Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
