Gasoline Engine Compression Tester Auto Petrol Gas Engine Cylinder Automotive Test Kit

Gasoline Engine Compression Tester Auto Petrol Gas Engine Cylinder Automotive Test Kit Description

Gasoline Engine Compression Tester Auto Petrol Gas Engine Cylinder Automotive Test Kit

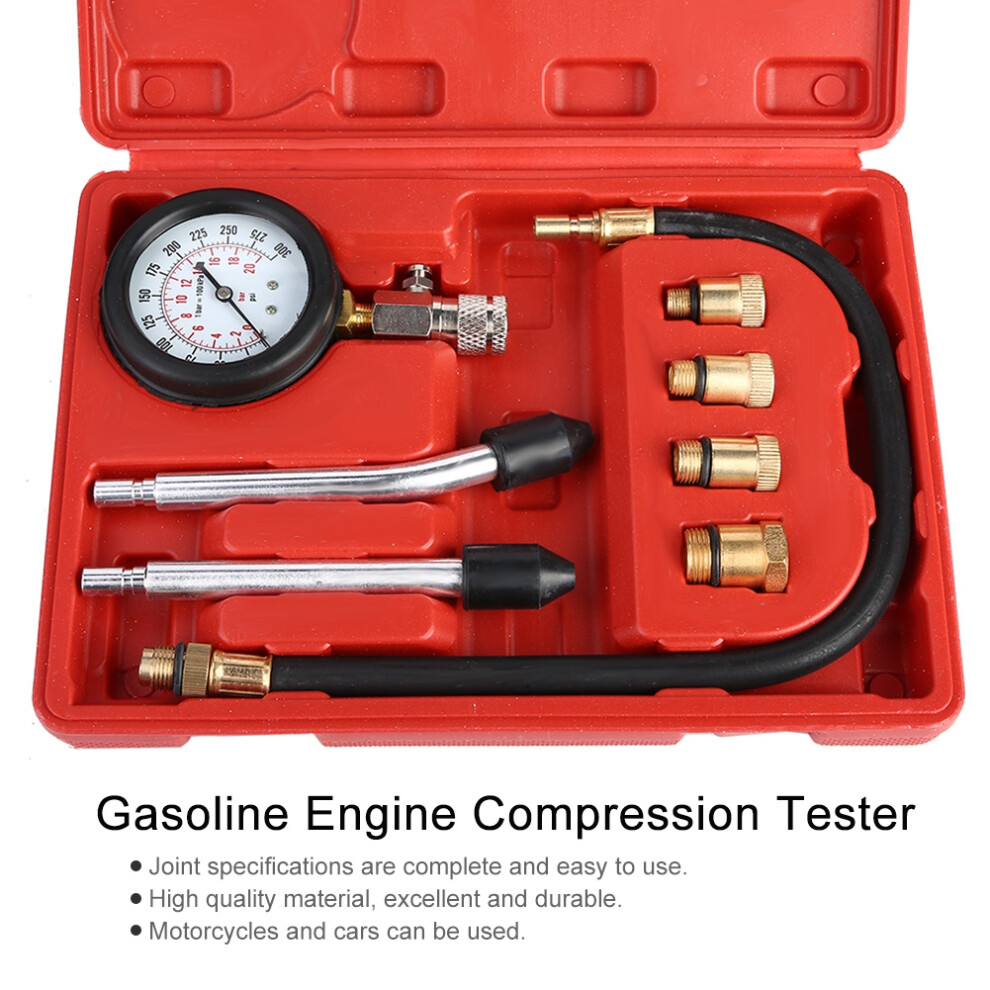

Features:

Joint specifications are complete and easy e.


material, excellent and durable.


Motorcycles and cars can be used.
This set is complete, bringing you great user experience.
The product can be quickly set to your motorcycles and cars , then you can get accurate readings.
Specifications:
Case Color: Black
Material: Copper

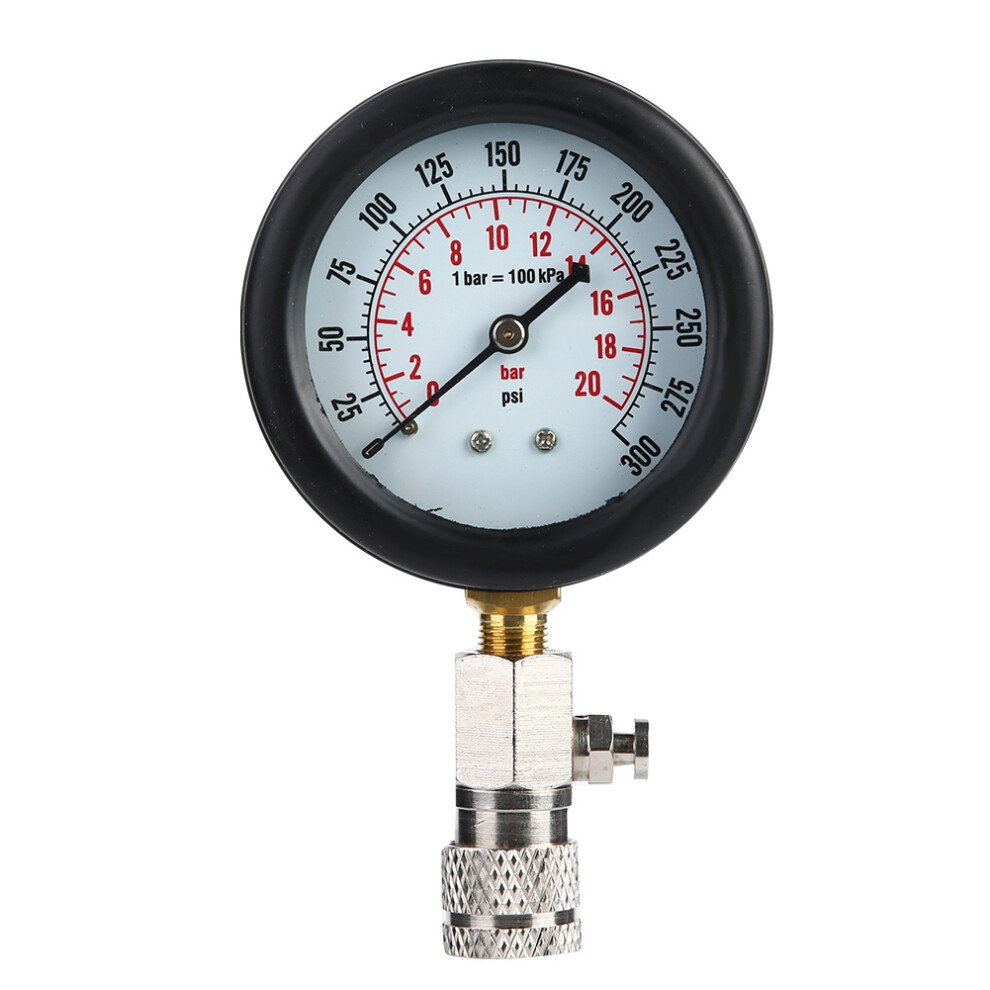

Dual Gauge Readings: 0-300psi, 0-20bar (1bar=100kPa)
Test Unit/Mode: bar, psi
Special Function: Get Accurate Readings
Pressure Gauge Diameter: 3in/75mm
Pressure Gauge Height: 5.04in/128mm
Adapters Thread Size: M10 * 1.0mm, M12 * 1.25mm, M14 * 1.25mm, M18 * 1.5mm
Hose Overall Length: 17.72in / 450mm
Straight Line Pressure Tube Length: 5.9in / 150mm
Angled Pressure Tube Length: 6.30in / 160mm
Package Size: 29.5 * 21 * 5.5cm / 11.61 * 8.27 * 2.16in
Package Weight: Approx. 1020g / 36.0oz

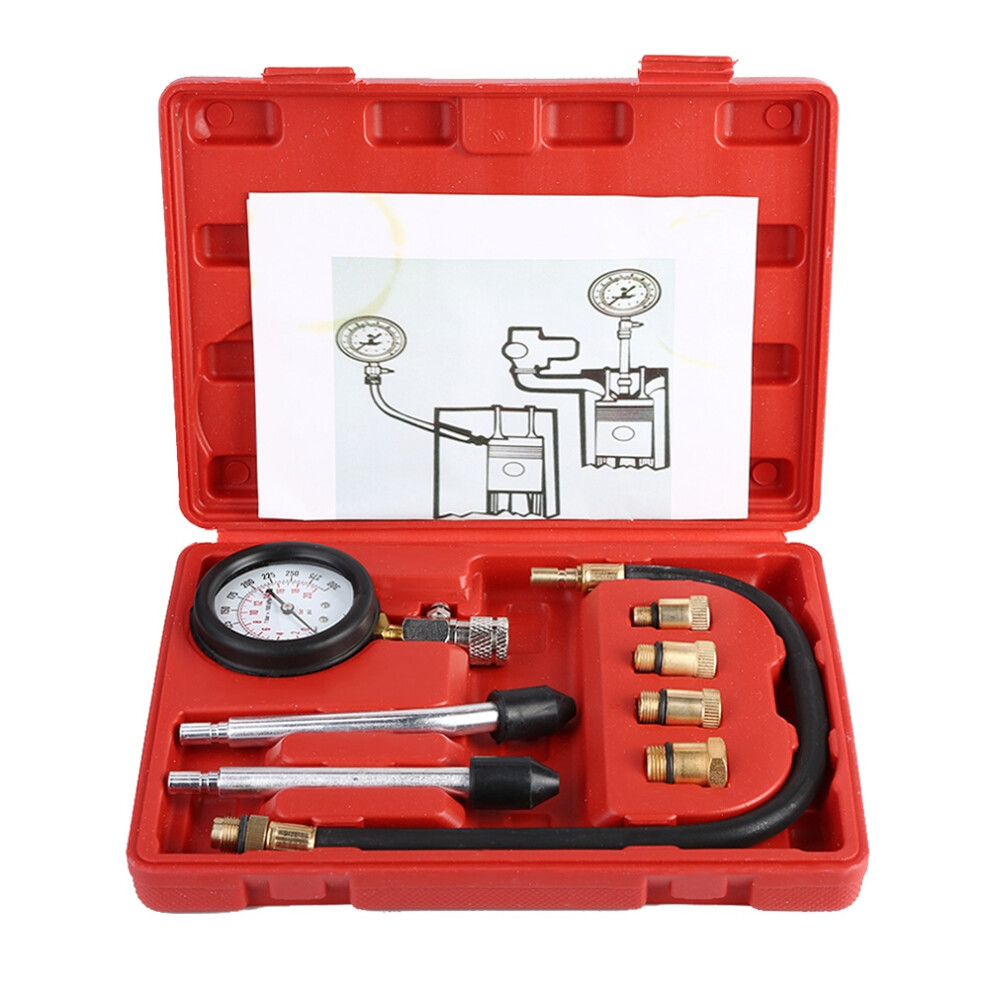

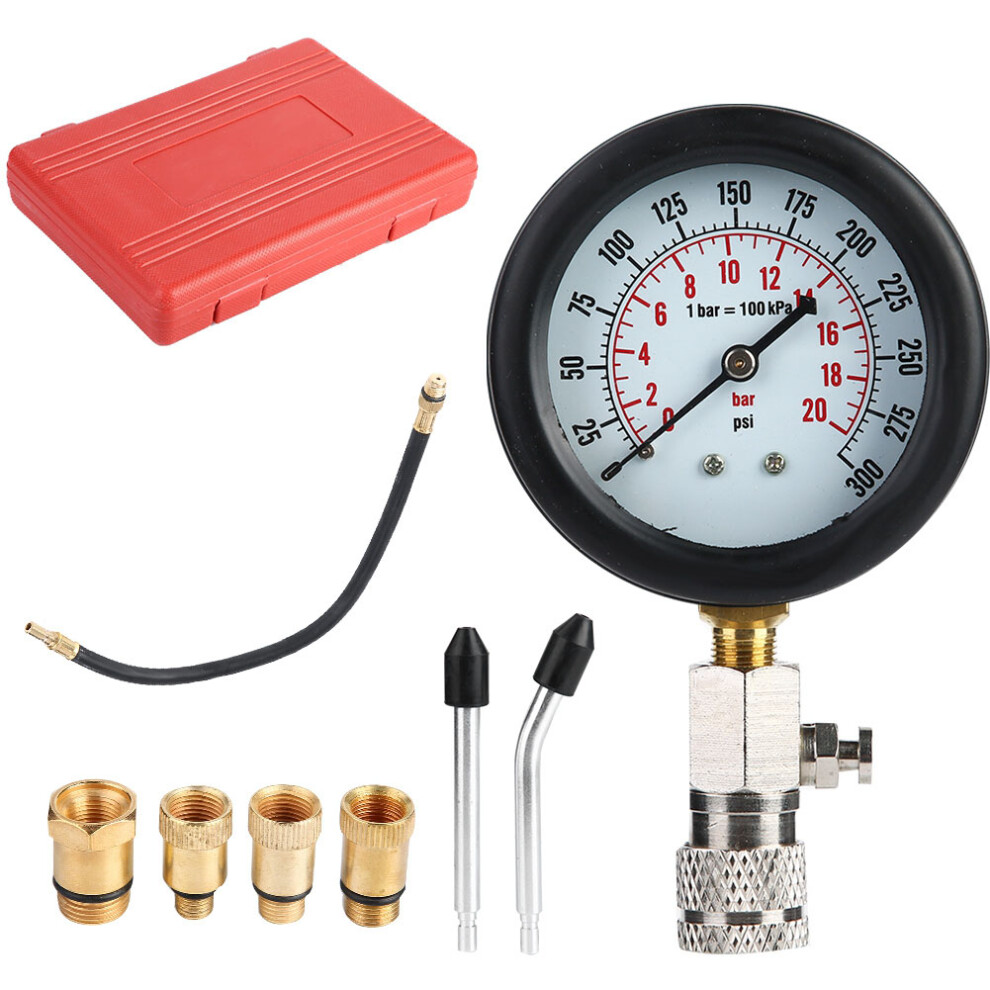

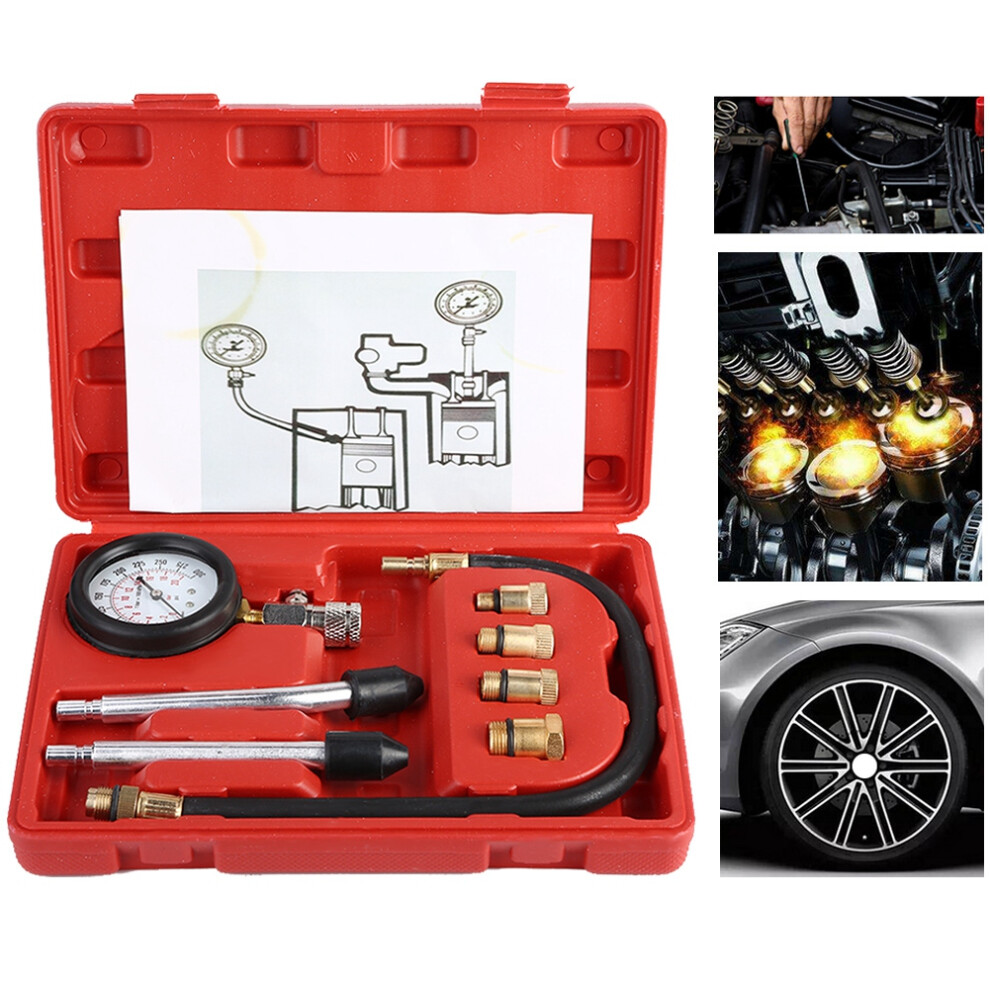

Package List:
1 * Gasoline Compression Tester
1 * Hose

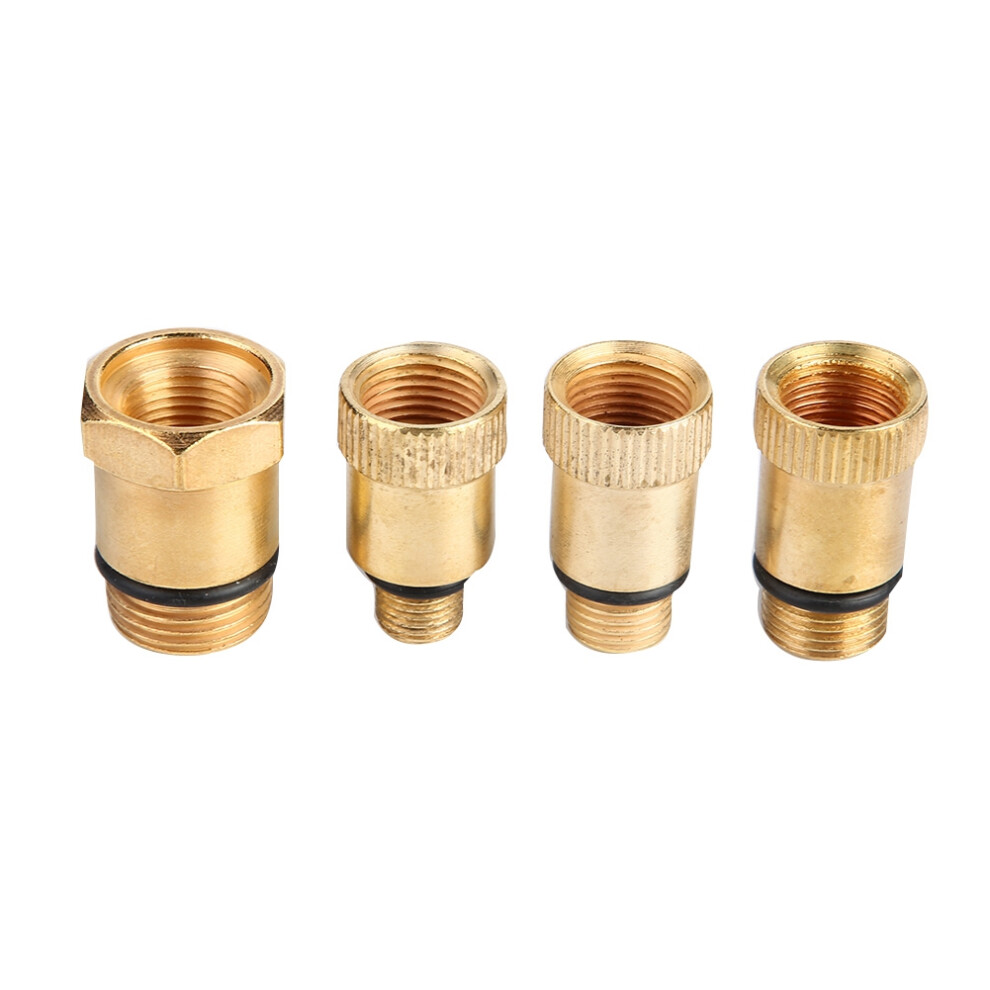

4 * Thread Adapters （M10, M12,M14,M18）
1 * Straight Line Pressure Pipe
1 * Angled Pressure Pipe

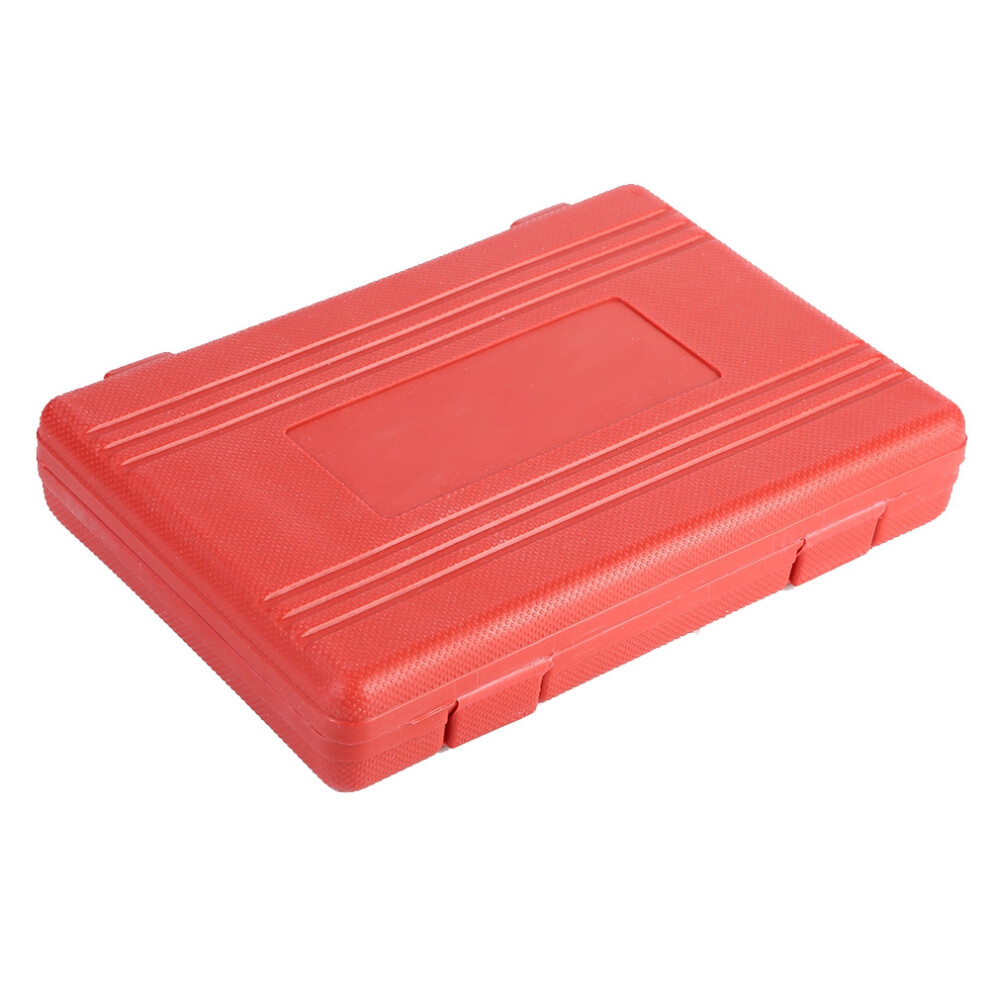

1 * Storage Case1 * English User Manual
Usage:
1. Start the engine and run to the normal working temperature. After the engine stops running, unload all spark plugs;
2. Make the throttle fully opened and press the connection of the pressure gauge on the spark cold hole;
3. Motors drive the engine to rotate at 100-150R/MIN speeds for 3-5 seconds. At this point, the pointer on the instrument will gradually rise, but will stop at a certain value. At this time, the indicator value is the compression pressure of the cylinder;
4. Press the button to zero the pointer;
5. According to the above steps, the measurement is repeated 2 to 3 times to improve the measurement accuracy;
6. Generally, the cylinder pressure of car is more than 0.9 MPA, and 4 < 8% (the pressure difference of each cylinder, gasoline engine does not exceed 8% of the average pressure of each cylinder). If the measured value is less than the prescribed value, and the intake system is normal, it can be explained that there is leakage between the cylinder and piston, cylinder head. It may be that the original cylinder, piston, valve, piston ring appear abrasion, ablation and other bad conditions. If the measured value is greater than the prescribed value and the intake and exhaust system is normal, the possible reason is the serious volume of combustion chamber.
