Generator Controller Board 702 MS-HC Manual Start with Keys Durable Metal Panel

Generator Controller Board 702 MS-HC Manual Start with Keys Durable Metal Panel Description

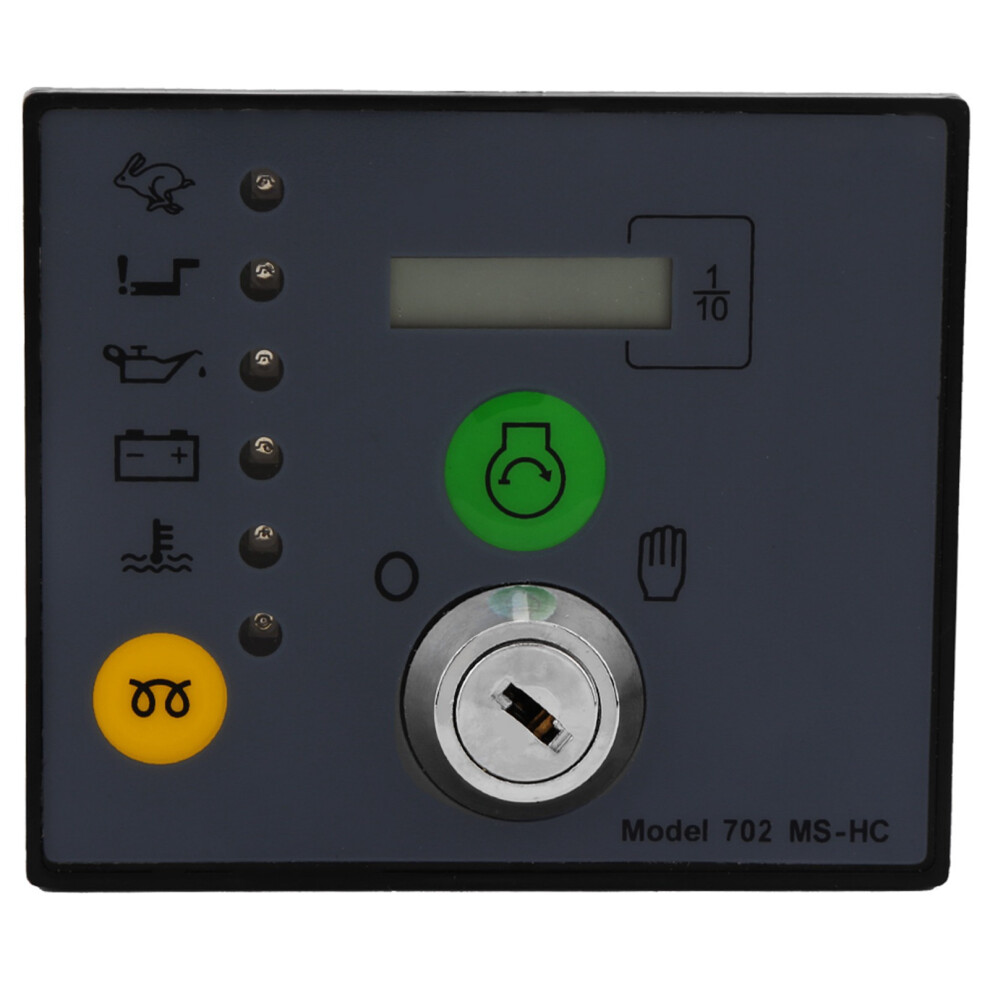

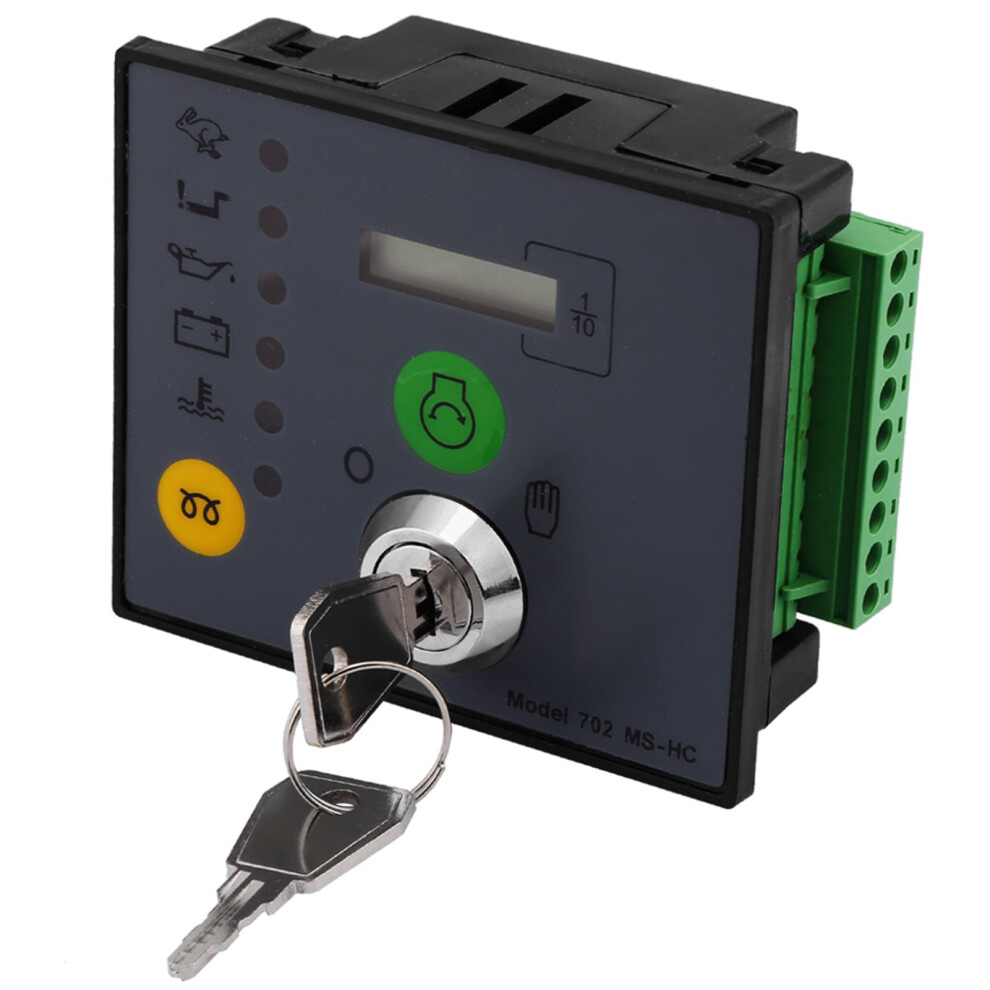

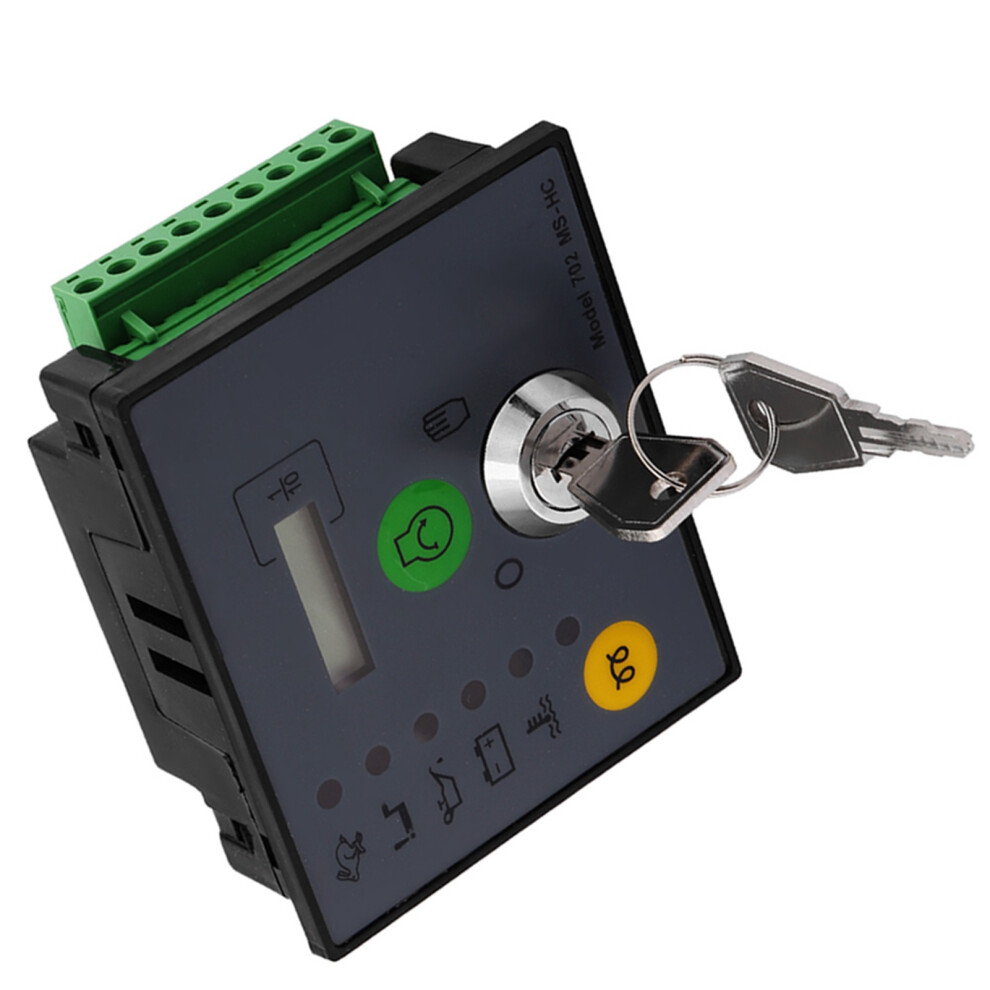

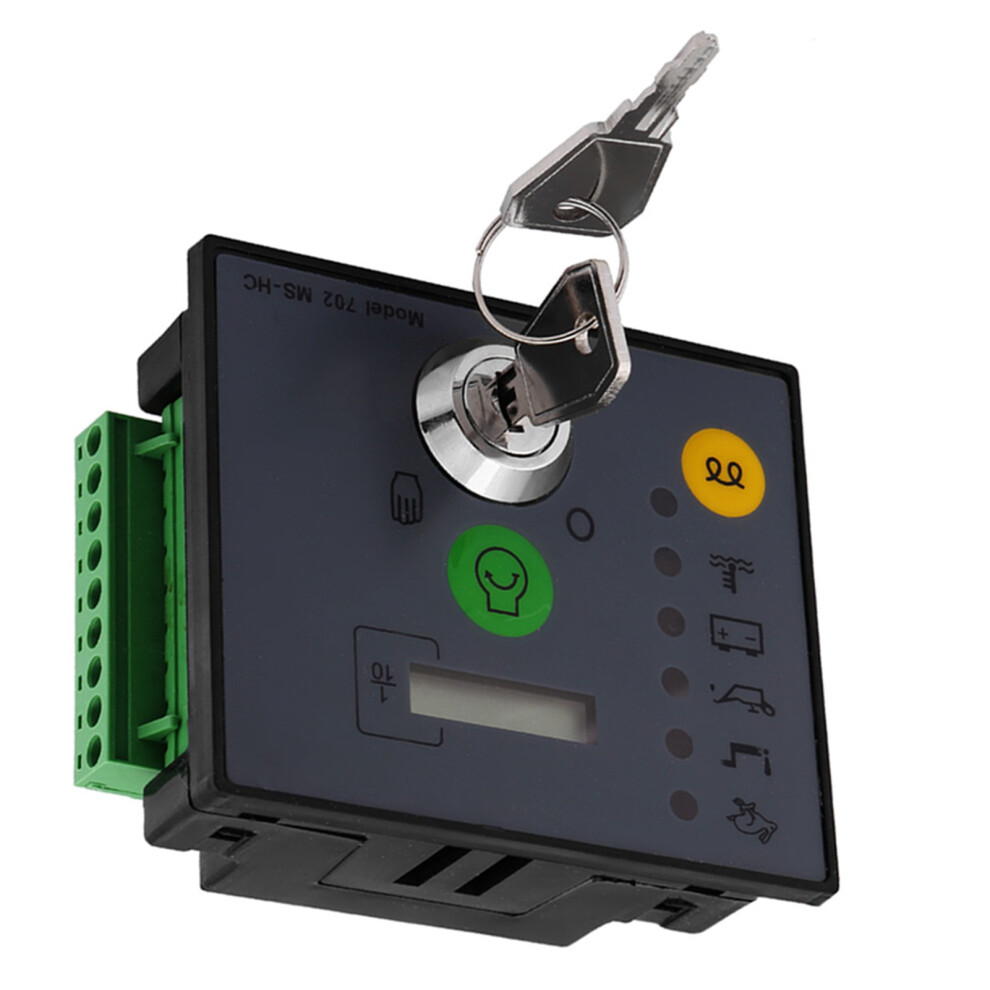

702 MS-HC Manual Start Generator Controller Board Panel With Keys

Descriptions:
The
702 MS-HC is available in manual start versions, offering an
excellent range of engine monitoring and protection features.The module
has been designed to monitor low oil pressure, high engine temperature,
over speed and a user defined auxiliary input. The DSE701 module includes a remote start signal
input. This input allows the module to be started from a pre-defined
remote location.

Features:

This generator controller is microcomputer control.


The generator controller is started and stopped manually.


With the function of LED indicating fault information.


With LCD running accumulative time.


With lubricating oil low pressure protection, the module
has been designed to monitor low oil pressure.


It also has the capability
to monitor battery charging by utilizing the WL terminal on the charge
alternator.


When the module detects a fault condition it automatically shuts down the engine.


With cool water temperature protection.


With engine overspeed protection.


Specifications:
Model: 702 MS-HC
Size: 8.5 x 7 x 3.8cm/3.45 x 2.76 x 1.50inch
Weight:157g


Benefits:
Hours counter provides accurate information for monitoring maintenance and warranty periods
Multiple engine parameters are monitored simultaneously.


Manual Mode Operation:
1.The module is started using the on-board key/buttons
2.The user turns the key to the palm position
3. The engine pre-heat button is then pressed for the required time
4. The start button is then pressed to start the engine
5. To stop the engine the key needs to be turned to the off position

Overspeed Protection:
The
engine over speed trip setting can be calibrated at the rear of the
module for 50Hz or 60Hz nominal operation (57Hz or 68Hz trip
respectively).
During engine cranking
and for the first 10 seconds after the engine starts running, all alarm
conditions are suspended (overspeed is enabled) to allow the engine to
reach its optimum running speed.

Package Included:
1 x 702 MS-HC Generator Controller
2 x keys
2 x screws
