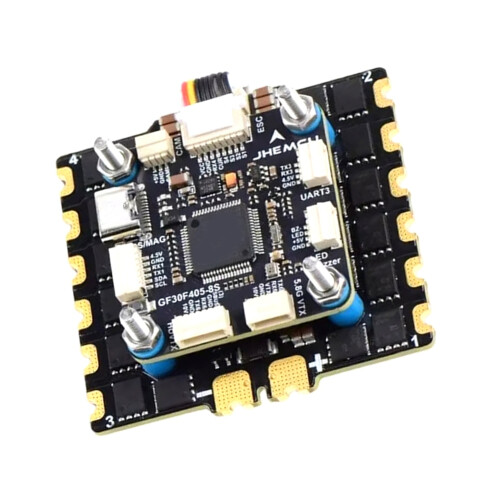

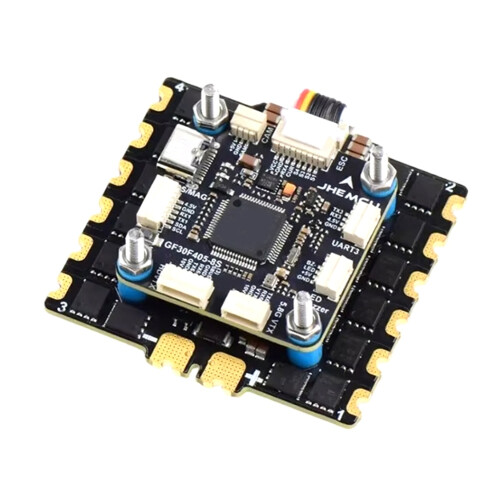

GF30F405 Flight Controller with ESC for FPV Racing Drone Flight Controller GF30F405 FC 90A ESC

GF30F405 Flight Controller with ESC for FPV Racing Drone Flight Controller GF30F405 FC 90A ESC Description

Compact Design: a minimal footprint is designed to fit seamlessly into your drone setup without adding unnecessary bulk.
Optimized for Dshot: Supports Dshot digital signal for smoother and more reliable motor control, enhancing your drone's performance in dynamic flight conditions.

MCU:STM32F405RGT6
Power Supply:3-8S (11V-35V)
Signal protocol:PWM, Oneshot1 25, Oneshot42, Multishot.
dshot150, dshot300, dshot600.
Sensor:-42688-P
Size:36x36mm(30.5mm mounting hole, 4mm diameter)
Firmware version:Betafight JHEF405PRO.HEX
Support INAV, can be flashed INAVJHEMCUF405.HEX
Black Box:16MB
Barometer: Yes
OSD:Support
VTX:with reserved interface,support
USB:TYPE-C connector
:Support
GPS:Support
E-compass:Support
UART: 4 way, UART1,3,4,6.
BEC:BEC 5V/3A and 10V/2A
Receiver:SBUS,IBUS,DSM2/X,TBS(CRSF), ELRS(CRSF)
only supports CRSF by default, if you need other protocols, you can update the firmware by yourself.
Support WS2812 programmable LED
Buzzer support
Built-in voltage sensor with current detection port
Due to different batches, there may be differences in product appearance and printed text, which not affect use.
Specification:GF30F405 FC 90A ESC
Colour:As Shown
Material:PCB

Package Contents:
1 * Flight Controller kit

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
