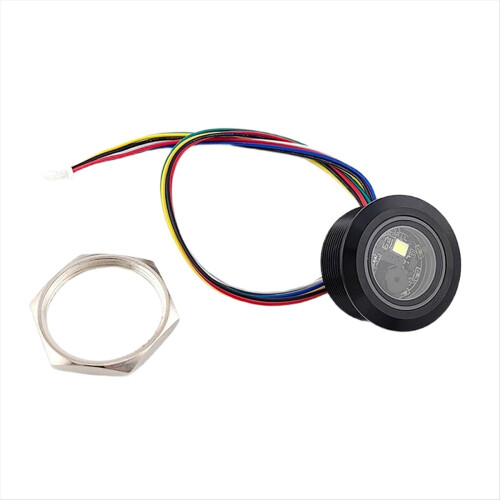

GM861-LED White Fill Lighting 2D/1D USB/UART DC3.3

GM861-LED White Fill Lighting 2D/1D USB/UART DC3.3 Description

Sensitive sensor, fast decoding, reads both paper and screen codes.
Suitable for retail, medical equipment, traffic management, intelligent device development, and other fields.
Built-in fill light: The light provides auxiliary illumination for and reading, improving reading performance and adaptability to low-light conditions. Users can set it according to the application environment.
Multi-system compatibility: Supports for XP, 7, 8, 10, Linux, Android, for , and other mainstream operating systems.

GM861-LED Performance Parameter:
Sensor:CMOS
Scan Mode:640x480
GM861-LED
Indicator Light:White light as power on Green light as read successfully
GM861-LED Fill Light:White light
Read Code Type:
1D: -13, -8, UPC-A, UPC-EISSN, , CodaBar,Code 128,
Code93, ITF-14, ITF-6, Interleaved 2 of 5,Industrial 2 of 5,
Matrix 2of 5, Code 39,Code11, -Plessey, GS1 Composite,GS1-Databar (RSS)
2D: QRCode, DataMatrix, PDF417, Micro-QR, Micro-type PDF417,
GM861-LED Reading Distance:5-30cm
Contrast: 25%
Scan Angle: Roll:360Pitch:65Yaw:65
Viewing Angle:67(Horizontal)53(Vertical)
Accuracy of reading: equal 10mil
Mechanical/electrical Parameters:
Interface:TTL-232/USB
Prompting Mode:LED Indicator
Operating Voltage:3.3V
Operation Current:70mA(Max)
Standby Current:less than equal 6mA(Typical)
Startup Time:less than equal 250mS (Typical)
Color:Black
Material:Aluminum Alloy

Package Contents:
1 * Barcode Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
