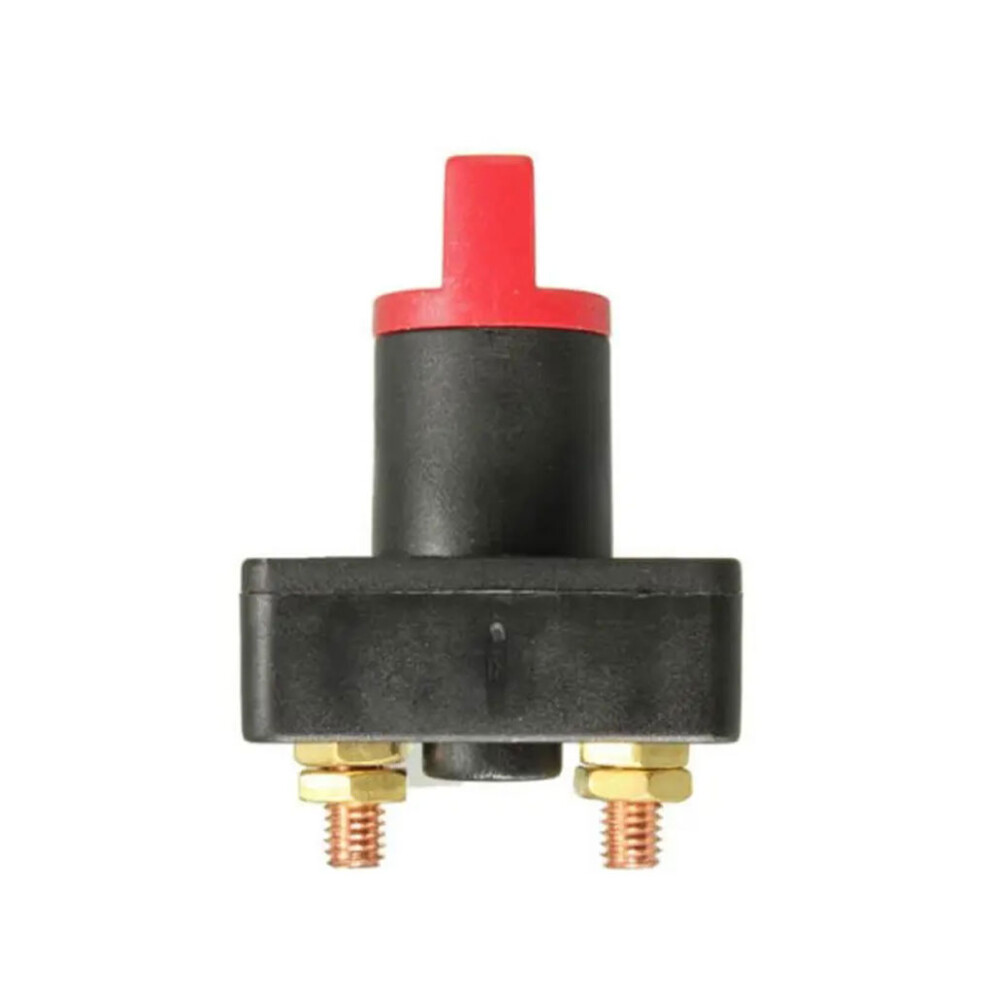

Good Safety Performance Battery Disconnect Rotary Cut Off Switch Red

Good Safety Performance Battery Disconnect Rotary Cut Off Switch Red Description

Description:
Switch: It adopts industrial ABS insulated , ensuring durability. Equipped with two gears, it offers simple installation and disassembly for easily cutting off power supply.
Materials: Made from industrial ABS insulated , providing firmness and durability. The interior is crafted with pure copper for excellent conductivity and corrosion resistance.
Kill Switch: This switch features a copper conductor, allowing it to quickly cut off the current and protect the power supply. It is suitable for various equipment and has a maximum allowable current of .
Battery Isolator Disconnect: Crafted with industrial ABS insulated , this switch is durable and reliable. It has excellent conductivity and corrosion resistance, ensuring a long service life.
Good Safety Performance: The switch has a copper conductor and can cut off the power supply efficiently. Its small size and simple installation make it suitable for motorcycles, trains, automobiles, and small yachts.
Specification:
Color: Red Black
Material: ABS
Size: Approx 43 x 37 x 64mm/1692.91*1456.69*2519.68inch.
Screw diameter: 6mm
Diatance between two switch positions: 25mm
Rated current: 100A (Max 300A)
Running capacity 100A, Max capacity 300A
Voltage: 60V DC
Contacting resistance: 50M
Insulation resistance: 100M
Dielectric strength: 1500VAC / 1min
Electrical life: 10000

Note:
There might be a bit color distortions due to different computer resolutions.
There might be a slight errors due to different hand measurement.
Package Includes:
1xBattery Disconnect Kill Selector Switch
