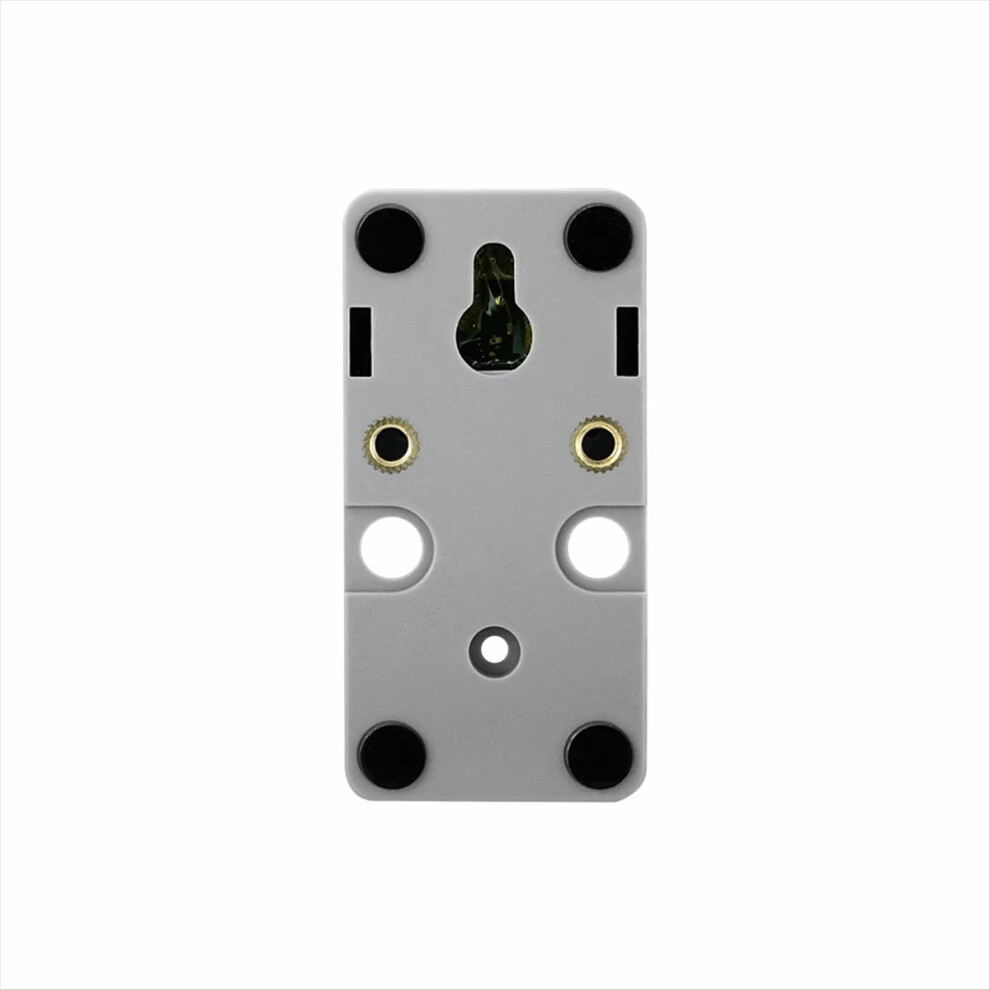

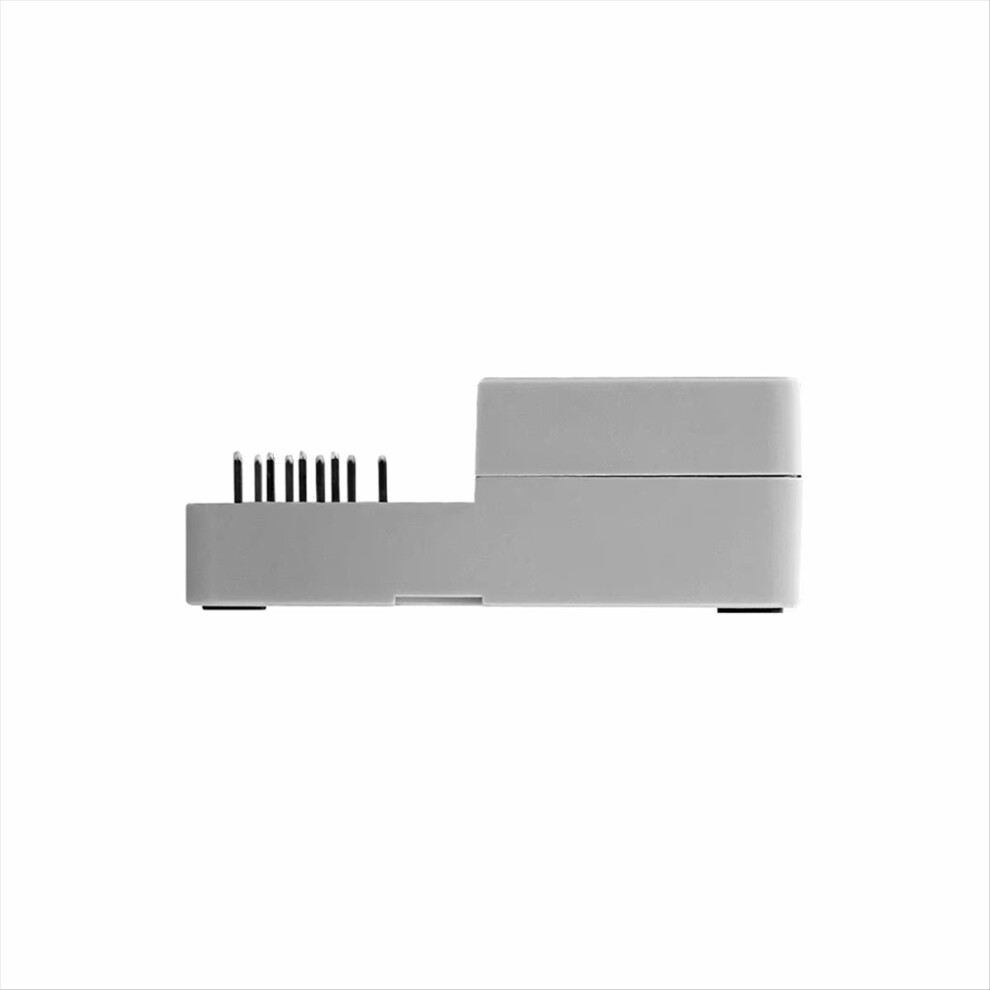

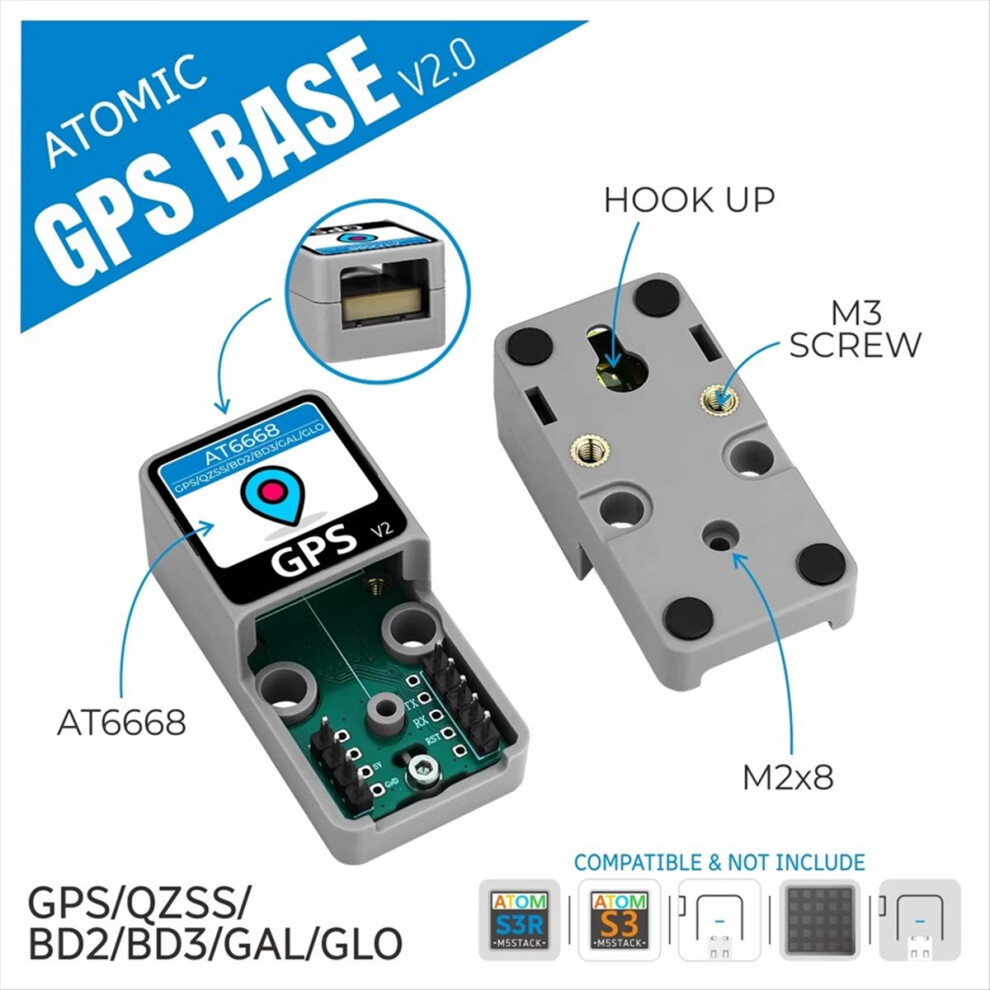

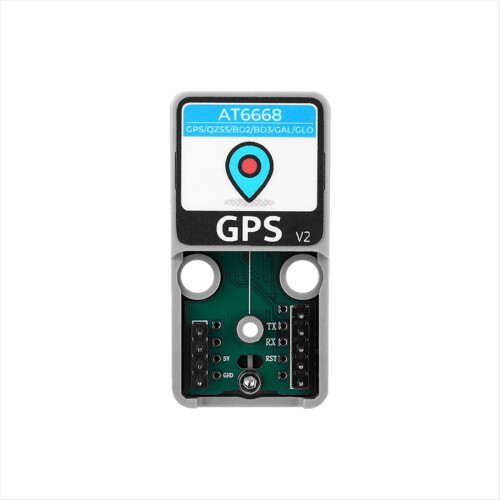

GPS Base V2.0 GPS Positioning Module Base Dedicated for Atom Series Host Low Power High Precision

GPS Base V2.0 GPS Positioning Module Base Dedicated for Atom Series Host Low Power High Precision Description

GPS positioning module base V2.0
High-performance AT6668 positioning module, AT6668 chip solution, supports multiple satellite positioning
Multi-frequency and multi-system reception
Supports multiple satellite navigation systems
Low power consumption and high precision

SoC: ATGM336H-6N-74 module @AT6668
Satellite frequency:
BDS: B1, B1C
GPS/QZSS: L1
: E1
GLONASS: L1
Positioning accuracy: Less than 1.5m (CEP50)
Number of channels: 50
Output frequency: 1Hz (maximum 10Hz)
Startup time: cold start: 23s; hot start: 1s; recapture: 1S
Capture time: 1s
Baud rate: 115200bps@8N1
Data format: NMEA0183
Sensitivity: tracking: -167dBm; recapture: -160dBm; cold start: -148dBm; hot start: -156dBm
Power consumption: standby current: [email protected]; working current: [email protected]
Color: Grey
Material: plastic

Package Contents:
1 * GPS Base

Only the above package content, other products are not included.
