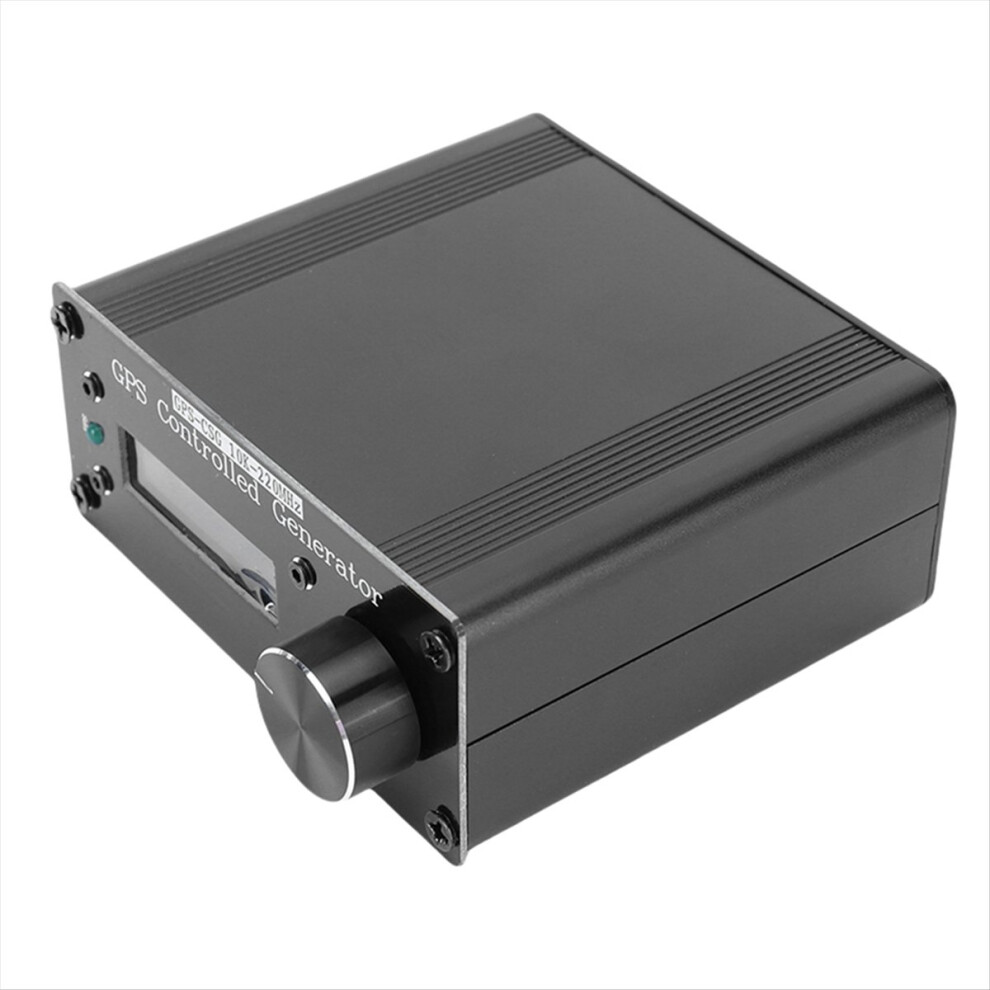

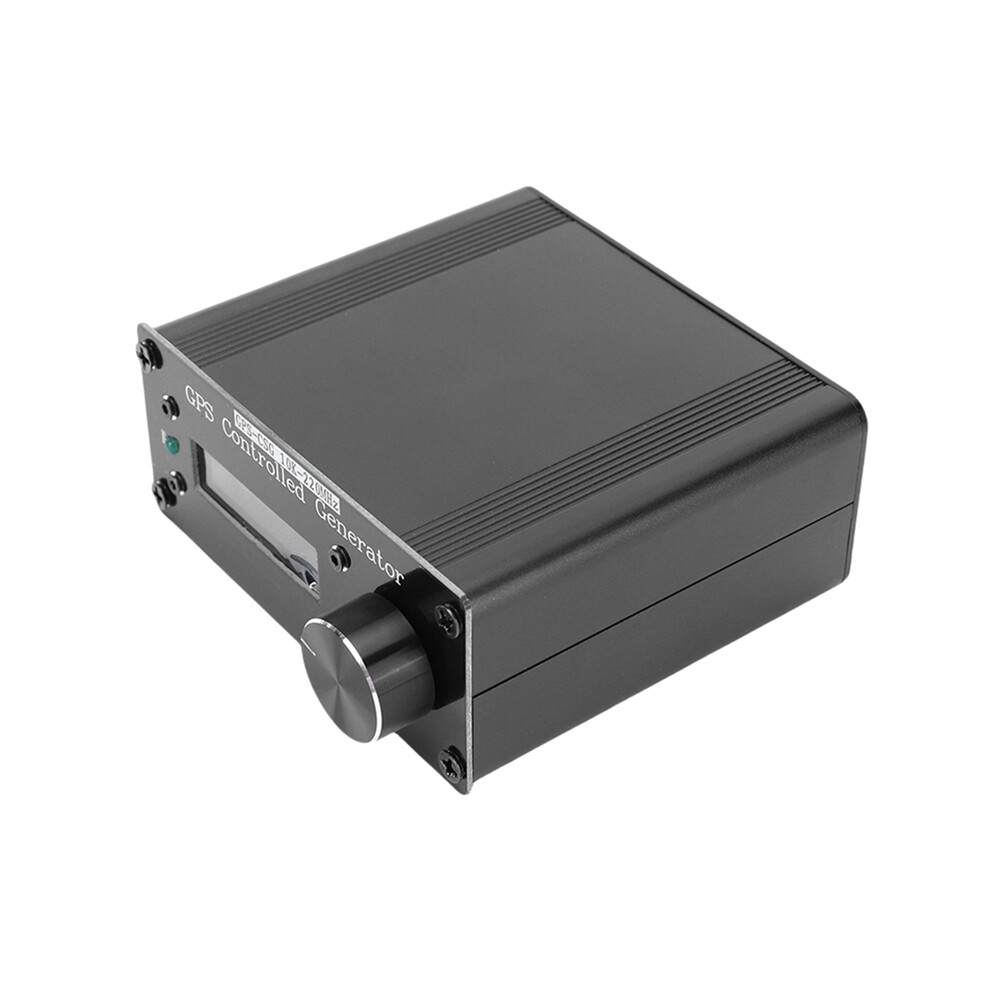

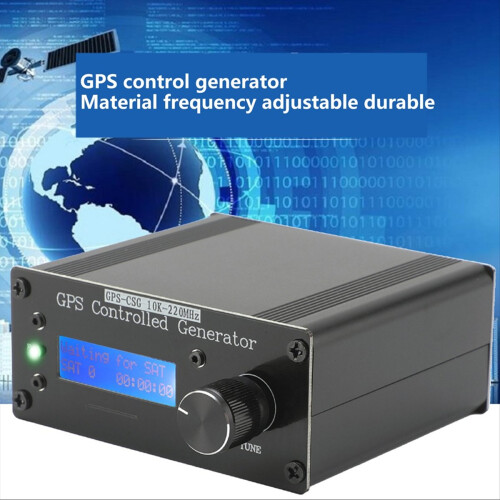

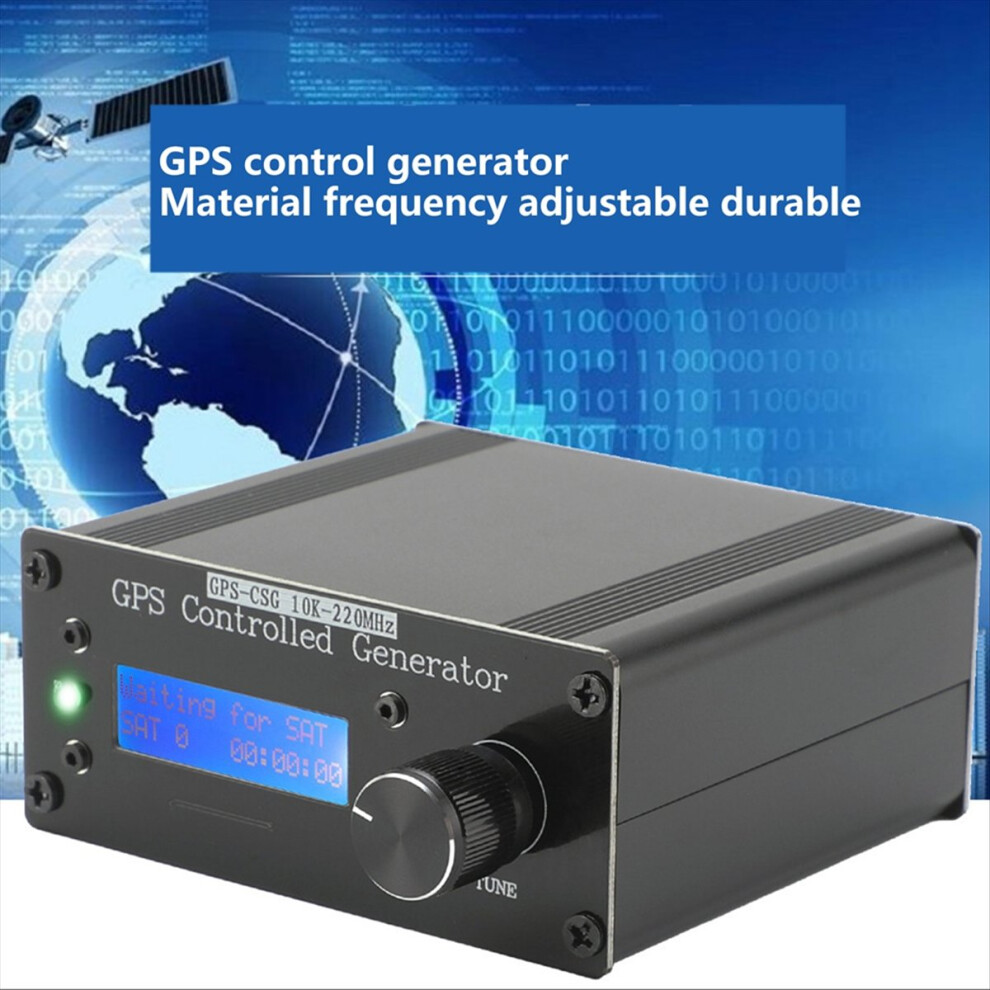

GPS-CSG VFO GPS Controlled Generator Dual-Channel Adjustable Frequency Reference Source Vibration Motor

GPS-CSG VFO GPS Controlled Generator Dual-Channel Adjustable Frequency Reference Source Vibration Motor Description

1. Calibration: Utilize the VFO GPS controlled generator's 10KHz-220MHz frequency range with GPS and Beidou satellite support for exact frequency calibration and generation, ensuring your instruments are synced with pinpoint accuracy.
2. Dual-Channel Flexibility: Customize your frequency settings with ease, as each of the two adjustable channels on the control generator allows for frequency tuning, with the capability to store up to five frequencies per channel for quick access and varied applications.
3. Optimized Visibility: Whether you receive a unit with a green or white backlight, the variable frequency oscillator generator's LCD screen ensures clear visibility and control in lighting conditions, enhancing user experience and device interaction.
4. Efficient Power Usage: Operate with confidence knowing the GPS taming clock is designed for low power consumption, requiring only DC8-13V and less than 150mA, making it a highly efficient device for extended use.
5. Complete Kit Provided: The GPS generator comes with everything you need for a seamless setup: the main unit, power supply, and a GPS antenna with a 3-meter (9.8-foot) feedline, offering convenience and ease of use right out of .

Specification:
Part name: controlled generator
Power supply voltage: DC8-13V
Power consumption: less than 150mA
Adjustable frequency: 10KHz-220MHz
Frequency accuracy: 0.2Hz
Output level: 12dBm2dB (adjustable within -10dBm to 10dBm; amplitude calibrated)
Frequency synthesizer crystal oscillator: TCXO
Phase noise: -132dBc at 10KHz
Output type: square wave
Harmonic suppression: even harmonics -50dBc, odd harmonics -10dBc

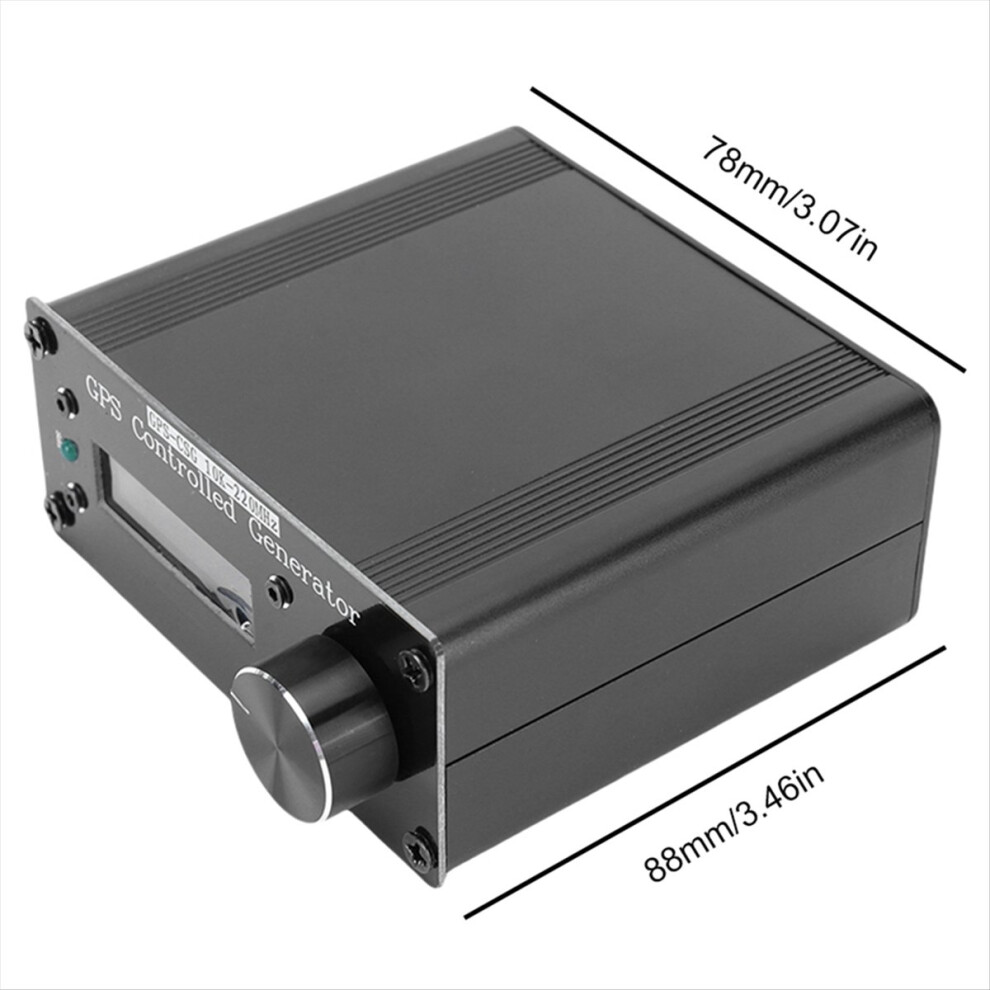

Product size: 88.00x78.00x38.00mm/3.46x3.07x1.5inch
Colour:black
Material:Aluminum Alloy

Package Contents:
1 * GPS Control Generator
1 * Power Supply
1 * GPS Antenna

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
