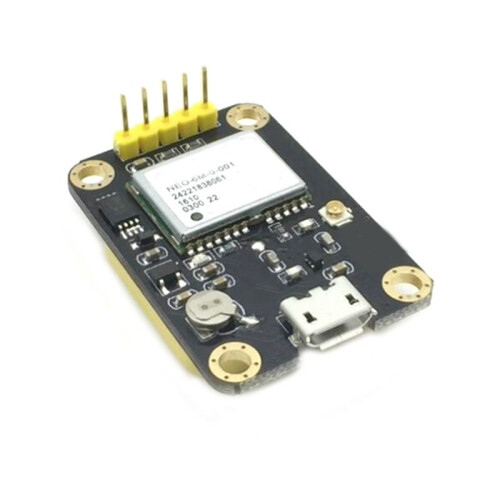

GPS Module NEO-6M APM2.5 Navigation Satellite Positioning with Ipx Antenna Interface
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£6.75
£10.31
35% off!
+£2.00 Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (£2.00) | Fri 17th - Thu 23rd Jul
Sold by: GSbuy
Returns: 30 days
180-day payment protection
Most Popular in Car GPS Trackers
Hot
Hot
Hot
Description & Details
Summary
- After the PPS pin of the module is connected to the red LED light, it is always on: it is working normally, but it has not been positioned Blinking: the positioning is successful
- Baud rate, the default baud rate of the module is 9600

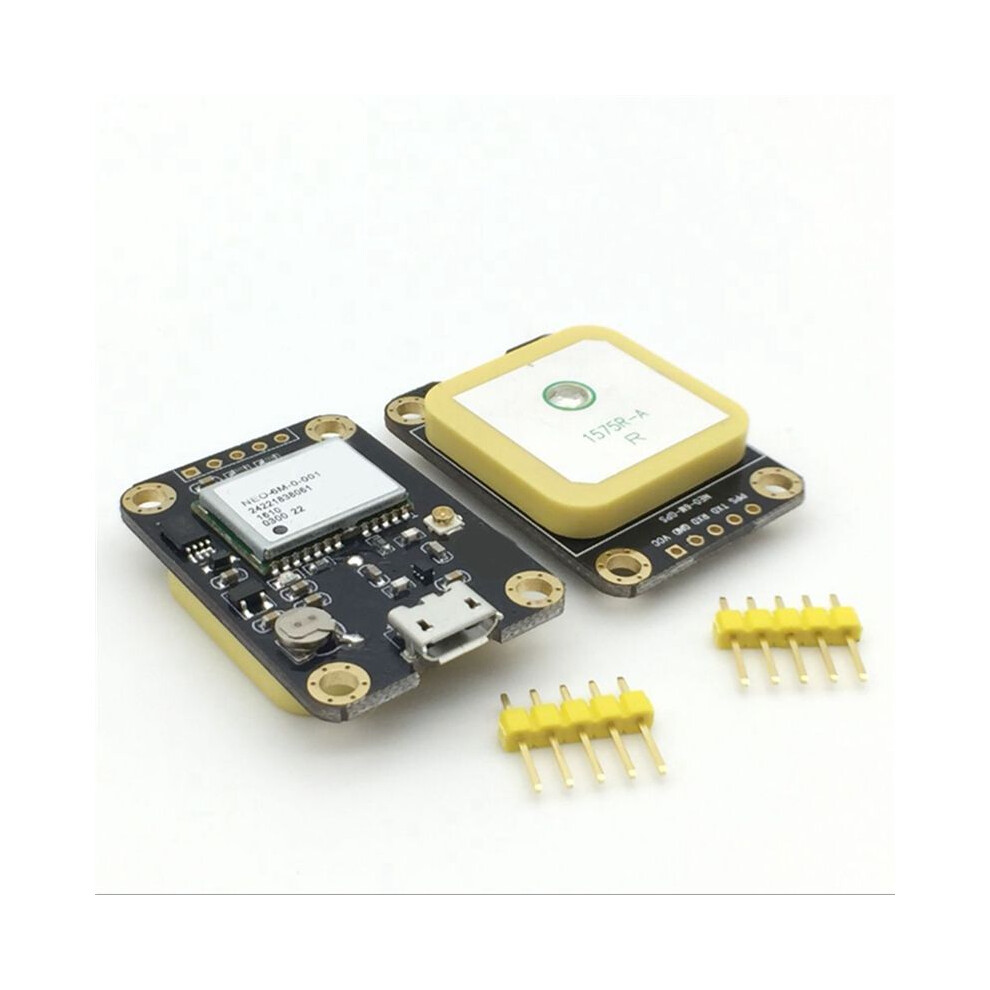

- The module comes with a ceramic antenna, and there is an IPEX interface to connect other active antennas
- The module adds a radio frequency amplifier circuit, which is conducive to speeding up the search for satellites
- The module is compatible with 3.3V/5V level, which is convenient for connecting various single-chip microcomputer systems
GPS Module NEO-6M APM2.5 Navigation Satellite Positioning with Ipx Antenna Interface Description
After the PPS pin of the module is connected to the red LED light, it is always on: it is working normally, but it has not been positioned Blinking: the positioning is successful
Baud rate, the default baud rate of the module is 9600
The module comes with a ceramic antenna, and there is an IPEX interface to connect other active antennas
The module adds a radio frequency amplifier circuit, which is conducive to speeding up the search for satellites
The module is compatible with 3.3V/5V level, which is convenient for connecting various single-chip microcomputer systems
Color: As Shown
Material: pc+metal
1. Voltage
Input voltage: 3.3-5.5V
power consumption
Normal mode: 50 mA
Power saving mode: 30mA
2. Temperature
Working temperature -40Cto+85C
Storage temperature -55Cto+100C
3. Pin description and electrical connection
module pin
VCC: power pin input 3.3-5.5V
GND: power ground
RXD: Module serial port receiving pin--connect to the serial port TXD of the microcontroller to send
TXD: Module serial port sending pin--connect to single chip microcomputer serial port RXD receiving
PPS: clock pulse output pin
Package Contents:
1 x GPS module
Details
| OPC | PNVJ8JR |
|---|---|
| Codes | 4713248533082 (EAN) |
Product Data
| Height | 1cm |
|---|---|
| Width | 6cm |
| Length | 10cm |
| Weight | 0.015kg |
| Colour | As Shown |
| Material | pc+metal |
