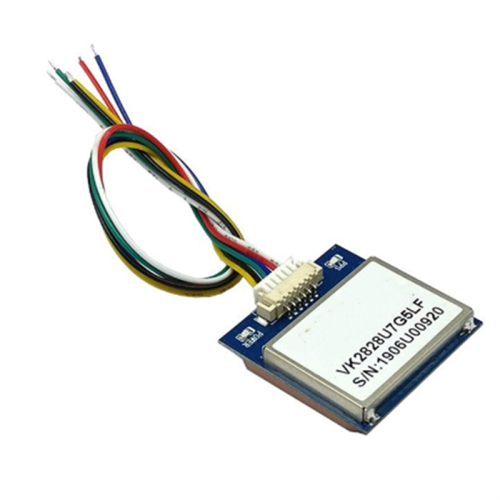

GPS Module with Antenna TTL 1-10Hz with FLASH Flight Control Model Air

GPS Module with Antenna TTL 1-10Hz with FLASH Flight Control Model Air Description

Standard 25 x 25 x 4MM high sensitivity GPS antenna

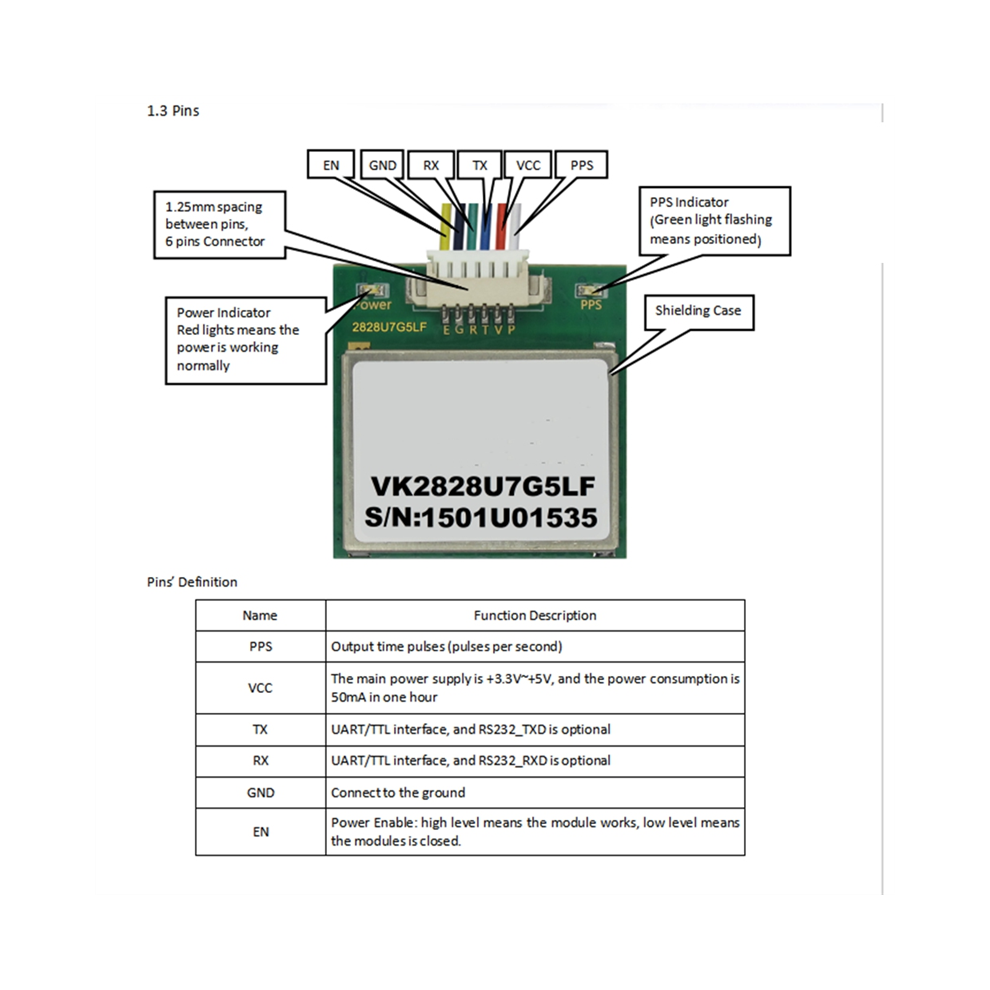

TTL interface
Adopt KDS 0.5 PPM High Precision TCXO
Built-in SQI Flash
Built-in RTC crystal and Picofarads capacitance.faster hot root

Built-in LNA,Low-noise amplifier
1-10Hz
Support AssistNow Online and AssistNow Offline
GPS,GLONASS,GALILEO,SBAS(WAAS,EGNOS,MSAS,GAGAN) Hybrid Engine

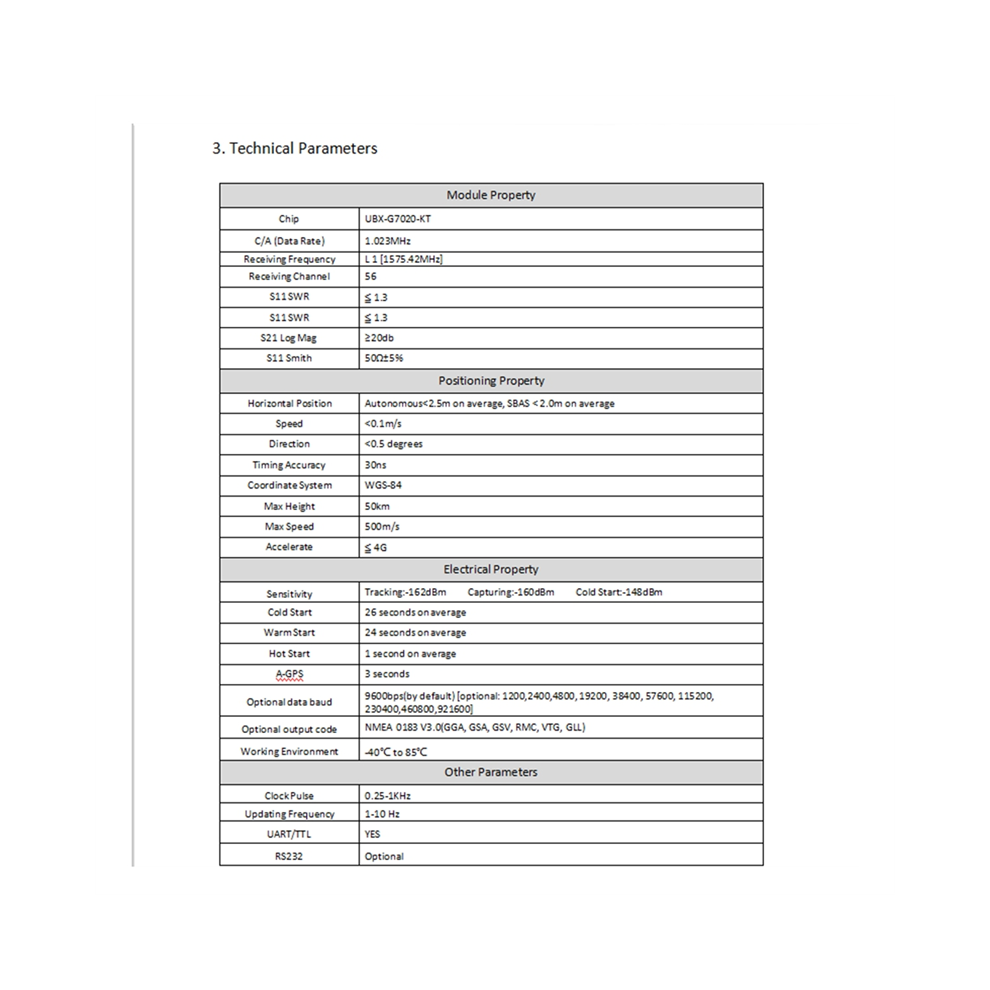

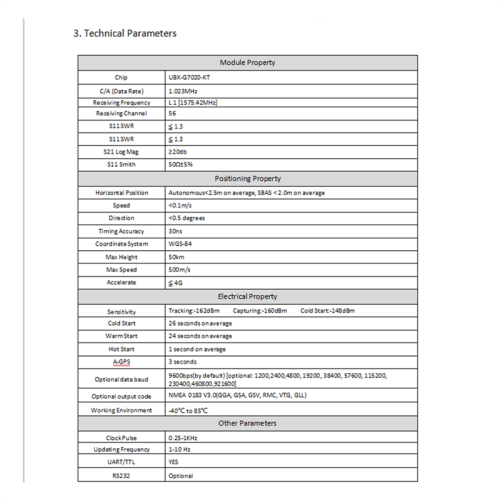

Features:
Chip:UBX-G7020-KT
C/A code,1.023MHz Stream
receive frequency:L1 [1575.42MHz]
receive channel:56CH
S11 SWR:1.3
S11 Smith:50Ohm+(-)5%
S21 Log Mag:20.0dB
S22 SWR:1.3
Location Performance:
Less than 2.5m[Autonomous][50%]
Less than 2m[SBAS]
rate:Less than 0.1m/s
direction:Less than 0.5 Degrees
Timing accuracy:30ns
Reference coordinate system:WGS-84
Maximum altitude:50,000 m
Acceleration:Less than 4g
Tracking sensitivity:-162dBm
catch sensitivity:-160dBm
root time:29s (in average)
warm root time:28s(in average)
hot root time:1s(in average)
AGPS:3s
Condition: New
color:Blue
Material:PC+metal

Package Contents:

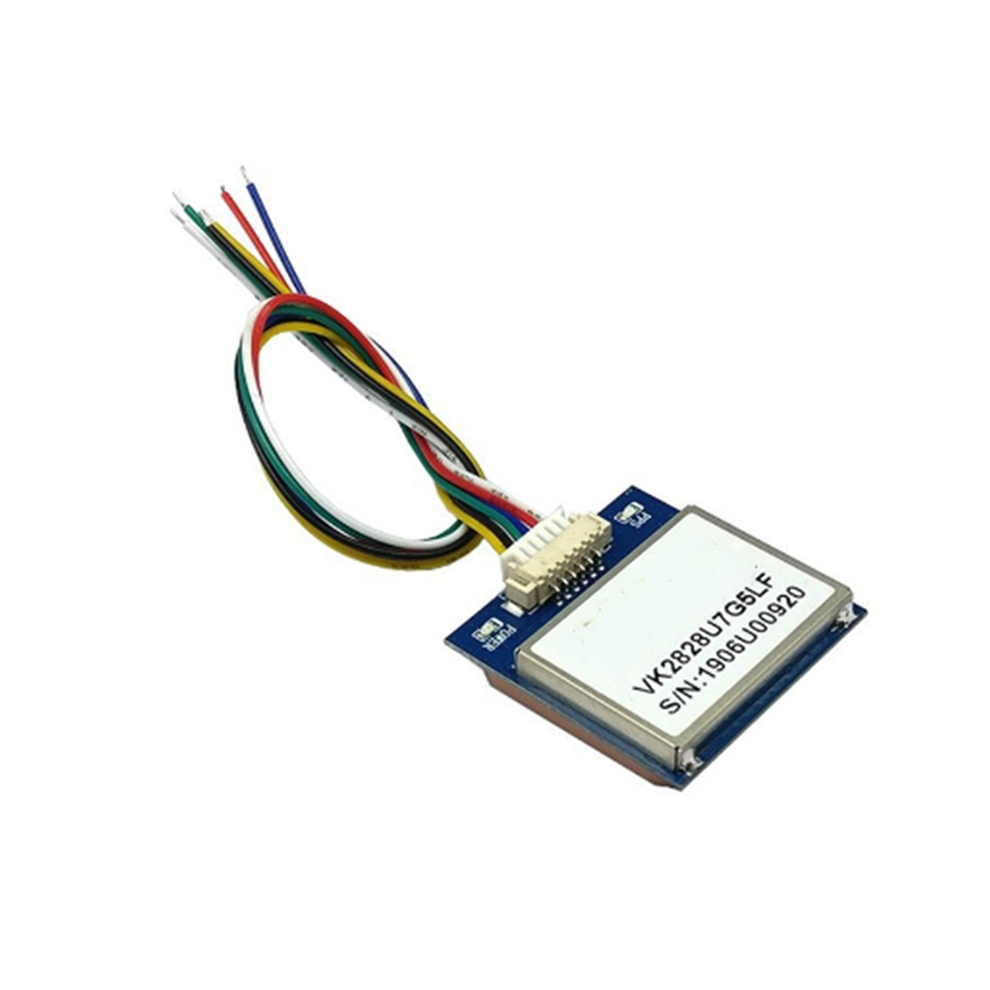

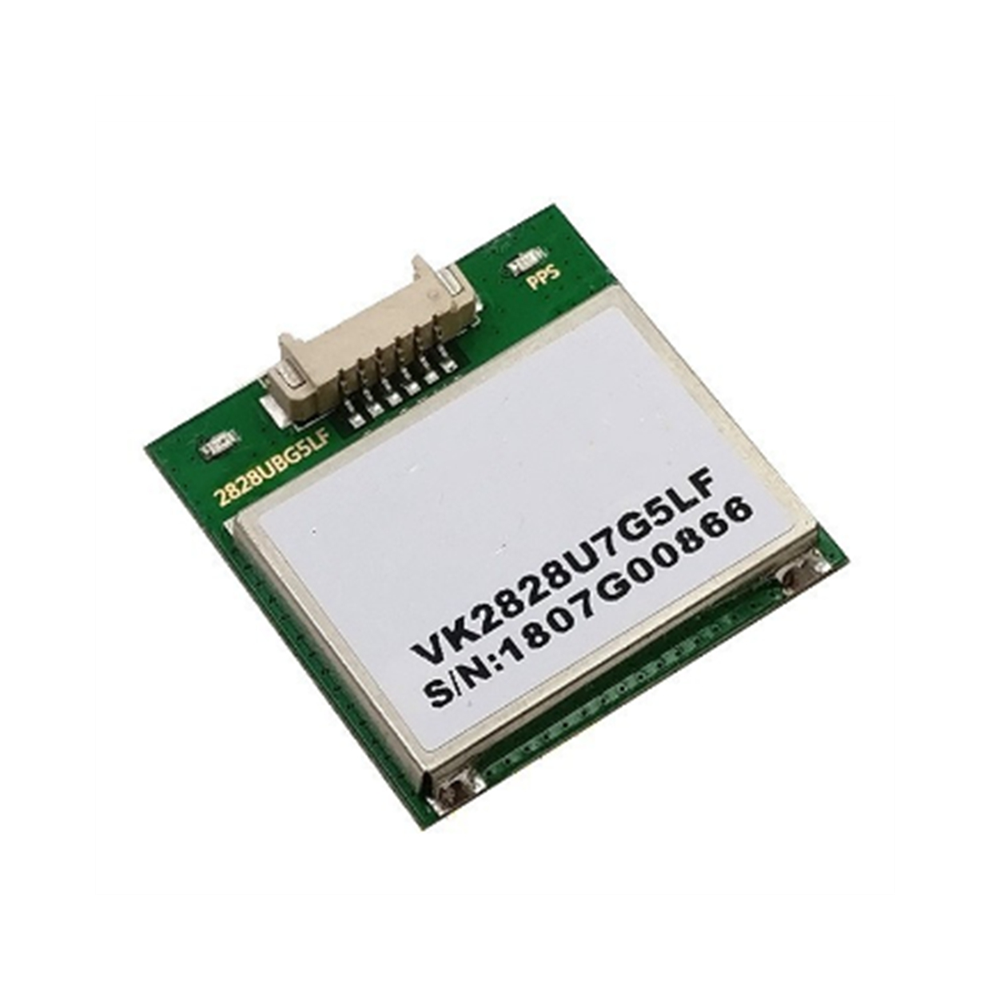

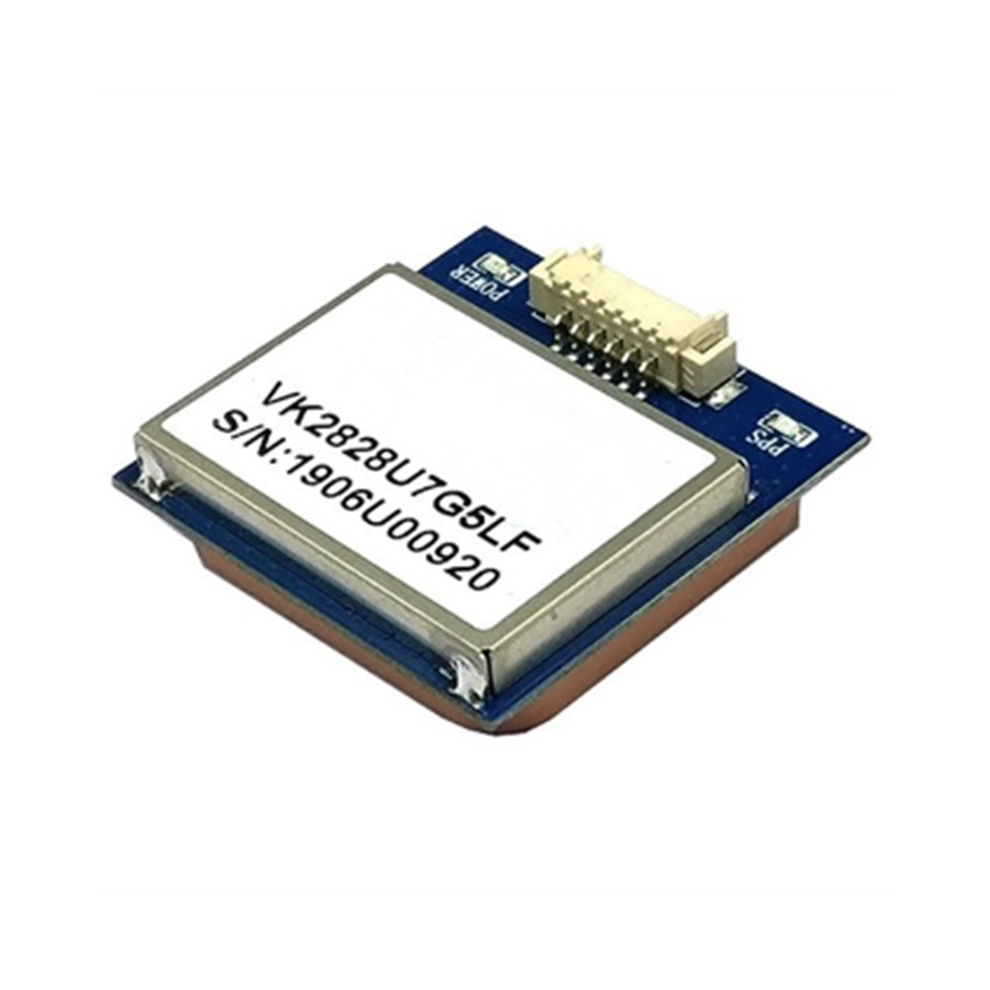

1 x GPS Module(VK2828U8G5LF)

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
