(Grade 100, 6MM) Lifting Eye Self Locking Hook (Chain Sling Lock)

(Grade 100, 6MM) Lifting Eye Self Locking Hook (Chain Sling Lock) Description

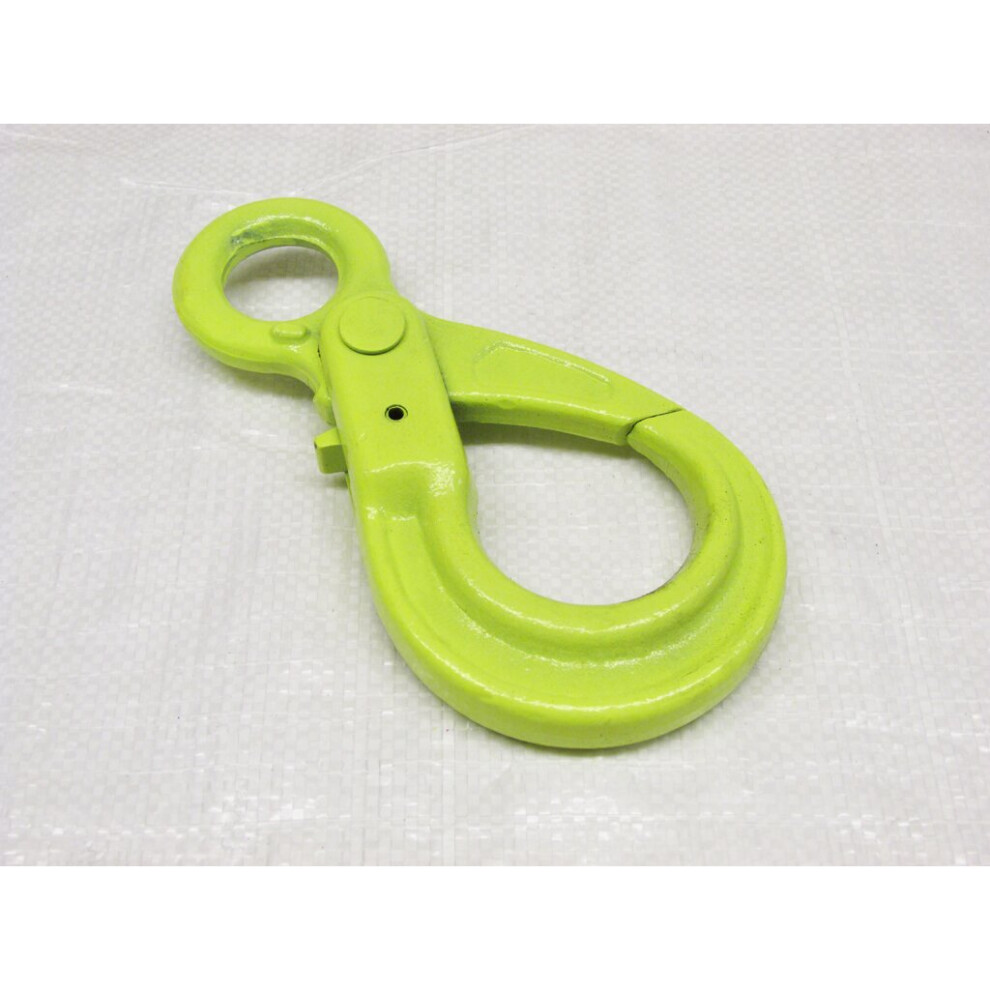

Autolock Eye Type Hook

Suits Chain Size - 6MM - 26MM

Material - Grade 80 or 100

Finish - Light Green (Colour May Vary)

Factor Of Safety - 4:1

Conforms To: BS EN 1677 ASTM A952

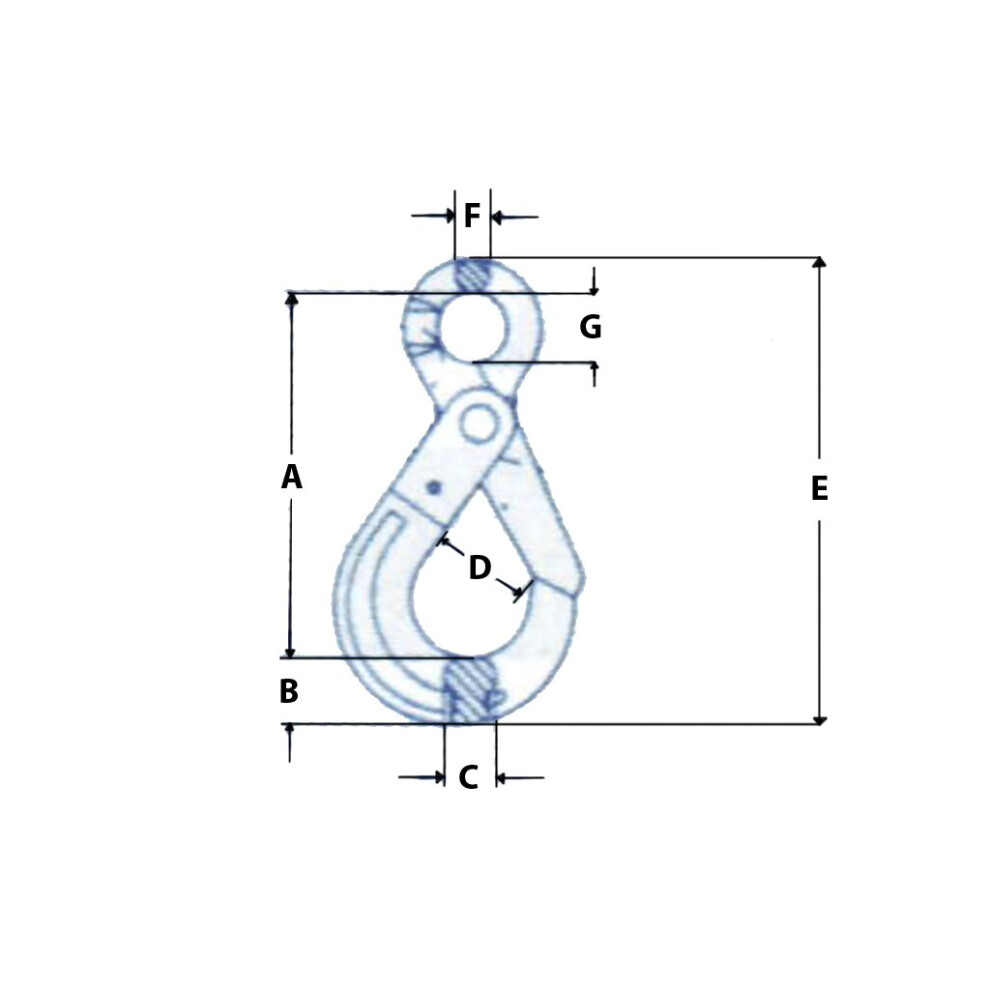

Grade 80 Self Locking Hook Dimensions

7MM Eye type Autolock Hook SWL - 2T, A - 128MM, B - 24MM, C - 18MM, D - 35MM, E - 164MM, F - 10.5MM, G - 23.5MM

10MM Eye type Autolock Hook SWL - 3.15T, A - 160MM, B - 27MM, C - 22MM, D - 44MM, E - 200MM, F - 12.5MM, G - 31MM

13MM Eye type Autolock Hook SWL - 5.3T, A - 194MM, B - 32MM, C - 29MM, D - 50MM, E - 242MM, F - 17MM, G - 40MM

16MM Eye type Autolock Hook SWL - 8T, A - 235MM, B - 39.5MM, C - 34MM, D - 60MM, E - 295MM, F - 20.5MM, G - 48.5MM

20MM Eye type Autolock Hook SWL - 12.5T, A - 280MM, B - 58MM, C - 49MM, D - 88MM, E - 360MM, F - 23.5MM, G - 63MM

22MM Eye type Autolock Hook SWL - 15T, A - 320MM, B - 70MM, C - 54MM, D - 80MM, E - 415MM, F - 28MM, G - 69MM

26MM Eye type Autolock Hook SWL - 21.2T, A - 360MM, B - 75MM, C - 60MM, D - 104MM, E - 465MM, F - 30MM, G - 78.5MM

Grade 100 Self Locking Hook Dimensions

6MM Eye type Autolock Hook SWL - 1.5T, A - 105.5MM, B - 21.5MM, C - 15MM, D - 29MM, E - 137MM, F - 10MM, G - 20.5MM

8MM Eye type Autolock Hook SWL - 2.5T, A - 134.5MM, B - 27MM, C - 23MM, D - 37.5MM, E - 172MM, F - 11.5MM, G - 26.5MM

10MM Eye type Autolock Hook SWL - 4T, A - 167MM, B - 31MM, C - 27MM, D - 48.5MM, E - 210MM, F - 12.5MM, G - 33.5MM

13MM Eye type Autolock Hook SWL - 6.7T, A - 206MM, B - 41MM, C - 33MM, D - 57MM, E - 266MM, F - 16MM, G - 39.5MM

16MM Eye type Autolock Hook SWL - 10T, A - 250MM, B - 53MM, C - 38MM, D - 67MM, E - 321MM, F - 21MM, G - 49MM

These Are A High Quality Piece Of Lifting Gear. These Are Mainly Used In The Lifting Gear Industry For Chain Slings.

These Eye Type Autolock Hooks Are An Excellent Product Because Of The Added Safety Feature Of The Self Locking Mechanism.

The Latch Will Close Automatically Under Load And The Spring Release Trigger Will Not Operate Whilst The Hook Is Under Pressure.

Grade 100 Products Are Lighter Yet Stronger Than Their Grade 80 Counterparts.

*Test Certificate Will Be Supplied Via Email*

*Please Note We Supply A Huge Variety Of Lifting Gear*
