(Grade 80, 16MM) Lifting Chain Sling Grab Hook (Fixed Eye Clutch)

(Grade 80, 16MM) Lifting Chain Sling Grab Hook (Fixed Eye Clutch) Description

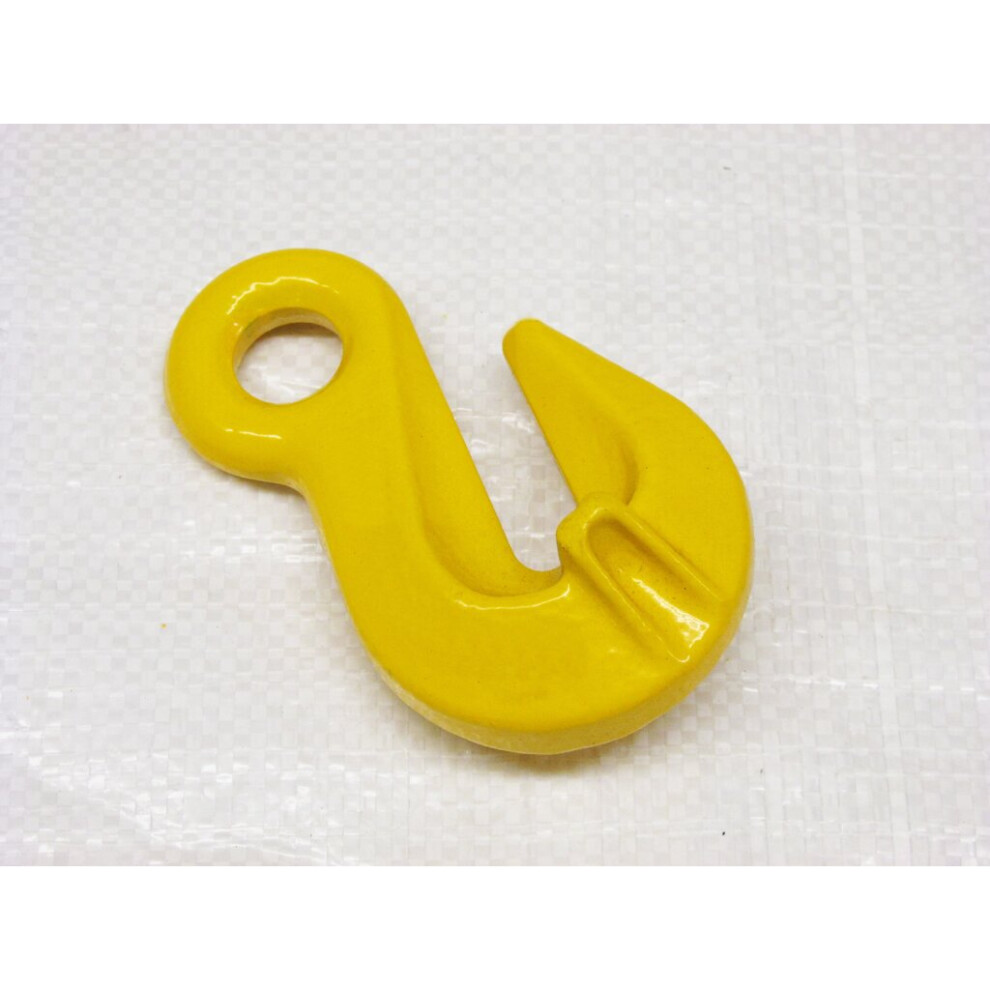

Shortening Clutch Grab Hook

These Are A High Quality Piece Of Lifting Gear. These Are Mainly Used In The Lifting Gear Industry For Chain Slings.

These Are Used In Conjunction With Chain Slings. By Attaching Chain To The Grab Hook, It Will Then Subsequently Shorten The Chain To Suit Your Lifting Needs.

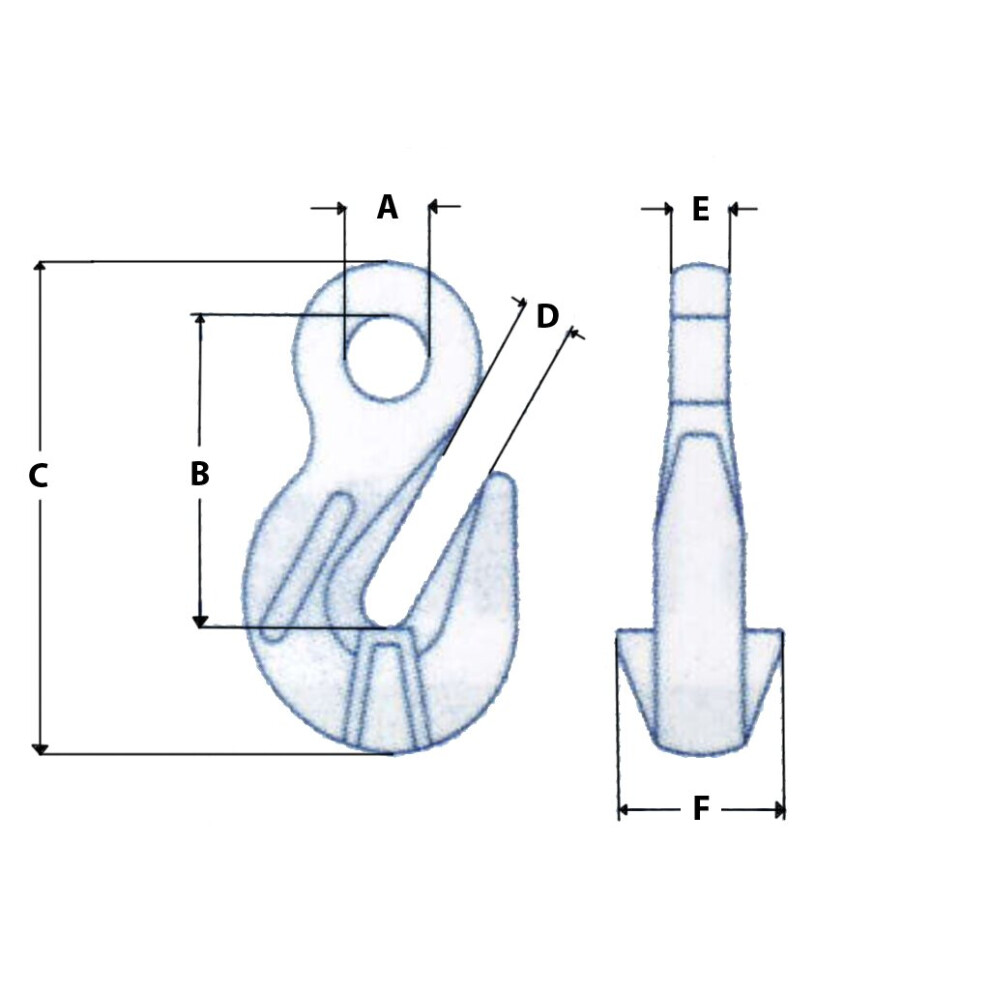

Dimensions

Grade 80 Eye Grab Hook

7MM Eye Grab Hook SWL - 2 Ton, A - 17.5MM, B - 60MM, C - 92MM, D - 10MM, E - 11MM, F - 31.5MM

10MM Eye Grab Hook SWL - 3.15 Ton, A - 19.5MM, B - 77MM, C - 120MM, D - 12.5MM, E - 13.5MM, F - 45MM

13MM Eye Grab Hook SWL - 5.3 Ton, A - 25MM, B - 97MM, C - 160MM, D - 15MM, E - 16.5MM, F - 60MM

16MM Eye Grab Hook SWL - 8 Ton, A - 29MM, B - 105MM, C - 165MM, D - 18MM, E - 20MM, F - 70MM

20MM Eye Grab Hook SWL - 12.5 Ton, A - 37.5MM, B - 140MM, C - 215MM, D - 23MM, E - 24MM, F - 80MM

22MM Eye Grab Hook SWL - 15 Ton, A - 42.5MM, B - 160MM, C - 255MM, D - 27MM, E - 27MM, F - 95MM

26MM Eye Grab Hook SWL - 21.2 Ton, A - 44.5MM, B - 180MM, C - 300MM, D - 27.5MM, E - 35MM, F - 100MM

32MM Eye Grab Hook SWL - 31.5 Ton, A - 55MM, B - 227MM, C - 365MM, D - 34MM, E - 43MM, F - 123MM

Grade 100 Eye Grab Hook

6MM Eye Grab Hook SWL - 1.5 Ton, A - 13.5MM, B - 46MM, C - 73MM, 7.5MM, E - 9MM, F - 22MM

8MM Eye Grab Hook SWL - 2.5 Ton, A - 17.5MM, B - 62MM, C - 93MM, D - 11MM, E - 10MM, F - 31MM

10MM Eye Grab Hook SWL - 4 Ton, A - 21.5MM, B - 82MM, C - 126MM, D - 12.5MM, E - 15MM, F - 43MM

13MM Eye Grab Hook SWL - 6.7 Ton, A - 27.5MM, B - 105.5MM, C - 160MM, D - 17MM, E - 17MM, F - 52MM

16MM Eye Grab Hook SWL - 10 Ton, A - 30MM, B - 107MM, C - 168MM, D - 21MM, E - 21MM, F - 70MM

*Test Certificate Will Be Supplied Via Email*

*Please Note We Supply A Huge Variety Of Lifting Gear*
