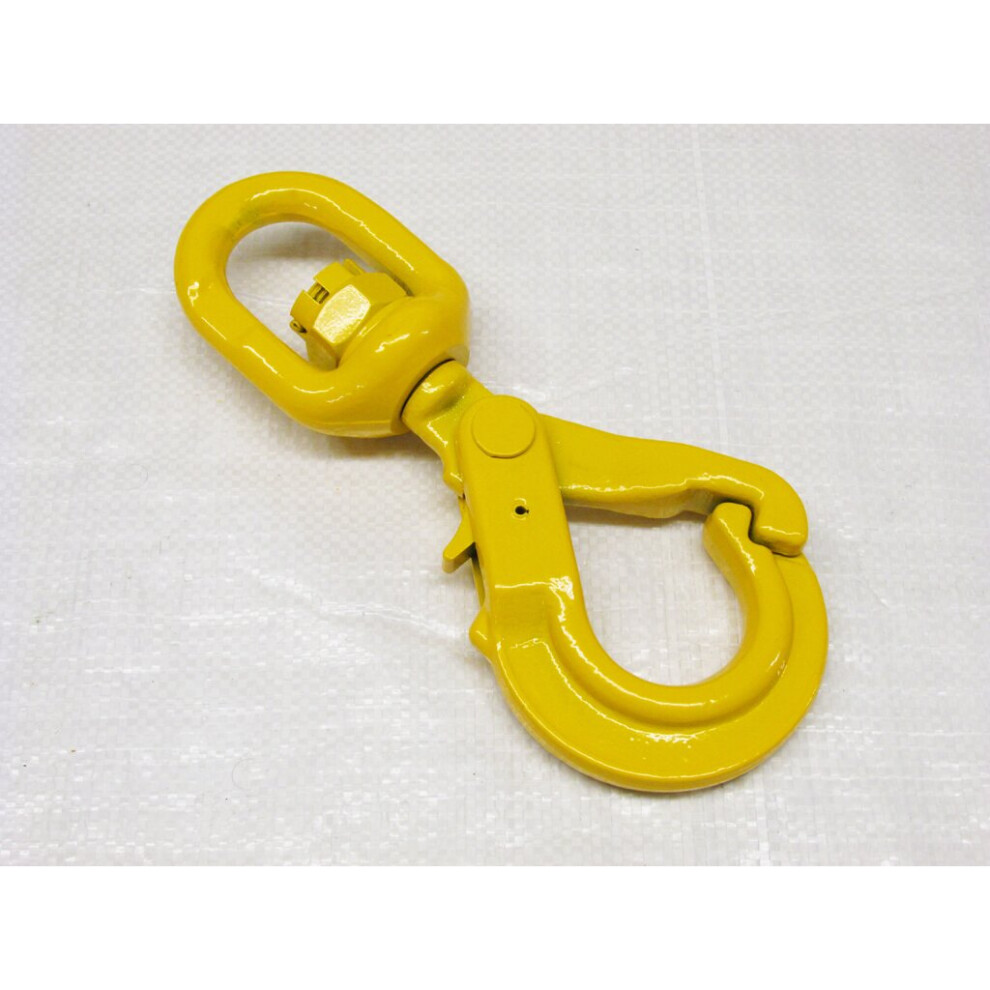

(Grade 80, 20MM) Self Locking Lifting Hook Swivel (Autolock Chain)

(Grade 80, 20MM) Self Locking Lifting Hook Swivel (Autolock Chain) Description

Chain Hoist Swivel Lifting Hooks

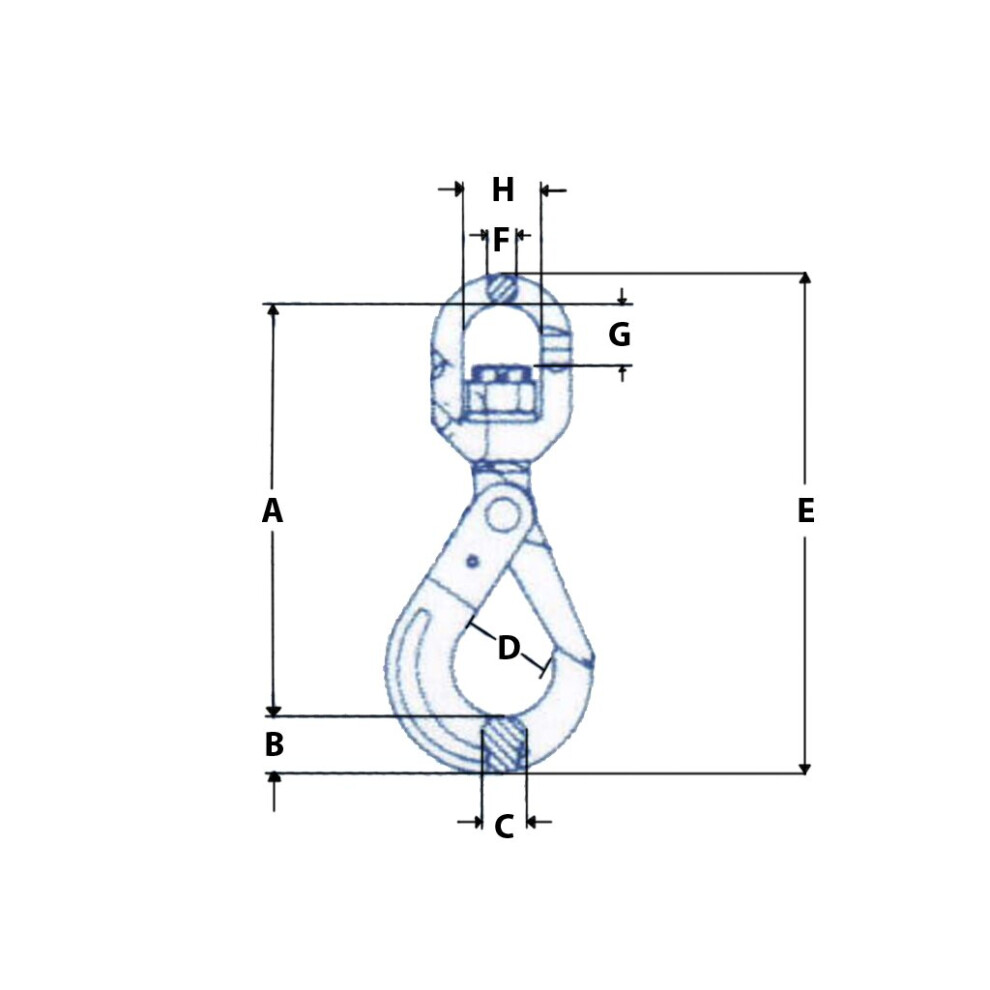

Grade 80 Locking Hook Dmesions

7MM - SWL = 2T A  -175MM, B - 24MM, C - 17.5MM, D - 34MM, E - 210MM, F - 13MM, G - 24MM, H - 34MM

10MM - SWL = 3.15T A - 210MM, B - 29MM, C - 22MM, D - 46MM, E - 250MM, F - 16MM, G - 35MM, H - 41MM

13MM - SWL = 5.3T A - 245MM, B - 32.5MM, C - 28MM, D - 58MM, E - 290MM, F - 17MM, G - 38MM, H - 49.5MM

16MM - SWL = 8T A - 310MM, B - 40MM, C - 33MM, D - 61.5MM, E - 370MM, F - 22MM, G - 52MM, H - 69MM

20MM - SWL = 12.5T A - 355MM, B - 62MM, C - 49MM, D - 79MM, E - 440MM, F - 27.5MM, G - 59MM, H - 70MM

Grade 100 Locking Hook Dimensions

6MM - SWL = 1.5T A  -149.5MM, B - 21MM, C - 14.5MM, D - 28.5MM, E - 183MM, F - 11MM, G - 23MM, H - 31.5MM

8MM - SWL = 2.5T A - 188MM, B - 26MM, C - 20MM, D - 40.5MM, E - 230MM, F - 12MM, G - 27MM, H - 37MM

10MM - SWL = 4T A - 210MM, B - 30MM, C - 25.5MM, D - 53MM, E - 270MM, F - 16MM, G - 36.5MM, H - 42MM

13MM - SWL = 6.7T A - 265MM, B - 40MM, C - 33.5MM, D - 58.5MM, E - 320MM, F - 17.5MM, G - 40.5MM, H - 49.5MM

16MM - SWL = 10T A - 335MM, B - 50MM, C - 38MM, D - 59MM, E - 405MM, F - 21.5MM, G - 56MM, H - 69.5MM

These Are A High Quality Piece Of Lifting Gear. These Are Mainly Used In The Lifting Gear Industry For Chain Slings. These Swivel Autolock Hooks Are An Excellent Product Due To The Added Safety Feature Of The Self Locking Mechanism And The Flexibility Of The Swivel Component.

The Latch Will Close Automatically Under Load And The Spring Release Trigger Will Not Operate Whilst The Hook Is Under Pressure.

Grade 100 Products Are Lighter Yet Stronger Than Their Grade 80 Counterparts.

*Test Certificate Will Be Supplied Via Email*

*Please Note We Supply A Huge Variety Of Lifting Gear*
