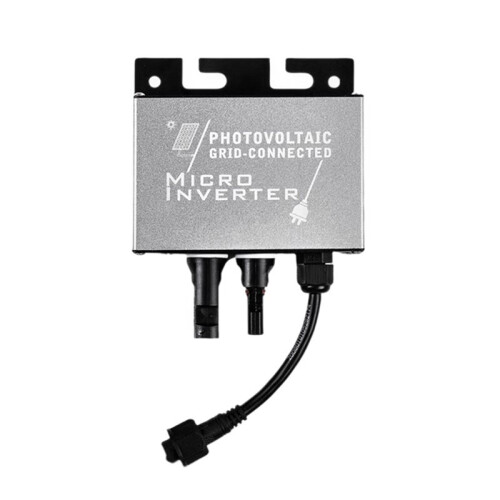

Grid-Connected 180-265VAC Solar Micro-Type Inverter 150W MPPT Function IP45 for Home PV System

Grid-Connected 180-265VAC Solar Micro-Type Inverter 150W MPPT Function IP45 for Home PV System Description

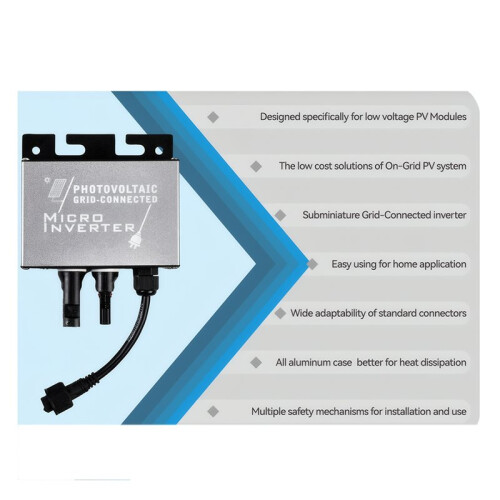

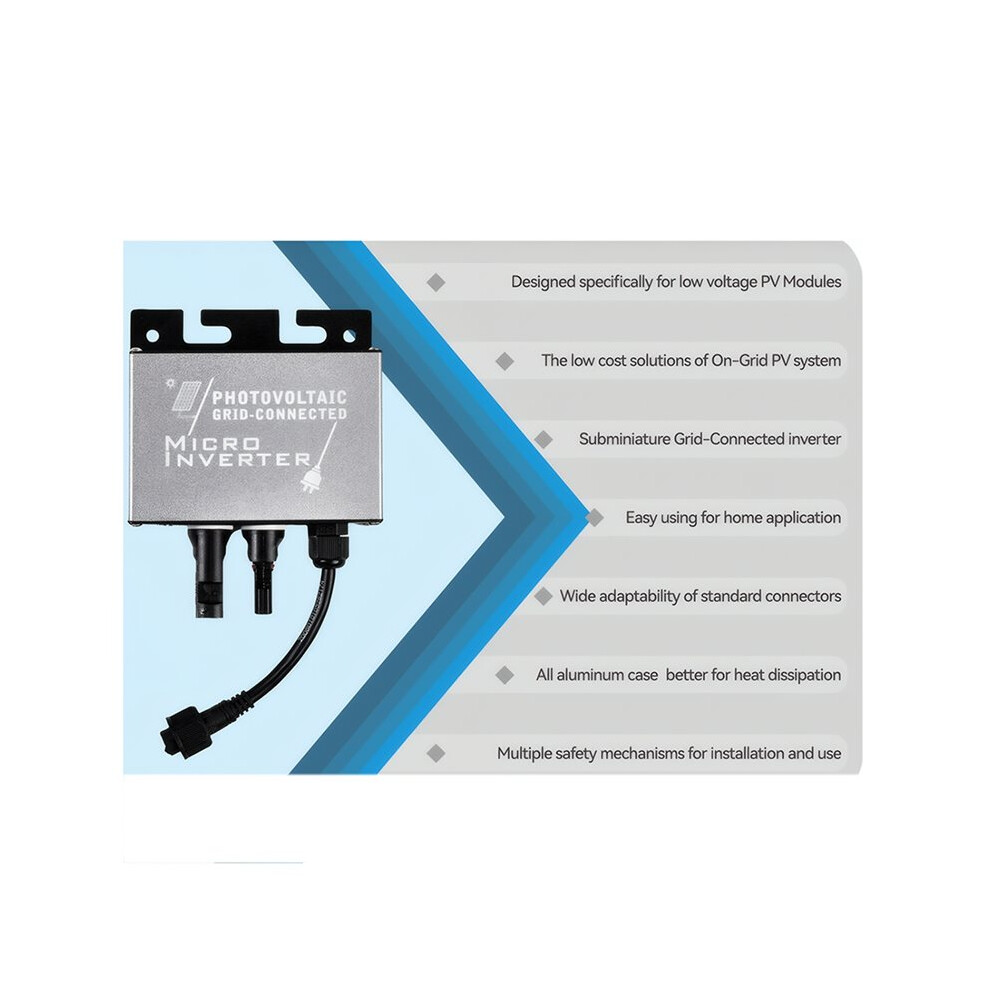

Low-Voltage PV Compatibility: Works seamlessly with PV modules having VOC Less than 30VDC, broadening panel compatibility.
High-Efficiency MPPT: 99% accurate Maximum Power Point Tracking (MPPT range: 12-25VDC) optimizes capture from solar panels.
Comprehensive Safety Protections: Includes over/under voltage, frequency, current, overheat, and anti-islanding protection for secure operation.

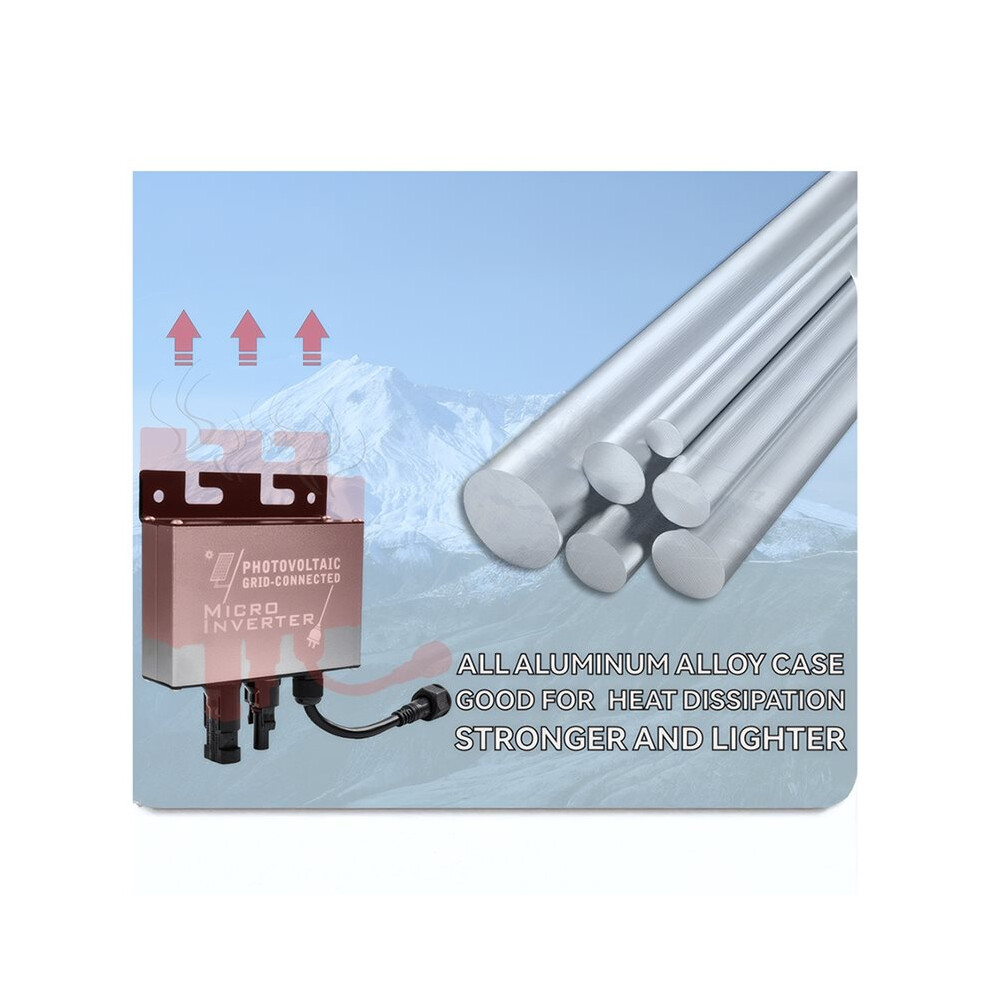

Durable & Efficient Design: IP45 waterproof rating (suitable for indoor use); all-aluminum alloy case enhances heat dissipation (via natural convection, no fans needed) while keeping the inverter and sturdy.

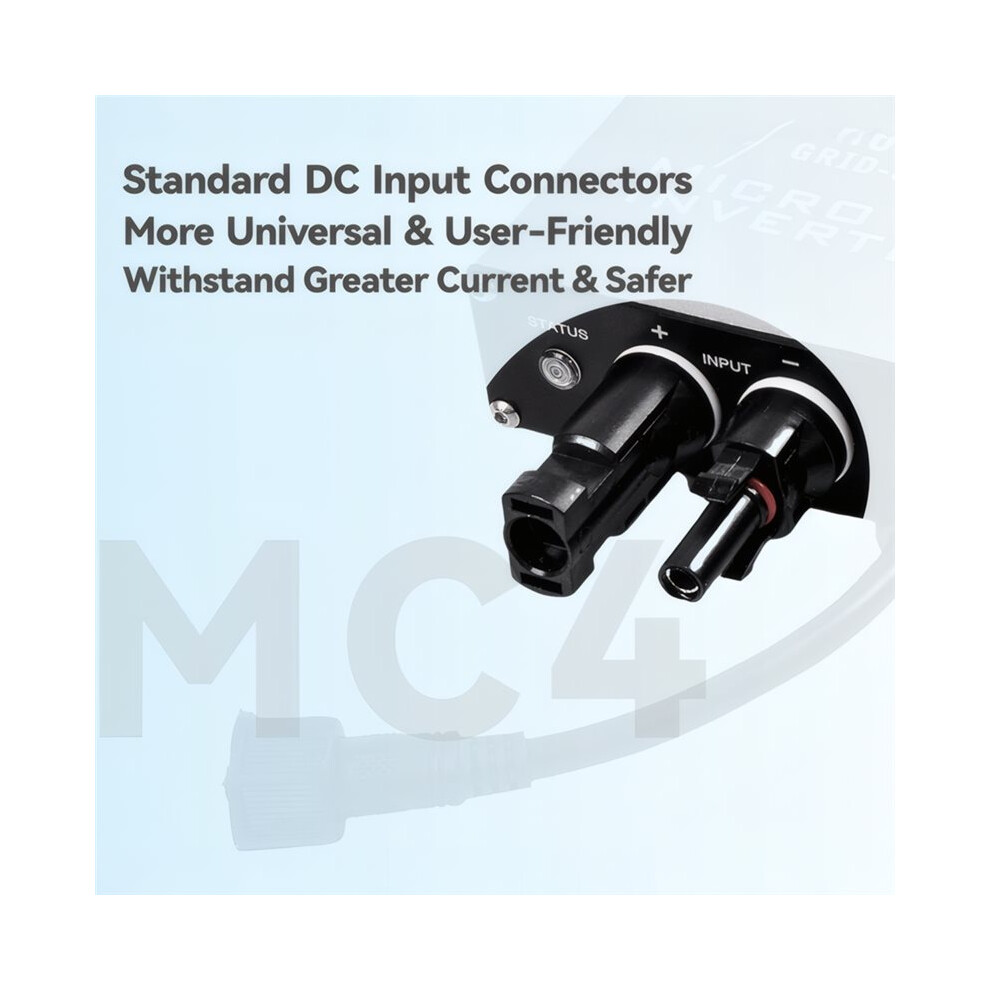

User-Centric Connectors: Standard (Solar Panel Connector-compatible) and AC connectors enable quick, hassle-free installation.

Product Overview:

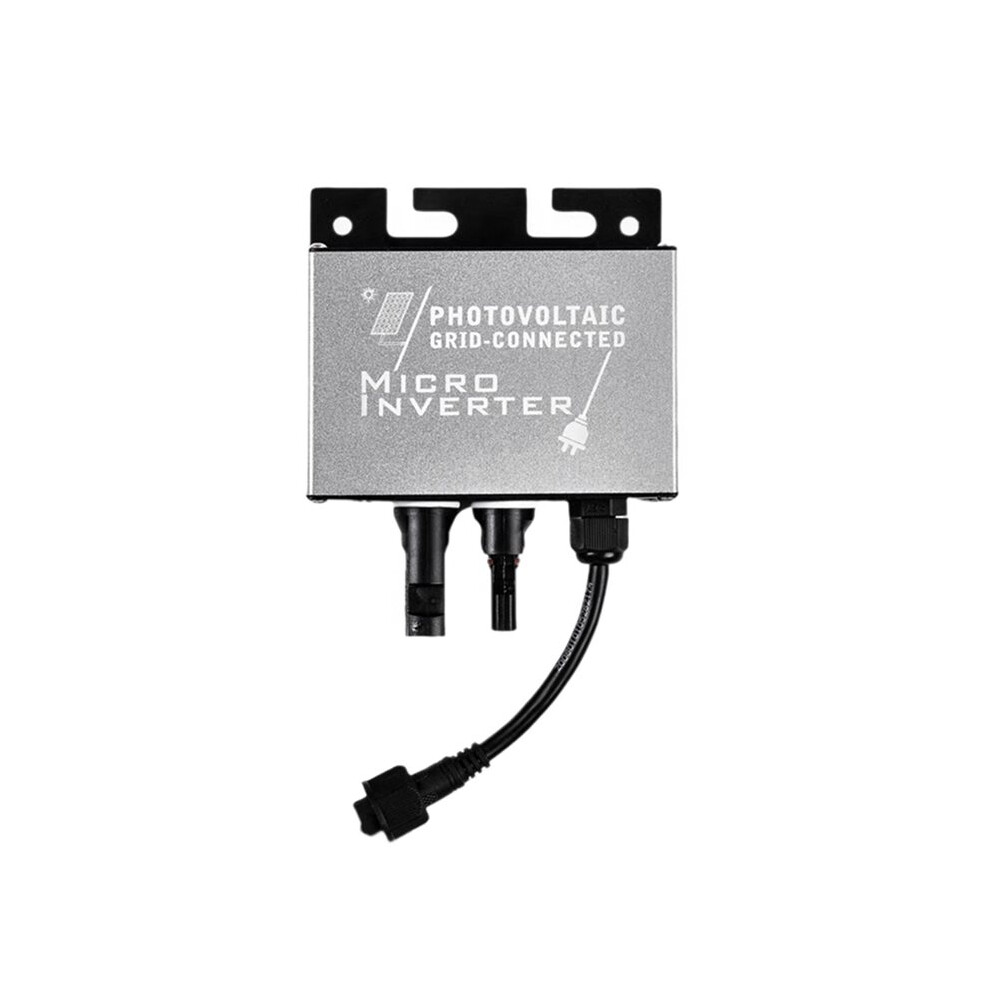

Our Grid-Connected Micro-type Inverter is available in 150W, tailored for low-voltage PV modules (VOC Less than 30VDC). It delivers a cost-effective, user-friendly solution for -grid solar systems, ideal for residential applications. With high efficiency, advanced MPPT technology, and robust protection features, this inverter maximizes solar utilization while ensuring safety and reliability.
Input: Startup voltage = 10VDC; Max input voltage = 30VDC; Max input current = 12.5A; No backfeed current to PV panels.
AC Output: Nominal voltage range = 180-265VAC; Nominal frequency = @50Hz: 47.5-52.5Hz / @60Hz: 57.5-62.5Hz; Total Harmonic Distortion (THD) Less than 5% (at rated power); Power factor Greater than 0.99 (at rated power).
This Inverter?

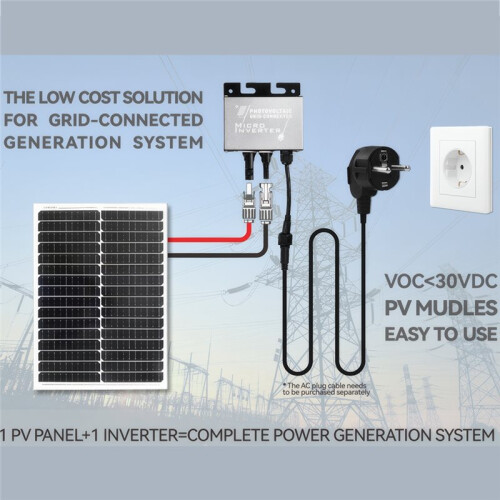

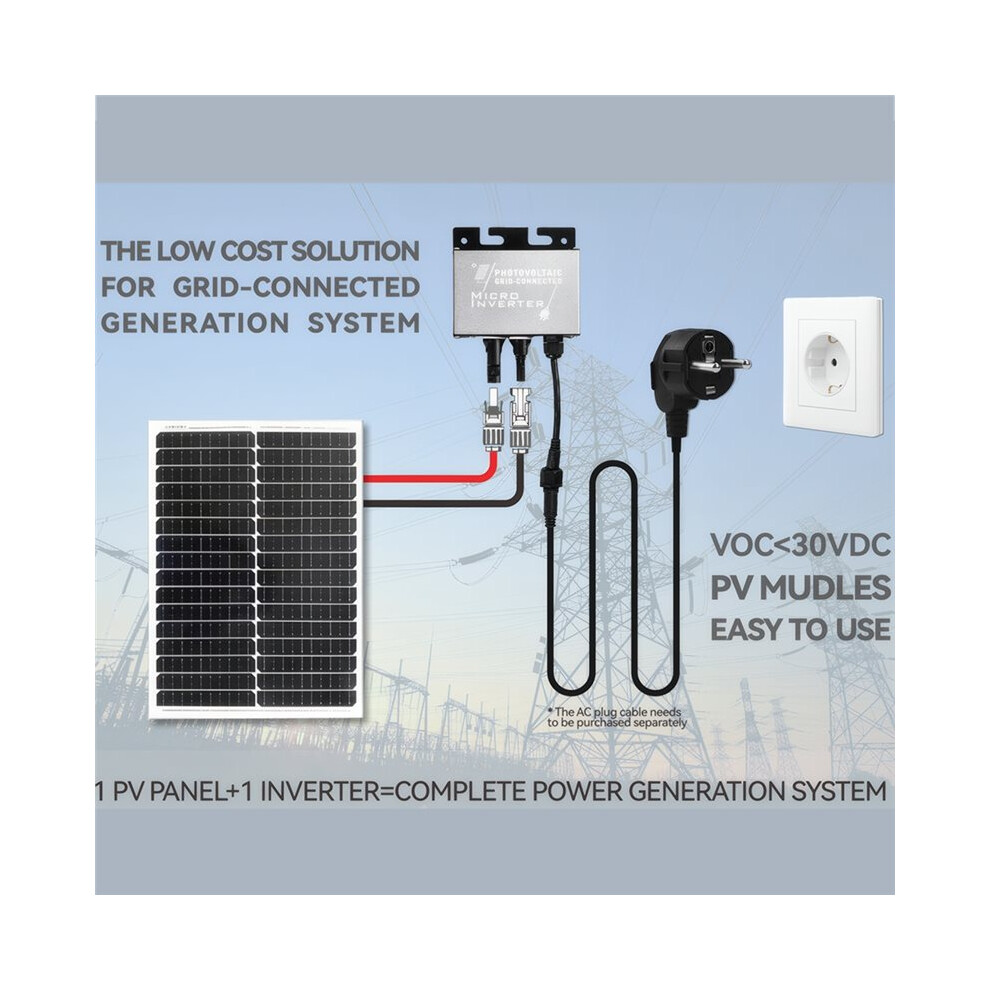

Simple -Grid System: Pair 1 PV panel with 1 inverter to create a complete solar power generation system.

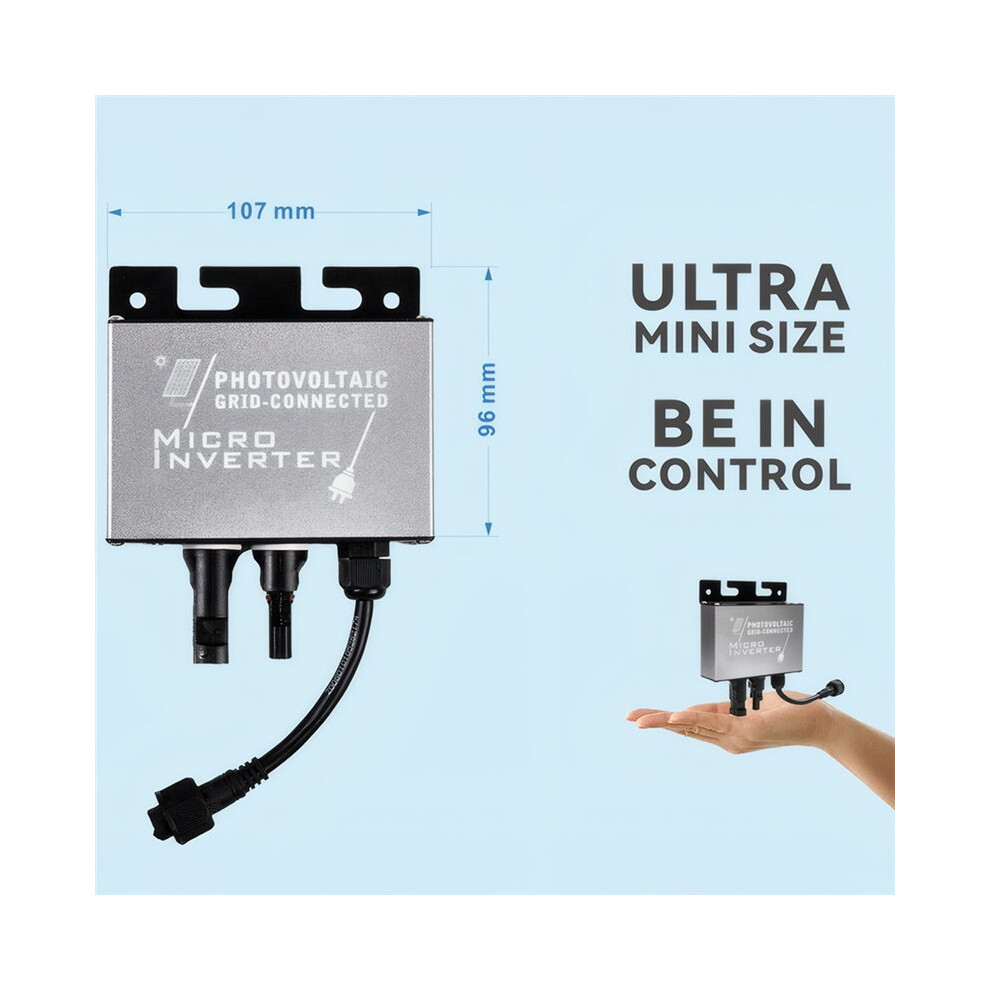

Ultra-Compact Size: Miniaturized design allows flexible installation in any space.
Reliable & Long-Lasting: High-quality components and aluminum casing ensure durability and efficient heat
