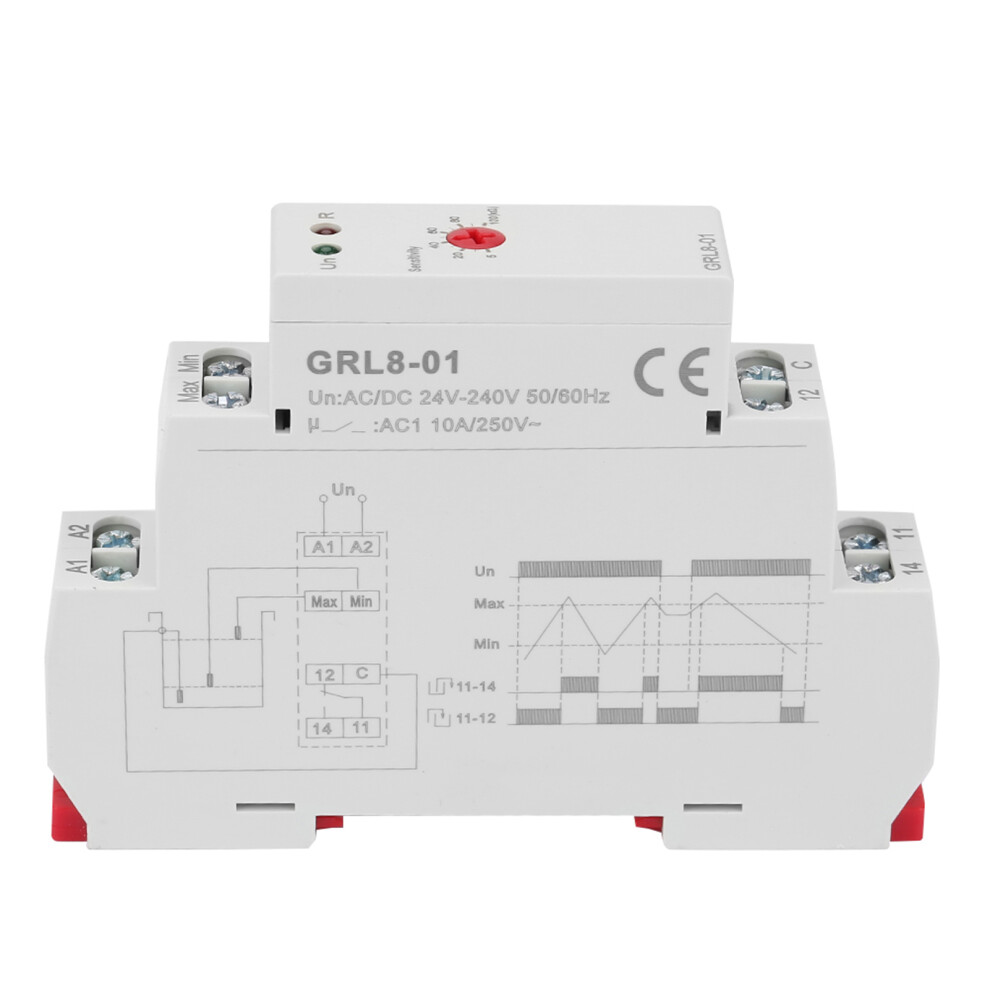

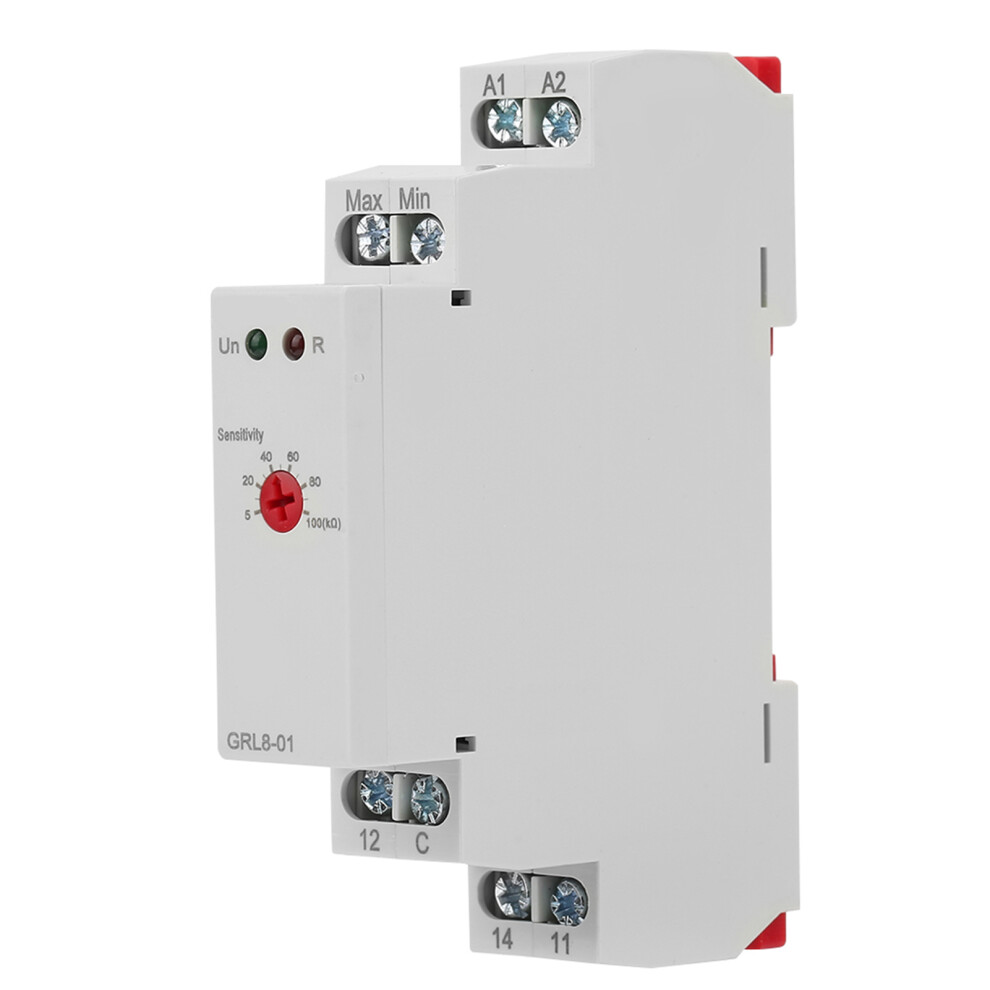

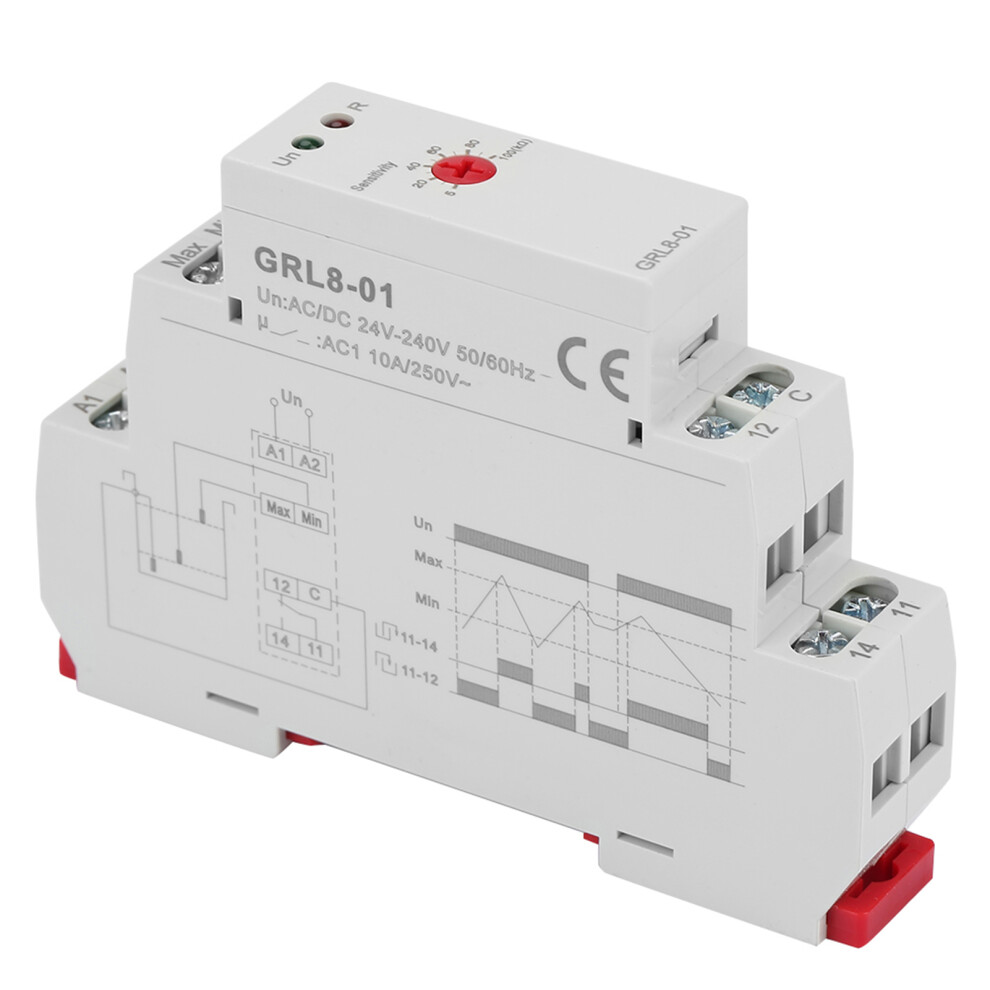

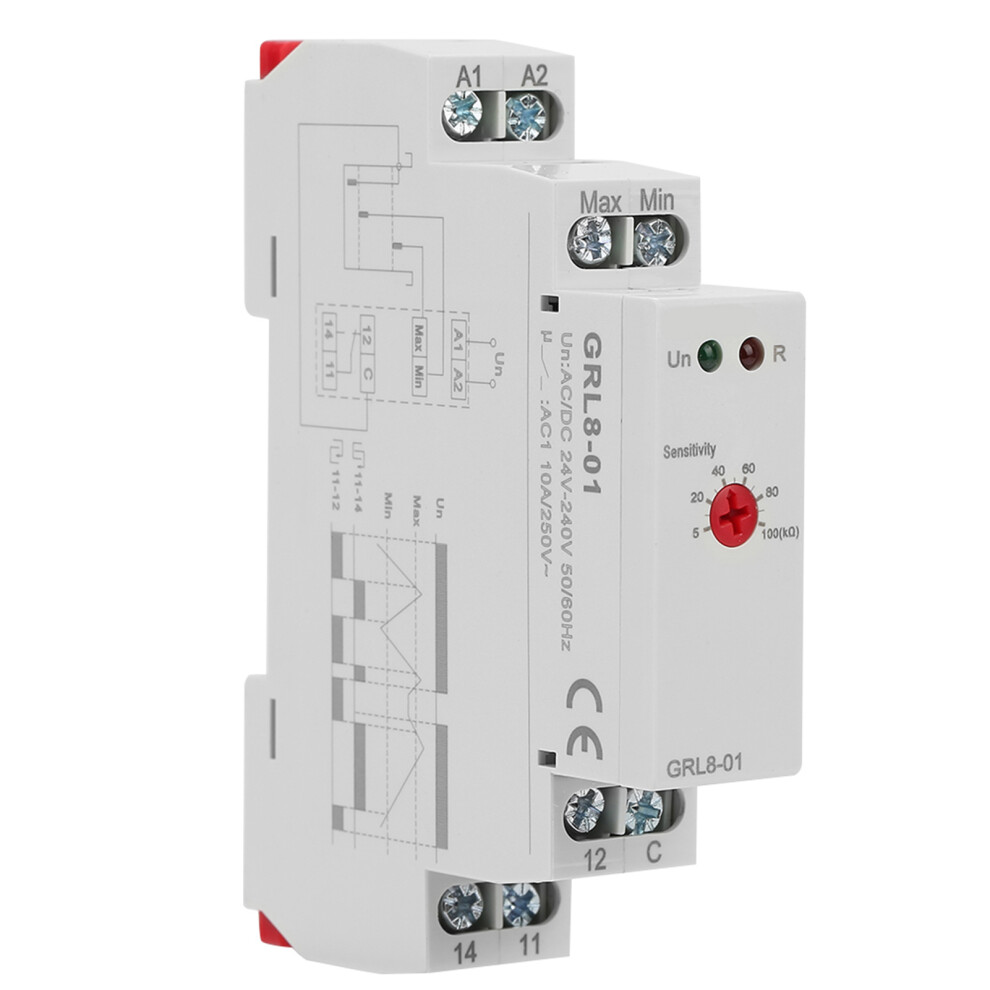

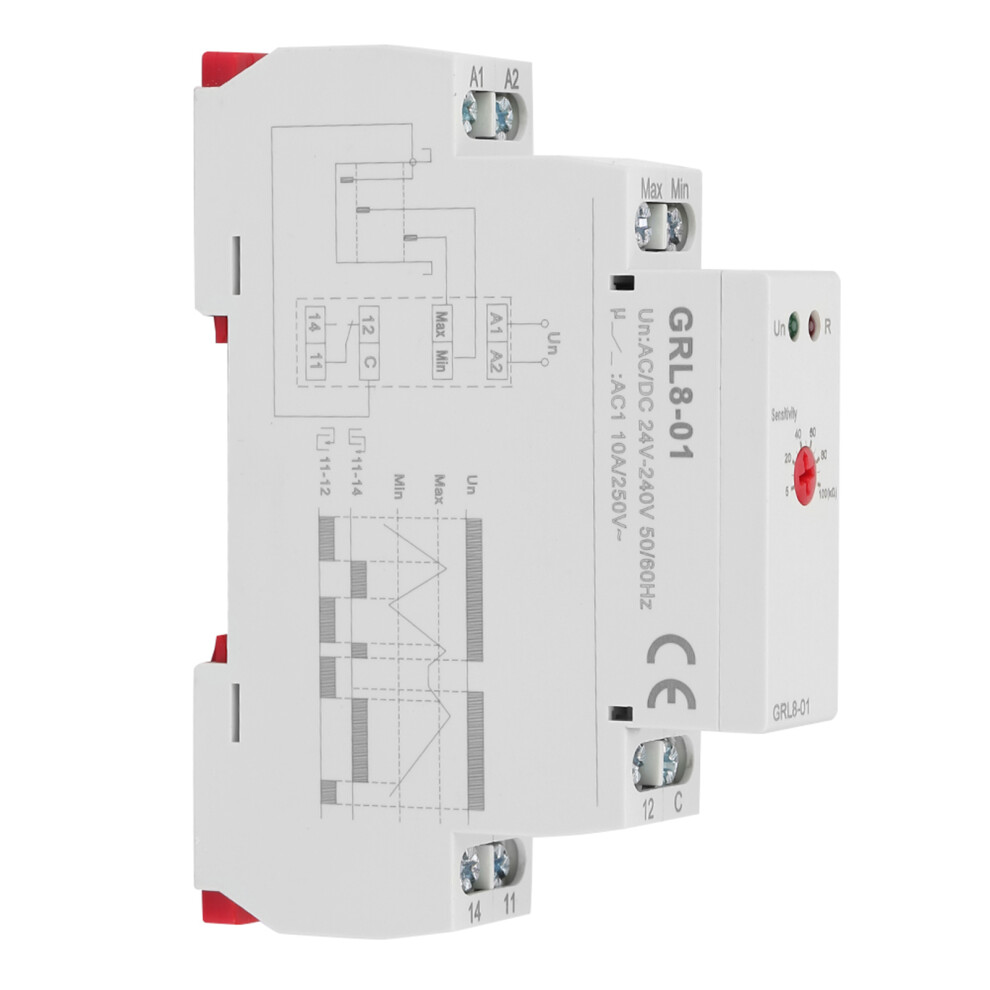

GRL8-01 Liquid Level Control Relay 10A 24V-240V AC/DC

GRL8-01 Liquid Level Control Relay 10A 24V-240V AC/DC Description

1、Designed for monitoring liquid level in pool, well, water tower, reservoirs, tanks, etc. 2、Adjustable sensitivity by a knob (5-100kΩ). 3、Stable performance, long service life. 4、Relay status is indicated by LED. 5、With small volume, 35mm DIN rail mount.
Features:
1. Designed for monitoring liquid level in pool, well, water tower, reservoirs, tanks, etc.
2. Adjustable sensitivity by a knob (5-100kΩ).
4. Stable performance, long service life.
5. Relay status is indicated by LED.
6. With small volume, 35mm DIN rail mount.
Specification:
Model: GRL8-01
Function: 2 level control mode
Power terminal: A1-A2
Power consumption: Max. 2VA
Sensitivity adjustment range: 5-100kΩ
Current in electrodes: Max. 0.1mA
Response time: Max. 400ms
Electrode cable allows distributed capacitance (maximum): 400nF-100nF
Electrode cable length: 100m
Setting accuracy: 10%
Output contact parameters: 1 x SPDT, 10A/AC1, 250VAC/24VDC
Minimum switching power: 500mW
Power indicator: Green LED
Output indication: Red LED
Mechanical life: 1x107
Electrical life(resistive load): 1x106
Reset time: Max 200ms
Working temperature: -20~55
Mounting method: 35mm DIN rail
Mounting altitude: 2000m
Wiring capability: 1x2.5mm2 or 2x1.5mm2
Dimensions: 90*18*64mm / 3.54*0.71*2.52in
Weight: Approx. 70g/2.5oz
Package List:
1 * Liquid Level Control Relay
Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
