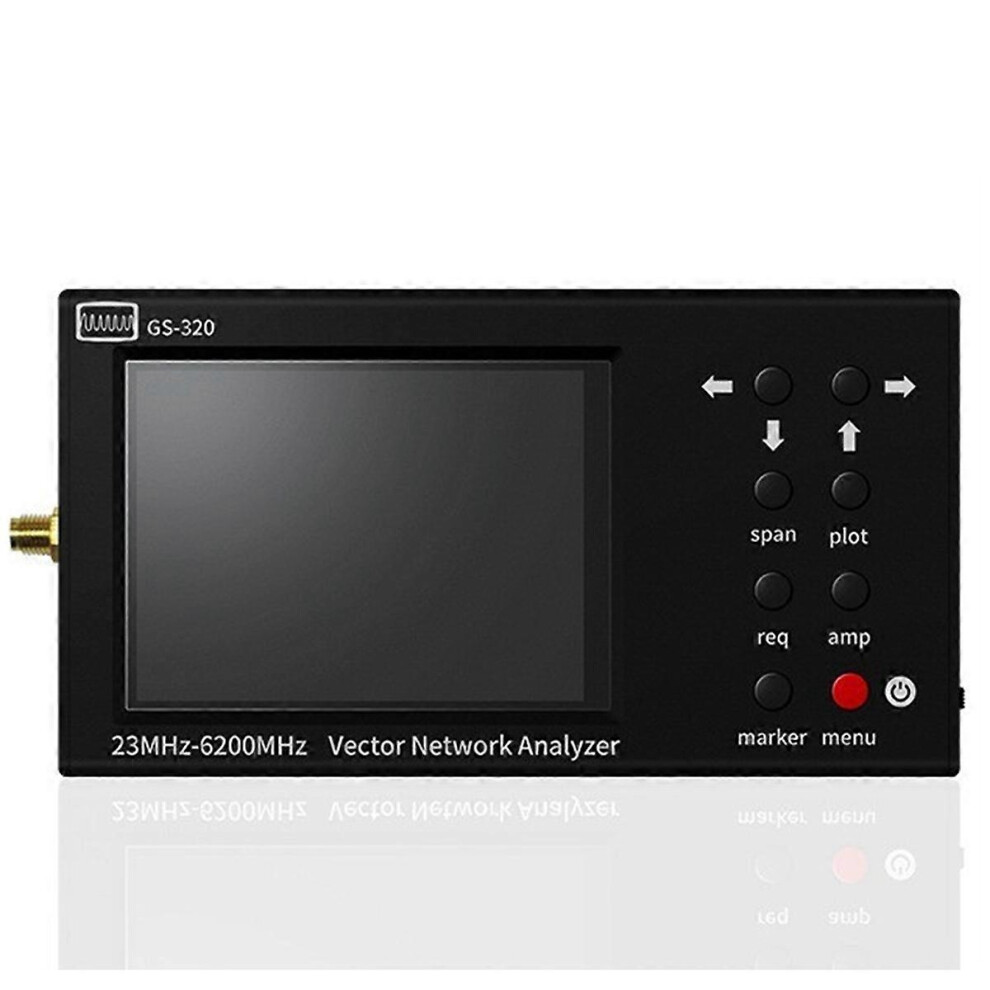

GS320 Vector Network Analyzer 6GHz RF Antenna Measuring Voltage Standing Wave Ratio VNA SWR Network

GS320 Vector Network Analyzer 6GHz RF Antenna Measuring Voltage Standing Wave Ratio VNA SWR Network Description

1.Portable 1-port vector network analyzer GS320 for measuring matching characteristics of passive and active radio equipment (antennas, cables, filters, attenuators, amplifiers, etc.). . The device allows you to measure parameters such as complex reflection coefficients, standing wave ratio (VS WR), impedance, conductance, amplitude, phase, loss and fault distance in cables.
2.The unit is intended for amateur radio use as it is not a professional measuring inst ent. The presence of a built-in battery allows you to make measurements in laboratory and external conditions.
Device menu language: English
Operating frequency range: 23MHz-6200MHz
Frequency resolution, for frequencies 100-6200 MHz: 10KHz
Maximum number of scan points: 1000
Scanning rate: 1000 points/s
The direction of the bridge, uncorrected throughout the range: Greater than 12 dB
Directivity effective (after full single-port calibration): Greater than 50 dB
Standing wave ratio at the input: Less than 2
Phase measurement precision: Greater than 1.5
Magnitude measurement precision: Greater than 0,25 dB
Resolution determining the distance to fault: (CxVF)/2S m
The maximum length of the measured cable 4 , at VF=1: 3000m
Maximum DC input voltage: 25V
Displayed plots:
the Smith chart; polar chart; the phase of the reflection coefficient;

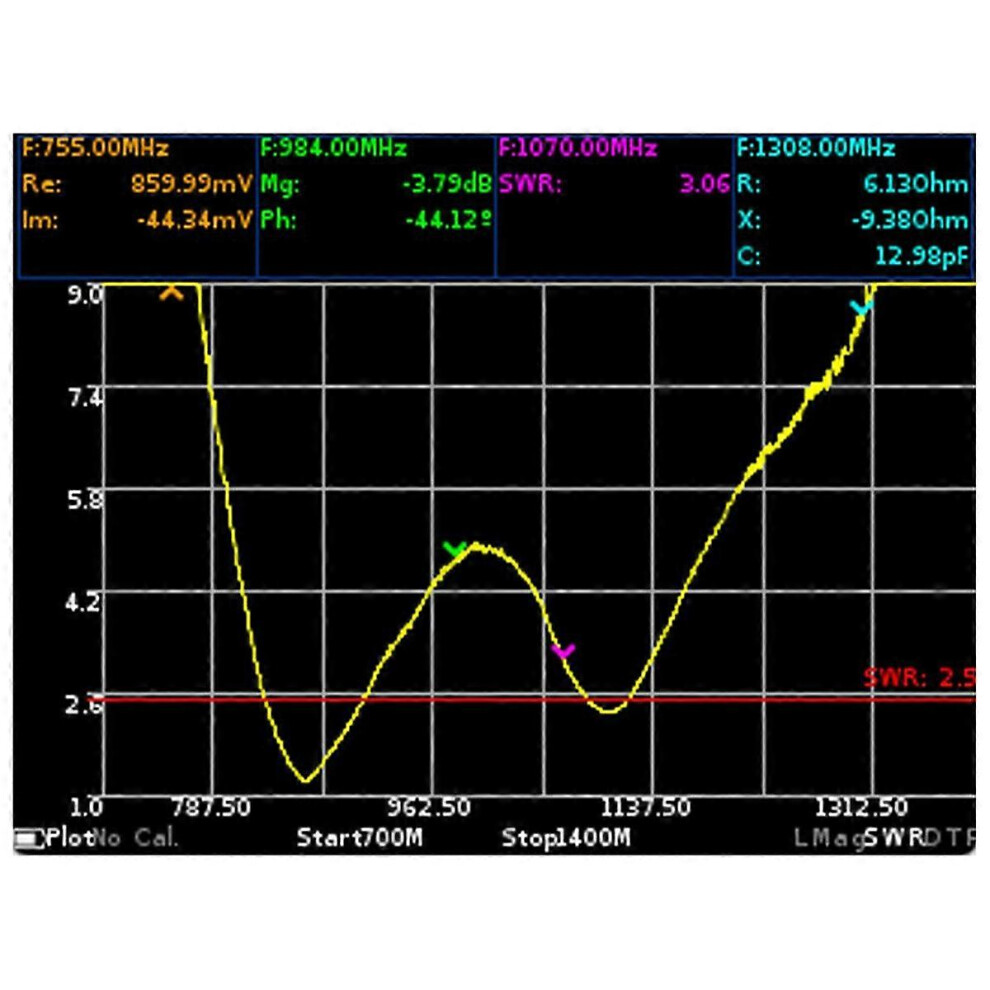

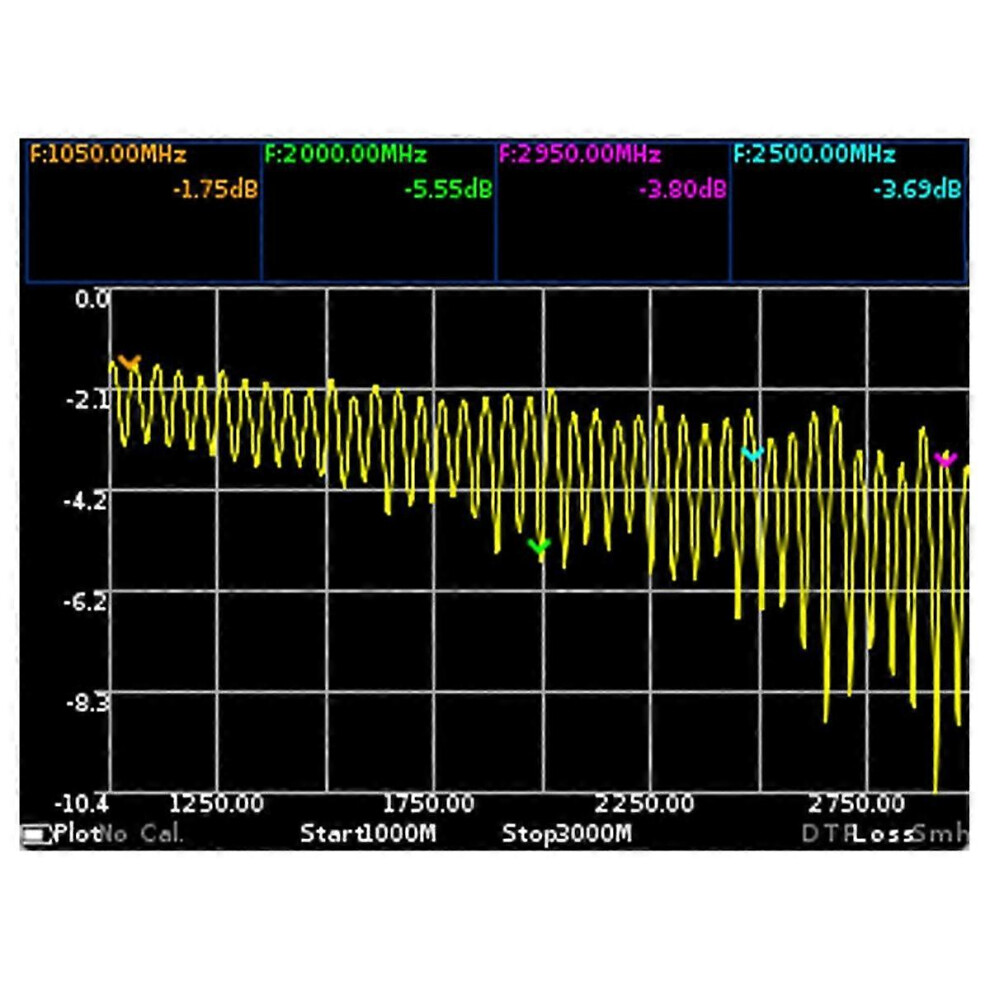

magnitude; logarithmic magnitude; VSWR; distance-to-fault; cable loss
Number of user settings to save: 8
Operating temperature range: 0-40
Screen diagonal: 3.2inch
Screen type: touch, resistive
Battery capacity: 4000mAh
Colour:Black
Material:Metal + Plastic

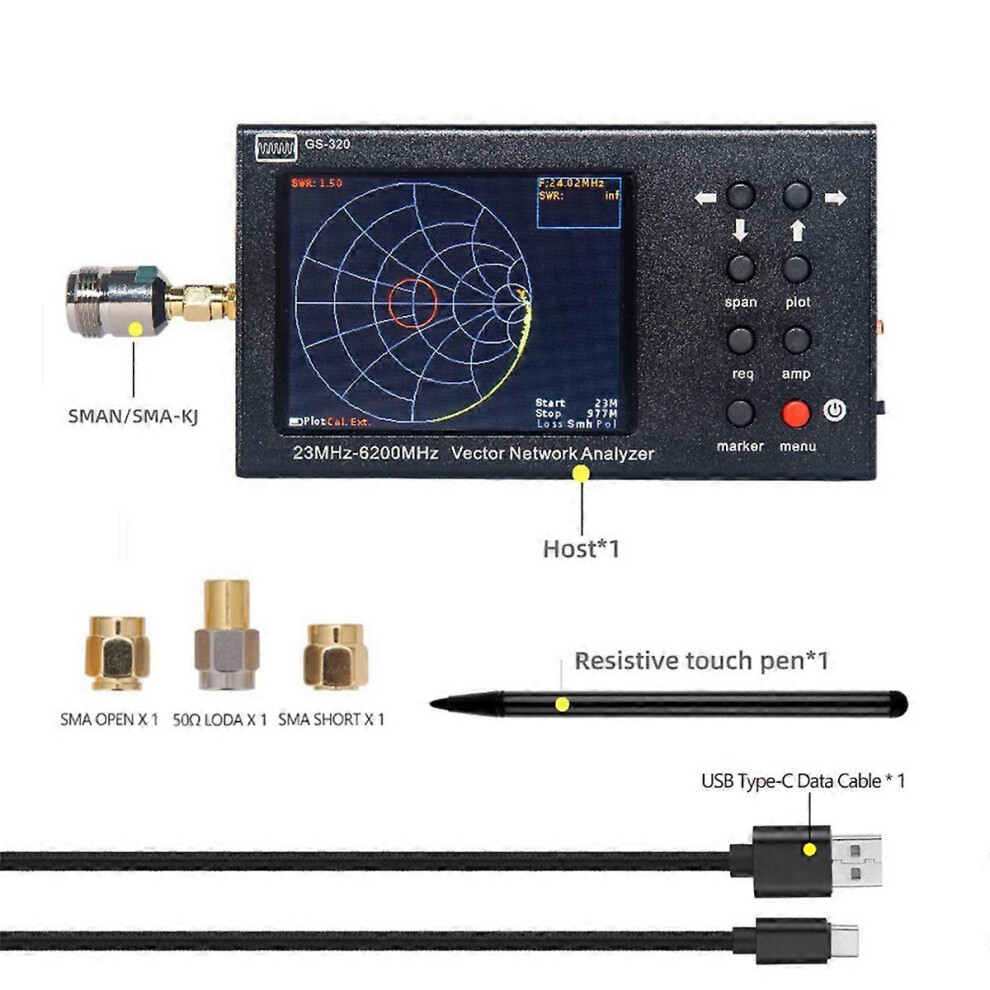

Package Contents:
1 x GS320 Vector Network Analyzer set(The above model, some accessories are in random colors, and specified colors are not accepted. There are slight differences in styles, which will not affect the use)
Only the above package content, ot
