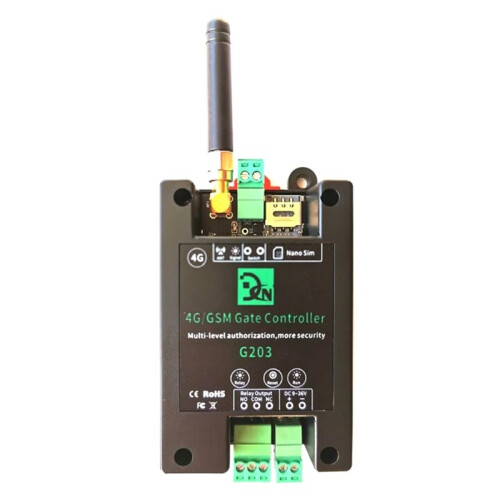

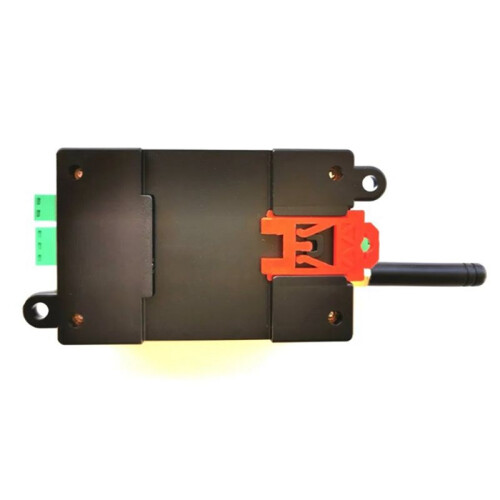

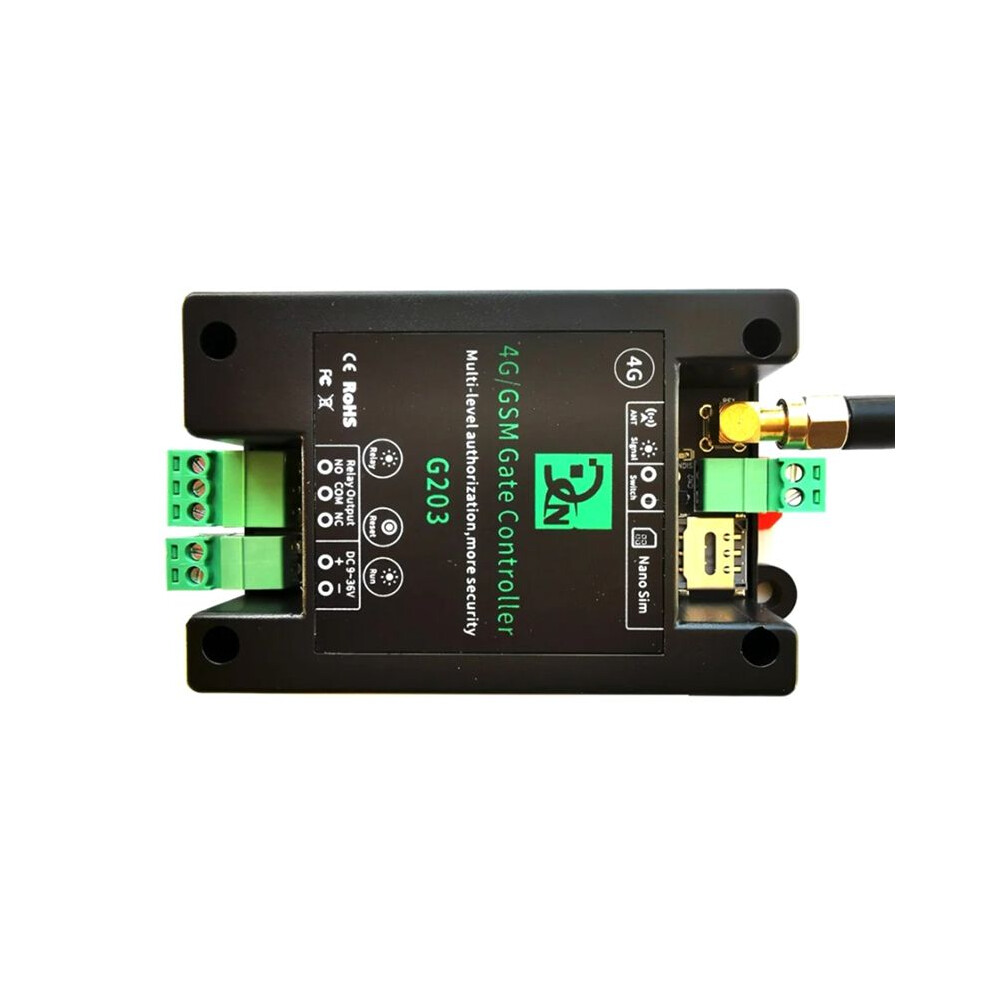

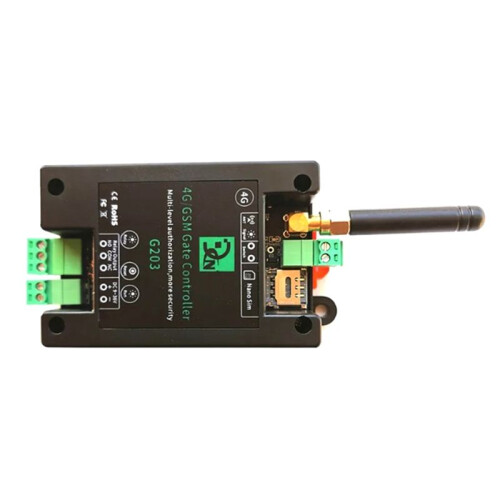

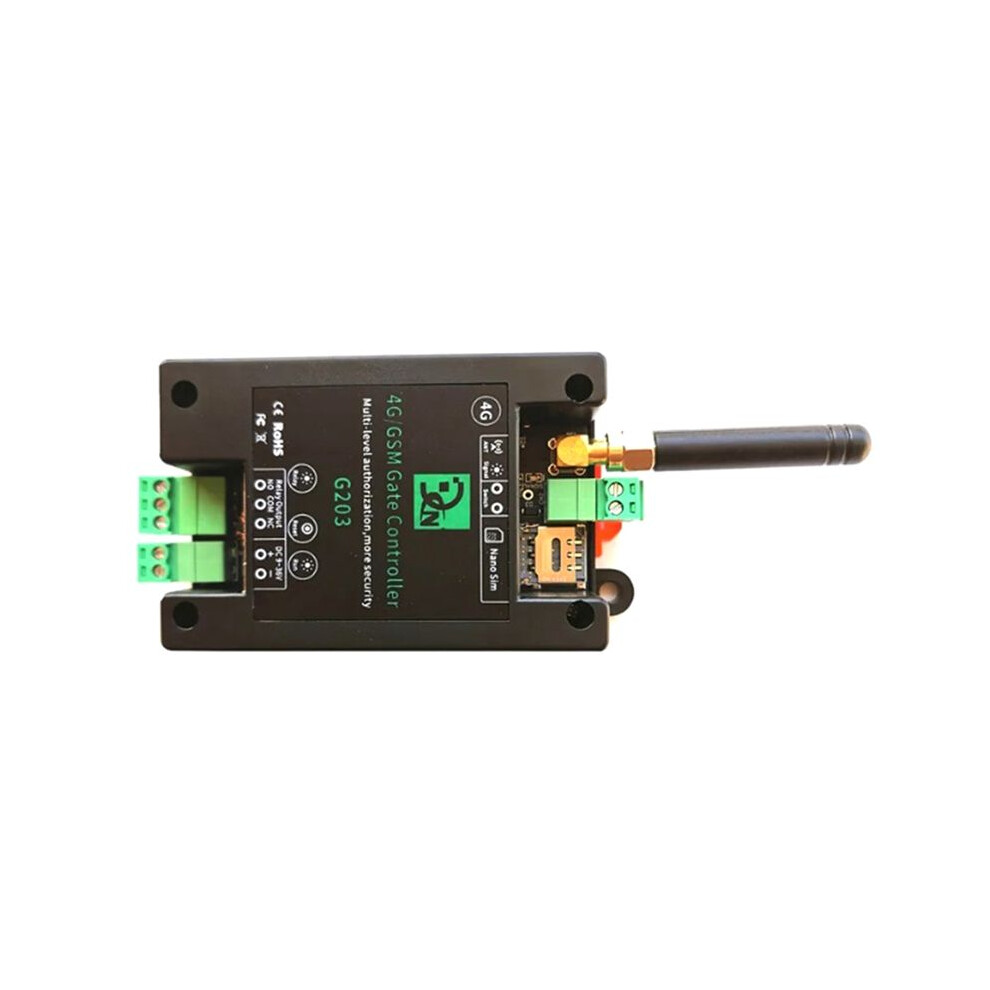

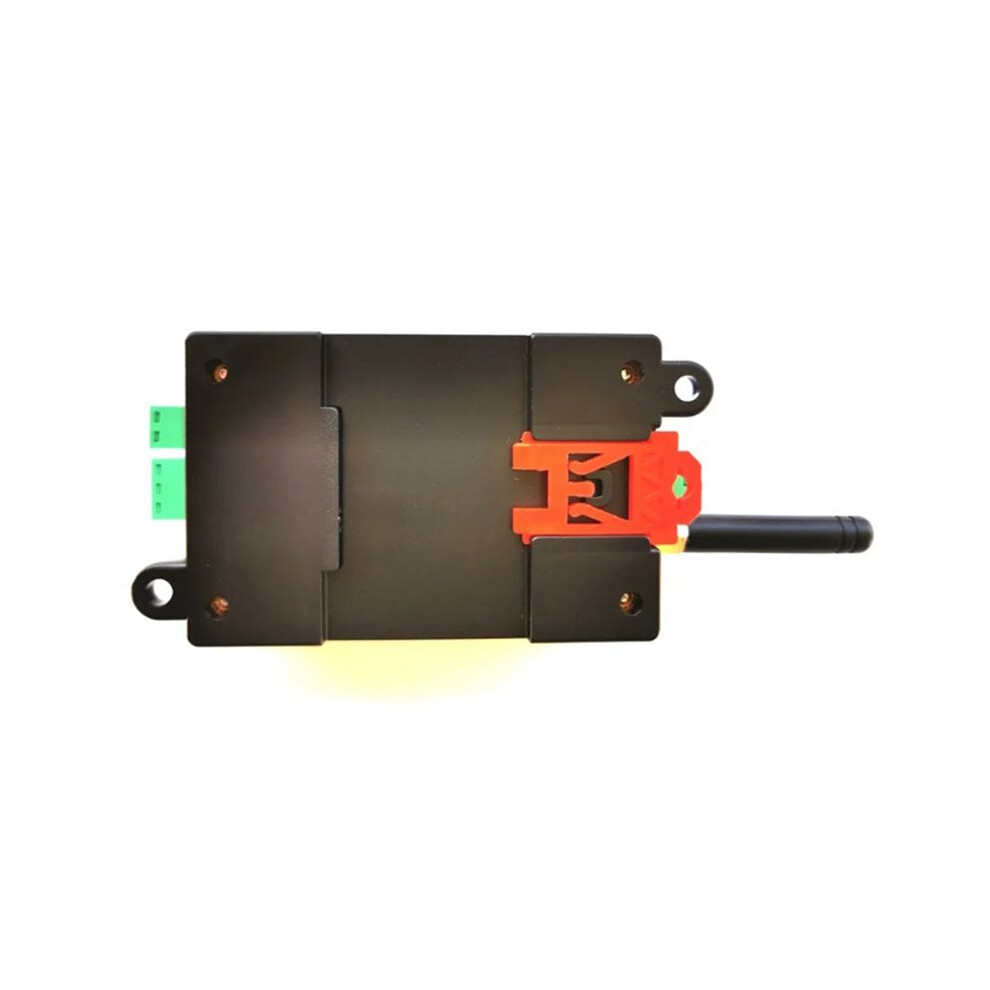

GSM 4G LTE Access Controller SMS APP Remote Control /Off Relay for Automatic Sliding Swing Door Opener US

GSM 4G LTE Access Controller SMS APP Remote Control /Off Relay for Automatic Sliding Swing Door Opener US Description

Contact Capacity :5 Amps at 250VAC Cosφ=1. 20 Amps at 14VDC
Based GSM/3G/4G communication protocol, supports 1000 authorized users. Authorized users can remotely control the equipment, systems and machines connected to the product bySMS commands & free calling.
It is widely used in access control systems, garage doors, swingdoors ,folding doors,sliding doors, parking system and the equipments that can be connected tothe relay control,the G203 gate controller will send a notification (via SMS) to the user ofthe result of the remote control (such as the opening and closing status of thegate). With real authorize and multi-level authorization, more security. no authorize no access, evenif you know the password.
That is to say: 203 has a higher level of security.
After the ordinary users of G203 are authorized, they only have the right to use the equipment, and have no management rights.

G203: Three-level management (super administrator, administrator, common user);
Rated Voltage: 9V~36V/1A
Working temperature: -10~+60
Storage temperature: -20~+60
Relative humidity: 10-90%, No condensation
Work frequency:GSM: 850/900/1800/1900MHz
4G:
C:GSM:900/1800,LTE-FDD B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41
E:GSM:900/1800,LTE-FDD B1/B3/B5/B7/B8/B20
SA:GSM:850/900/1800/1900M LTE-FDD B1/B3/B5/B7/B8/B28/B66
Communication protocol: GSM PHASE 2/2+ (include data service)
Related Voltage of the Output Relay: 3A/240V AC
SIM Card: type, 3V
Antenna: 50 Ω SMA
Wired : Supports
Dimension: 96.5x50x31.5mm
type:US
Colour:black
Material:abs

Package Contents:
1 x Access Controller
