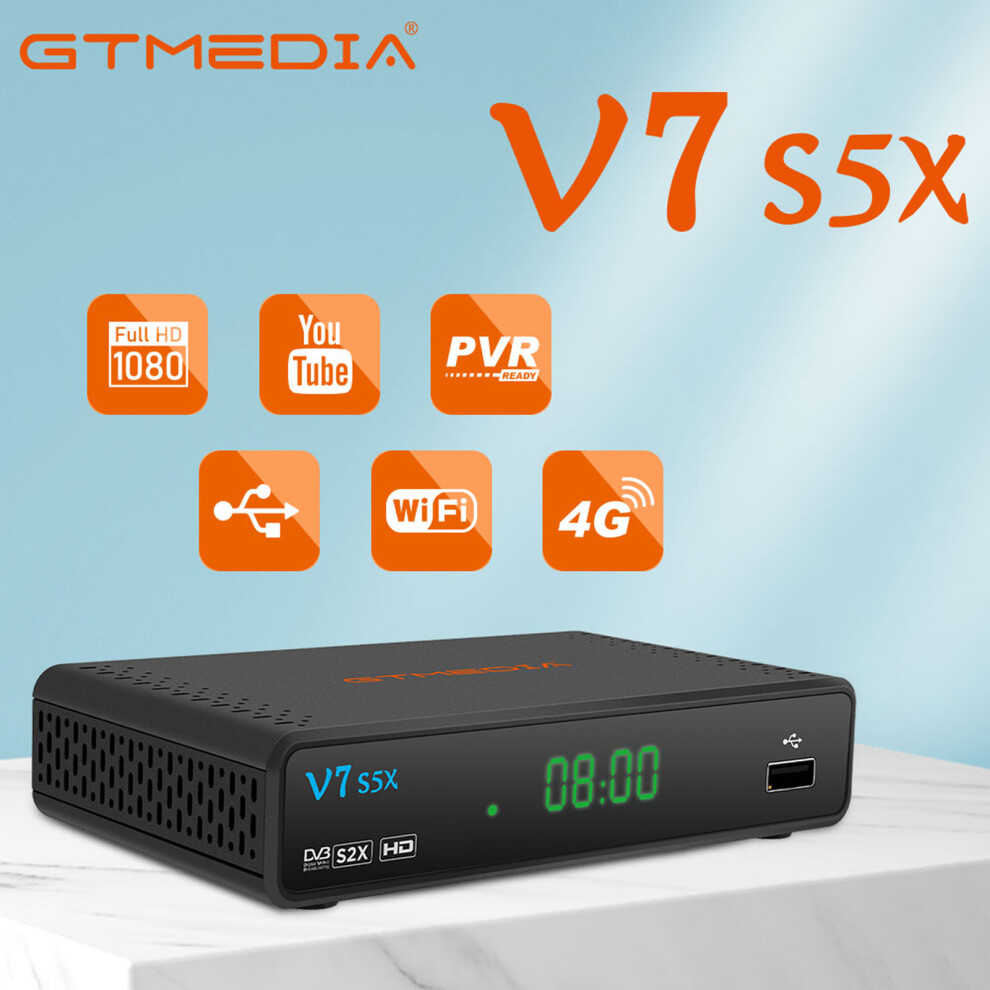

GTMEDIA V7 S5X DVB-S/S2/S2X H.265 Decoder Set Top Box USB WiFi

GTMEDIA V7 S5X DVB-S/S2/S2X H.265 Decoder Set Top Box USB WiFi Description

1、Support DVB-S/S2/S2X, H.265(8bit), AVS+, CCM, ACM, VCM, multi-stream/T2-MI. 2、Support Fastest BISS auto roll, Full PowerVu, DRE \u0026Biss key. 3、Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support. 4、Support Full speed USB 3/4G dongle and USB wifi dongle. 5、Support Online Movie (Youtube).
Features:
Support DVB-S/S2/S2X, H.265(8bit), AVS+, CCM, ACM, VCM, multi-stream/T2-MI.
Support Fastest BISS auto roll, Full PowerVu, DRE &Biss key.
Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support.
Support Full speed USB 3/4G dongle and USB wifi dongle.
Support Online Movie (Youtube).
Support Cccam, Newcam.
Specifications:
Brand: GTMEDIA
Model: V7 S5X
Power Supply: AC 100-240V, 50Hz/60Hz
Power Consumption: 8W in operation; 1W Standby Power Mode
Temperature: Operation 0+45; Storage -10~+60
Humidity: 20~90%, non-condensed
Main Chip Sets
CPU Frequency: 770MHz Dual Core
Flash Memory: 64MB SPI Flash
DDR2 Memory: 512M RAM
Video Decode
Video Decode:
HEVC main profile@level 4.1 and main 8 [email protected], High tier
MPEG-2 MP@ML
H.265 BP,MP&HP@L3/L4.1/L4.2
AVS Jizhun profile and broadcast profile
MPEG-4 SP profile, advanced simple profile@L5
VC1 SP@ML, MP@HL, AP@L0-3
H263 baseline profile
JPEG decoder
PAL/NTSC: Automatic PAL/NTSC conversion
Aspect Ratio: Auto, 16:9 Pillar box, 4:3 Pan & Scan, 4:3 Letter Box

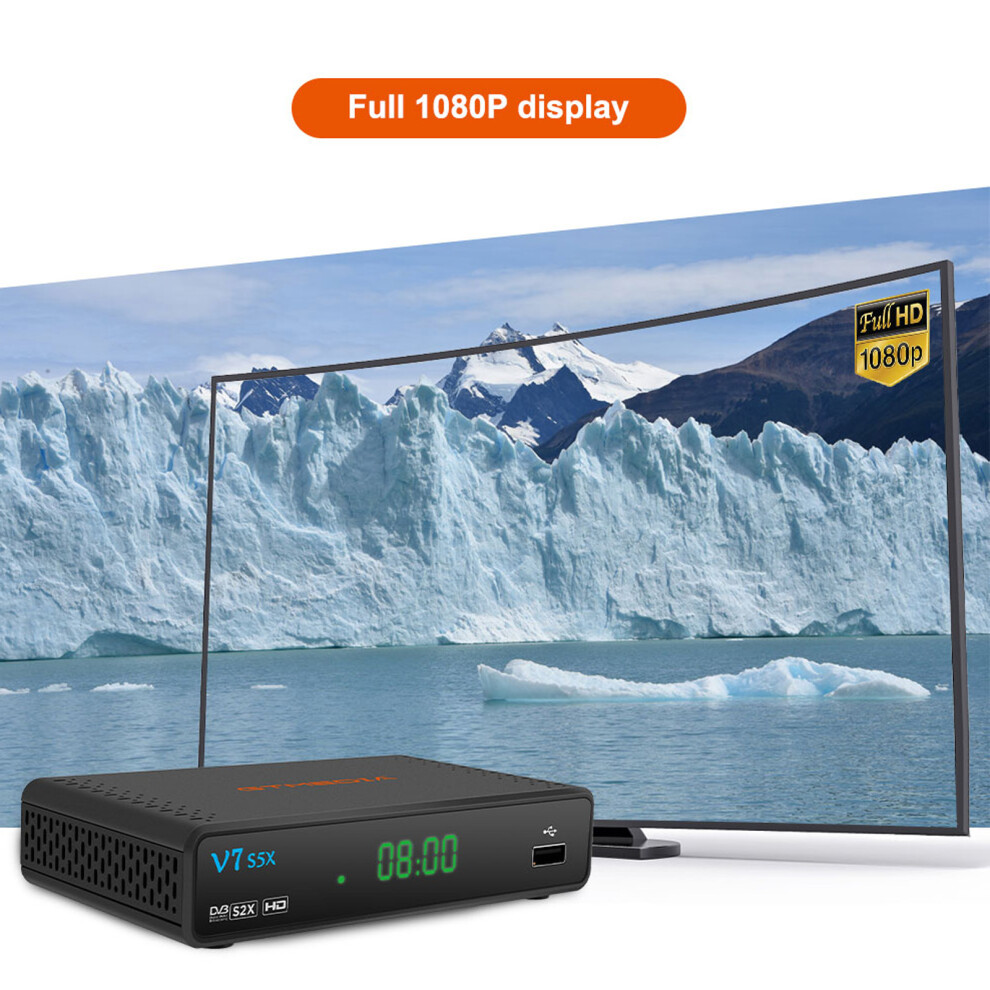

Video Resolution: 1080P, 1080I, 720P, 576P, 480P, 576I, 480I
Audio Decode
Audio Decode:
MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, AC3/AC3+, DRA CH/5.1CH
Sound Mode: LEFT/RIGHT/STEREO/MONO
Sampling Frequency: 32KHz,44.1KHz,48KHz
Hardware Specifications
Panel Display: 4-digit LED display
LED Indicator: Power ON: Green; Standby: Red

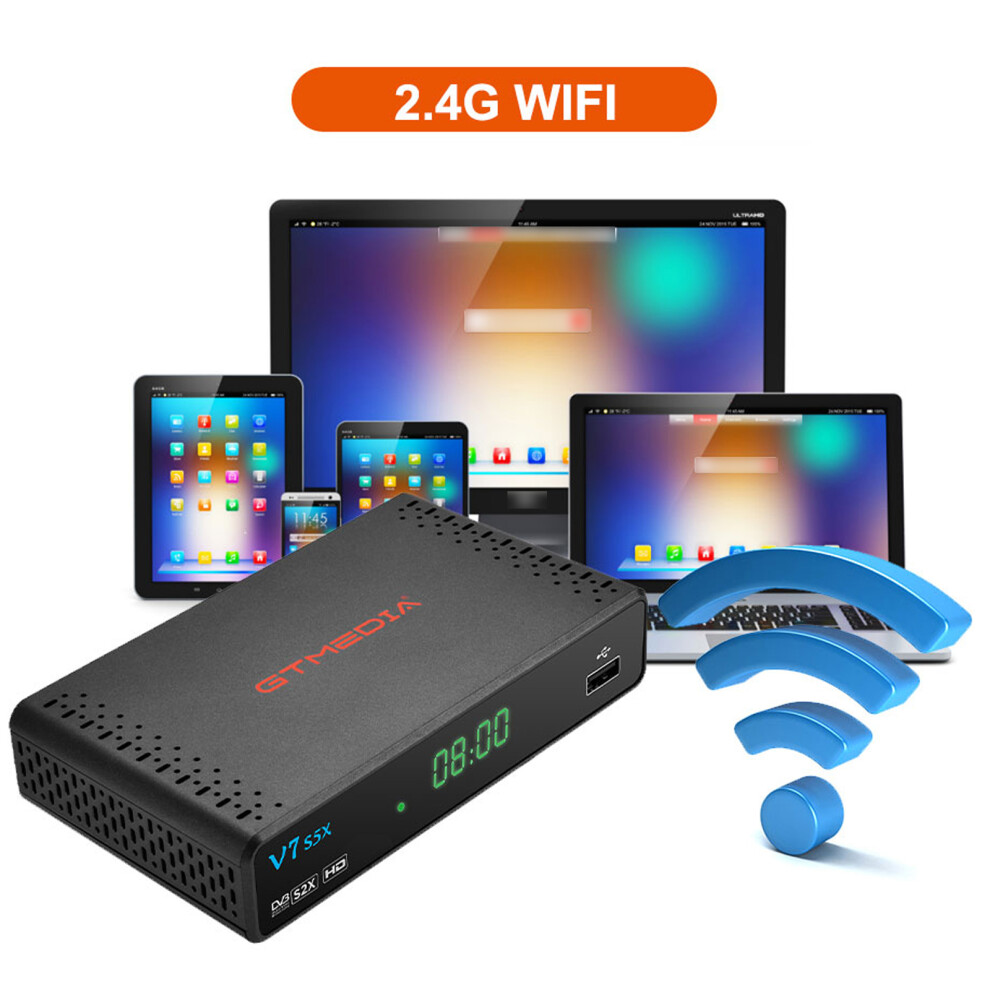

WiFi: Support USB WiFi dongle (MTK7601/RT5370)
IR: Exit IR for 38KHz, Infra Remote control
Rear Panel: LNB IN (Frequency Range 950MHz to 2150MHz DVB-S/S2/S2X); HD OUT (up to 1080P); SCART OUT; 2*USB 2.0 HOST; Power (DC 12V/1.5A)
DVB-S/S2 Tuner Specifications
System Standard: ETS 302 307
Frequency Range: 950~2150MHz for DVB-S/S2/S2X
LNB Power and Polarization: DiSEqC1.0/1.1/1.2/USALS Motor fully support, 13/18V DC @ 400mA MAX, 22KHz0.4KHz(0.6V0.2V)tone, Overload conservation
Input Level Range: -80dBm ~ -25dBm
Symbol Rates: DVB-S QPSK, DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
Forward Error Correction Rate: 1/4, 1/3, 2/5, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Carrier Frequency Acquisition Range: 5MHz for symbol rates above 3 Msps and 3MHz for the remaining symbol rates
Symbol Rates: 2 ~ 90MSPS(Code Rate 1/2)
Code Rates: 1/2, 2/3, 3/4, 5/6, 7/8 for DVB-S, 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates
ANT. Connector: IEC TYPE F
Input Impedance:75Ω
Sortware Features
Standard: Fully comply with DVB-S/S2/S2X (SCPC and MCPC receivable from C/Ku band)
Channels Number: 6000+ channels TV and Radio programmable
Favorites: 16 different favorite groups selection
OSD Language: OSD Multi-language for options (English, Spanish, French, Russian, Portuguese, Polish, Indonesian, Arabic, Turkish, German, Italian, Persian, Thai)
EPG: Fully support to 7 days Electronic Program Guide (EPG)
OSD Color: 16-bit OSD with anti-flickering
Channel Search: Supports automatic network search for newly added transponders
Channel Edit: Various channel editing function (favorite, move, lock, skip, delete, rename, find, sort)
Parental Ctrl: Parental control for channels
Easy Menu: Plug and Play installation, with an easy to use Menu System
Soft Upgrade: Software upgrades through USB port upgrade
Channel: Recording one channel, can view another channel under the same TP, Various channel editing function (favorite, move, lock, skip, delete, rename, find, sort)
Subtitle: support DVB EN300743 and EBU
Teletext: support DVB ETS300472 by VBI and OSD
Time Set: Time set by GMT offset automatic and manual, Summer Time support
Timer: 5 event timers, off/Once/Daily/Weekly Mode
USB Decode
USB 2.0: Support FAT/FAT32/NTFS big capacity hard disk
PVR Option: USB 2.0 for PVR, TIMESHIFT, media files playback
Media Codec: TS, mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files
Audio Codec: WMA, MP3
Photo Codec: JPG, BMP, PNG, GIF
Item Size: 140*80*32mm(L*W*H)/5.51*3.15*1.26in
Item Weight: 128g/4.51oz
Package Size: 233*165*49mm/9.17*6.49*1.93in
Package Weight: 466g/16.43oz
Package List:
1 * Set-top Box
1 * Power Adapter
1 * IR Remote Control
1 * HD Cable
1 * User Manual (EN/DE/FR/ES/IT/PO)
