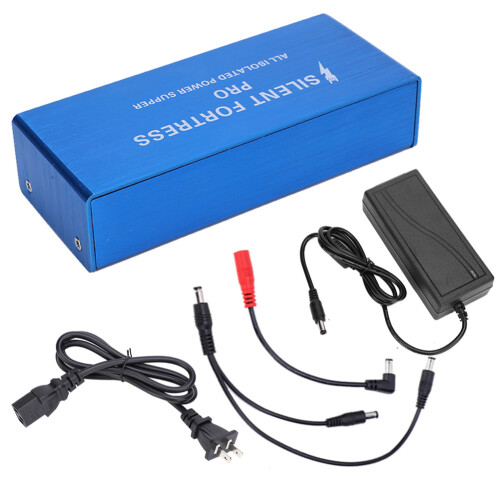

Guitar Effect Pedal Power Supply 8 Output 9V/12V/18V

Guitar Effect Pedal Power Supply 8 Output 9V/12V/18V Description

1、Up to eight effectors can be connected, the eight‑way output designed is full isolated, each has a short‑circuit protection function, and two 9V/12V/18V voltage switches. 2、6 isolated DC outputs 9V 500mA, 2 isolated DC outputs 9v/12V/18v switchable voltage 1000mA 3、Full isolated power supply that supports large current output, the current marked by the power supply is the peak current, and the device cannot exceed the set peak power 4、The 8 outputs of the power supply are internally negative and externally positive. If the polarity is opposite, please use it with a reverse polarity line. 5、FCLC (Foldback Current Limiting Circuit) can provide protection against power shortage and overload, and it is a full regulated power supply even under full load. 6、The LED5 at each exit indicator indicates the mode and whether the pedal is faulty (when the LED is red), the power will enter the self‑calibration mode, and automatically restart about 2s after disconnecting the pedal in question.
Item Type: Guitar Effect Pedal Power Supply
AC to DC Adapter Output: DC 18V / 4000mA
DC Power Supply: 9V 500mA (x6)
9V / 12V / 18V 1000mA (x2)
Input: DC 18V / 4000mA
LED: Blue LED indicator lights up, green goes out, red stops
Conversion Cable: Approx. 3.5mm / 0.1in

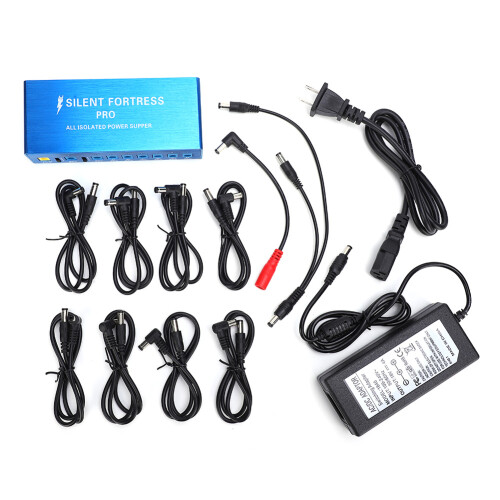

1 x Power Supply
1 x AC to DC Adapter
8 x DC Cables
1 x Power Cord
1 x 3.5mm Conversion Cable
1 x Polarity Conversion Cable
1 x User Manual
