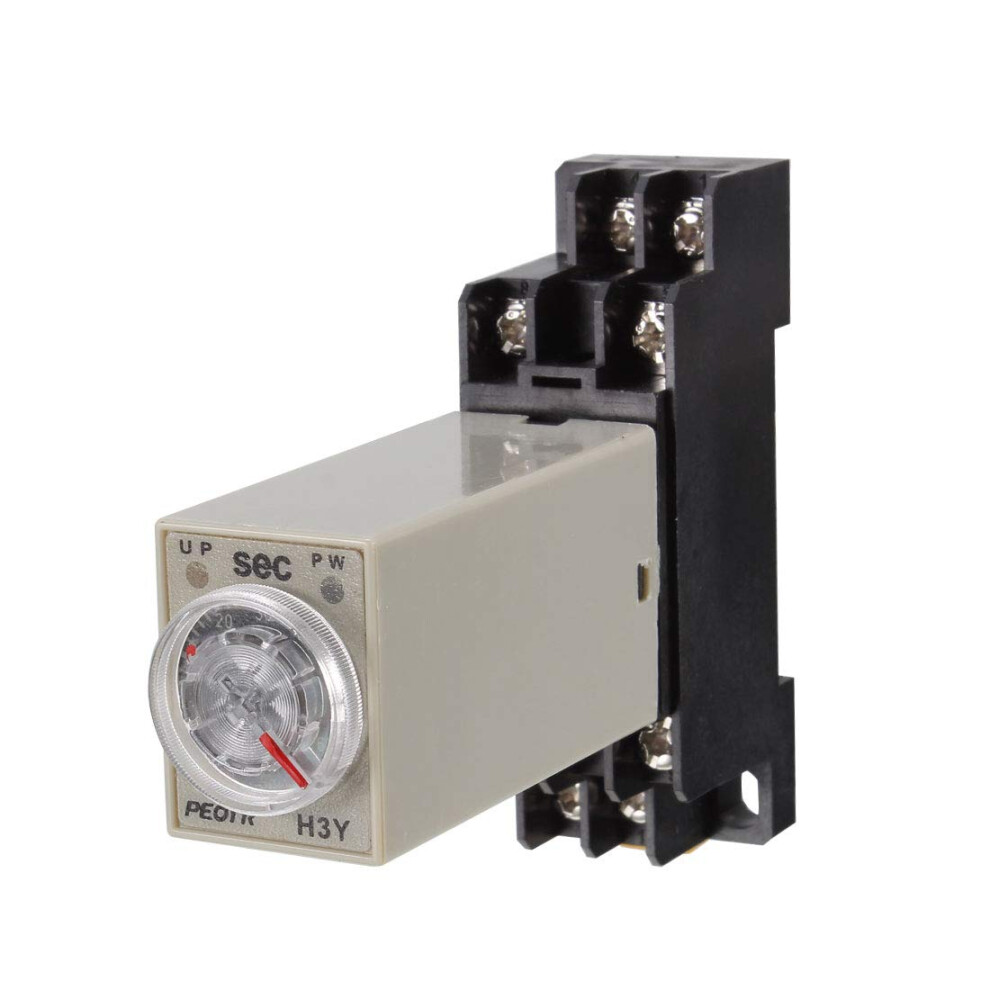

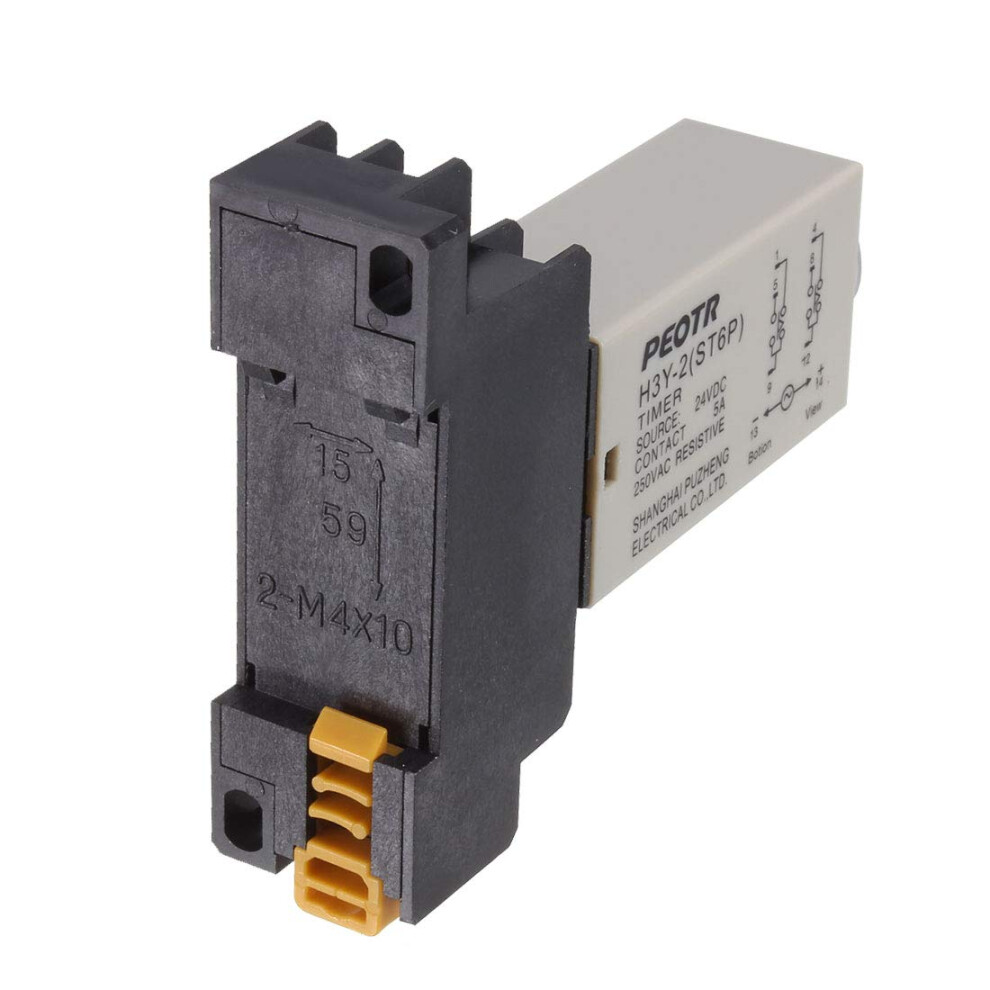

H3Y-2 24VDC DPDT 60 Seconds 8P Terminals Delay Timer Time Relay w Base

H3Y-2 24VDC DPDT 60 Seconds 8P Terminals Delay Timer Time Relay w Base Description

Key Features

• Product Name Time Relay + Socket;Type H3Y-2;Contact Type DPDT
• Source DC 24V;Contact 5A 250VAC Resistive Load;Time Range 0-60 Seconds
• Number of Terminals 8;Mount Rail Type 3.5mm DIN Rail;Fixing Mount Hole Size 6 x 4mm/ 2.4" x 0.15"(L*W)
• Fixing Mount Center Hole Distance 57 x 15mm/2.2" x 0.6"(L*W);Total Size (Approx.) 68 x 22 x 88mm/ 2.7" x 0.9" x 3.5"(L*W*H);Color Black, Gray

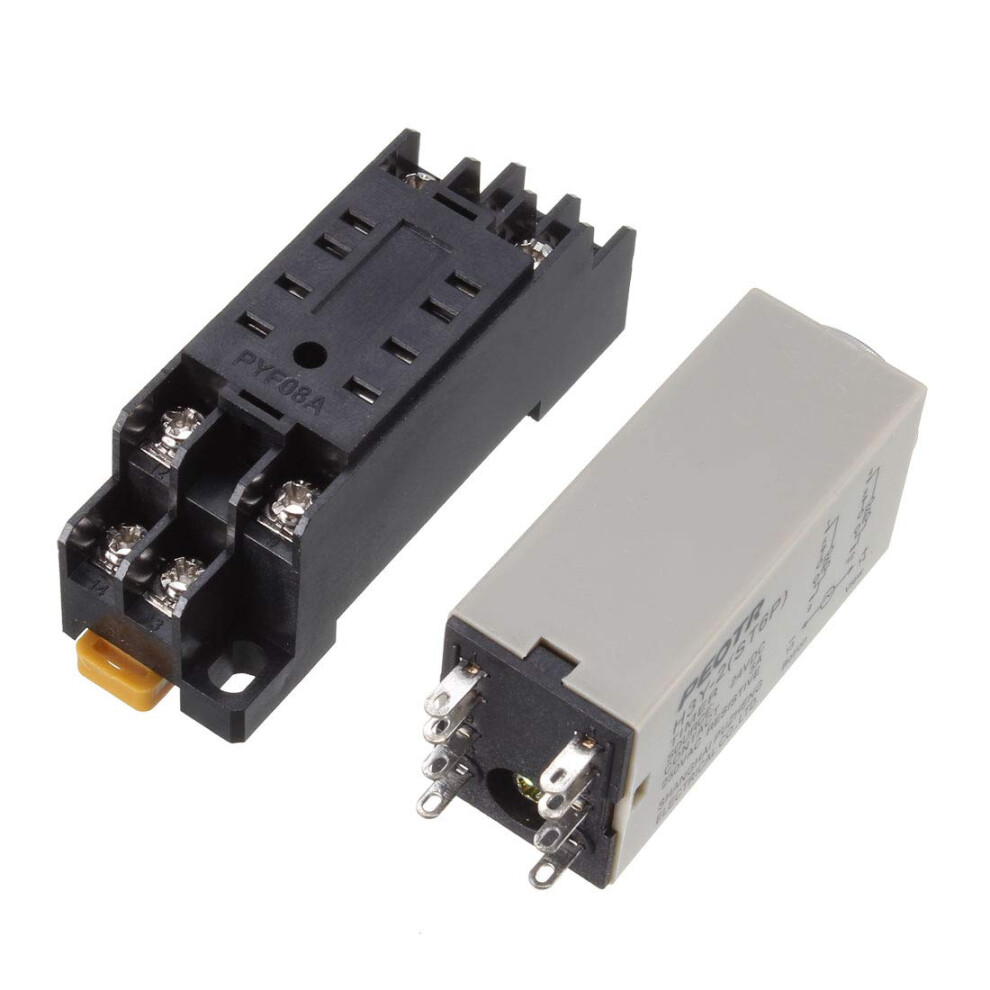

• Net Weight 67g;Package Content 1 x Time Relay,1 x Socket

Product Description Description

Power on delay, plus timing. With large transparent time setting knob for setting time easily, 8 pin solder terminal for installation. Time Delay Relay used in industrial automation system and mechanical equipment to delay component. Relay is a kind of automatic electric switch, when supply with an input value, like electric, magnetic, light or thermal signal, it wall transfer the controlled circuit automatically and make an abrupt change, when the input value decreased to certain degree, it will resume to former state and make the controlled circuit back to the former stare. Features LED indicator show power and output status.

Specifications Item Weight0.01 Ounces
