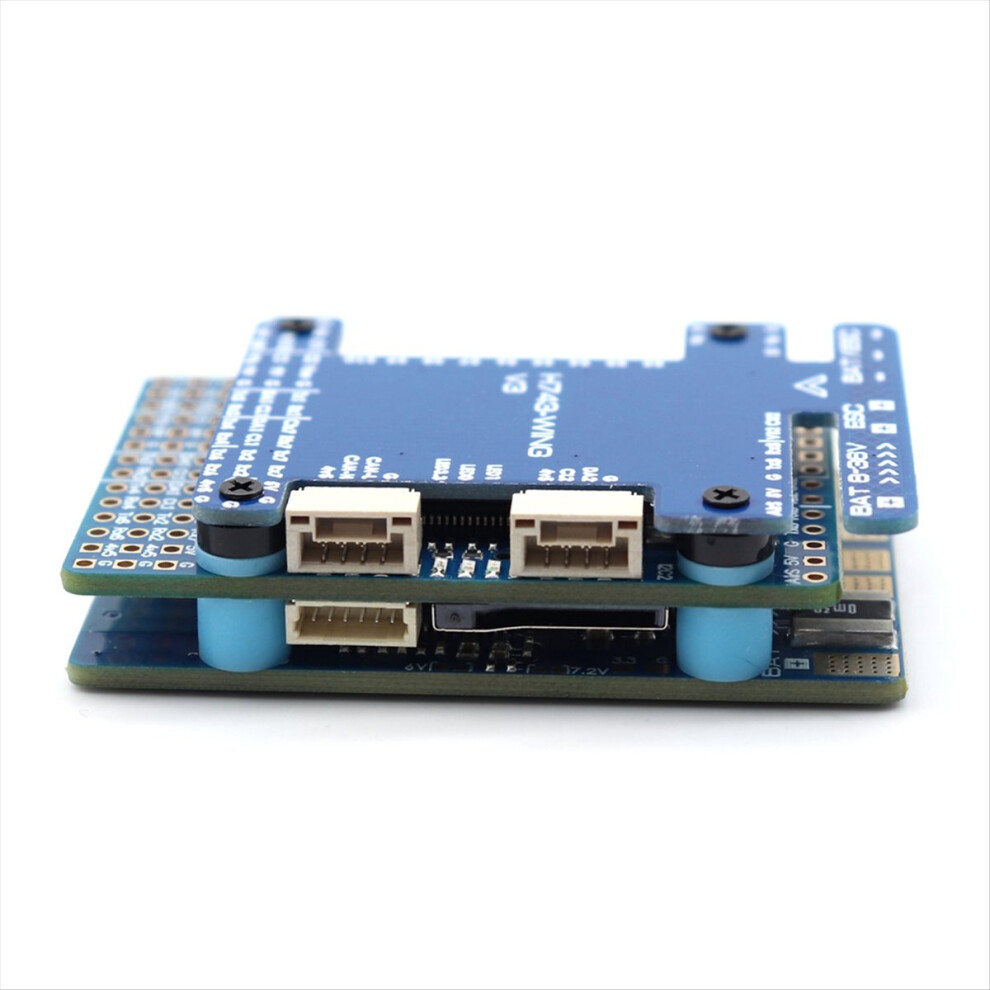

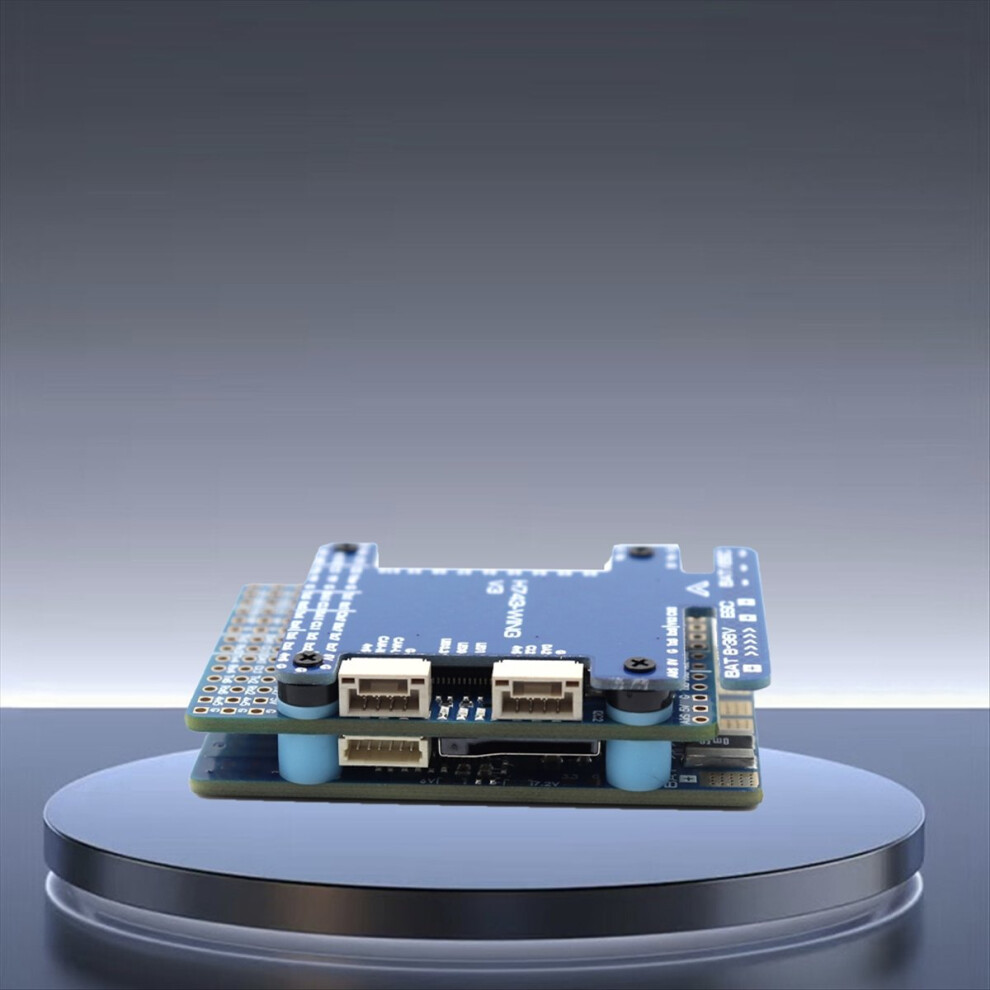

H743-WING V3 Flight Controller DPS310 ICM42688 for INAV RC FPV Airplane for Fixed Wing Drones

H743-WING V3 Flight Controller DPS310 ICM42688 for INAV RC FPV Airplane for Fixed Wing Drones Description

Specifications
MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
IMC: 42688-P (SPI1) & ICM42688 (SPI4)
Baro: DPS310 (I2C2)
OSD: AT7456E (SPI2)

: MicroSD card slot (SDIO)
7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
13x PWM outputs(including "LED" pad)
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
1x SPI3 breakout

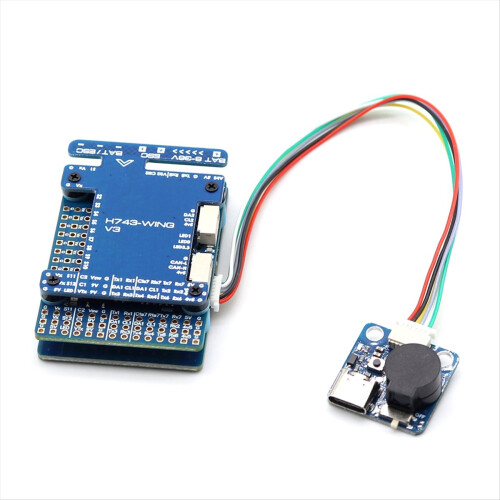

USB/Beep Extender with Type-C(USB2.0)
Dual Camera Inputs switch
5V/9V(12V) for Camera/VTX power switch
High-precision Current Sense (90A continuous, 220A )
Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in )
ADC VB2 voltage divider: 1K:20K
ADC AirSpeed voltage divider: 20K:20K
Static power 160mA@5V
(The product printed words depending on the batch, but this does not affect use)
FC Firmware
(ChiBiOS): MATEKH743
INAV: MATEKH743
Input voltage range: 8~36V (3~8S LiPo) w/ protection
2x ESC power pads
Current Senor: 220A, 3.3V ADC (Scale 150 in INAV, 66.7 A/V in )
Sense resistor: 90A continuous, 220A .
Designed for Video Transmitter, Camera, Gimbal .
Color: As Shown
Material: PCB

Package Contents:
1 x H743-WING V3 Flight Controller kits

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
