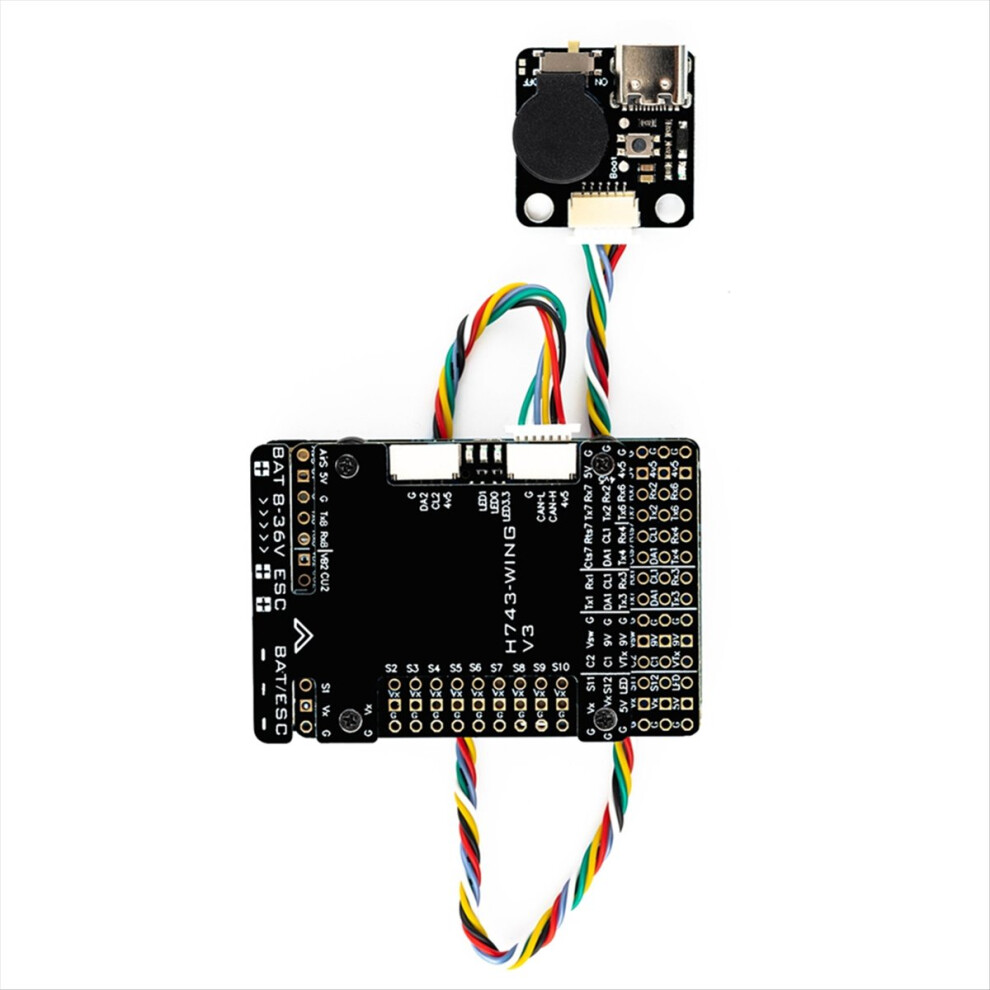

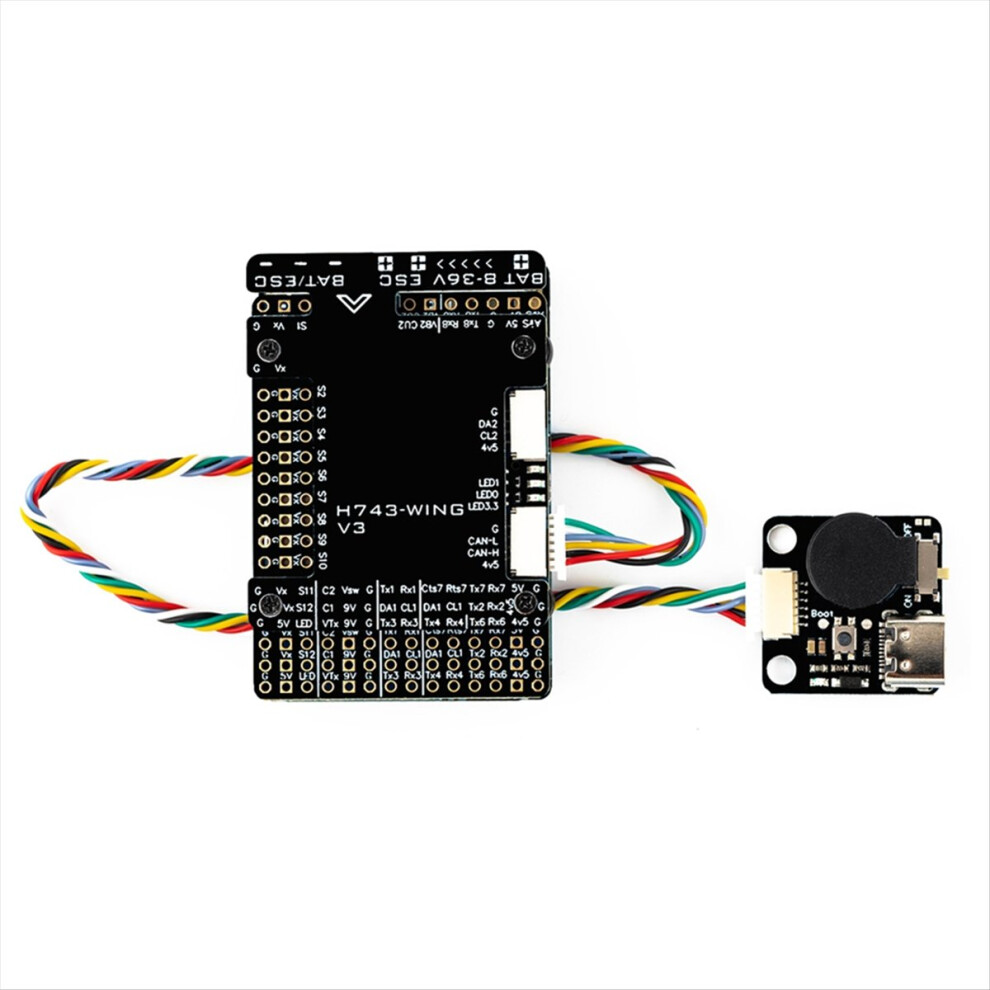

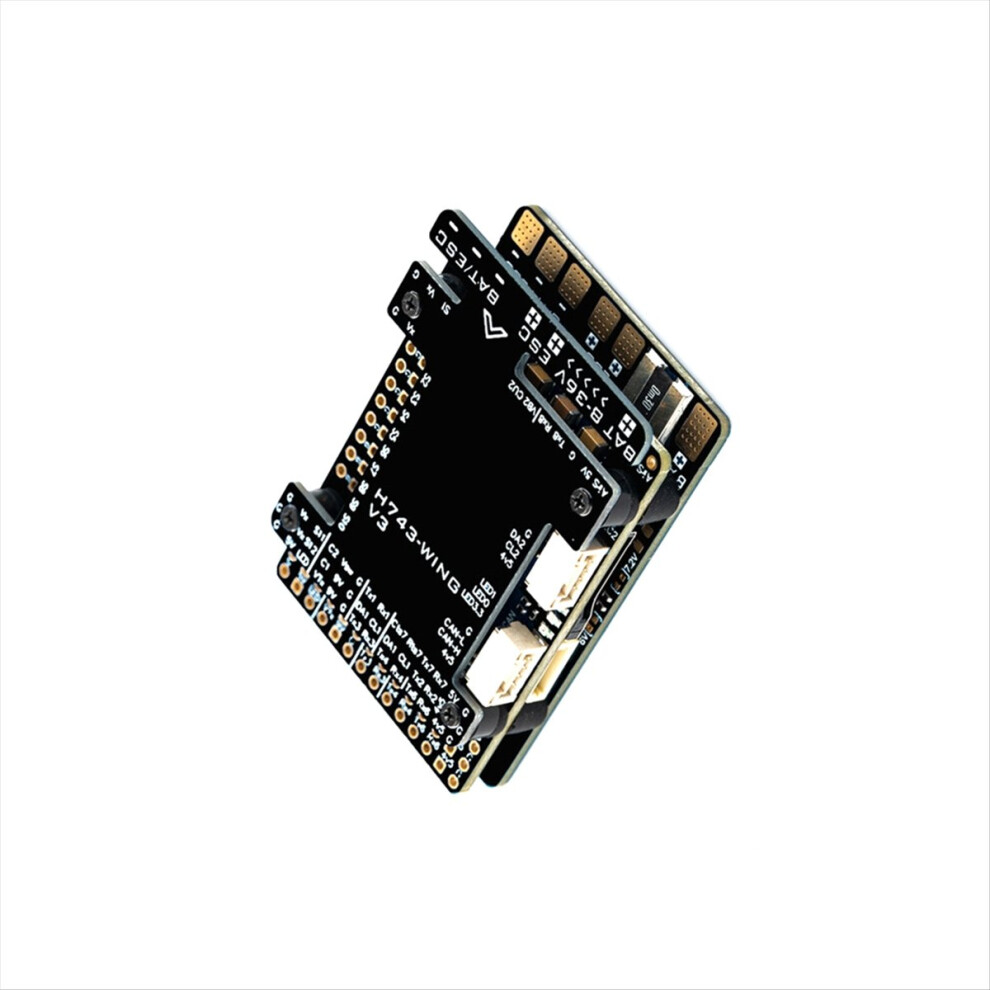

H743-WING V3 INAV 3-8S H743 Fixed High Barometer Sensor Wing Flight Controller for RC Drone FPV

H743-WING V3 INAV 3-8S H743 Fixed High Barometer Sensor Wing Flight Controller for RC Drone FPV Description

controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, for AirSpeed
Linear Regulator
Voltage adjustable, 5V Default, 6V or 7.2V via jumper
Continuous current 2 Amps, 3A

MCU: STM32H743VIT6, 480MHz , 1MB RAM, 2MB Flash
IMU: ICM42688-P(V3) & ICM42605 (SPI4)
Baro: DPS310 (I2C2)
OSD: AT7456E (SPI2)
: Micro-SD card slot (SDIO)
7x Uarts (1,2,3,4,6,7,8) with built-in inversion.
13x PWM outputs(including "LED" pad)
2x
1x CAN
6x ADC (VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2)
3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
USB/Beep Extender with Type-C(USB2.0)
Dual Camera Inputs switch
5V/9V(12V) for Camera/VTX power switch
High- Current Sense (90A continuous, 220A )
Battery Voltage Sensor: 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in )
ADC VB2 voltage divider: 1K:20K
ADC AirSpeed voltage divider: 20K:20K
Static power 160mA 5V
for (ChiBiOS): MATEKH743
for INAV: MATEKH743
Input voltage range: 8-36V (3-8S LiPo) with protection
The product appearance and printed words depending on the batch, but this does not affect use
Colour:As Shown
Material:PCB

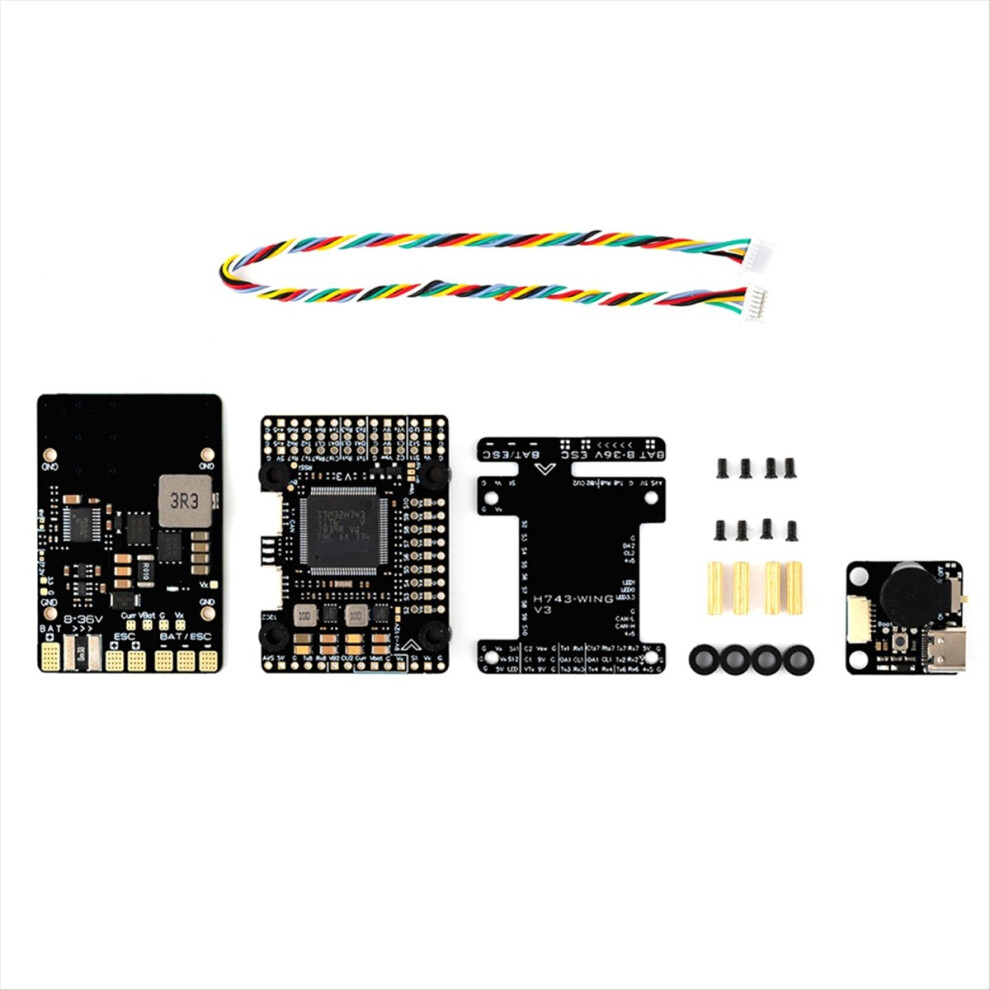

Package Contents:
1set x flight controller accessories

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
