HA01 Solar Battery Voltage Equalizer for 24V Lead-Acid Gel Balancer Stable System

HA01 Solar Battery Voltage Equalizer for 24V Lead-Acid Gel Balancer Stable System Description

1.100% new
2.The battery equalizer equalize/balance the battery voltage when it detect there are 20mv between two batteris
3.Reverse polarity protection, Low Voltage Disconnect to Provide longer Battery Life Time
4.Can be connected in series or in parallel for a long time in the battery, so as to automatically maintain the balance of the battery state.
5.Suitable for in autos, boats, golf carts, motorcycles, solar, trucks, RV's, electric forklift batteries, and any other battery groups Configuration.
Specificattion:
Battery nominal voltage :24V
Optimizing current :0-5A
Quiescent current less than 3mA
Low voltage disconnect :10V
Installation:

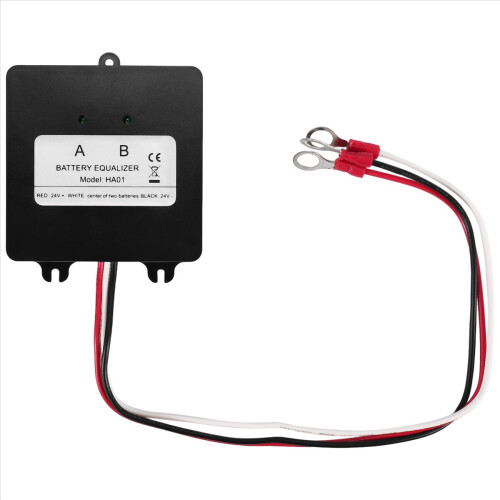

Please connect the battery equalizer to battery as follows:
1.Redcable:BattertBpositive/+pole
2.Blackcable:BatteryAnegative/-pole
3.White cable:Battery B negative pole or Battery A positive pole
(The pole which connected Battery A and Battery Bin series
colour: black
Material: plastic
size: 70x70x27 mm
Package Contents:
1X24V Battery equalizer
Only the above package content, other products are not included.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
