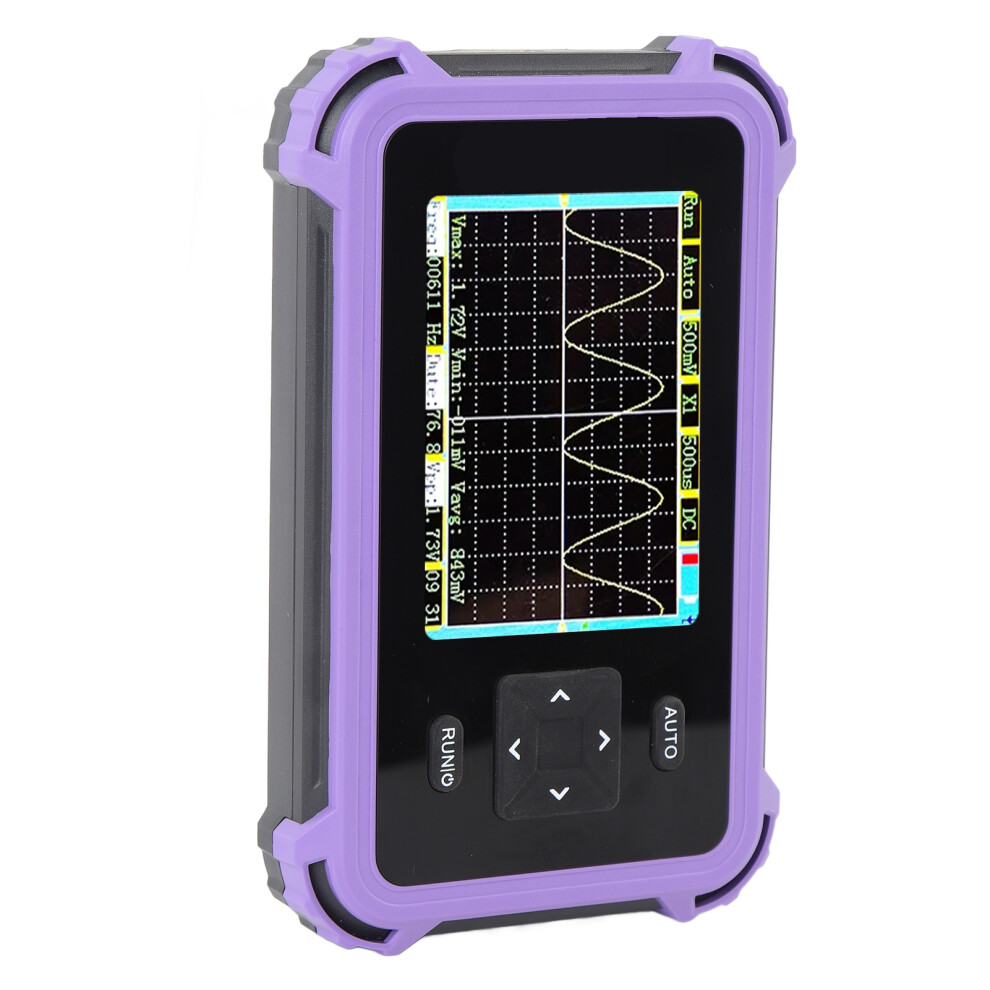

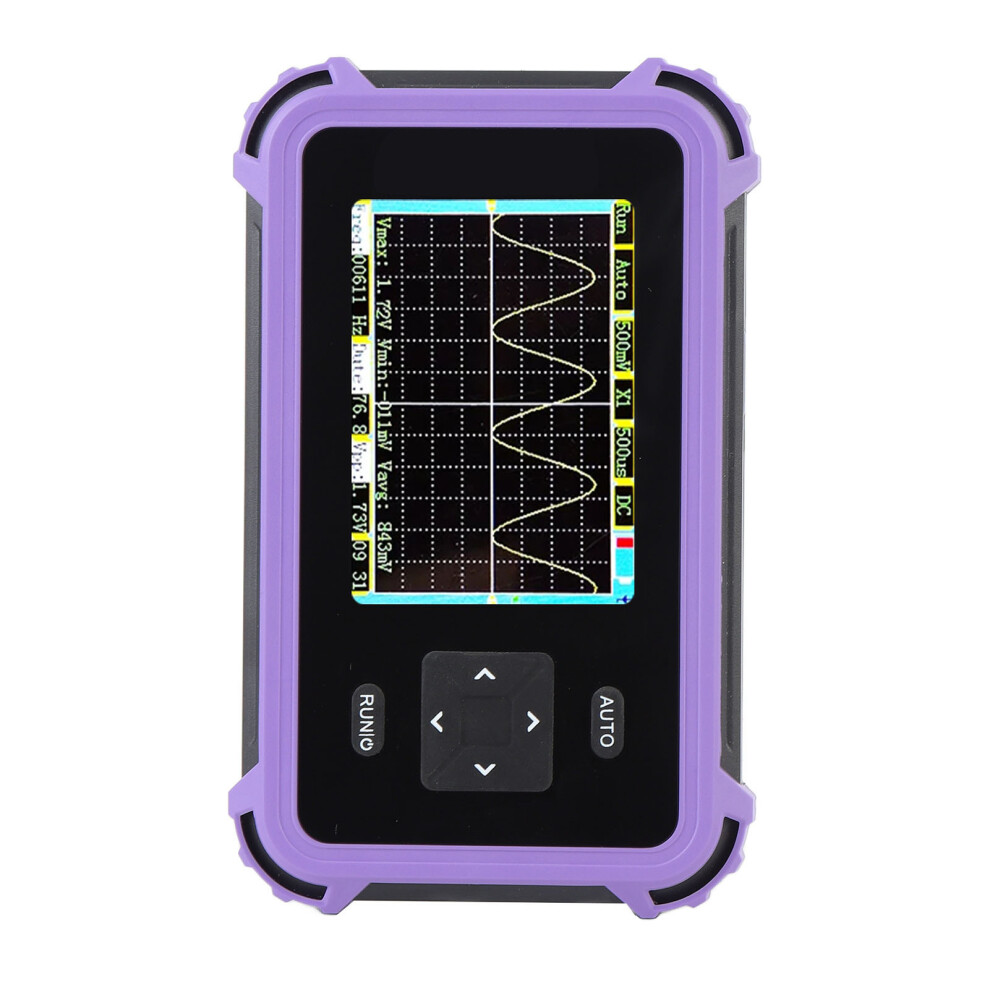

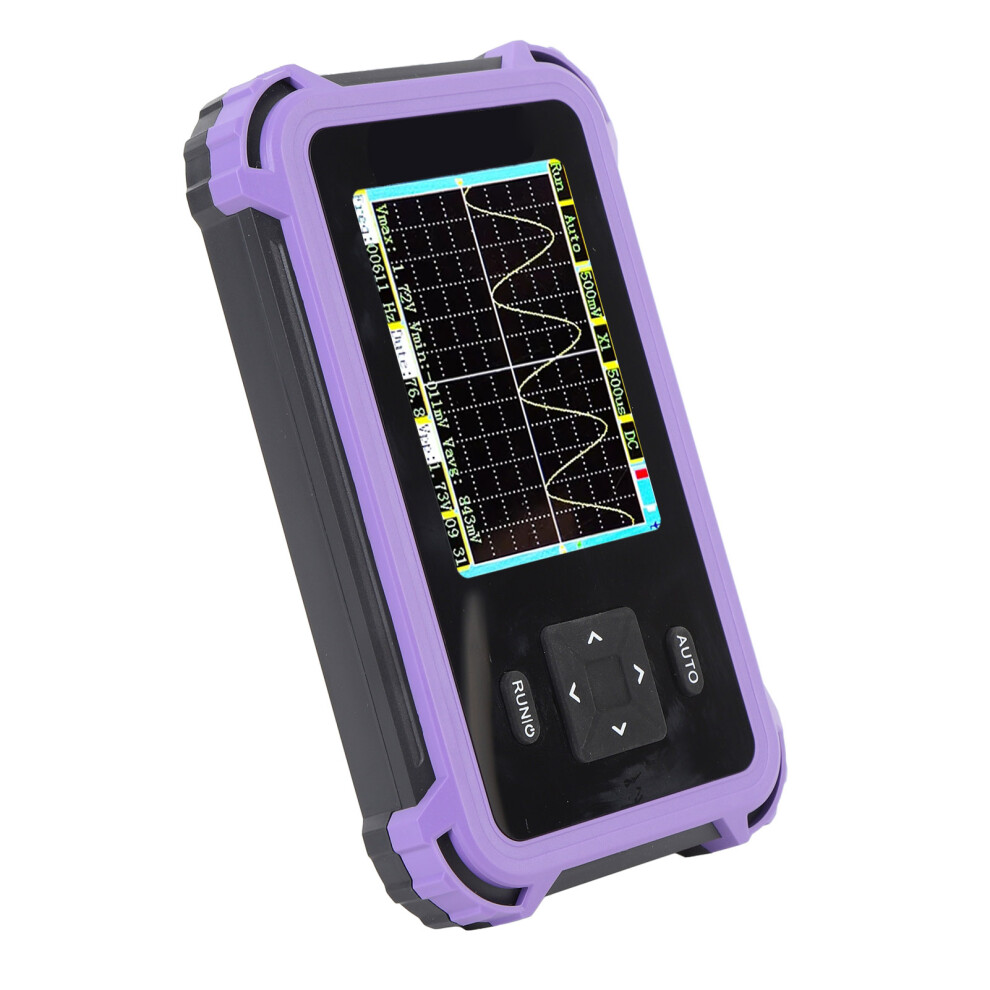

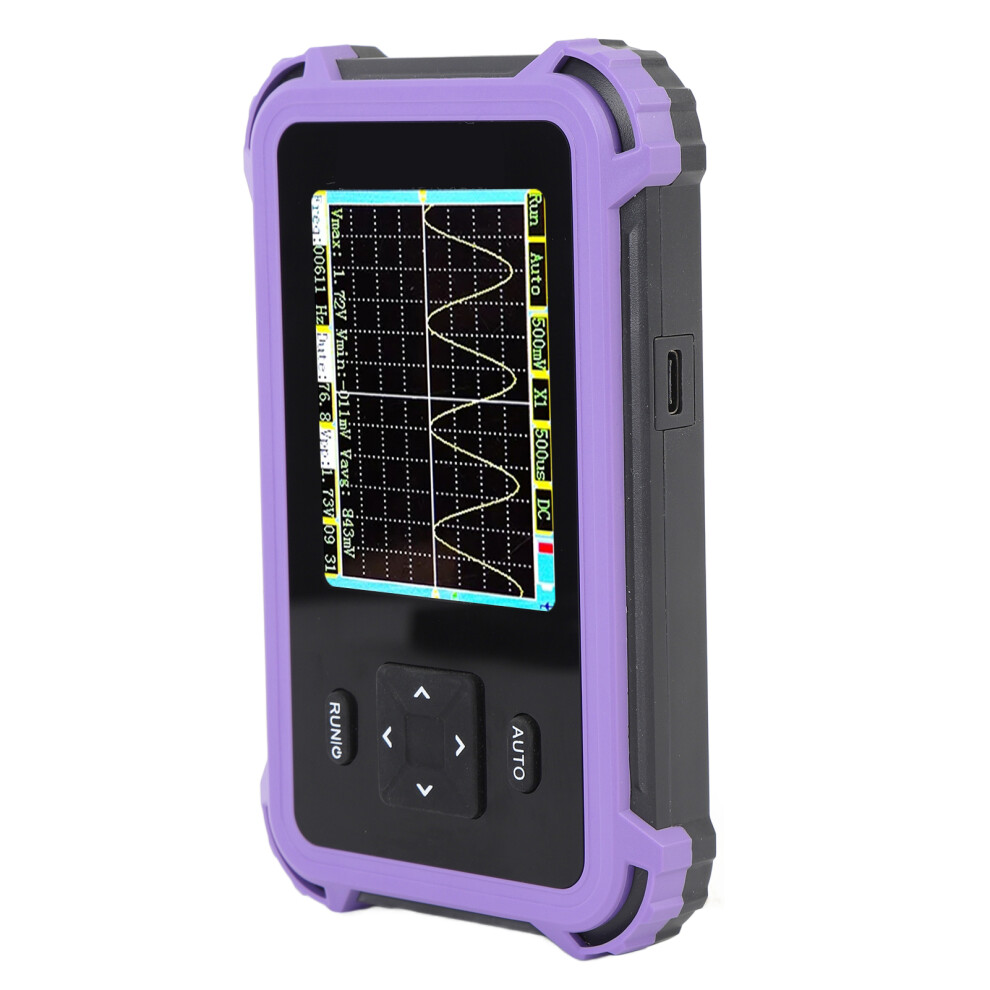

Handheld Digital Oscilloscope 1MHz 8.33MSa/s 800VPP 2.8in Screen

Handheld Digital Oscilloscope 1MHz 8.33MSa/s 800VPP 2.8in Screen Description

1、HD Display: Equipped with a 2.8 inch high resolution color screen, this digital oscilloscope offers an exceptional user experience in a compact, pocket sized design for portability. 2、Rapid Sampling Rate: With an average sampling rate of 8.33MSa/S and a bandwidth of 1MHz, our oscilloscope ensures accurate and detailed waveform representation for all your measurements. 3、Versatile Triggering Options: This oscilloscope features complete triggering capabilities single, normal, and auto modes, allowing you to analyze periodic analog and digital signals effectively in any situation. 4、High Voltage Measurement Capability: Capable of measuring voltage signals up to 400V, this oscilloscope is suitable for testing a variety of electrical components and systems safely and efficiently. 5、Efficient One Touch Measurements: Featuring a high efficiency 1 touch automatic measurement function, our oscilloscope delivers waveform measurement results instantly, eliminating the need for complex adjustments. 6、Simple Probe Calibration: Utilizing a 1KHz calibration square wave, this oscilloscope allows for easy and convenient probe calibration, ensuring dependable measurements every time you use it.
Item Type: Handheld Digital Oscilloscope
Sampling Rate: 8.33MSa/s
Bandwidth: 1MHz
Vertical Sensitivity: 10mV/Div - 10V/Div
Time Base Range: 3us - 10s
Voltage Range:
X1: 40V (VPP: 80V)
X10: 400V (VPP: 800V)
Trigger Mode: Auto, Timing, Single
Trigger Edging: Rising Edging, Falling Edging
Coupling Mode: AC DC
Screen Size: 2.8 inch 320x240
USB Charging: 5V 1A
Battery: Rechargeable Li Battery 1200mAh x 1 [Shipped with built in battery]

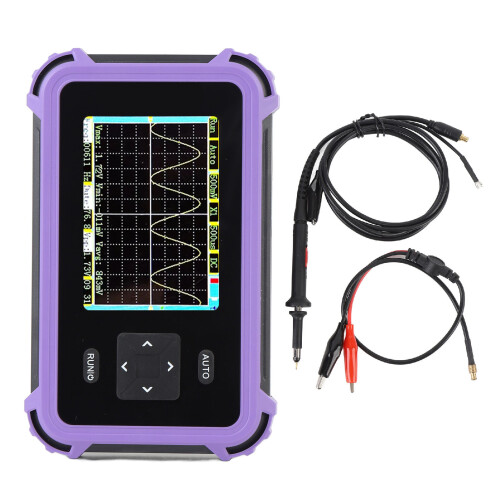

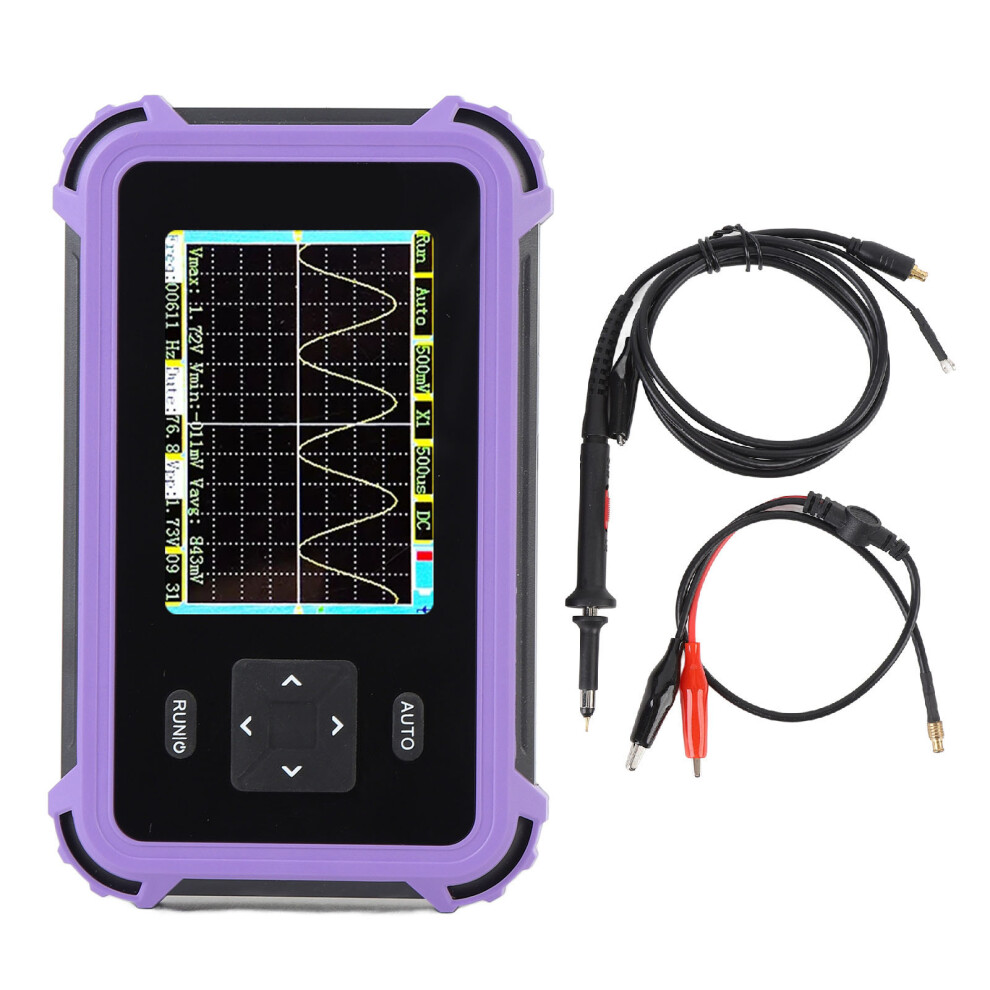

1 x Oscilloscope
1 x Test Clip
1 x Test Probe
1 x Instruction Manual
