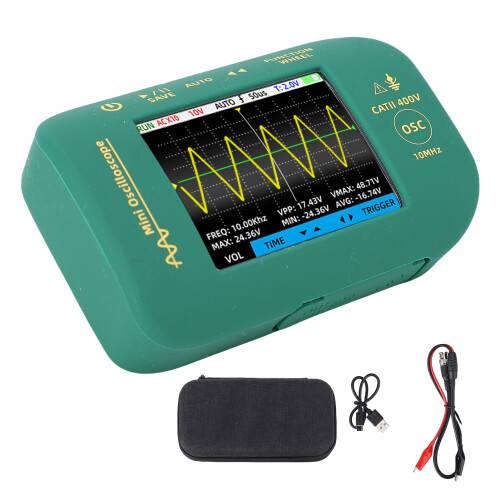

Handheld Digital Oscilloscope 2.8" LCD 10MHz 48MSa/s Portable

Handheld Digital Oscilloscope 2.8" LCD 10MHz 48MSa/s Portable Description

1、[2.8 Inch LCD Display] This handheld digital oscilloscope features a 2.8 inch color LCD screen, provides a clear and intuitive menu interface, allowing users to easily control. 2、[Precise Measurements] Equipped with intelligent chip, the digital oscilloscope delivers precise and quick measurements, ensuring reassuring results. 3、[Easy Control] You can easily control waveform data with just one key, manage the oscilloscope with ease, and connect it to a PC through a USB cable. 4、[Wide Range] Support a wider range of waveforms, automatically identify waveform types (sine waveform or square waveform), and adjust control modes to accurately display the waveform of the input signal. 5、[Compact and Lightweight] The digital oscilloscope is exquisite and compact, easy to carry, lightweight and convenient to hold, easy to put in pockets or tool bag.
Item Type: Handheld Digital Oscilloscope
Material: ABS
Bandwidth: 10MHz, single channel real time sampling
Sampling Mode: Real time sampling
Sampling Rate: 48MSa/s
Channel: 1
Input Coupling: DC AC
Input Impedance: 1MΩ at 16pF
Probe Attenuation: X1, X10
Maximum Input Voltage: X1: 40V, X10: 400V (DC+AC peak)
Horizontal:
Magnification Factor Range: 1.5Sa/s-48MSa/s
Peak Interpolation: (sinx)x
Sweep Frequency Range: 100ns/Div-20s/Div
Time Base Accuracy: 20ppm
Storage Depth: 128kbyte
Vertical:
Sensitivity: 20mv/Div-10v/Div
Displacement Range: 4 squares (plus or minus)
Analog Bandwidth: 10MHz
Frequency Response: 100ns
DC Gain Accuracy: 3%
Triggering:
Triggering Mode: Auto, Normal, Single
Triggering Edges: Rising edges, falling edges
Battery: Rechargeable lithium cell 1800mAh x 1 (built in)
1 x Handheld Digital Oscilloscope
1 x Test Clamp
1 x USB Cable
1 x User Manual
1 x Carrying Bag
