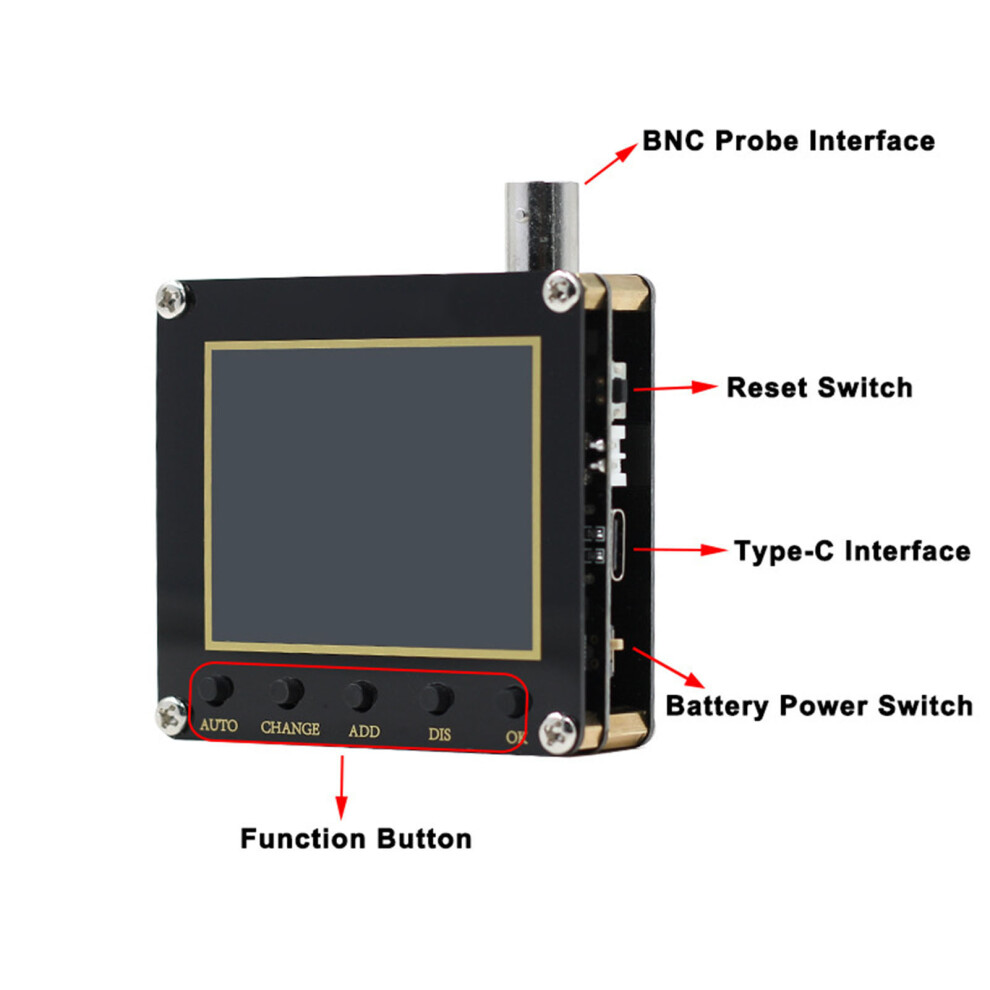

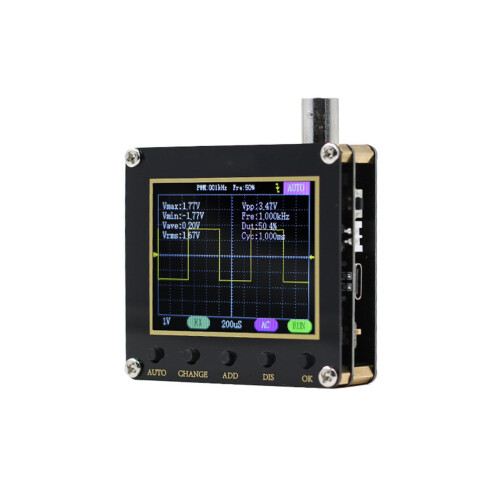

Handheld Oscilloscope 2.4in Display Digital Signal Waveform

Handheld Oscilloscope 2.4in Display Digital Signal Waveform Description

1、Quick in Sampling: The digital oscilloscope has 2.5MS/s real time sampling rate, 200KHz bandwidth, 80KHz PWM, and complete trigger function. Equipped with efficient one button AUTO, the measured waveform can be displayed without complicated adjustment. 2、Wide Detect Range: Can be freely used for periodic analog signals and non periodic digital signals, and can measure voltages up to 400V. 3、Clear LCD Display: The portable oscilloscope is equipped with a 2.4in high definition LCD screen with a resolution of 320 x 240, small size and strong anti overload capability. 4、Long Battery Life: The built in 1250mAh lithium battery can be used continuously for about 4 hours after being fully charged. It can also be used when charging, very convenient. 5、Wider Application: Very suitable for personnel in maintenance industry and R and D education industry. Highly practical oscilloscope can meet your daily test needs.
Item Type: Digital Oscilloscope
Model: 138PRO
Material: PCB
Power Supply: Built in lithium battery 1250mAh.
Sampling Rate: 2.5MS/S
Bandwidth: 200KHZ
Trigger Mode: AUTO, Normal, Single.
Coupling Mode: AC DC
PWM Output: Duty ratio 0-100.0%

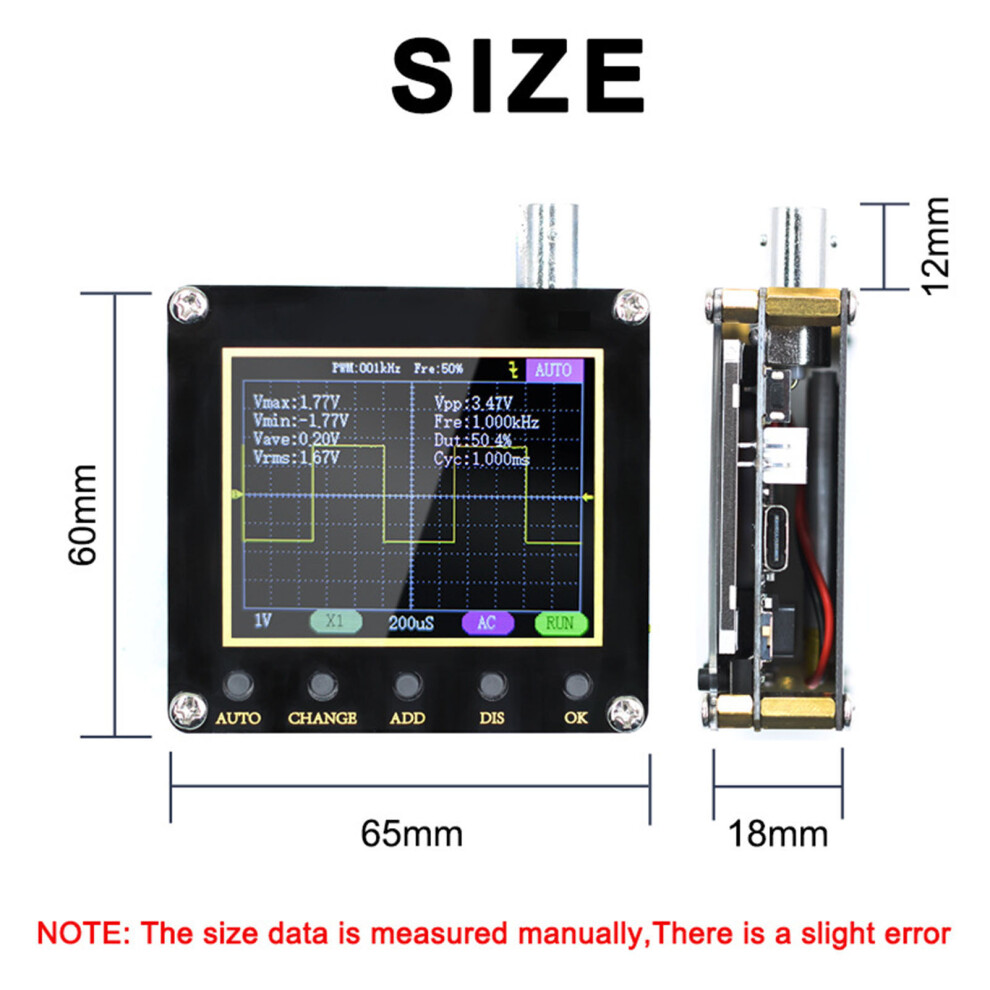

Display: 2.4in display, 320 x 240 resolution.
1 x Digital Oscilloscope
1 x Cable with Crocodile Clip
1 x P1600 Cable
1 x Accessory
1 x USB Charging Cable
