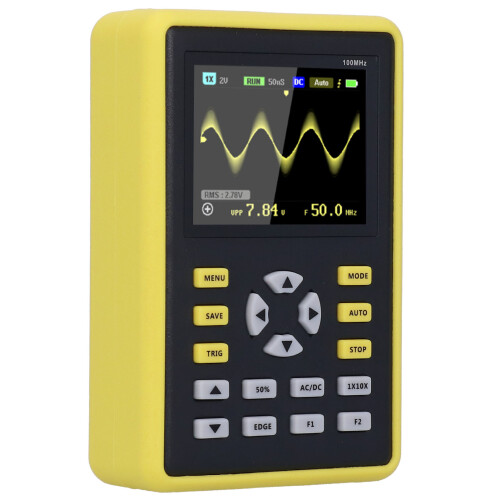

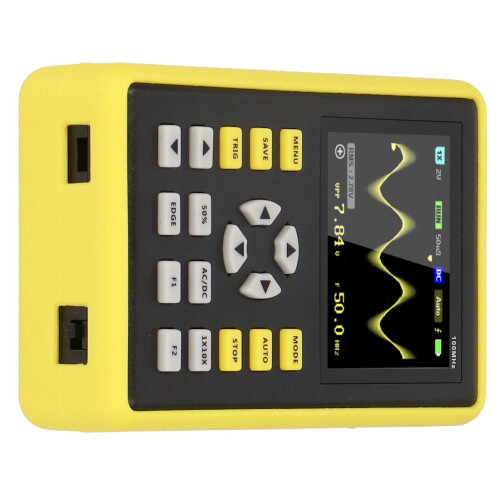

Handheld Oscilloscope 2.4inch 100MHz 500MS/s 5012H

Handheld Oscilloscope 2.4inch 100MHz 500MS/s 5012H Description

1、There are 3 trigger modes: automatic, single, and normal. The single trigger mode tests unexpected non‑periodic signals, such as car ignition signals. 2、Normal trigger mode tests digital logic signals, such as infrared remote control signals. 3、Automatic trigger mode tests periodic analog signals, such as sinusoidal signals; a wide range of applications. 4、100MHz bandwidth is almost omnipotent in the field of electrical signal measurement, for amplifiers, oscillators, automatic control systems, DC/DC conversion, inverter systems, switching power supplies, etc. 5、Engineering debugging tool: used for DIY production, inverter circuit, switching power supply, oscillation circuit, PWM drive, communication circuit, power amplifier circuit, mains measurement, bus circuit, etc. 6、A wide range of applications, multiple fields, electronic production, home appliance repair, automobile repair, equipment debugging, scientific research and education, product development, etc.
Item Type: Digital Oscilloscope
Product Material: ABS
Product Color: Yellow
Charging: 5V 1A/2A/3A/4A
The Highest Test Voltage: 1 x 80V 10 x 800V
LCD Screen Size: Approx. 6.1cm / 2.4in
LCD Resolution: 320 x 240
Display Technology: TFT
Built-in Battery: Lithium battery 5000mAh
Bandwidth: 100MHz
Sampling Rate: 500MS/ s
Standby Time: 8 hours standby
External Trigger Voltage: 0-80V

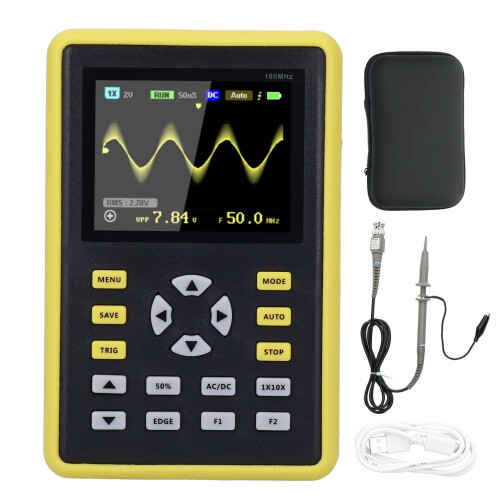

1 x Oscilloscope Host
1 x Matched 100MHz Probe (1X and 10X)
1 x USB Data Cable
1 x User Manual (English)
1 x Box
